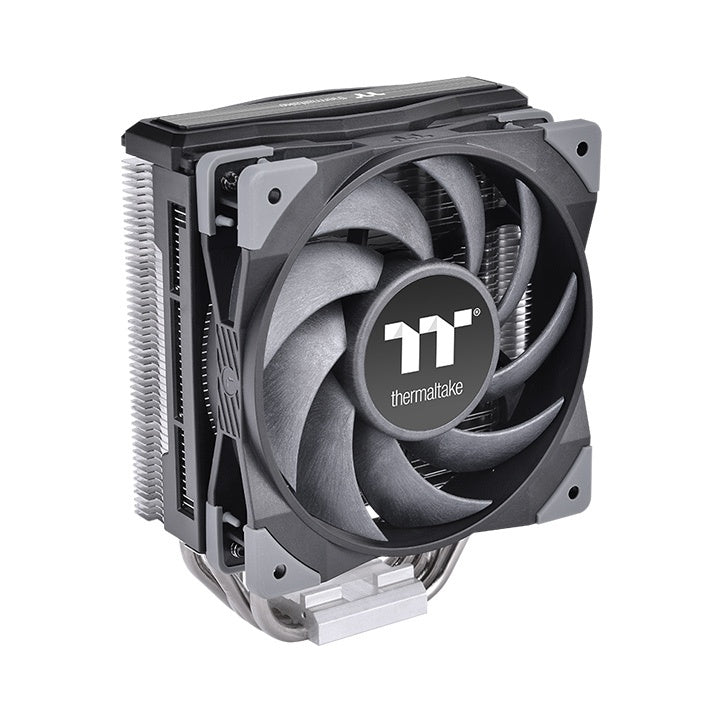

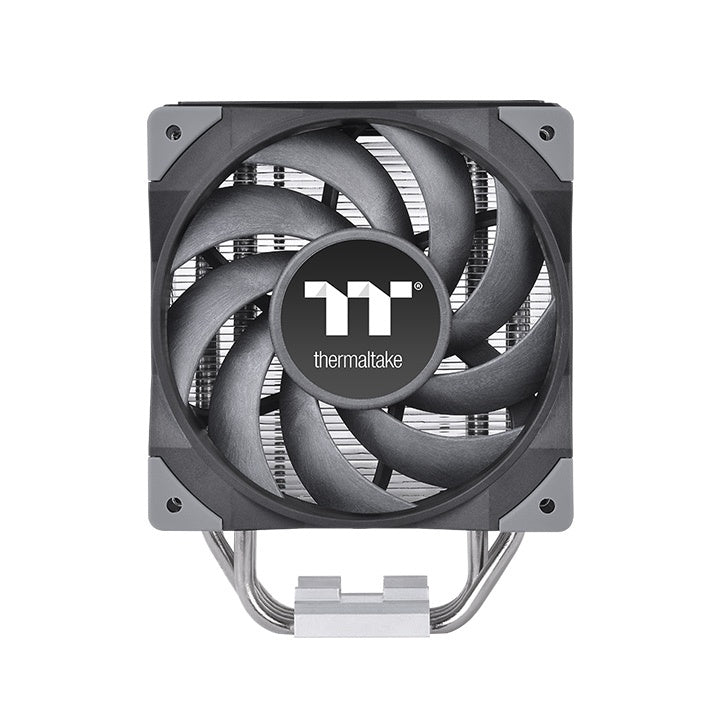

Thermaltake TOUGHAIR 510 120mm PWM Fan CPU Cooler

Single Tower Dual Fan Design

TOUGHAIR 510 is a single tower duel fan designed air cooler with 4 heat pipes running through the fins, the U-shape heat pipes increase heat circulation creating better heat dissipation in your system and supports up to 180W.

Enhanced 120 mm high static pressure Fan

TOUGHAIR series utilizes high static pressure fans, which leverages the TOUGHFAN 12 design and boosts the fan speed to 2000 RPM, providing a new level of cooling performance to our CPU cooler.

Asymmetric Fin Structure

The fin is designed with an asymmetric structure that allows larger air intake through the fins. This design lowers the air turbulence and straightens out the airflow making it easier to disperse heat from the fins, delivering superb cooling performance.

High-Performance U-shape copper heat pipes

4 x Ø6 mm heat pipes directly touch the CPU and thermal paste. The U-shape design creates perfect circulation for better CPU cooling performance.

Universal Compatibility

TOUGHAIR Series are designed to fit Intel and AMD sockets including the following models:
Intel LGA 1200/1156/1155/1151/1150
AMD AM4/AM3+/AM3/AM2+/AM2/FM2/FM1

Specifications

• P/N: CL-P075-AL12BL-A
• COMPATIBILITY
  • Intel LGA 1200/1156/1155/1151/1150
  • AMD AM4/AM3+/AM3/AM2+/AM2/FM2/FM1
• DIMENSIONS: 123.6 x 98.8 x 159.5 mm ( L x W x H)
• HEATSINK MATERIAL: Aluminum Fins
• Copper Heatpipes: Φ6mm x 4 pcs
• FAN DIMENSION: 120 x 120 x 25 mm ( L x W x H)
• FAN QUANTITY: 2 pcs
• FAN SPEED: PWM 500 ~ 2000 RPM
• RATED VOLTAGE: 12V
• START VOLTAGE: 6.0 V
• RATED CURRENT: 0.48 A
• POWER INPUT: 5.76 W (one fan )
• AIR FLOW: 58.35 CFM (one fan )
• AIR PRESSURE: 2.41 mm-H2O (one fan)
• ACOUSTICAL NOISE: 23.6 dBA
• FAN LIFE TIME: 40,000 hours
• PIN CONNECT: 2510 - 4Pin
• COOLING POWER: 180 W
