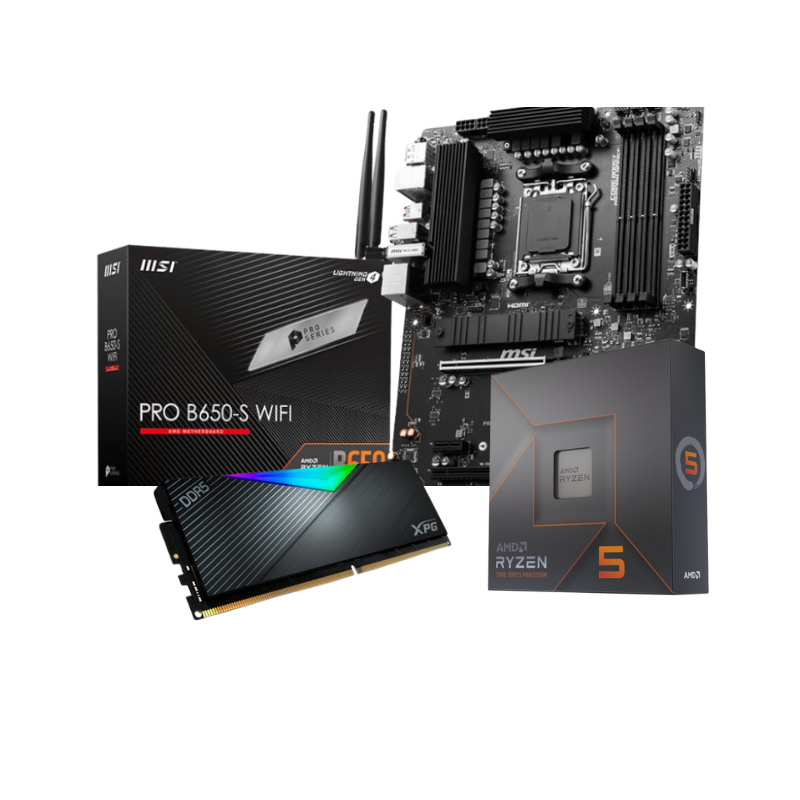

Ryzen 5 7600X / MSI PRO B650 S WIFI AMD AM5 ATX Gaming Motherboard / Adata XPG LANCER RGB 16GB(1x16GB) DDR5-5200MHz

Ryzen 5 7600X

FEATURES:

• Boost Clock up to 5.3GHz
• 6 Cores / 12 Threads
• Latest AM5 Platform
• PCIe 5.0 and DDR5 Support
• AMD Radeon™ Graphics
• AMD EXPO™ Technology
• AMD Ryzen™ Technologies

SPECIFICATIONS:

• Platform: Desktop
• Product Family: AMD Ryzen™ Processors
• Product Line: AMD Ryzen™ 5 Desktop Processors
• # of CPU Cores: 6
• # of Threads: 12
• Max. Boost Clock: Up to 5.3GHz
• Base Clock: 4.7GHz
• Graphics Model: AMD Radeon™ Graphics
• Graphics Core Count: 2
• Graphics Frequency: 2200 MHz
• GPU Base: 400 MHz
• L1 Cache: 384KB
• L2 Cache: 6MB
• L3 Cache: 32MB
• Default TDP: 105W
• Processor Technology for CPU Cores: TSMC 5nm FinFET
• Unlocked for Overclocking: Yes
• CPU Socket: AM5
• Thermal Solution (PIB): Not included
• Max. Operating Temperature (Tjmax): 95°C
• OS Support:
  • Windows 11 – 64-Bit Edition
  • Windows 10 – 64-Bit Edition
  • RHEL x86 64-Bit
  • Ubuntu x86 64-Bit
  • Operating System (OS) support will vary by manufacturer.

MSI PRO B650 S WIFI AMD AM5 ATX Gaming Motherboard

FEATURES:

• Supports AMD Ryzen™ 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)
• Enhanced Power Design: 12+2 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost
• Premium Thermal Solution: MOSFET thermal pads rated for 7W/mK and M.2 Shield Frozr are built for high-performance system and non-stop work
• High-Quality PCB: 6-layer PCB made by 2oz thickened copper
• Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2×2
• 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST: Reward your ears with studio-grade sound quality for the most immersive gaming experience

SPECIFICATIONS:

• Socket: AMD Socket AM5
• CPU: Supports AMD RyzenTM 7000 Series Desktop Processors
• Chipset: AMD B650
• DDR5 Memory: 7200+(OC)/ 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC) MHz
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 192
• PCI-E 4.0 x16: 2
• PCI-E 3.0: 1
• M.2 Slot: 2
• SATA 6G: 4
• RAID: 0/1
• Wi-Fi and Bluetooth: Intel® Wi-Fi 6E / Bluetooth 5.3
• USB 3.2 ports (Front): 1(Gen 2, Type C), 2(Gen 1, Type A)
• USB 3.2 ports (Rear): 1(Gen 2, Type C), 4(Gen 2, Type A)
• USB 2.0 ports (Front): 4
• USB 2.0 ports (Rear): 4 (Type-A)
• Audio ports (Rear): Realtek® ALC897 Codec
• HDMI: 1
• DisplayPort: 1
• DirectX: 12
• Form Factor: ATX
• Operating System: Support for Windows® 10 64-bit/11 64-bit
• Product Dimensions: 24.3 x 30.4 cm

Adata XPG LANCER RGB 16GB(1x16GB) DDR5-5200MHz

SPECIFICATIONS:

- 16GB(1x16GB)
- DDR5-5200MHz
- 1.25V
- CL38
- 288-pin DIMM
- Intel XMP 3.0 Support
- AMD EXPO Support
- Single Channel Kit
- ECC Error Correction
- PMIC for Power Supply Stability
- Customizable RGB Lighting Effects
- Limited Lifetime Warranty
