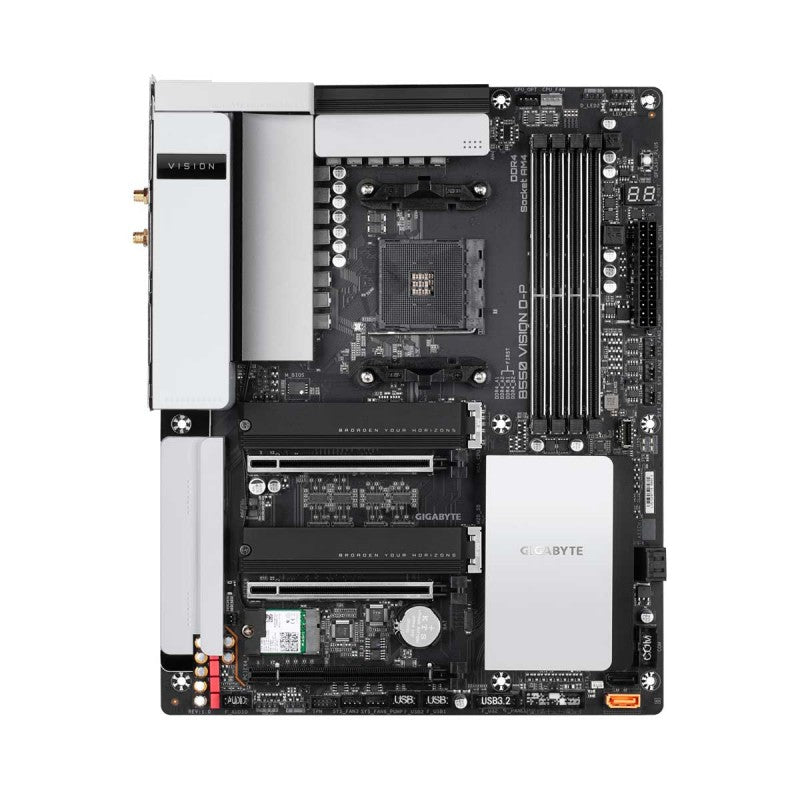

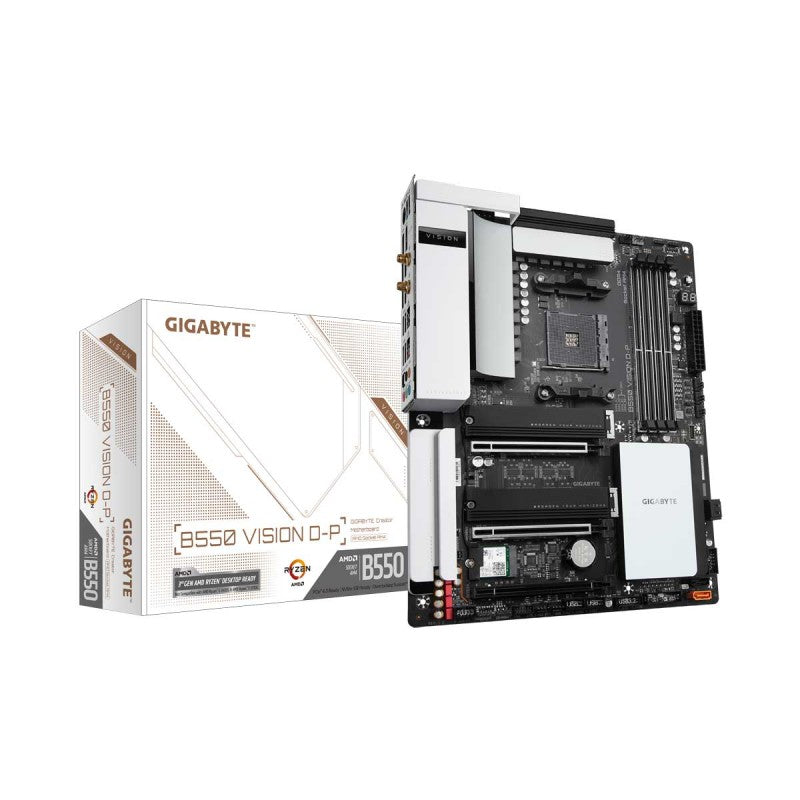

Gigabyte B550 VISION D-P AMD B550 Socket AM4 ATX Desktop Motherboard
Gigabyte B550 VISION D-P AMD B550 Socket AM4 ATX Desktop Motherboard
Regular price
R 7,699.00
Regular price
Sale price
R 7,699.00
Unit price
/
per
SPECIFICATIONS | |
Brand | Gigabyte |
Series | Socket AM4 |
Model | B550 VISION D-P (rev. 1.0) |
CPU | AMD Socket AM4, Support for: AMD Ryzen 5000 Series / 3rd Generation AMD Ryzen Processors / 3rd Generation AMD Ryzen with Radeon Graphics Processors |
Chipset | AMD B550 |
Memory | 4x DDR4 DIMM Sockets Supporting Up to 128 GB (32 GB Single DIMM Capacity) of System Memory |
AMD Ryzen 5000 Series Processors: | |
Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz Memory Modules | |
3rd Gen AMD Ryzen Processors: | |
Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz Memory Modules | |
3rd Gen AMD Ryzen with Radeon Graphics Processors: | |
Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz Memory Modules | |
Dual Channel Memory Architecture | |
Support for ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules | |
Support for Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules | |
Support for Extreme Memory Profile (XMP) Memory Modules | |
On-Board Graphics | Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics Processors+Intel Thunderbolt 3 Controller: |
2x Intel Thunderbolt 3 Connectors (USB Type-C Ports), Supporting DisplayPort and Thunderbolt Video Outputs and a Maximum Resolution of 5120x2880@60 Hz with 24 bpp *1, *2 | |
Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics Processors: | |
1x HDMI Port, Supporting a Maximum Resolution of 4096x2160@60 Hz *3 | |
Maximum Shared Memory of 16 GB | |
Audio | Realtek ALC1220-VB Codec |
(The Back Panel Line Out Jack Supports DSD Audio.) | |
Support for DTS:X Ultra | |
High Definition Audio | |
2/4/5.1/7.1-Channel | |
Support for S/PDIF Out | |
LAN | Intel 2.5GbE LAN Chip (2.5 Gbit/1000 Mbit/100 Mbit) (LAN1) |
Realtek 2.5GbE LAN Chip (2.5 Gbit/1000 Mbit/100 Mbit) (LAN2) | |
Wireless Communication Module | Intel Wi-Fi 6 AX200 |
WIFI a, b, g, n, ac with Wave 2 Features, ax, Supporting 2.4/5 GHz Dual-Band | |
BLUETOOTH 5 | |
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
Expansion Slots | 1x PCI Express x16 Slot (PCIEX16), Integrated in the CPU: *6 |
3rd Generation AMD Ryzen Processors Support PCIe 4.0 x16 Mode | |
3rd Generation AMD Ryzen with Radeon Graphics Processors Support PCIe 3.0 x16 Mode | |
1x PCI Express x16 Slot (PCIEX8), Integrated in the CPU: *7 | |
3rd Generation AMD Ryzen Processors Support PCIe 4.0 x8 Mode | |
3rd Generation AMD Ryzen with Radeon Graphics Processors Support PCIe 3.0 x8 Mode | |
1x PCI Express x16 Slot (PCIEX4), Integrated in the Chipset: *8 | |
Supporting PCIe 3.0 x4 Mode | |
Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire Technologies |
Storage Interface | 1x M.2 Connector (M2A_CPU), Integrated in the CPU, Supporting Socket 3, M Key, Type 2242/2260/2280/22110 SSDs: |
3rd Generation AMD Ryzen Processors Support SATA and PCIe 4.0 x4/x2 SSDs | |
3rd Generation AMD Ryzen with Radeon Graphics Processors Support SATA and PCIe 3.0 x4/x2 SSDs | |
1x M.2 Connector (M2B_SB), Integrated in the Chipset, Supporting Socket 3, M Key, Type 2242/2260/2280/22110 SSDs: | |
Supporting SATA and PCIe 3.0 x4/x2 SSDs | |
4x SATA 6Gb/s Connectors, Integrated in the Chipset: | |
Support for RAID 0, RAID 1, and RAID 10 | |
USB | Integrated in the CPU: |
3x USB 3.2 Gen 1 Ports on the Back Panel | |
1x USB 3.2 Gen 2 Type-A Port (Red) on the Back Panel | |
Chipset+Intel Thunderbolt 3 Controller: | |
2x USB Type-C Ports on the Back Panel, with USB 3.2 Gen 2 Support | |
Chipset: | |
1x USB Type-C Port with USB 3.2 Gen 1 Support, Available Through the Internal USB Header | |
1x USB 3.2 Gen 2 Type-A Port (Red) on the Back Panel | |
2x USB 3.2 Gen 1 Ports Available Through the Internal USB Header | |
1x USB 2.0/1.1 Port on the Back Panel | |
Chipset+2 USB 2.0 Hubs: | |
5x USB 2.0/1.1 Ports (1 Port on the Back Panel, 4 Ports Available Through the Internal USB Headers) | |
Internal I/O Connectors | 1x 24-pin ATX Main Power Connector |
1x 8-pin ATX 12V Power Connector | |
1x CPU Fan Header | |
1x Water Cooling CPU Fan Header | |
4x System Fan Headers *9 | |
2x System Fan/Water Cooling Pump Headers | |
2x Addressable LED Strip Headers | |
2x RGB LED Strip Headers | |
1x CPU Cooler LED Strip/RGB LED Strip Header | |
2x M.2 Socket 3 Connectors | |
4x SATA 6Gb/s Connectors | |
1x SATA DOM Power Connector | |
1x Front Panel Header | |
1x Front Panel Audio Header | |
1x USB Type-C Port, with USB 3.2 Gen 1 Support | |
1x USB 3.2 Gen 1 Header | |
2x USB 2.0/1.1 Headers | |
1x Trusted Platform Module (TPM) Header (2x6 pin, for the GC-TPM2.0_S Module Only) | |
1x Serial Port Header | |
1x Clear CMOS Jumper | |
2x Temperature Sensor Headers | |
1x Q-Flash Plus Button | |

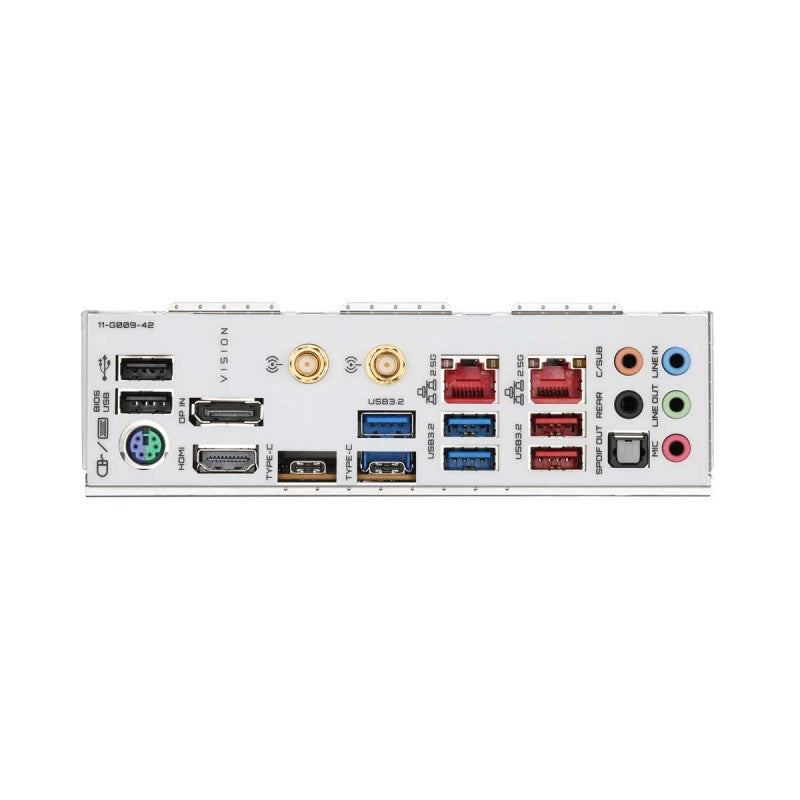

Back Panel Connectors | 1x PS/2 Keyboard/Mouse Port |
1x DisplayPort In Port | |
1x HDMI Port | |
2x SMA Antenna Connectors (2T2R) | |
2x USB 3.2 Gen 2 Type-A Ports (Red) | |
2x Thunderbolt 3 Connectors (USB Type-C Port, with USB 3.2 Gen 2 Support) | |
3x USB 3.2 Gen 1 Ports | |
2x USB 2.0/1.1 Ports | |
2x RJ-45 Ports | |
1x Optical S/PDIF Out Connector | |
5x Audio Jacks | |
I/O Controller | iTE I/O Controller Chip |
H/W Monitoring | Voltage Detection |
Temperature Detection | |
Fan Speed Detection | |
Water Cooling Flow Rate Detection | |
Overheating Warning | |
Fan Fail Warning | |
Fan Speed Control *10 | |
BIOS | 1 x 256 Mbit flash |
Use of Licensed AMI UEFI BIOS | |
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Operating System Support | Windows 10 64-bit |
Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
Notes | *1 Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. |
*2 Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. | |
*3 Support for HDMI 2.1 version, HDCP 2.3, and HDR. | |
*4 The back panel line out jack supports DSD audio. | |
*5 Actual data rate may vary depending on environment and equipment. | |
*6 For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
*7 The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. | |
*8 The PCIEX4 slot shares bandwidth with the M2B_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SB connector. | |
*9 All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. | |
*10 Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
Warranty Information | |
Warranty | 3 Year Warranty |
