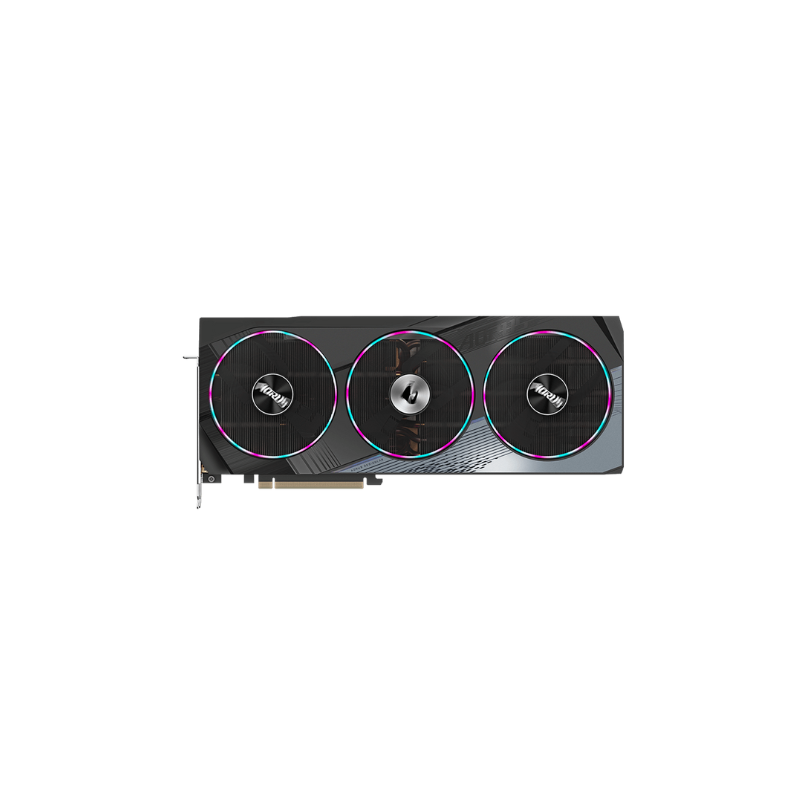

Gigabyte AORUS Radeon RX 7900 XTX ELITE 24GB
Gigabyte AORUS Radeon RX 7900 XTX ELITE 24GB

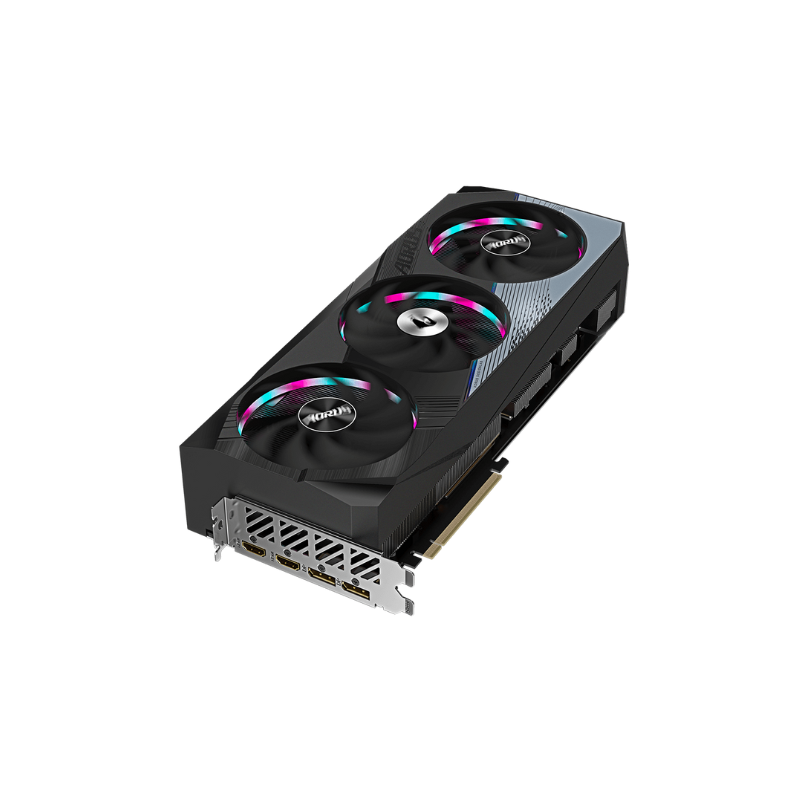

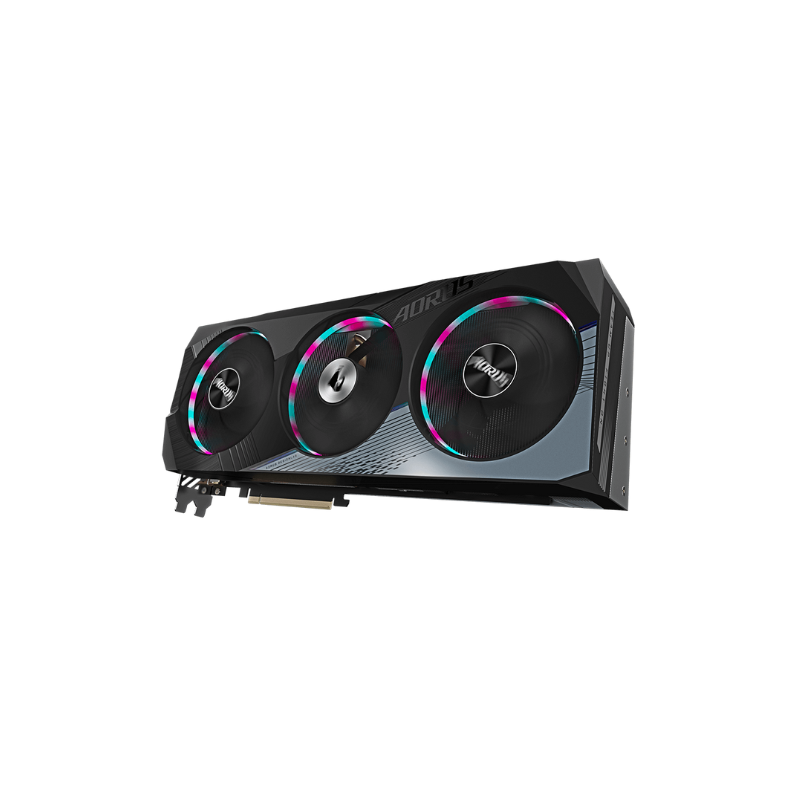

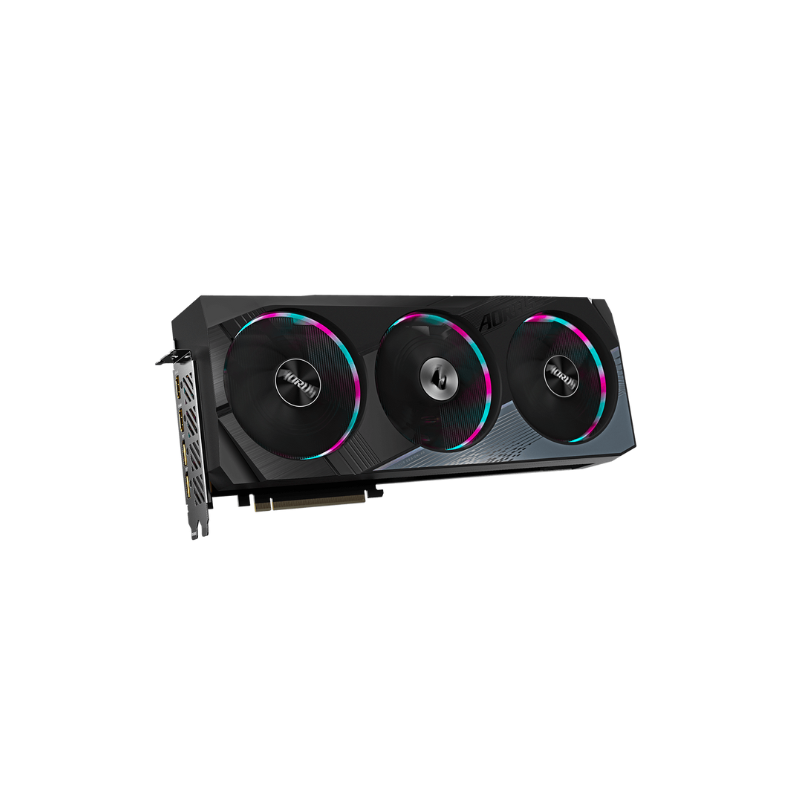

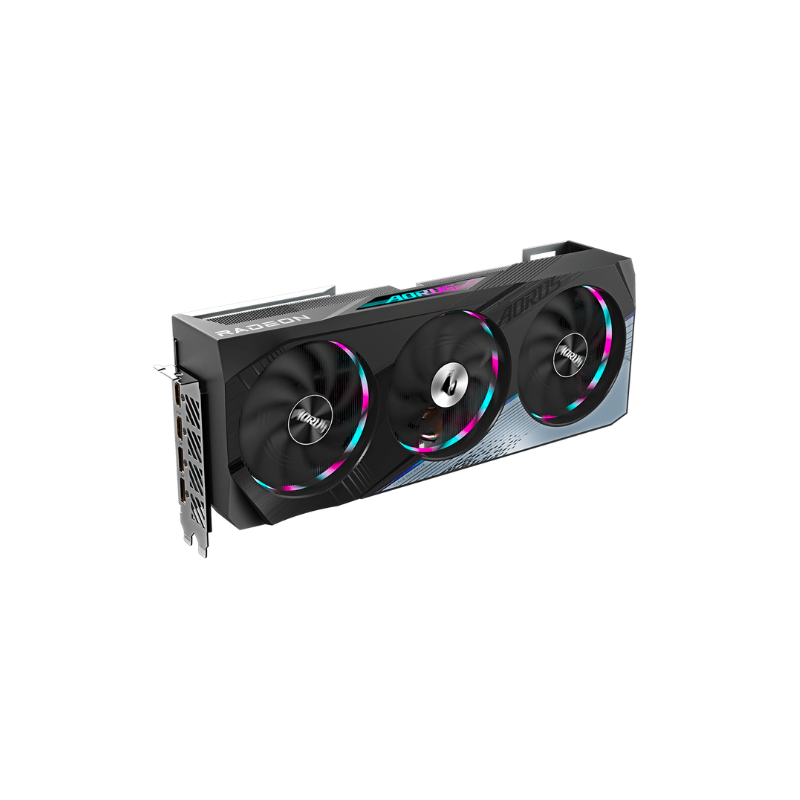

Experience unprecedented performance, visuals, and efficiency at 4K and beyond with AMD Radeon RX 7000 Series graphics cards, the world's first gaming GPUs powered by AMD RDNA 3 chiplet technology. Immerse yourself in breathtaking visuals with the pinpoint color accuracy of AMD Radiance Display Engine and boost frame rates with AMD FidelityFX Super Resolution and Radeon Super Resolution upscaling technologies. To unlock even more performance, combine AMD Radeon RX 7000 Series graphics and compatible AMD Ryzen processors to activate AMD smart technologies. The WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 10 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation. The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface. The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink. The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. To create more space for airflow to pass through, the heatsink extends over the PCB and therefore increase the ventilation. This Screen Cooling design provides better heat dissipation. The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER. The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience. The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection. The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance. When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
Graphics Processing | Radeon RX 7900 XTX |
Core Clock |
Boost Clock: Up to 2680 MHz (Reference Card: 2500 MHz) Game Clock: Up to 2510 MHz (Reference Card: 2300 MHz) |
Stream Processors | 6144 |
Ray Accelerators | 96 |
Memory Clock | 20000 MHz |
Memory Size | 24 GB |
Memory Type | GDDR6 |
Memory Bus | 384 bit |
Memory Bandwidth (GB/sec) | 960 GB/s |
Card Bus | PCI-E 4.0 x16 |
Digital max resolution | 7680x4320 |
Multi-view | 4 |
Card size | 335 x 137 x 569mm |
PCB Form | ATX |
DirectX | 12 Ultimate |
OpenGL | 4.6 |
Recommended PSU | 850W |
Power Connectors | 3 x 8-Pin |

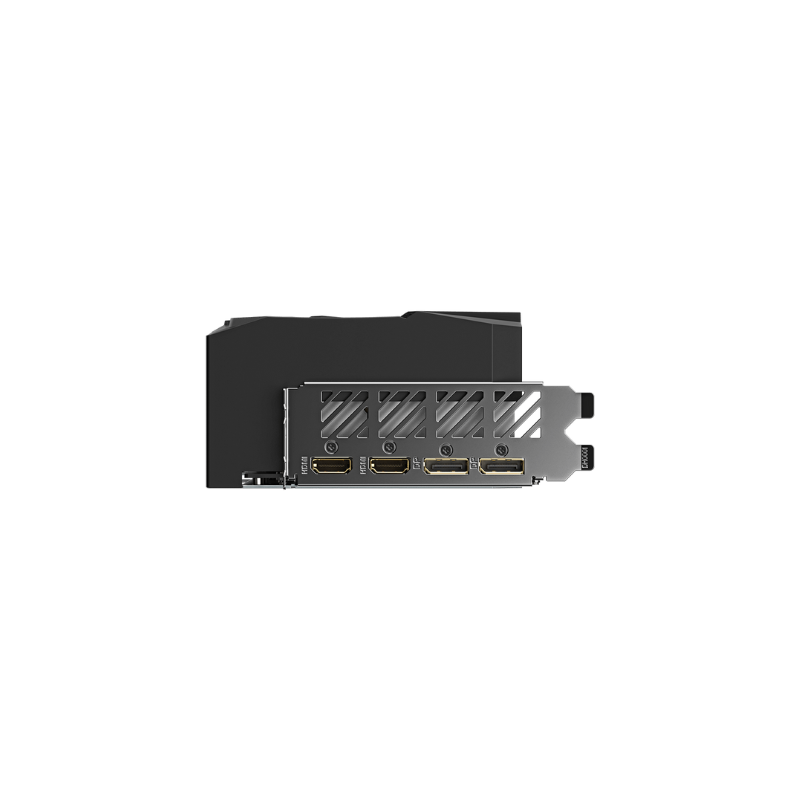

Output | 2 x DisplayPort 2.1 2 x HDMI 2.1 |
Multi-GPU Support | No |
Accessories | Quick guide Warranty registration Anti-sag bracket Anti-sag bracket installation guide AORUS metal sticker |
