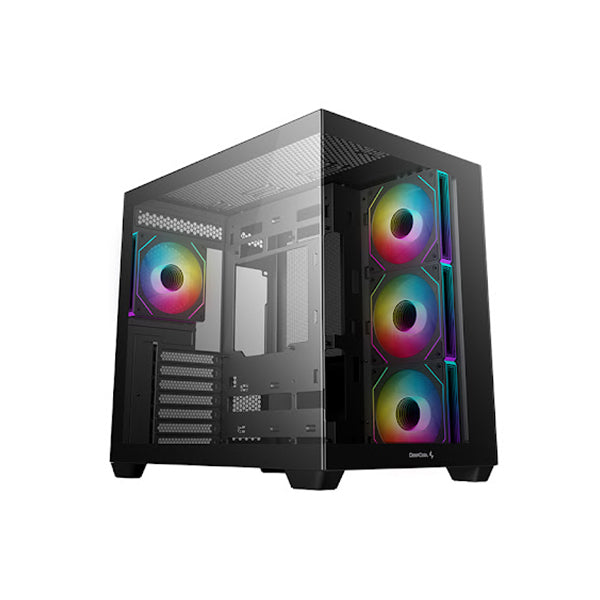

DeepCool CG530 4F ARGB Tempered Glass Steel Black ATX Mid-Tower Desktop Chassis
DeepCool CG530 4F ARGB Tempered Glass Steel Black ATX Mid-Tower Desktop Chassis
Regular price
R 1,349.00
Regular price
Sale price
R 1,349.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | DeepCool |
| Series | CG Series |
| Model | CG530 4F Black (R-CG530-BKADA4-G-1) |
| Physical Details | |
| Colour | Black |
| Materials | Aluminium |
| Steel | |
| Tempered Glass | |
| Side Panel | 4mm Tempered Glass (front, side), partial mesh (right side) |
| Front I/O | 2x USB 5Gbps Type-A Ports (Front Panel) |
| 1x USB 10Gbps Type-C Port (Front Panel) | |
| 1x 3.5mm Combination Audio Jack (Front Panel) | |
| Motherboard Support | Supports ATX, Micro-ATX, Mini-ITX motherboards |
| Supports Hidden Connector Reverse ATX, mATX Motherboards | |
| Expansion Slots | 7x Vertical PCI Slots |
| Drive Bays | 2x 3.5" Drive Bays |
| 3x 2.5" Drive Bays | |
| Storage Conflicts | The bottom fan mounts conflict with 1x 3.5" and 1x 2.5" drive bay. The following configurations are supported: |
| 1x 3.5" HDD and 2x 120mm bottom-mounted fans | |
| OR | |
| 1x 2.5" Drive and 2x 120mm bottom-mounted fans | |
| Bottom-mount radiators will not fit with any installed drives on the bottom of the chassis. | |
| PSU Support | ATX |
| Dimensions | 440 x 285 x 399mm (D x W x H) |
| Weight | 7.0kg |
| Pre-Installed Fans | |
| Side | 3x Pre-Installed DeepCool ARGB PWM 120mm Reversed Fans (Side Intake) |
| Bottom | N/A |
| Rear | 1x Pre-Installed DeepCool ARGB PWM 120mm Fans (Rear Exhaust) |
| Fan Support | |
| Top | 3x 120mm or 2x 140mm fans |
| Side | 3x 120mm or 2x 140mm fans |
| Bottom | 3x 120mm fans (conflicts with HDDs, see supported configs above) |
| Rear | 1x 120mm fan |
| Radiator Support | |
| Top | 120, 140, 240, 280, 360mm support |
| Side | 120, 140, 240, 280mm support |
| PSU Shroud | 120, 240, 360mm support (conflicts with HDDs, see supported configs above) |
| Rear | 120mm support |
| Clearance | |
| Motherboard Tray Width | N/A |
| CPU Cooler Height Limitation | Up to 160mm |
| GPU Length Limitation | Up to 410mm (160mm wide including cable) |
| PSU Length Limitation | Up to 210mm with cables |
| Cable Management | Yes, 45mm depth behind motherboard tray |
| General | |
| Dust Filters | Yes, top & bottom removable |
| Chassis Lighting | Yes, DeepCool fans support 5V ARGB headers and all major controllers and RGB software |
| Warranty Information | |
| Warranty | 2 Year Limited Warranty |
