| SPECIFICATIONS |
| Brand |
Corsair |
| Series |
5000D Series |
| Model |

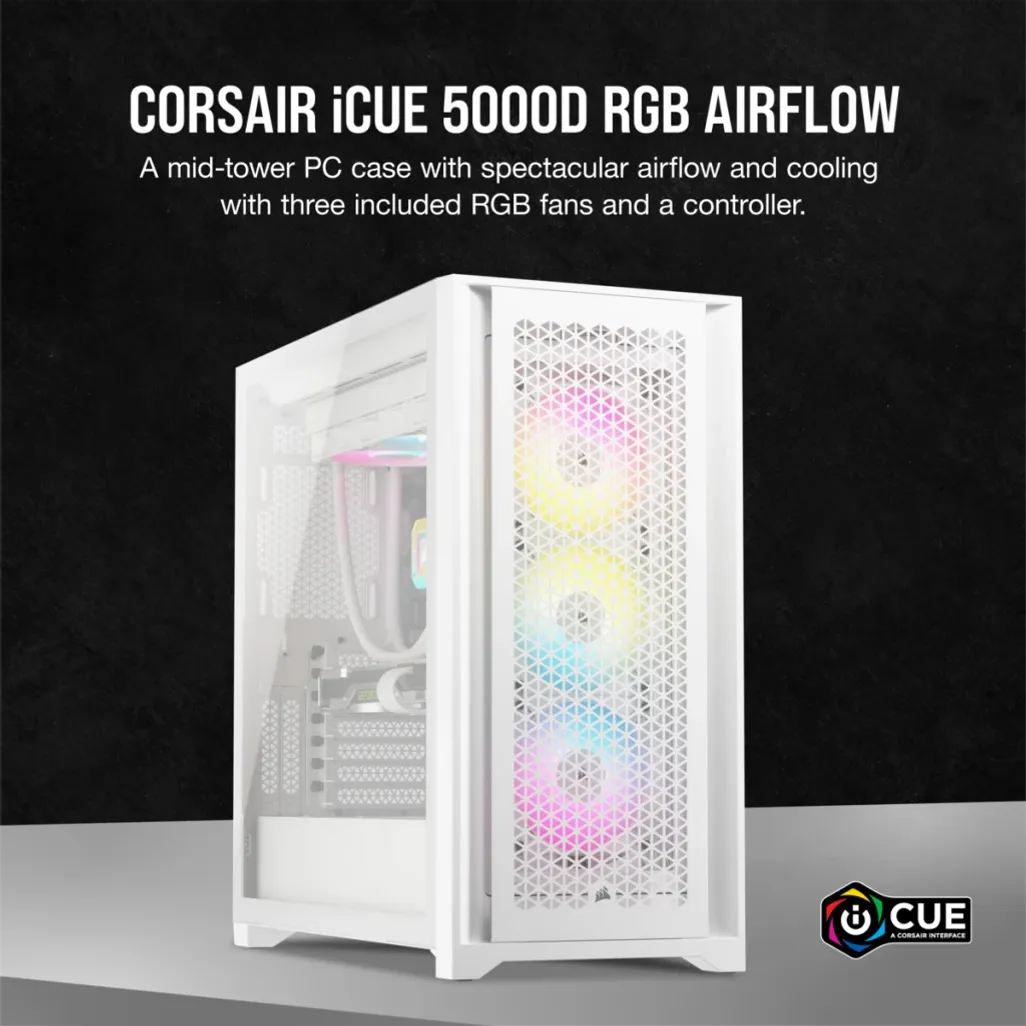

iCue 5000D Airflow RGB (CC-9011243-WW) |
| Physical Details |
| Colour |
White |
| Materials |
Aluminium |
| Steel |
| Tempered Glass |
| Side Panel |
Easy Slide-On Clear Tempered Glass |

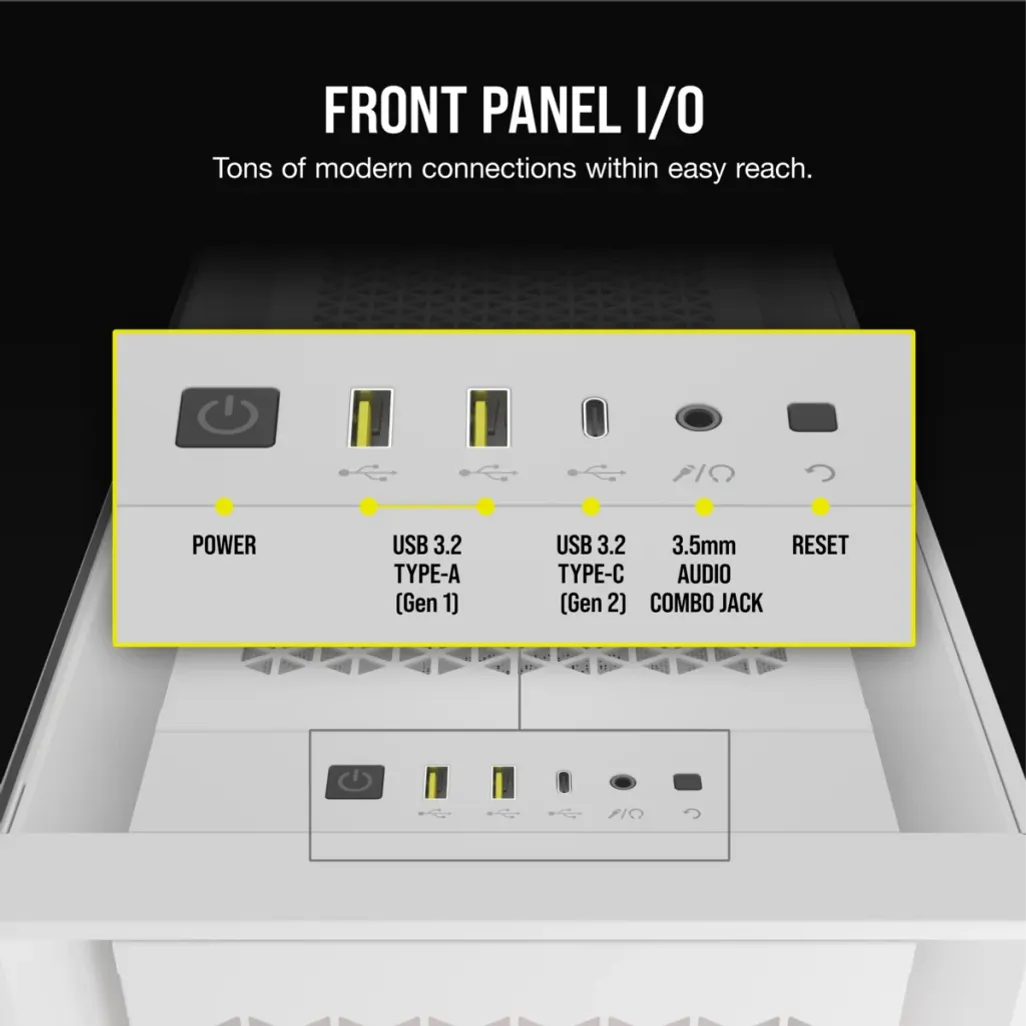

| Front I/O |
1x USB 10Gb/s 3.2 Gen 2 Type-C Port |
| 2x USB 5Gb/s 3.1 Gen 1 Type-A Port |
| 1x 3.5mm Combination Audio Jack |
| Motherboard Support |
E-ATX (305 x 277mm), ATX, Micro-ATX, Mini-ITX |
| Expansion Slots |
7x Horizontal PCI Slots |
| 2x Vertical PCI Slots |
| Drive Bays |
2x 3.5" Drive Bays |
| 4x 2.5" Drive Bays |
| PSU Support |
ATX, Up to 250mm |
| Dimensions |
520 x 520 x 245mm (D x H x W) |
| Weight |
12.4kg |

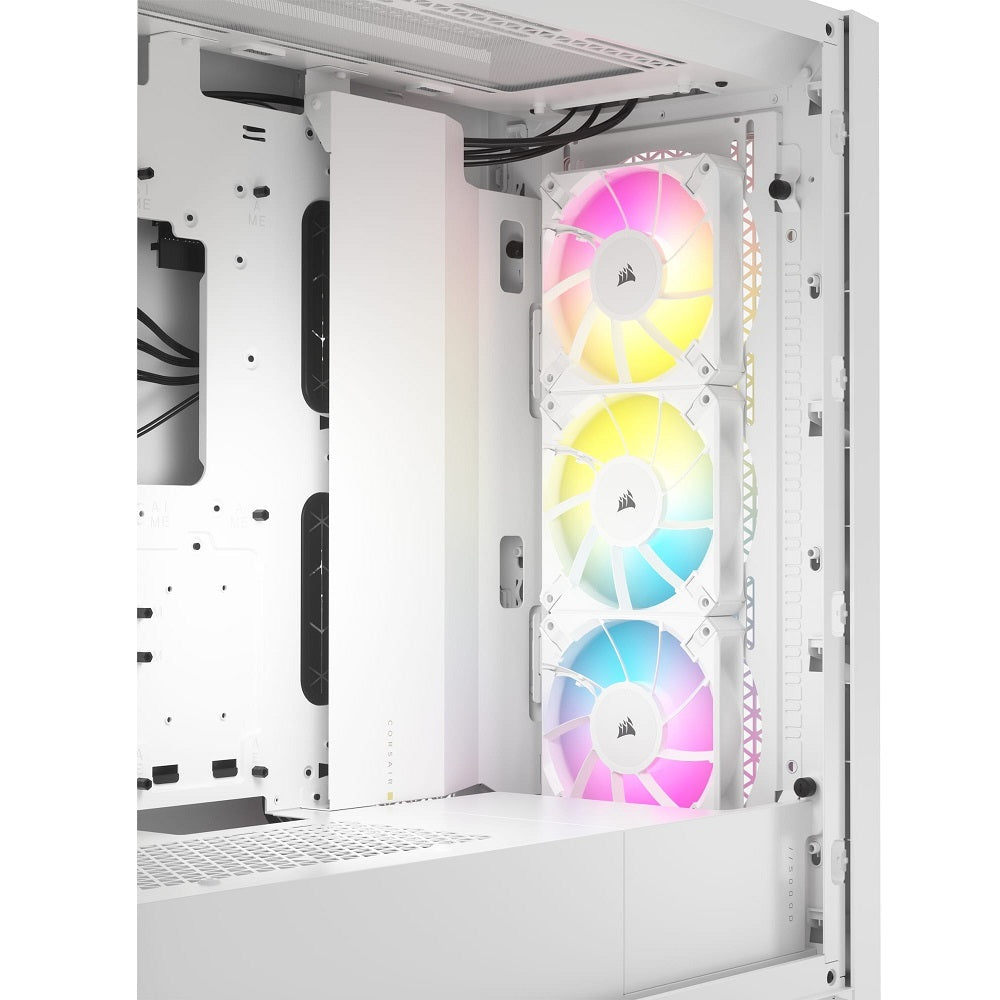

| Pre-Installed Fans |
| Front |

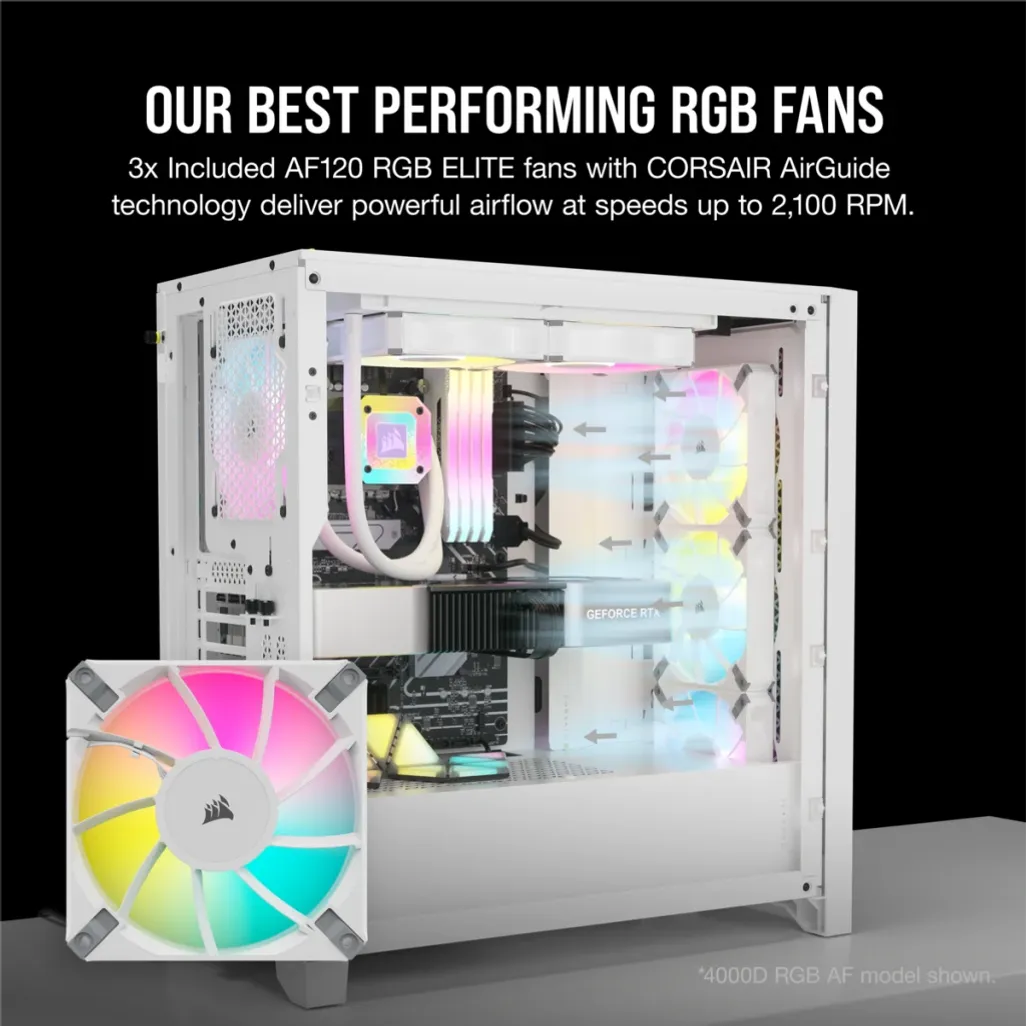

3x CORSAIR AF120 RGB ELITE 120mm PWM Fans |
| Top |
N/A |
| Bottom |
N/A |
| Rear |
N/A |
| Fan Support |
| Front |
3x 120mm or 2x 140mm |
| Side |
3x 120mm |
| Top |
3x 120mm or 2x 140mm |
| Bottom |
2x 120mm (On PSU Shroud) |
| Rear |
1x 120mm |
| Radiator Support |
| Front |
120, 240, 280, 360mm support |
| Side |
120, 240, 280, 360mm support |
| Top |
120, 240, 280, 360mm support |
| Bottom |
N/A |
| Rear |
120mm support |

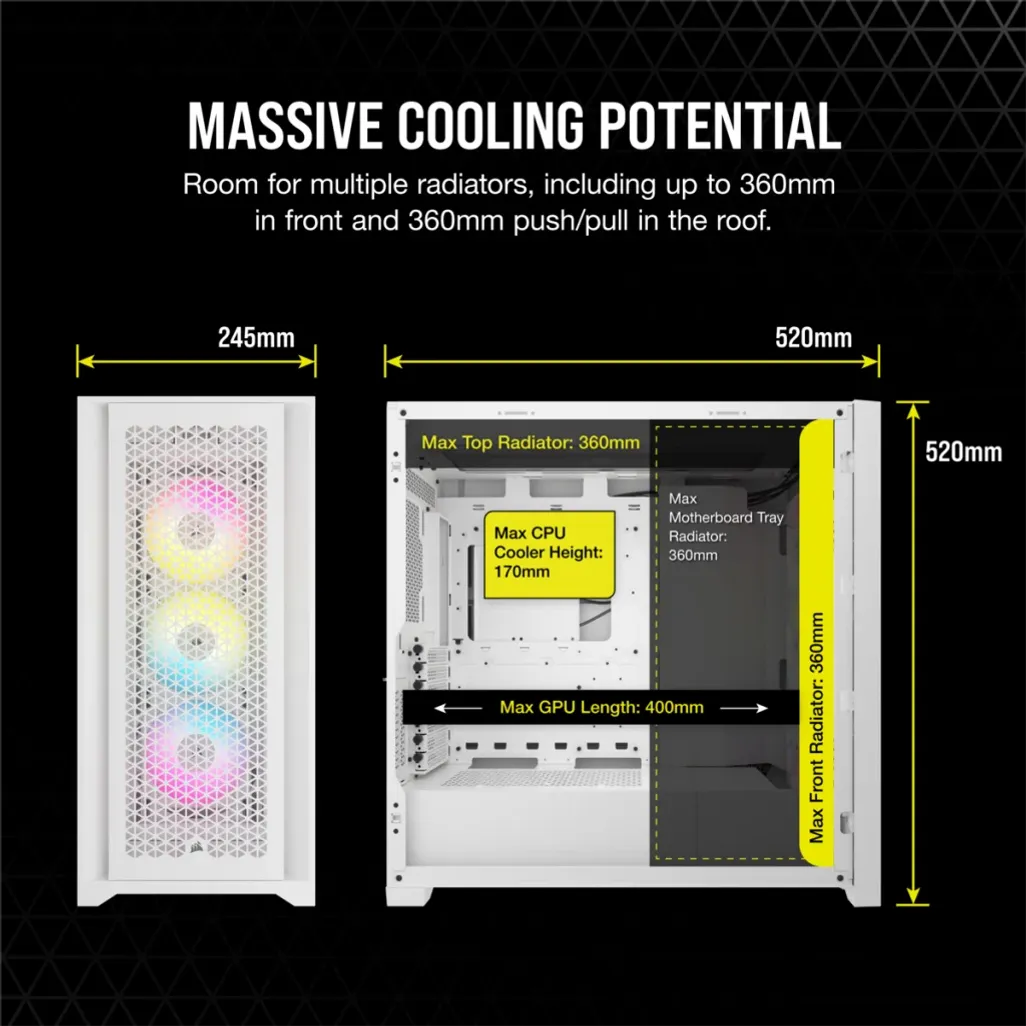

| Clearance |
| CPU Cooler Height Limitation |
Up to 170mm |
| GPU Length Limitation |
Up to 400mm |
| PSU Length Limitation |
Up to 250mm |

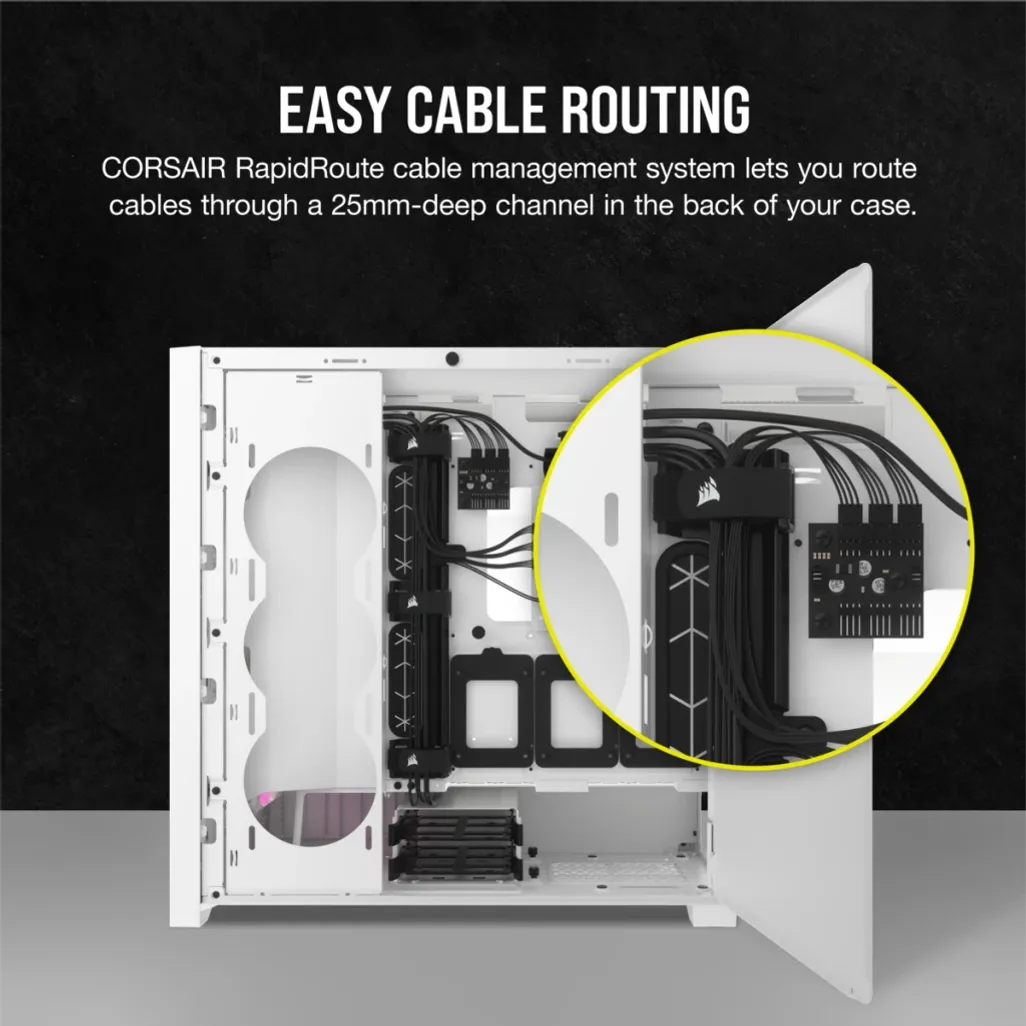

| Cable Management |
Yes, Corsair RapidRoute Cable Management |
| General |
| Dust Filters |
Top, Front, and Bottom PSU removable |
| Chassis Lighting |
Yes, control via iCue Lighting Node Core |
| Warranty Information |
| Warranty |
2 Year Warranty |
