| SPECIFICATIONS |
| Brand |
ASUS |
| Series |
TUF Gaming |
| Model |

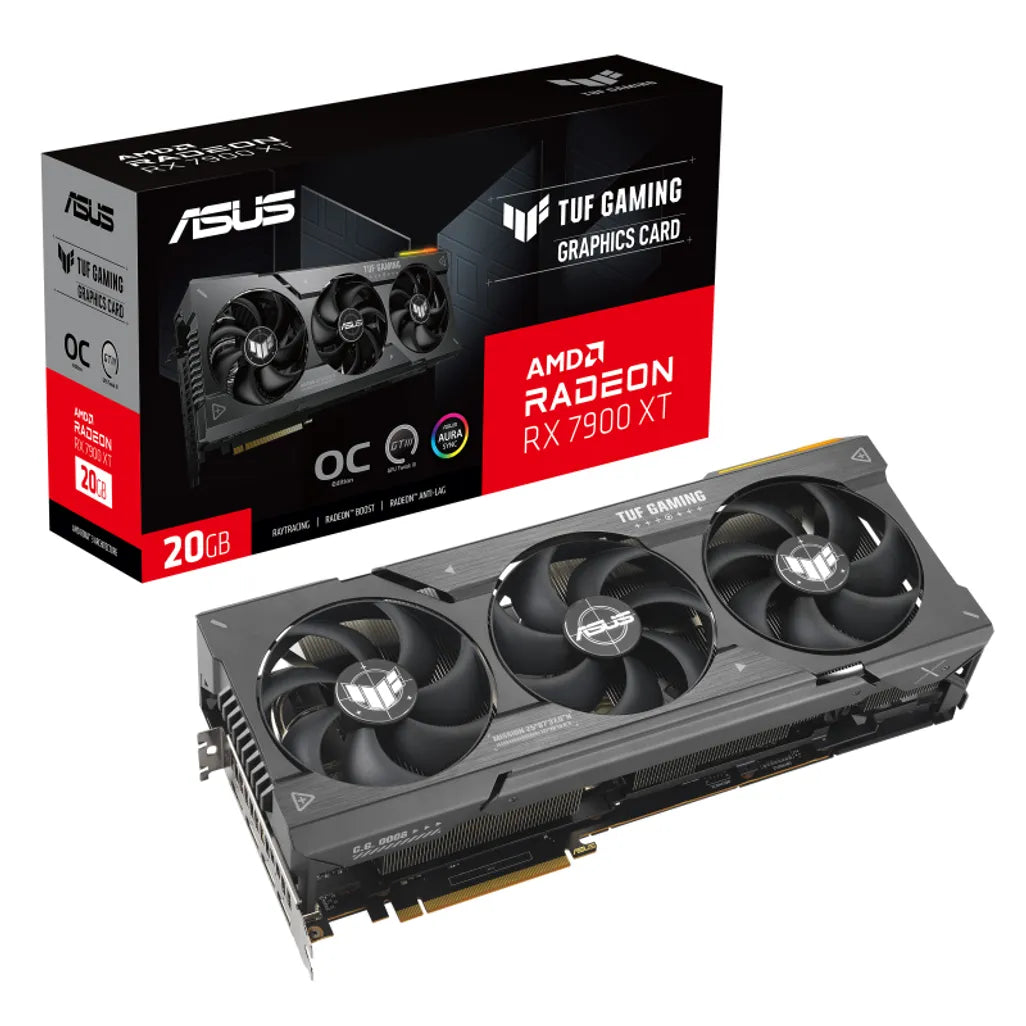

Radeon RX 7900 XT TUF Gaming OC Edition 20G (TUF-RX7900XT-O20G-GAMING) |
| Chipset |
| GPU |
Radeon |
| Chipset Manufacturer |
AMD |
| Interface |
PCIe 4.0 x16 |
| Compute Units |
84 Compute Units |
| Ray Accelerators |
84 |
| ROPs |
192 |
| Stream Processors |
5376 |
| Base Clock |
1500MHz |
| Game Clock |
Up to 2130MHz |
| Boost Clock |
Up to 2500MHz |
| OC Game Clock |
Up to 2175MHz |
| OC Boost Clock |
Up to 2535MHz |
| GPU Architecture |
AMD RDNA 3 Architecture |
| GPU Design |
1x TSMC 5nm Graphics Compute Die (GCD) |
| 5x TSMC 6nm Memory Controller Dies (MCD) |
| Memory |
| Infinity Cache |
80MB |
| Effective Memory Clock |
20Gb/s |
| Memory Size |
20GB |
| Memory Bus Width |
320-bit |
| Memory Type |
GDDR6 |
| Memory Bandwidth |
Up to 800GB/s |
| 3D API Support |
| DirectX |
Direct3D 12_2 Ultimate |
| OpenGL |
OpenGL 4.6 |
| OpenCL |
OpenCL 2.1 |
| Vulkan |
Vulkan 1.3 |
| Shader Model |
Shader Model 6.7 |
| Connectivity |
| Ports |

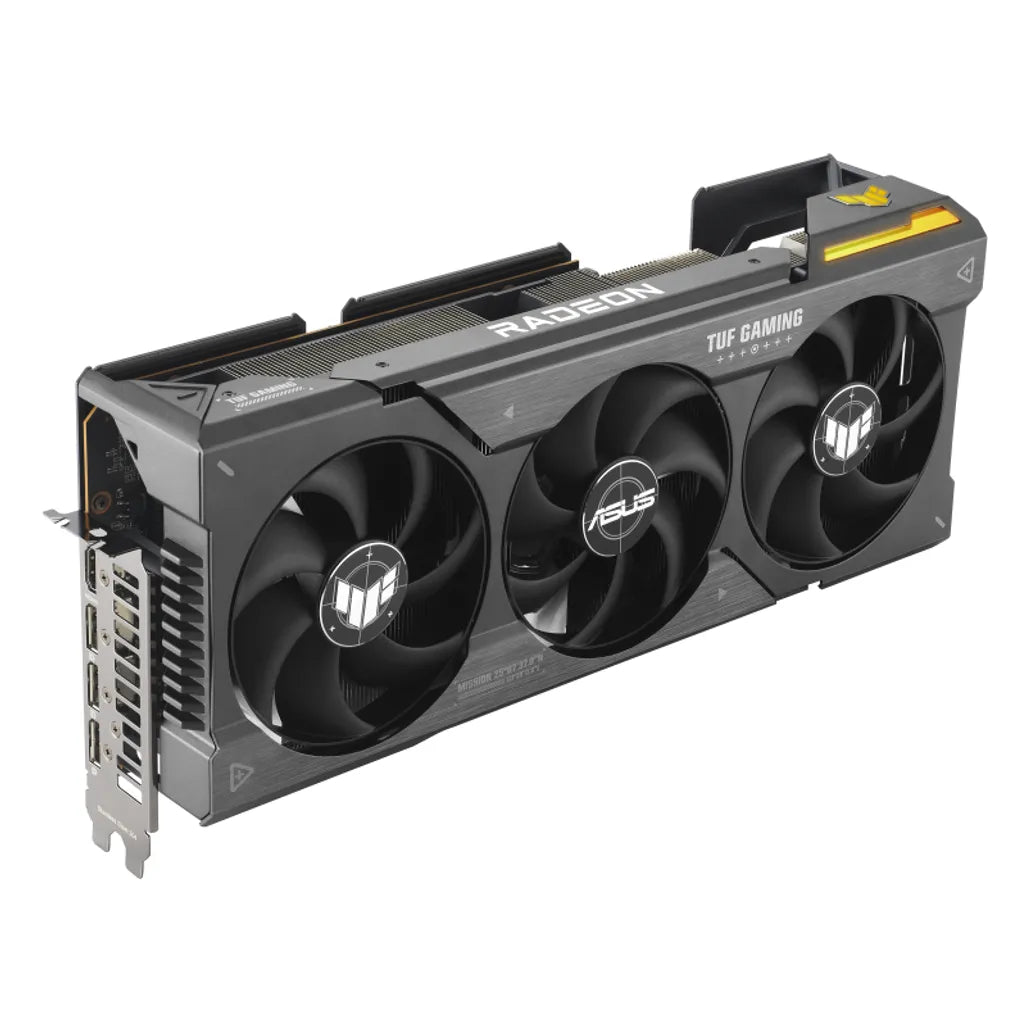

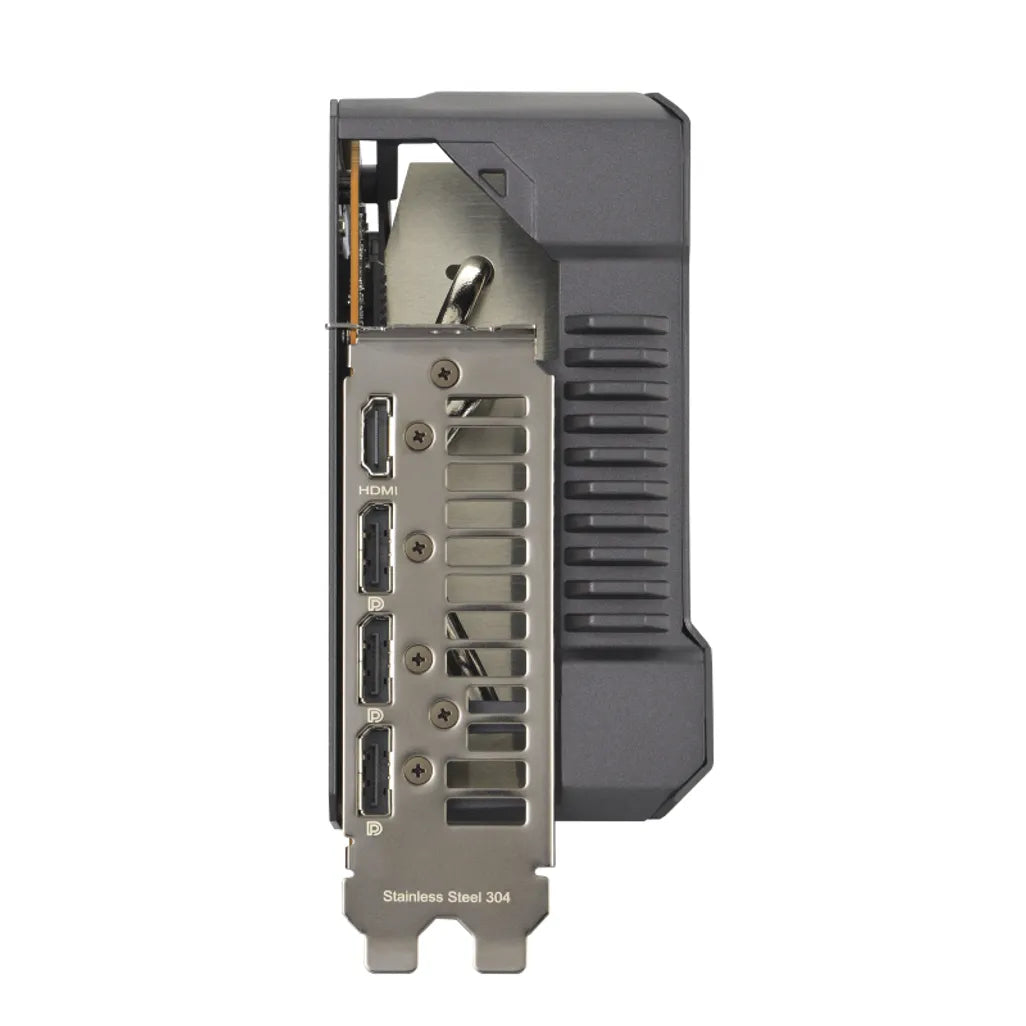

3x DisplayPort 2.1 with HDCP 2.3 |
| 1x HDMI 2.1 with HDCP 2.3 |
| HDMI 4K Support |
Yes, Up to UltraHD 4K 120Hz |
| VR Ready |
Yes, Radeon VR Ready Premium |
| General |
| Features |
World's First GPU Chiplet Design with one GCD and five MCDs |
| ASUS GPU Tweak III Software |

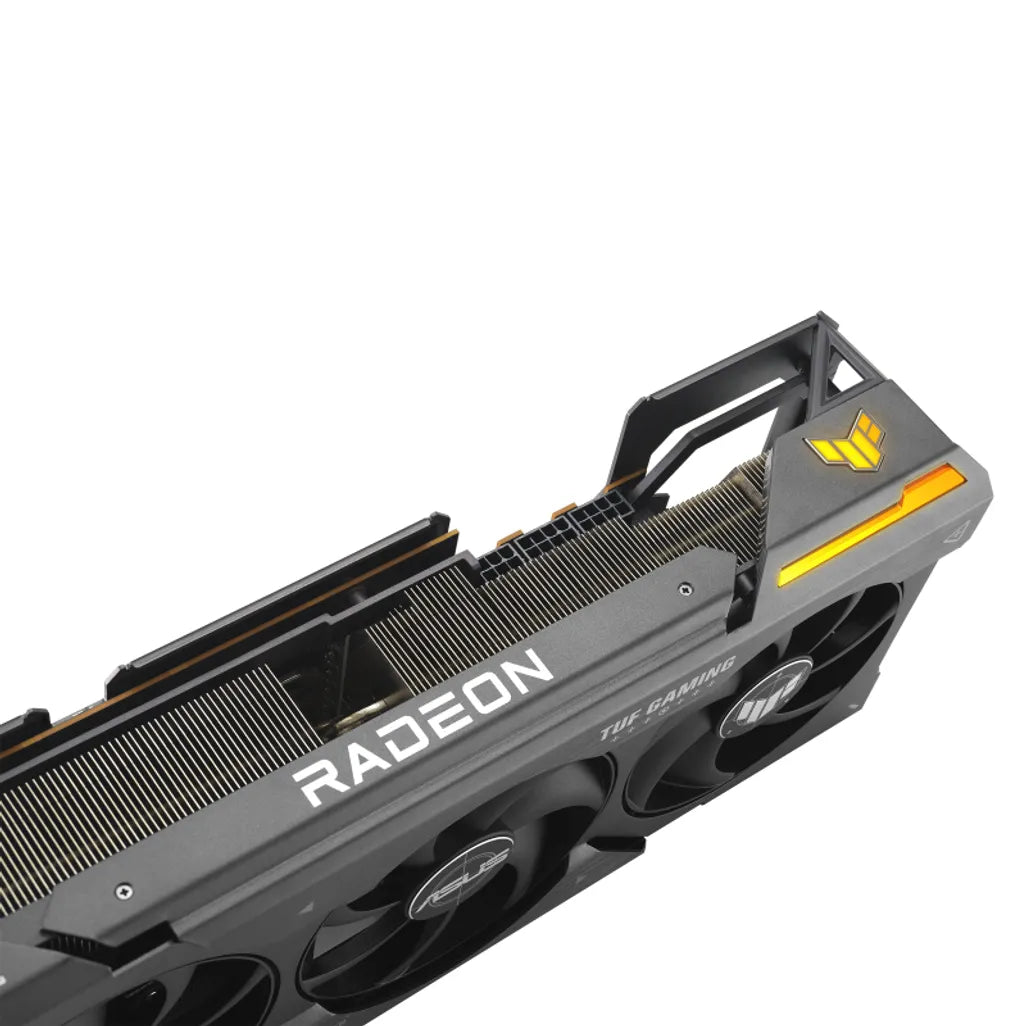

| Subtle Top-Side LED Lighting |
| Dual Ball Fan Bearings |

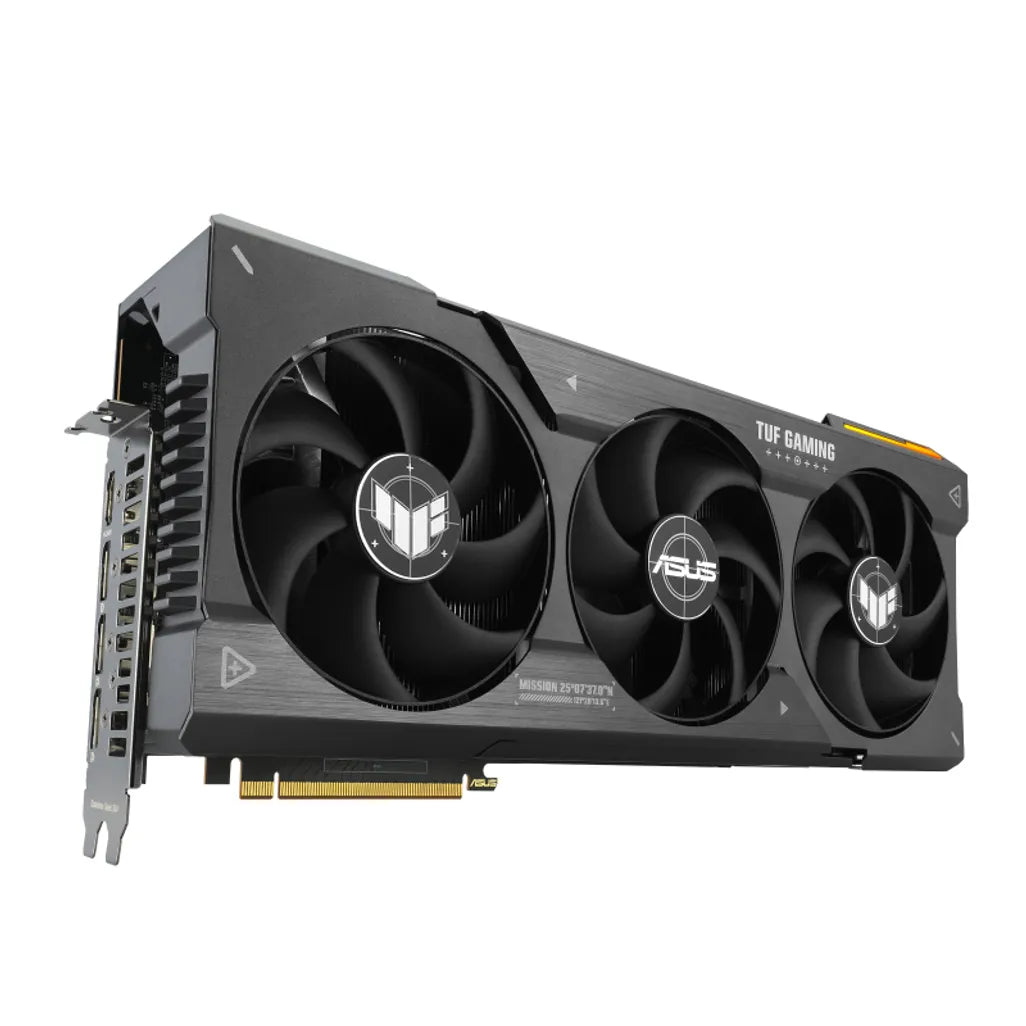

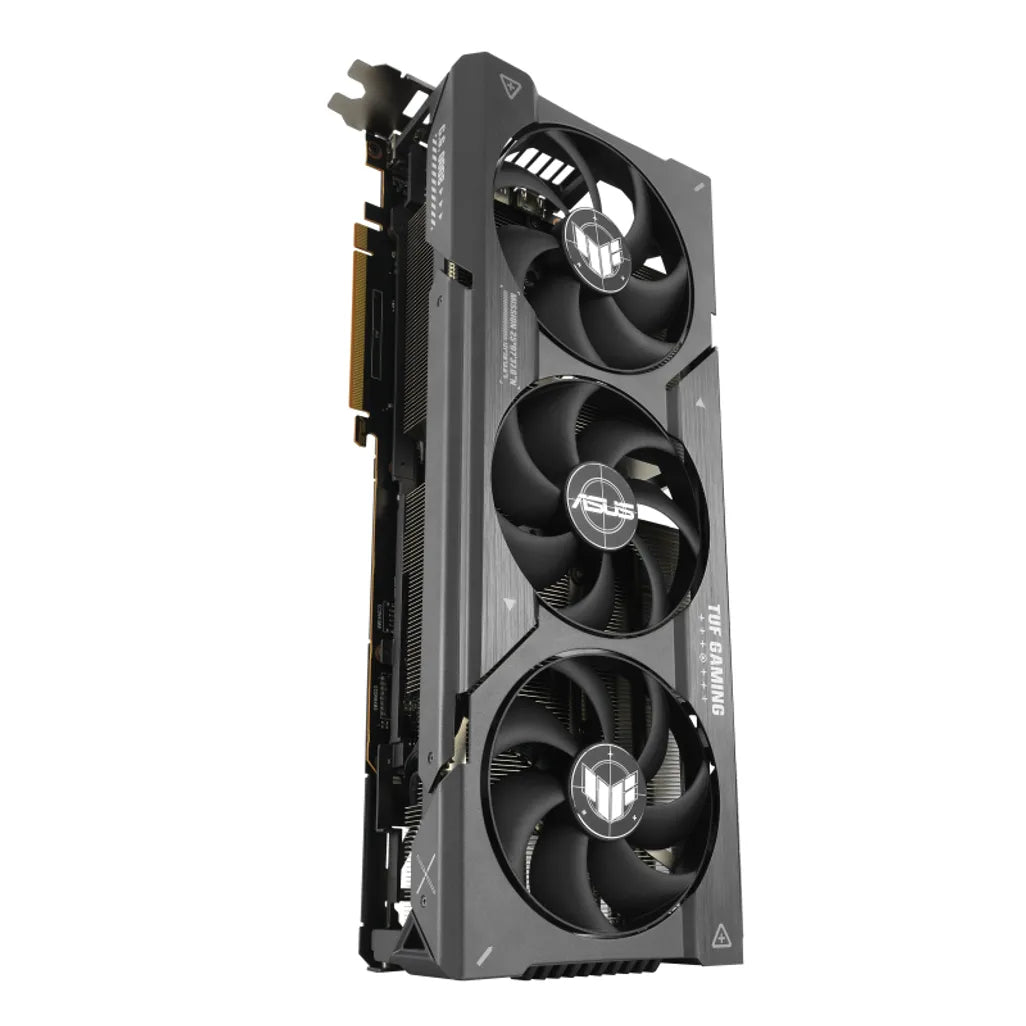

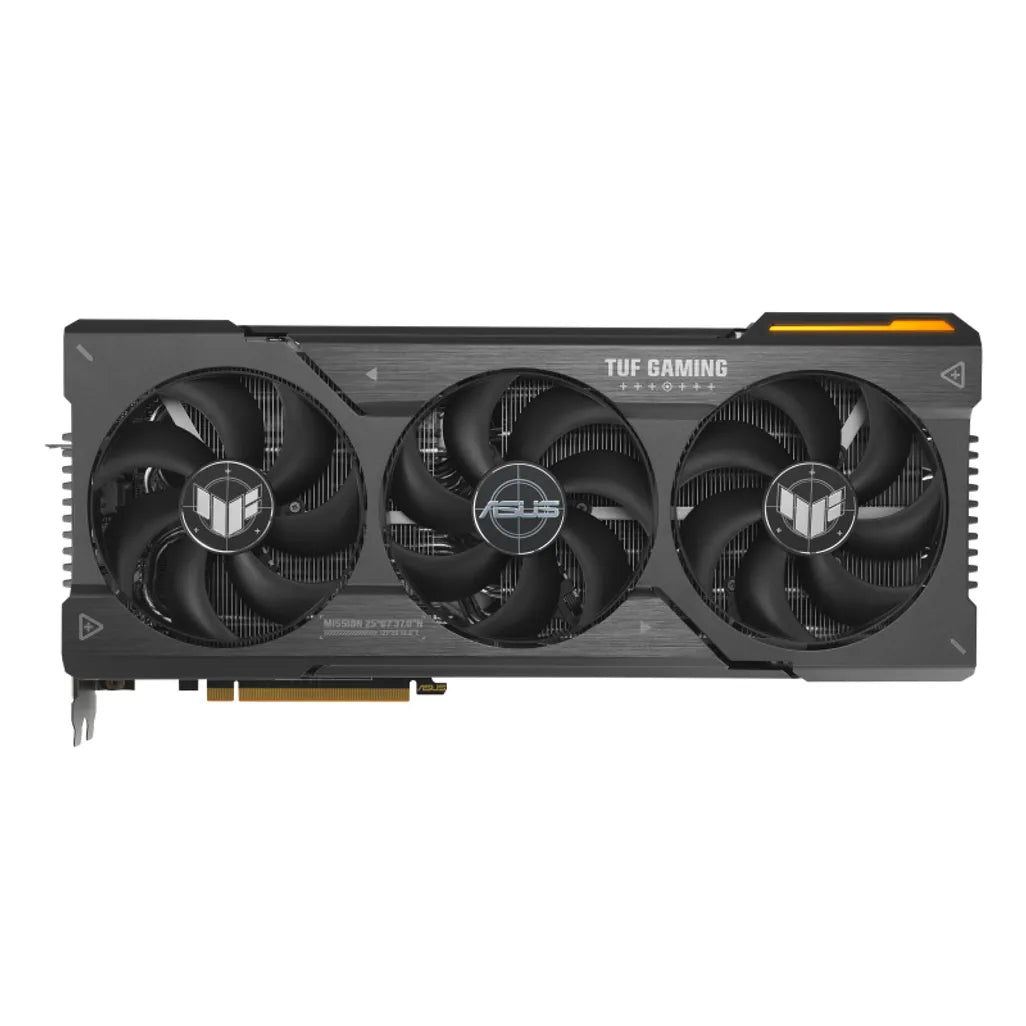

| Axial-Tech Fan Design |

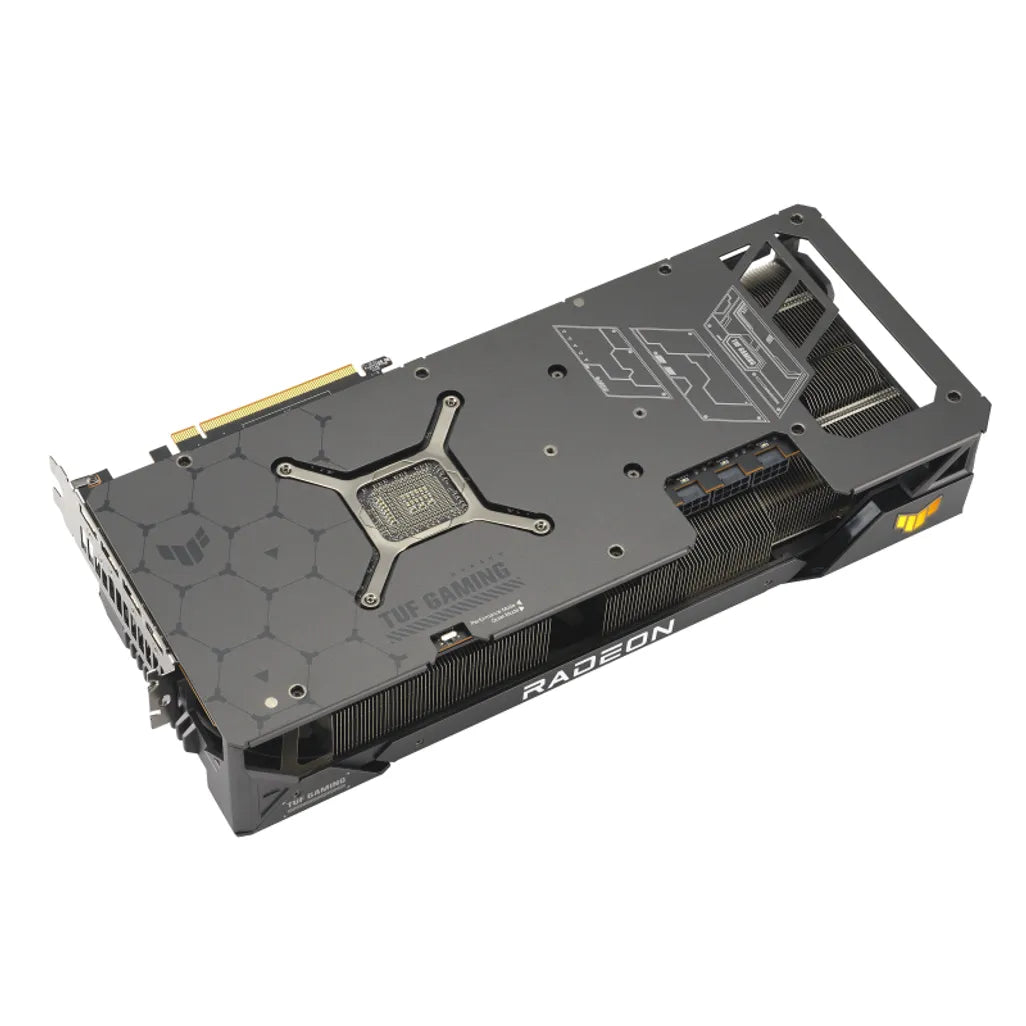

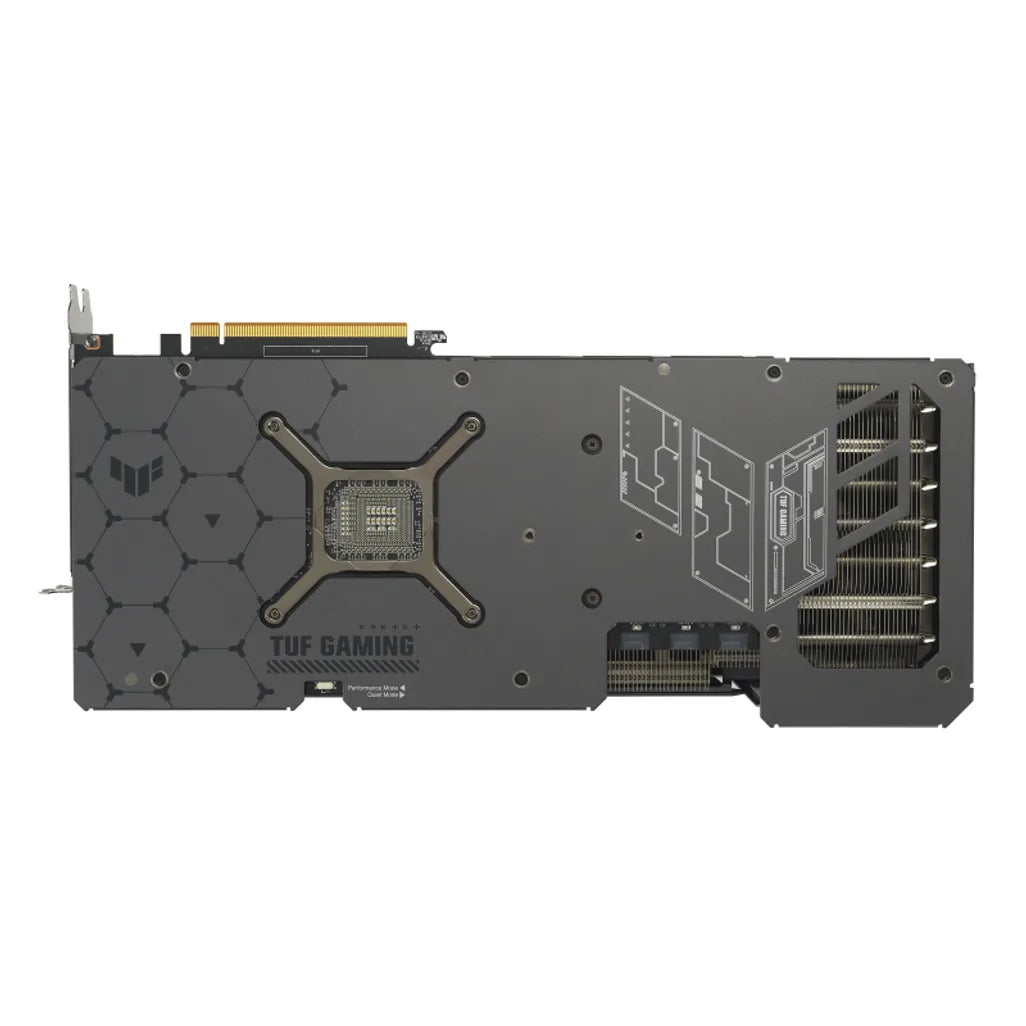

| Metal Exoskeleton Backplate |
| PCI Express 4.0 Support |
| AMD FreeSync Technology |
| DisplayPort 2.1 UHBR 13.5 |
| HDMI 2.1 VRR |
| HDMI 4K Support |
| DisplayPort 2.1 8K Support |
| Simultaneous AV1 & HEVC Encode and Decode. |
| 8K60 AV1 / H265 / HEVC Decode |
| 8K60 AV1 / H265 / HEVC Encode |
| Video Streaming up to 8K |
| AMD HYPR-RX Game Optimisation |
| AMD Radeon FreeSync Premium |
| AMD Radeon Pro Drivers |
| AMD Radeon VR Ready Premium |
| AMD FidelityFX Super Resolution |
| AMD Radeon Image Sharpening |
| AMD Radeon Anti-Lag |
| AMD Radeon Chill |
| AMD Radeon Software |
| Hardware-Accelerated Ray Tracing |
| Power Requirements |
| Total Graphics Power (TGP) |
300W |
| Minimum Recommended Power Supply |
750W |
| Recommended Power Supply |
850W |
| Power Connector |
3x 8-Pin PCI PEG |
| General |
| Form Factor |
ATX |
| Slot Width |
3.63 Slot |
| Dimensions |
352.9 x 158.2 x 72.6 mm (L x H x W) |
| Operating System Support |
Windows 10 64-bit |
| Windows 11 64-bit |
| Ubuntu x86 64-Bit |
| Linux x86_64 |

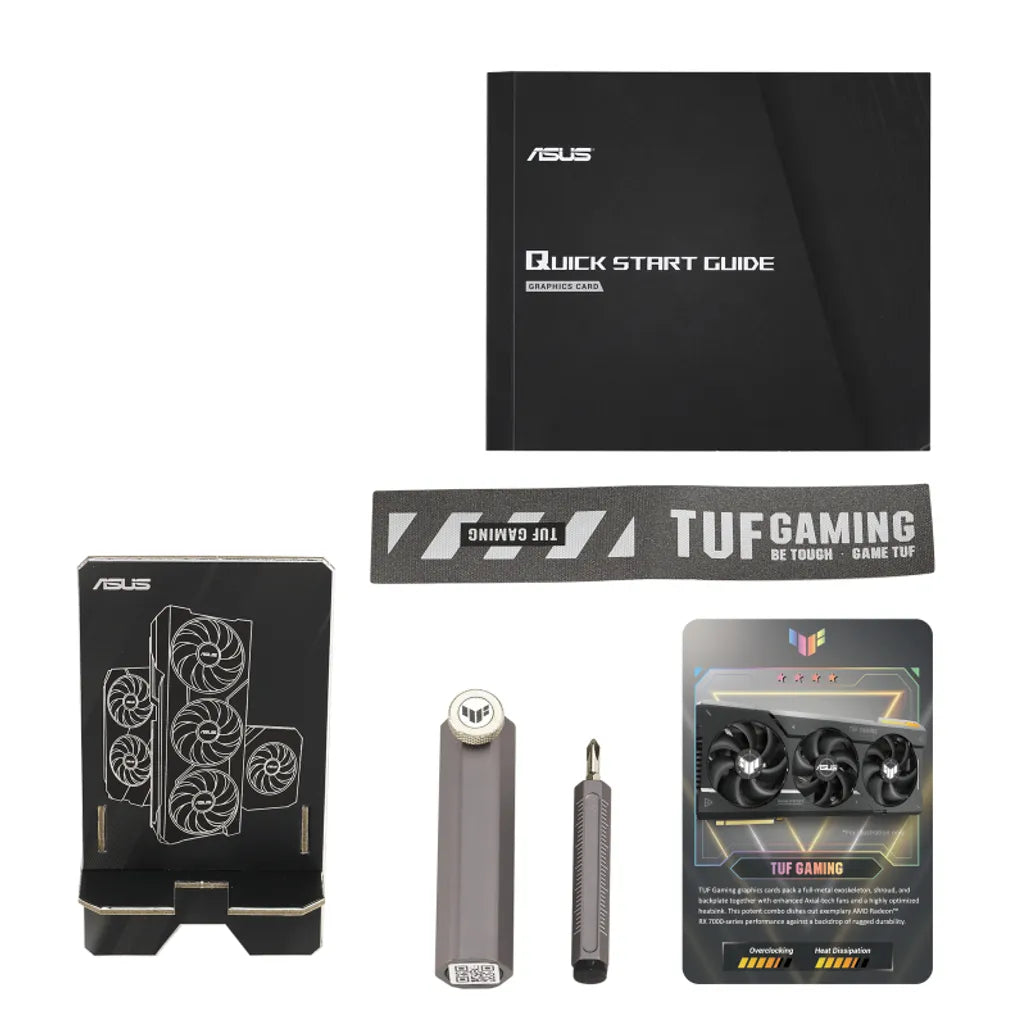

| Boxed Accessories |
1x TUF certificate of Reliability |
| 1x TUF Gaming Graphics Card Holder |
| 1x TUF Velcro Hook & Loop |
| 1x Collection card |
| 1x Speedsetup Manual |
| Warranty Information |
| Warranty |
3 Year Warranty |
