| SPECIFICATIONS |
| Brand |
ASUS |
| Series |
TUF Gaming |
| Model |
GeForce RTX 4070 Ti SUPER 16GB TUF Gaming OC Edition (TUF-RTX4070TIS-O16G-GAMING) |
| Chipset |
| GPU |
GeForce RTX 4070 Ti SUPER |
| Chipset Manufacturer |
NVIDIA |
| Interface |
PCIe 4.0 x16 |
| Base Clock |
2340 MHz |
| Boost Clock |
2640 MHz |
| OC Mode Clock |
2670 MHz |
| CUDA Cores |
8448 Cores |
| GPU Architecture |
NVIDIA Ada Lovelace |
| Memory |
| Effective Memory Clock |
21Gbps |
| Memory Size |
16GB |
| Memory Interface |
256-bit |
| Memory Type |
GDDR6X |
| 3D API |
| DirectX |
Microsoft DirectX 12.1 Ultimate |
| OpenGL |
OpenGL 4.6 |
| Vulkan |
Vulkan RT API |
| Connectivity |

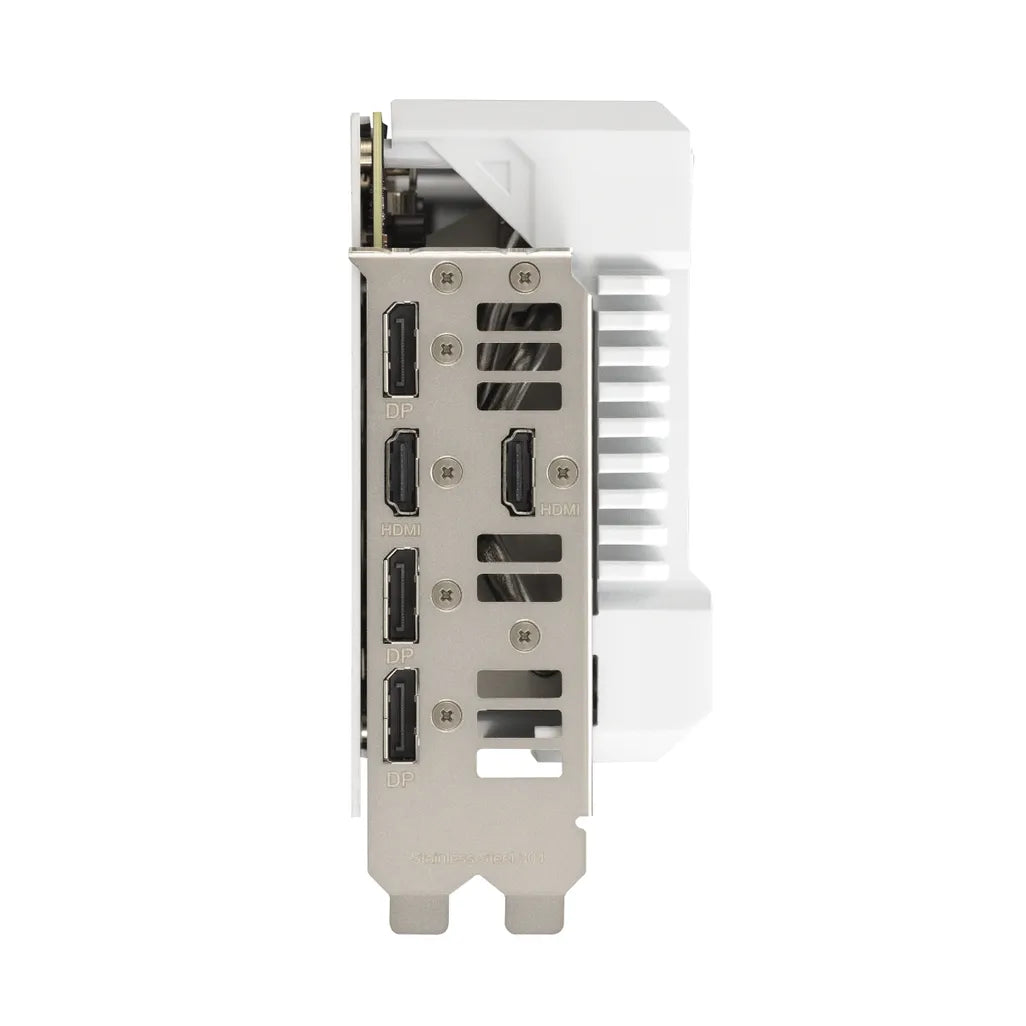

| Ports |
2x HDMI 2.1a |
| 3x DisplayPort 1.4a |
| HDCP Support |
Yes, 2.3 |
| Multi-Monitor Support |
Up to 4 |
| Maximum Digital Resolution |
7680 x 4320 |
| VR Ready |
Yes |
| General |
| SLI Support |
N/A |
| Features |
ASUS Axial-tech fans |
| Vapor Chamber With Milled Heatspreader For Lower GPU Temps |
| Diecast Shroud, Frame, And Backplate Add Rigidity And Are Vented To Further Maximize Airflow |
| High-Current Power Stages And 15K Capacitors |
| ASUS Auto-Etreme |
| ASUS GPU Tweak III |
| NVIDIA Optical Flow Accelerator Technology |
| 3rd Gen Ray Tracing Cores |
| 4th Gen Tensor Cores |
| PCI Express Gen 4 |
| Real-Time Ray Tracing Technology |
| NVIDIA GeForce Game Ready & Studio Drivers |
| NVIDIA G-Sync Premium |
| NVIDIA Reflex |
| NVIDIA Broadcast |
| NVIDIA AV1 Encoder |
| NVIDIA Omniverse 3D Design |
| NVIDIA Canvas |
| NVIDIA GPU Boost |
| NVIDIA Encoder, 8th Generation |
| NVIDIA Decoder, 5th Generation |
| Power Requirements |
| Recommended Power Supply |
750W |
| Power Connector |
1x 16-Pin 12VHPWR Connector (or 2x 8-pin PCI PEG Connectors) |
| Physical Aspects |
| Form Factor |
ATX |
| Slot Width |
3.25 Slot |
| Dimensions |
305 x 138 x 65mm (L x W x H) |
| RGB |
Yes, with ASUS AURA Sync |
| Boxed Accessories |
1x Collection Card |
| 1x Speedsetup Manual |
| 1x 12VHPWR Adapter Cable |
| 1x TUF Graphics Card Holder |
| 1x TUF Velcro Hook & Loop |
| 1x Thank you Card |
| 1x TUF Gaming Certificate |
| Warranty Information |
| Warranty |
3 Year Warranty |
