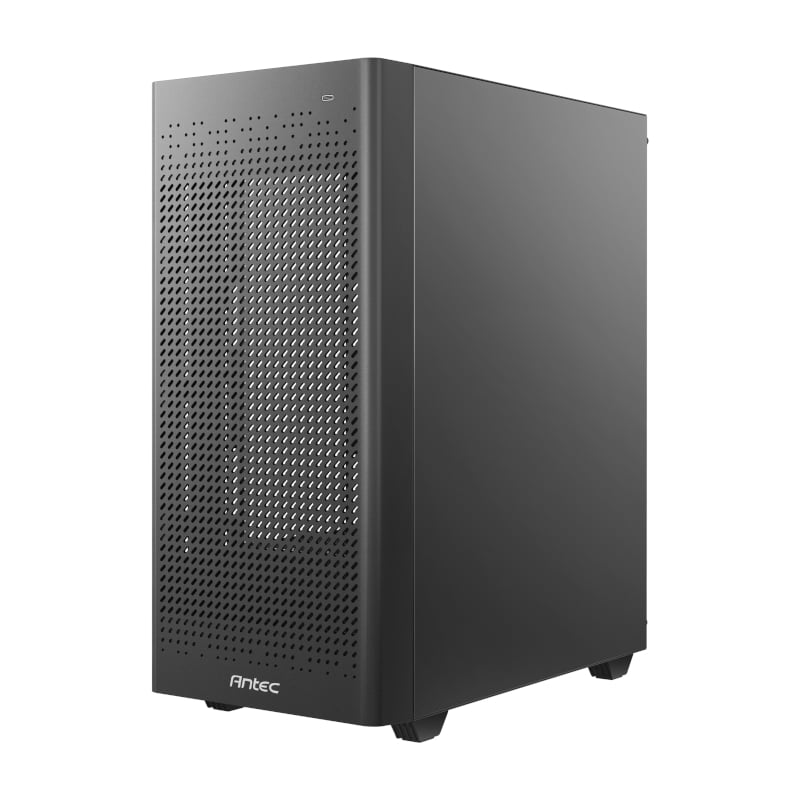

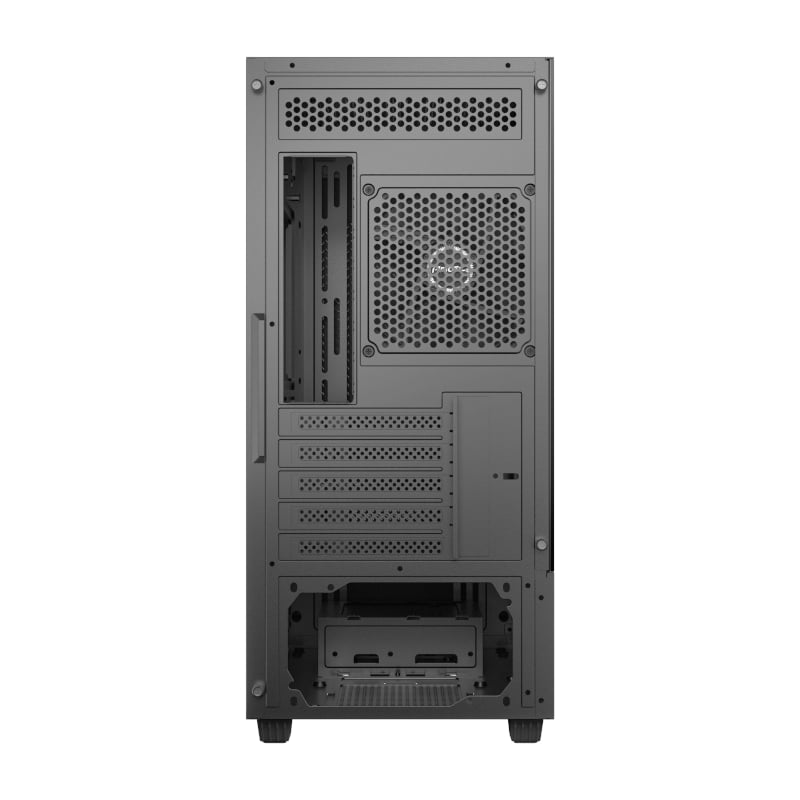

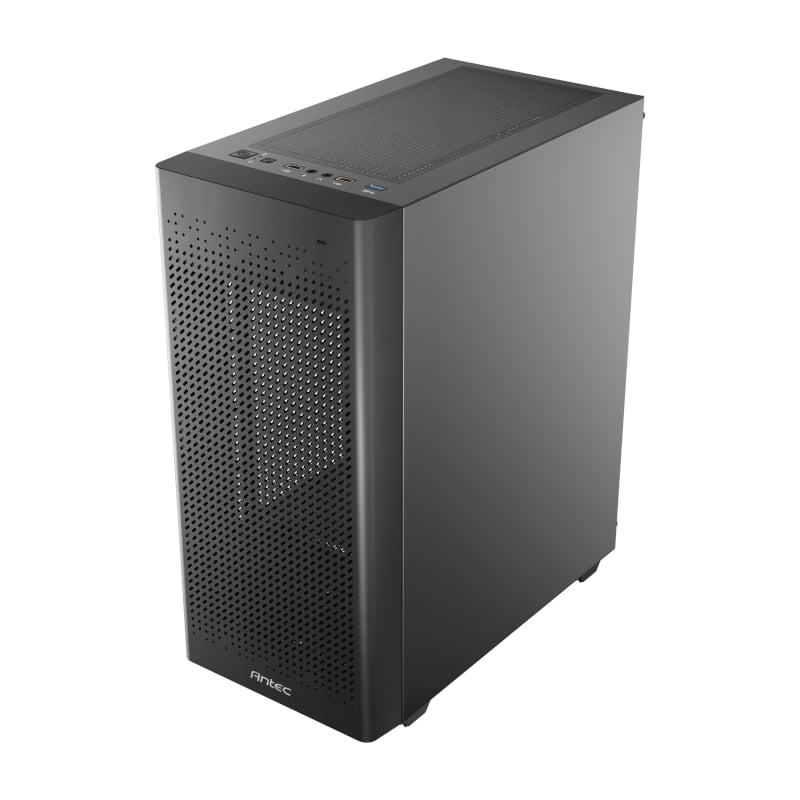

Antec NX500M Micro-ATX Gaming Chassis

The Antec NX500M is a one-of-a-kind Gaming Chassis with exceptional cooling performance. It has a tempered glass side panel for displaying your hardware, can accommodate up to six 120mm fans, and provides efficient ventilation with minimal dust intake. The case has a Type-C connection for convenience, 20mm cable management space, and the ability to display customised hardware and unique water-cooling systems. The removable HDD drive cage expands PSU installation space, allowing for PSUs up to 165mm with the cage and up to 325mm without. A big vented air inlet in the front allows for plenty of ventilation ensuring a cool and steady gaming experience.

FEATURES:

• Powerful Heat Dissipation

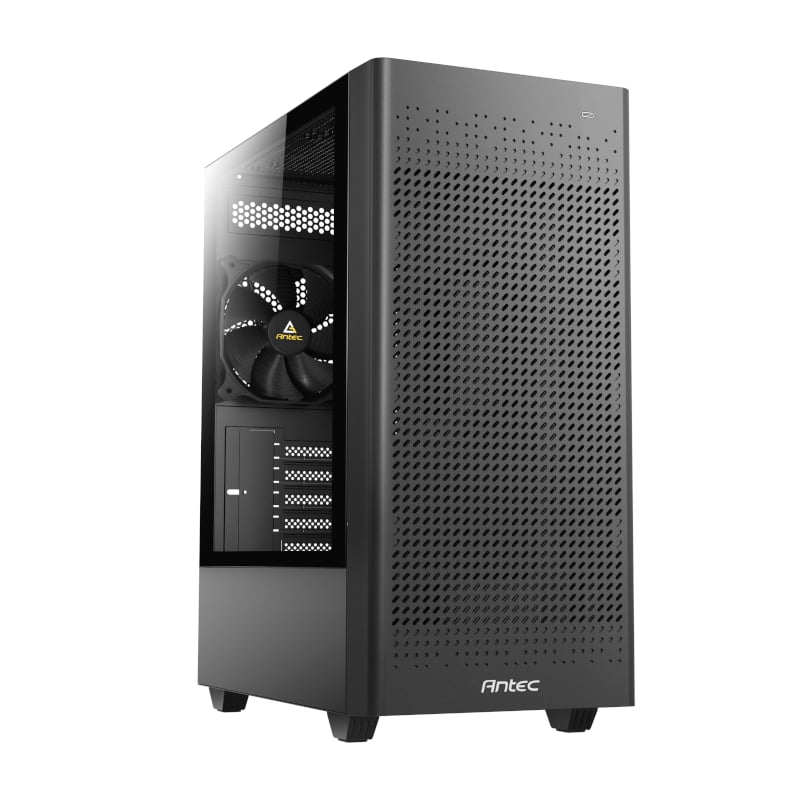

• Tempered Side Glass Panel

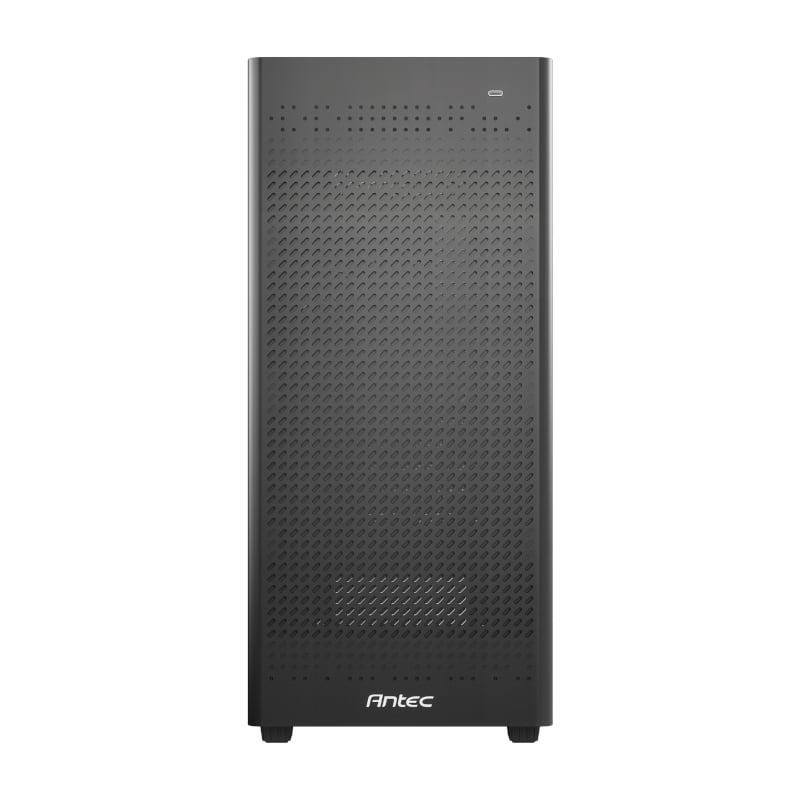

• Unique Front Vented Design
• m-ATX and ITX Motherboard Support
• Top and Bottom Magnetic Dust Filters

SPECIFICATIONS:

• Form Factor: Mini Tower
• Materials: Steel + Plastic
• Mainboard Support: Micro-ATX, ITX
• Front Access & Controls: Power, LED control button, Type-C 3.2 Gen 2 x 1, USB3.0 x 1, USB2.0 x 2 , MIC/HD-AUDIO
• Side Panel: Tempered Glass
• Drive Bays: Expansion Slots: 5
• Fan Support:
• Front: 3 x 120mm / 2 X 140mm
• Top: 2 x 120mm/2 x 140mm
• Power Supply Shroud: 2 x 120mm
• Rear: 1 x 120mm
• Included Fan:
• 1 x 120mm fan in rear
• Radiator Support:
• Front: 120/140/240/280/360 (Length≤397mm)mm
• Top: 120 / 240mm
• Rear: 120mm
• Clearance:
• Max GPU Length: ≤ 300mm(with front fan), ≤ 320mm(without front fan)
• Max CPU Cooler Height: ≤ 155mm
• Max PSU Length: ≤ 165mm(with HDD), ≤ 325mm(without HDD)
• Dust Filter: Top / Bottom
• Product Dimensions: 48 x 20 x 45 cm
• Product Weight: 4000g

WHAT’S IN THE BOX:

• Antec NX500M m-ATX Gaming Chassis – Black x1
