| SPECIFICATIONS |
| Brand |
Thermaltake |
| Series |
Toughpower GF1 |
| Model |
PS-TPD-0550FNFAGE-2 |
| Wattage |
550W |
| Certification |
80 PLUS Gold |
| Modular |
Fully-Modular |
| Efficiency |
Meet 80 PLUS Gold at 115Vac Input |

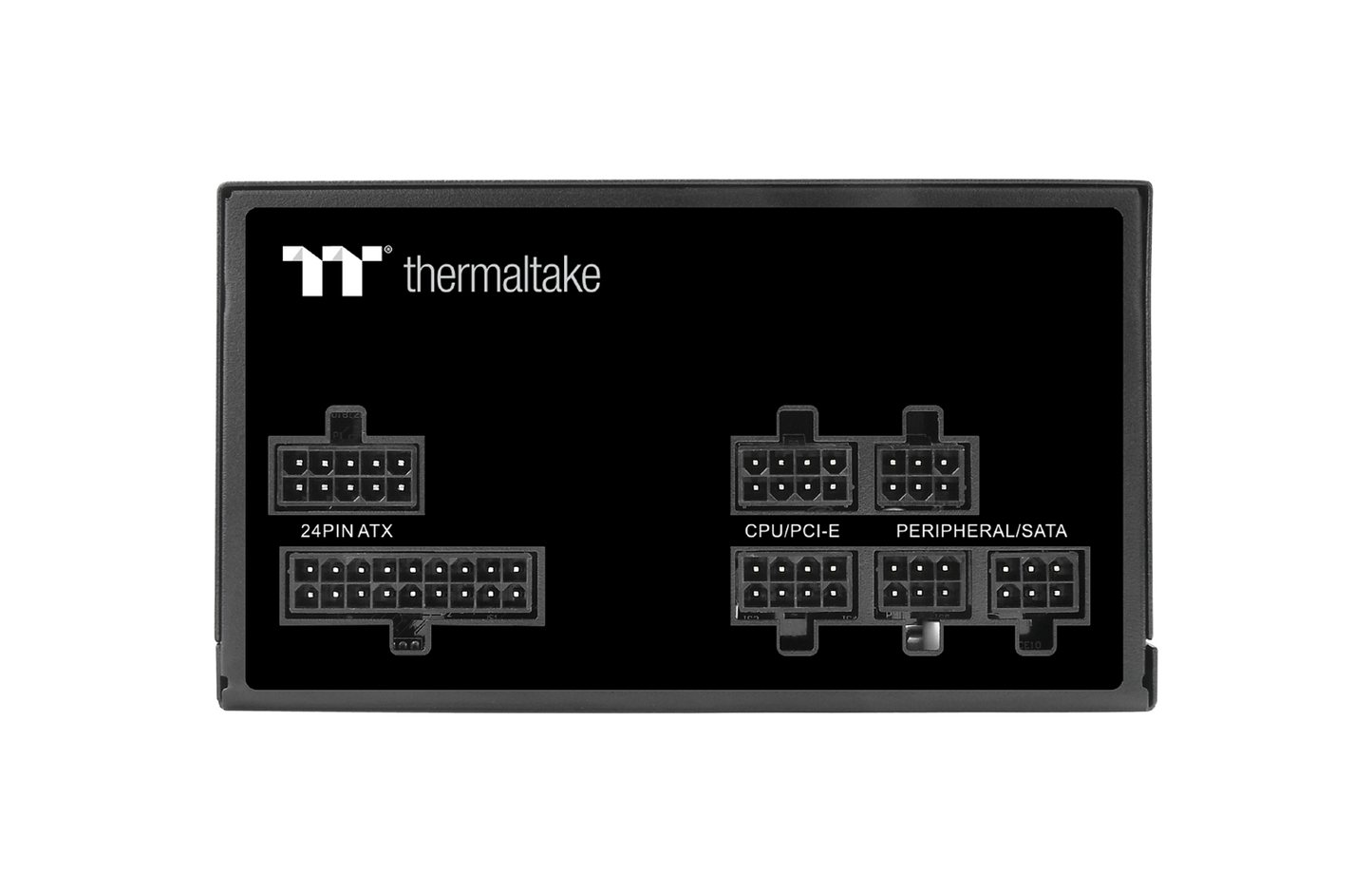

| Connectors |
| Main Power (24-pin) |
1x 24pin Main Connector (600mm) |
| ATX 12V (4 4-pin/8-pin) |
2x ATX 12V 4 4pin Connector 8 pin Connector (650mm 150mm) |
| PCI-E (6 2-pin) |
2x PCI-E 6 2pin Connectors (500mm 150mm) |
| SATA |
3x SATA Connectors (500mm 150mm 150mm) |
| 3x SATA Connectors (500mm 150mm 150mm) |
| Peripheral |
4x Peripheral Connectors (500mm 150mm 150mm 150mm) |
| Floppy Adapter |
1x Peripheral to Floppy Adapter Cable (150mm) |
| Performance |
| Maximum Output Capacity |
550 W |
| Peak Output Capacity |
660 W |
| Input Current |
8A |
| Input Voltage |
100 - 240 V |
| Input Frequency Range |
47 - 63 Hz |
| Hold Up Time |
> 12msec at 80% of Full Load at 230Vac Input |
| Power Good Signal |
100-500 msec |
| General |
| Colour |
Black |
| Cooling System |
14cm Hydraulic Bearing Fan |
| MTBF |
100,000 Hours Minimum |
| Operating Temperature Range |
0°C to - 40°C |
| Storage Temperature Range |
-20°C - 70°C |
| Operating Humidity Range |
20% - 90%, Non-Condensing |
| Safety Approval |
CE/cTUVus/TÜV/FCC/EAC |
| Protection |
OCP, OVP, UVP, OPP, SCP, OTP |
| Dimensions |
150mm x 86mm x 160mm |
| Warranty Information |
| Warranty |
10 Year Warranty |
