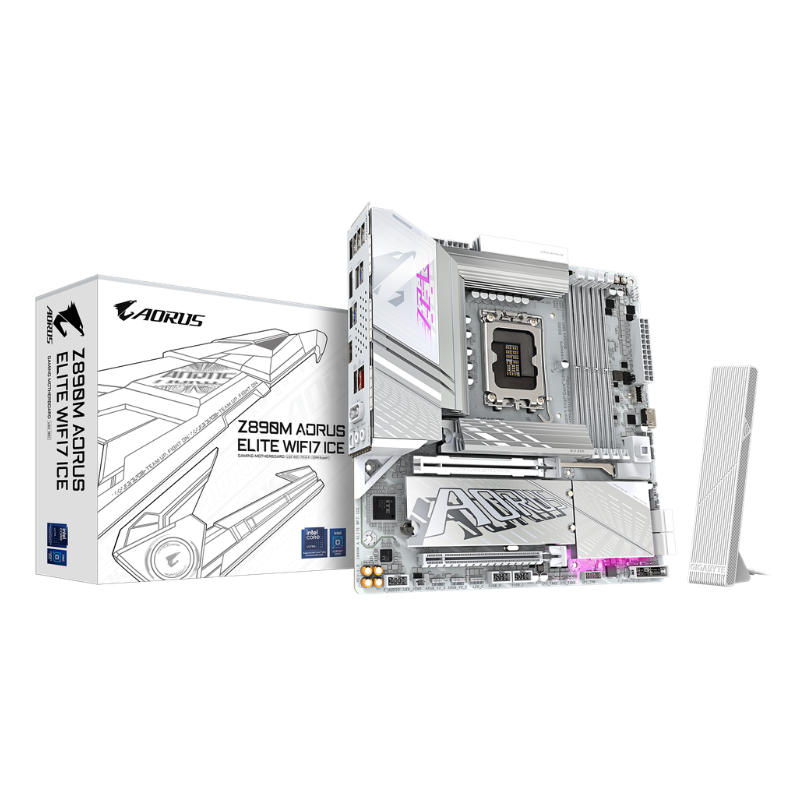

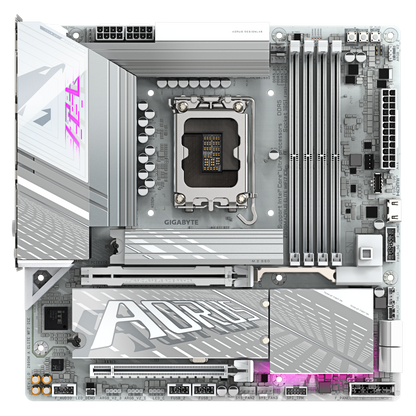

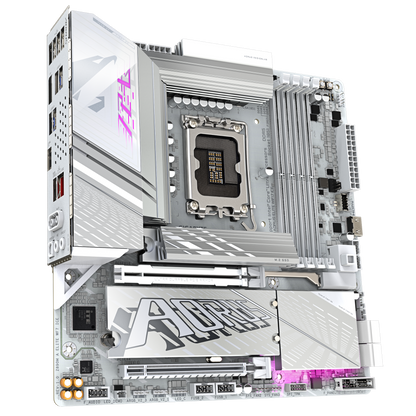

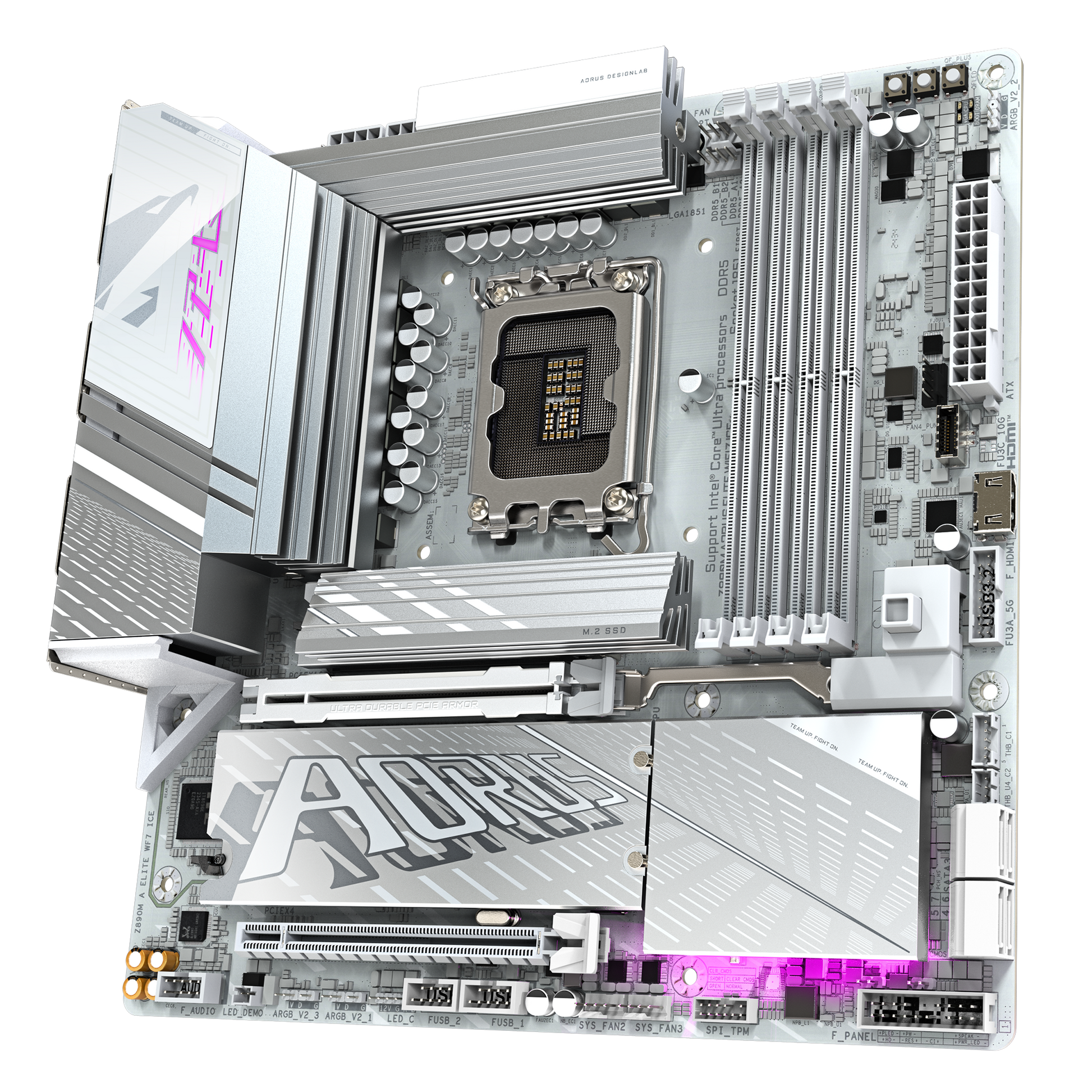

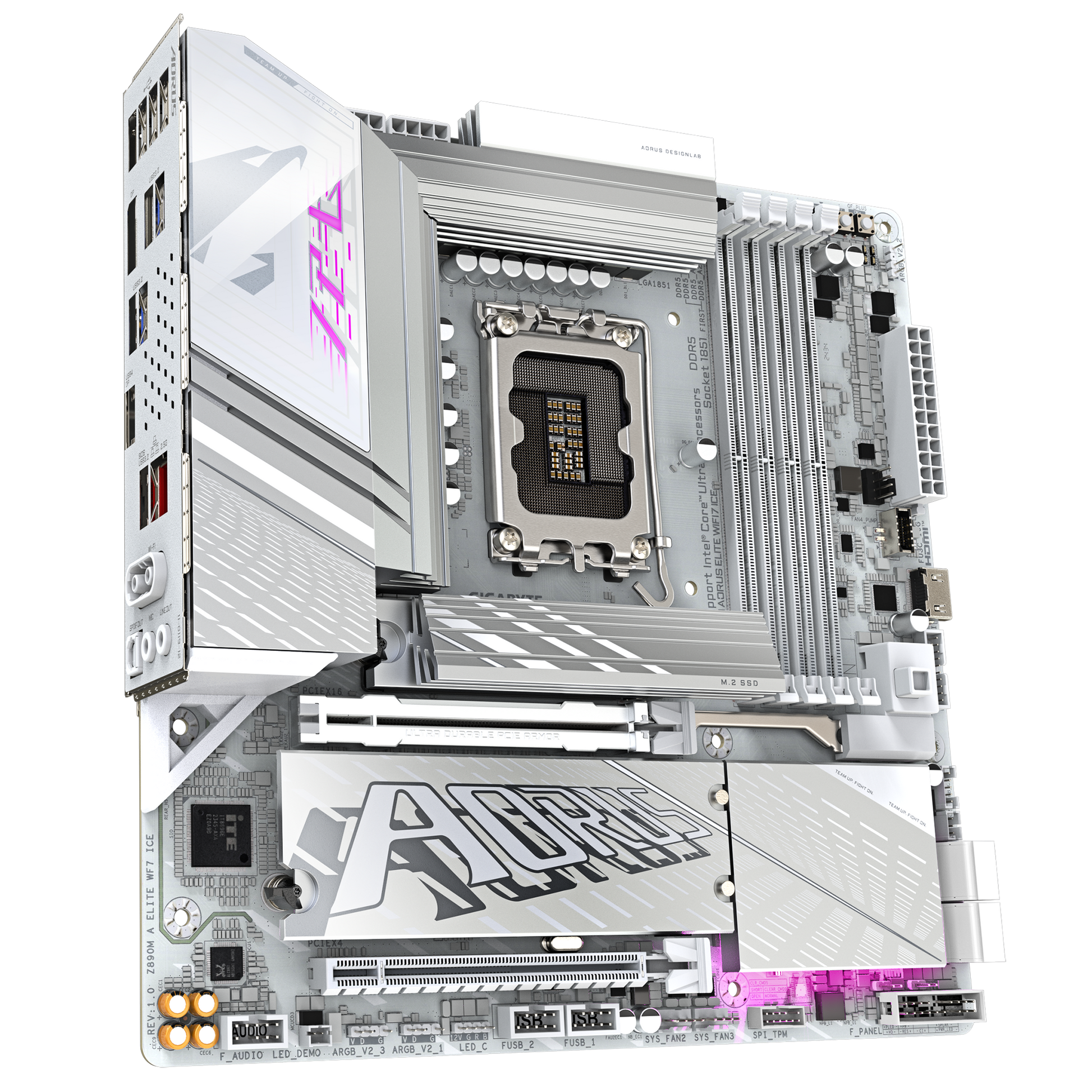

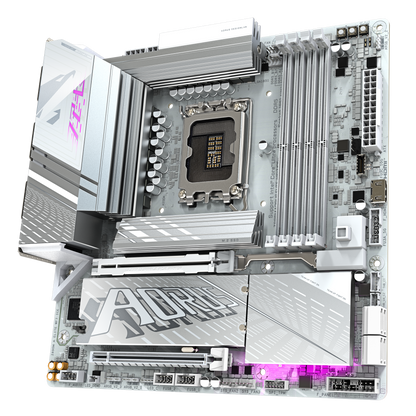

Gigabyte Z890M AORUS ELITE WIFI7 ICE Intel Z890 LGA 1851 Arrow Lake Micro-ATX Desktop Motherboard
Gigabyte Z890M AORUS ELITE WIFI7 ICE Intel Z890 LGA 1851 Arrow Lake Micro-ATX Desktop Motherboard
Regular price
R 5,699.00
Regular price
Sale price
R 5,699.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
We accept
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | AORUS ELITE Series |
| Model | Z890M AORUS ELITE WIFI7 ICE (GA-Z890M-AORUS-ELITE-WIFI7-ICE) |
| CPU Support | Supports Intel Core Ultra Series 2 Processors |
| Chipset | Intel Z890 Express |
| Memory Support | |
| Intel Core Ultra Series 2 Processors | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. |
| 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Support CUDIMM memory module | |
| Video | |
| HDMI | 1x HDMI 1.4 Internal port, supporting a maximum resolution of 1920x1080@30 Hz (for internal or chassis displays) |
| DisplayPort | 1x DisplayPort 2.1 port, supporting a maximum resolution of 3840x2160@144 Hz, Support for HDCP, VRR & HDR |
| USB-C | 1x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz |
| Integrated Intel graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 5.0 x16 Physical, x16 Electrical slot |
| Intel Z890 Chipset | 1x PCIe 4.0 x16 Physical, x4 Electrical slot |
| Storage | |
| CPU Direct | 1x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) |
| 1x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) | |
| Intel Z890 Chipset | 1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) |
| 4x SATA 6Gb/s connectors | |
| Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| Intel Rapid Storage Technology supports NVMe RAID 0/1/5/10 | |
| Networking | |
| LAN | Realtek 2.5 Gigabit LAN 10/100/1000/2500Mbps |

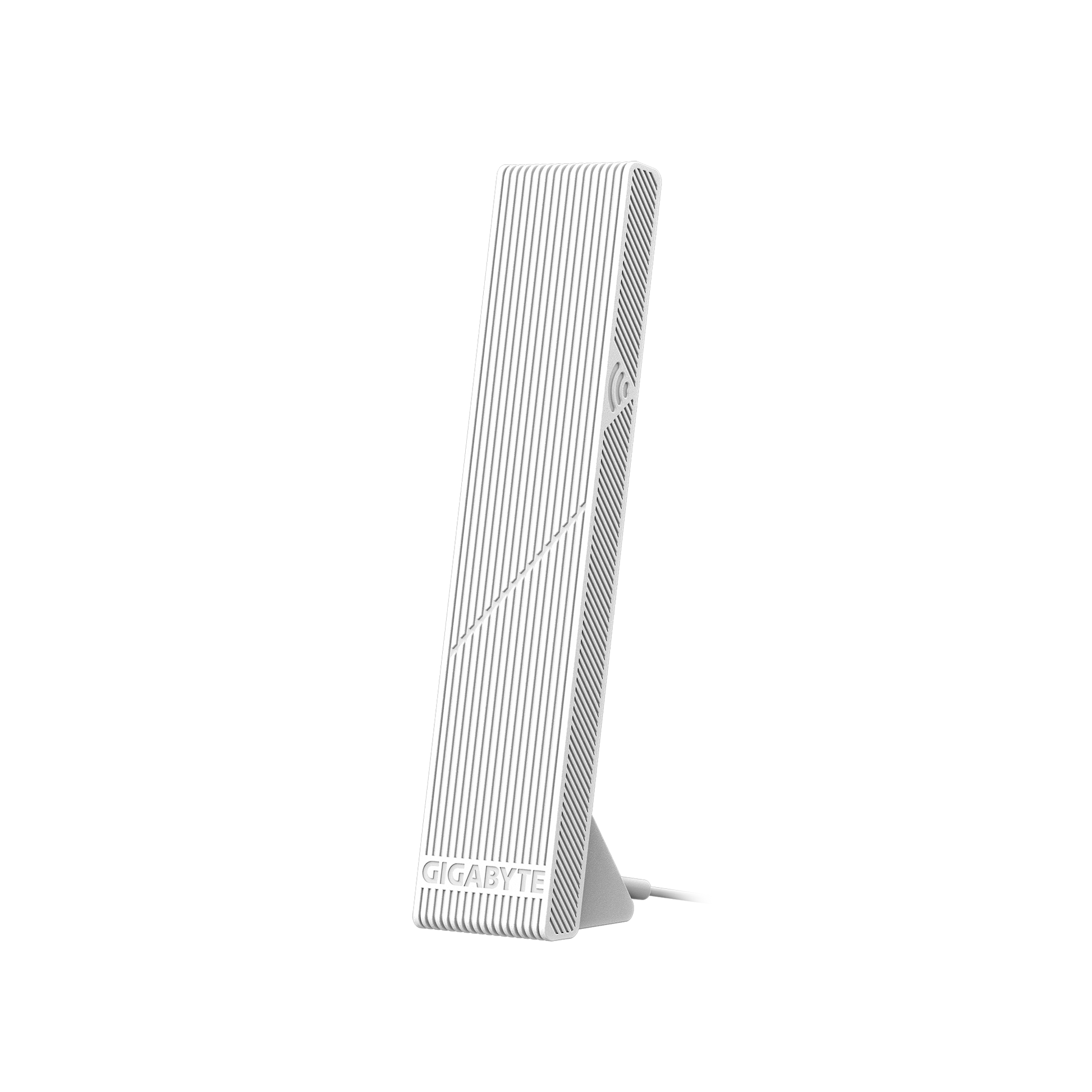

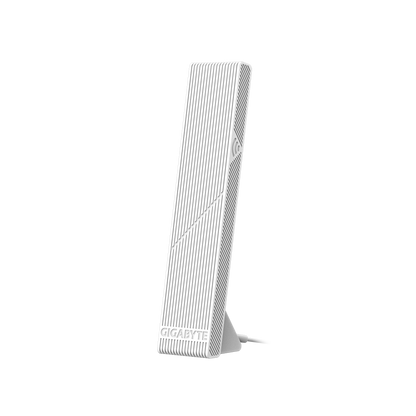

| WiFi | WiFi 7 2x2 MIMO Tri-Band Adapter |
| Bluetooth | Bluetooth 5.4 |
| Audio | |
| Codec | Realtek High Definition Audio CODEC |
| Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| Support for S/PDIF Out | |

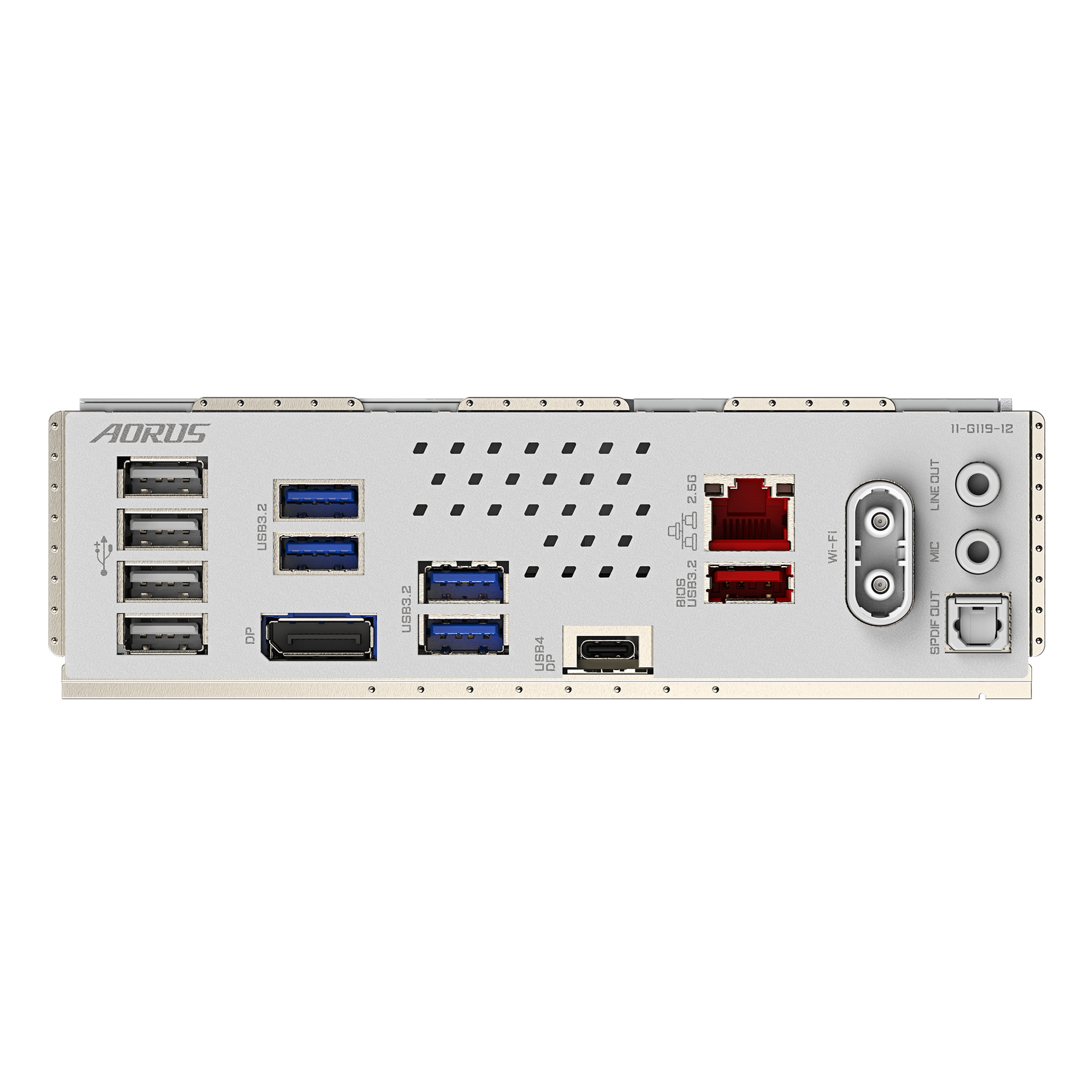

| Connectivity | |
| Ports | 1x USB 40Gbps Type-C Port with DisplayPort 2.1 |
| 1x USB 10Gbps Type-A Port | |
| 4x USB 5Gbps Type-A Ports | |
| 4x USB 2.0 Type-A Ports | |
| 1x DisplayPort 2.1 Port | |
| 2x SMA Wireless Connectors | |
| 2x 3.5mm Audio Jacks | |
| 1x S/PDIF Optical Out | |
| 1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port | |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 2x 8-pin ATX 12V power connectors | |
| 1x CPU fan header | |
| 1x CPU fan/water cooling pump header | |
| 3x system fan headers | |
| 1x system fan/water cooling pump header | |
| 3x addressable RGB Gen2 LED strip headers | |
| 1x RGB LED strip header | |
| 3x M.2 Socket 3 connectors | |
| 4x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x USB Type-C header, with USB 3.2 Gen 2 support | |
| 1x USB 3.2 Gen 1 header | |
| 2x USB 2.0/1.1 headers | |
| 2x Thunderbolt add-in card connectors (For GIGABYTE Thunderbolt 5 add-in card only) | |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) | |
| 1x HDMI port(Note) | |
| 1x power button | |
| 1x reset button | |
| 1x Q-Flash Plus button | |
| 1x reset jumper | |
| 1x Clear CMOS jumper | |
| I/O Controller | iTE I/O Controller Chip |
| Buttons | 1x Q-Flash Plus button, 1x Power Button, 1x Reset Button |
| LED Displays | Q-LED Debug LEDs (CPU, VGA, MEM, BOOT) |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | Micro-ATX Form Factor, 244 x 244mm (H x W) |
| Operating System Support | Windows 11 64-bit |
| Colour | Ice White |
| Warranty Information | |
| Warranty | 3 Year Warranty |
