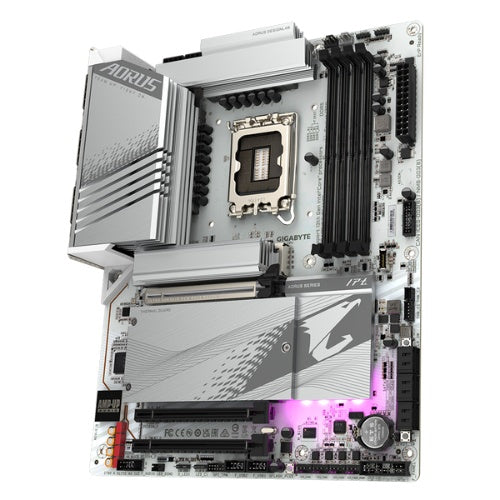

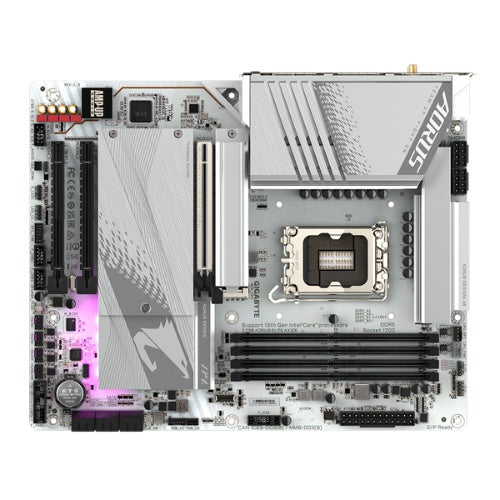

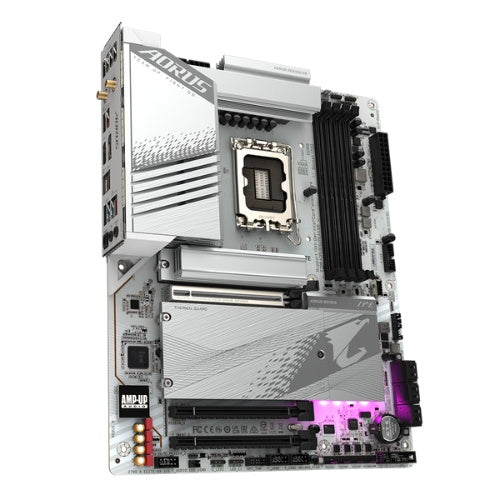

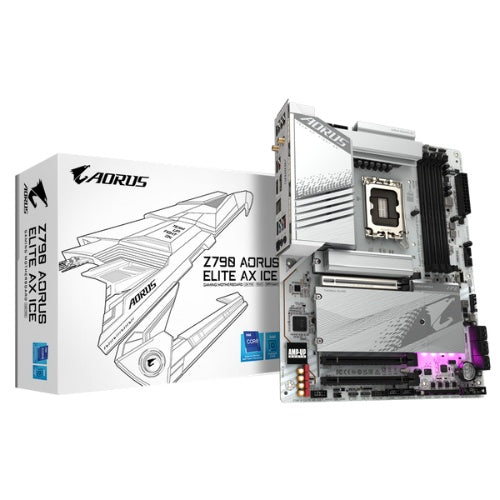

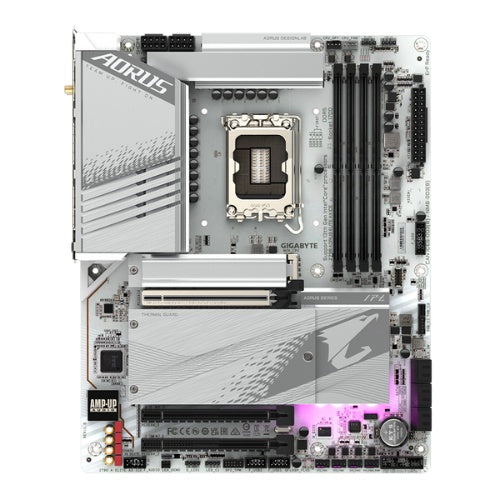

GIGABYTE Z790 AORUS ELITE AX ICE LGA1700 Intel Z790 ATX Intel Motherboard

GIGABYTE

GA-Z790-AORUS-ELITE-AX-ICE

LGA1700

Intel Z790

Alder Lake and Raptor Lake

ATX

Intel 12^th , 13^th and 14^th Generation CPUs (Alder Lake, Raptor Lake, and Meteor Lake)

Intel Z790

4 x DDR5 DIMM Slots

Dual Channel DDR5 Memory Technology

Support DDR5-7600+ (OC)

192GB Maximum Support Capacity

DisplayPort 1.2 and HDMI 2.0

*Requires Intel CPU with Integrated GPU

1 x Realtek 7.1 HD Audio

1 x Realtek 2.5G LAN 10/100/1000/2500 Mb/s

1 x Intel Wi-Fi 6E AX211, Realtek Wi-Fi 6E RTL8852CE + Bluetooth 5.3

1 x PCI Express 5.0 x16 Slot (PCIEX16)

1 x PCI Express 4.0 x16 Slot (PCIEX4_1)

1 x PCI Express 3.0 x16 Slot (PCIEX4_2)
*Supports x4 mode

**Please view PCIe bifurcation table in the manual

6 x SATA3 6.0 Gb/s Connectors
Supports RAID 0 / 1 / 5 / 10

4 x PCIe 4.0 x4 M.2 Sockets (2280/22110)
Supports RAID 0 / 1 / 5 / 10

1 x 24-pin ATX Main Power Connector

2 x 8-pin ATX 12V Power Connectors

1 x CPU Fan Header

1 x Water Cooling CPU Fan Header

3 x System Fan Headers

1 x System Fan/Water Cooling Pump Header

2 x Addressable LED Strip Headers

2 x RGB LED Strip Headers

4 x M.2 Socket 3 Connectors

6 x SATA 6Gb/s Connectors

1 x Front Panel Header

1 x Front Panel Audio Header

1 x USB Type-C Header

1 x USB 3.2 Gen 1 Header

2 x USB 2.0/1.1 Headers

2 x Thunderbolt Add-In Card Connectors

1 x Trusted Platform Module Header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only)

1 x Reset Button

1 x Q-Flash Plus Button

1 x Clear CMOS Button

1 x Reset Jumper

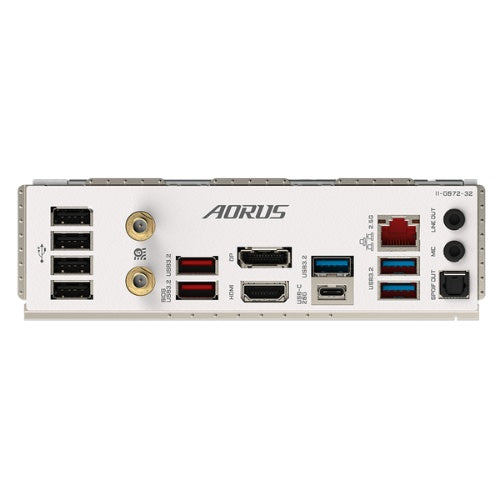

1 x USB Type-C Port

2 x USB 3.2 Gen 2 Type-A Ports (Red)

3 x USB 3.2 Gen 1 Ports

4 x USB 2.0/1.1 Ports

2 x SMA Antenna Connectors (2T2R)

1 x HDMI 2.0 Port

1 x DisplayPort

1 x RJ-45 Port

1 x Optical S/PDIF Out Connector

2 x Audio Jacks

Intel Socket LGA 1700:
Support 14th, 13th and 12th Gen Series Processors

Unparalleled Performance:
Twin 16+1+2 Phases Digital VRM Solution

Dual Channel DDR5:
4*SMD DIMMs with XMP 3.0 Memory Module Support

Next Generation Storage:
4*PCIe 4.0 x4 M.2 Connectors

Advanced Thermal Design & M.2 Thermal Guard III:
To Ensure VRM Power Stability & M.2 SSD Performance

EZ-Latch Plus:
M.2 Connectors with Quick Release & Screwless Design

Fast Networks:
2.5GbE LAN & Wi-Fi 6E 802.11ax

Extended Connectivity:
DP, HDMI, Front USB-C 10Gb/s, Rear USB-C 20Gb/s

Smart Fan 6:
Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Q-Flash Plus:
Update BIOS Without Installing the CPU, Memory and Graphics Card

3 Years
