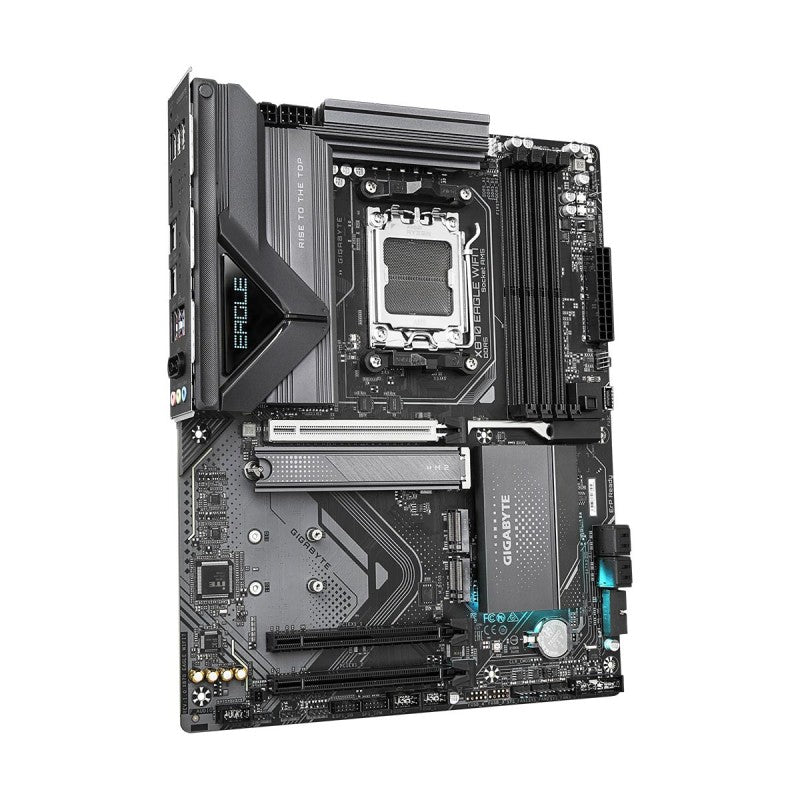

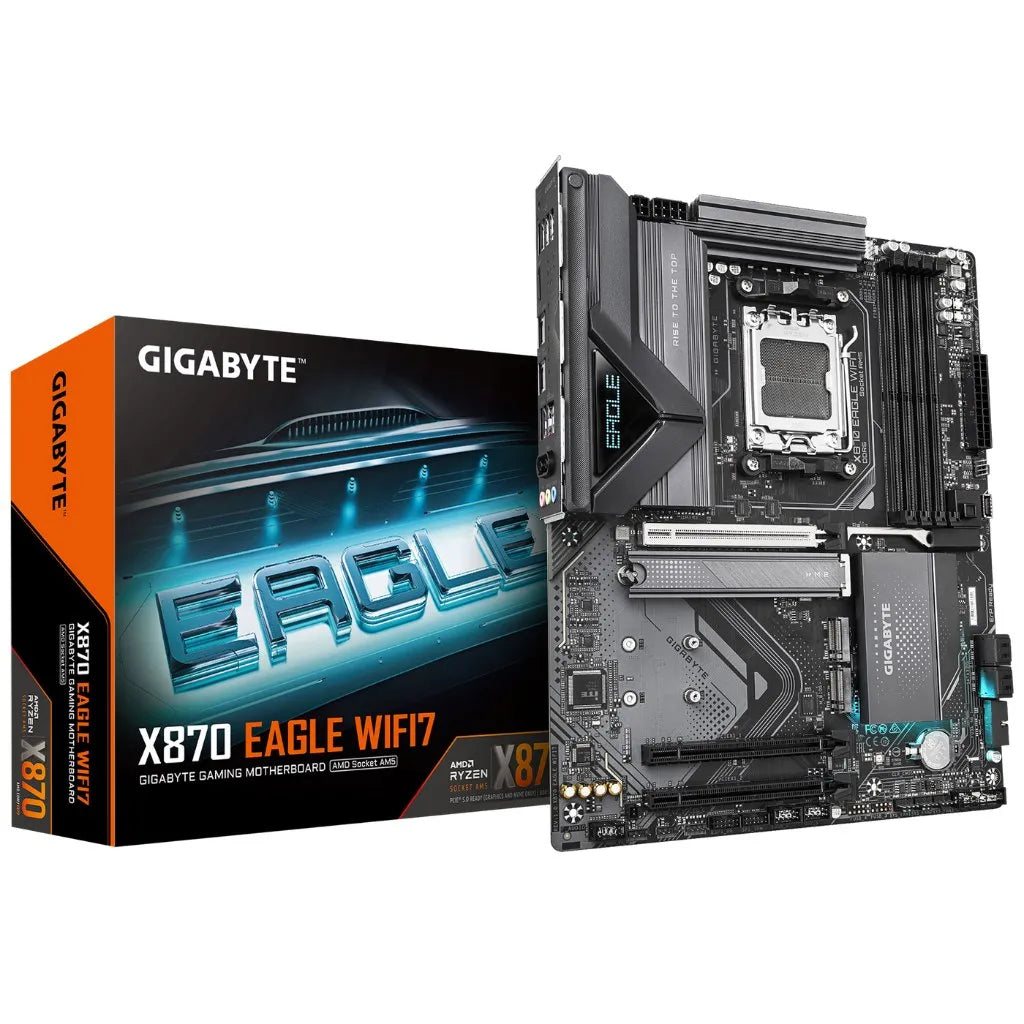

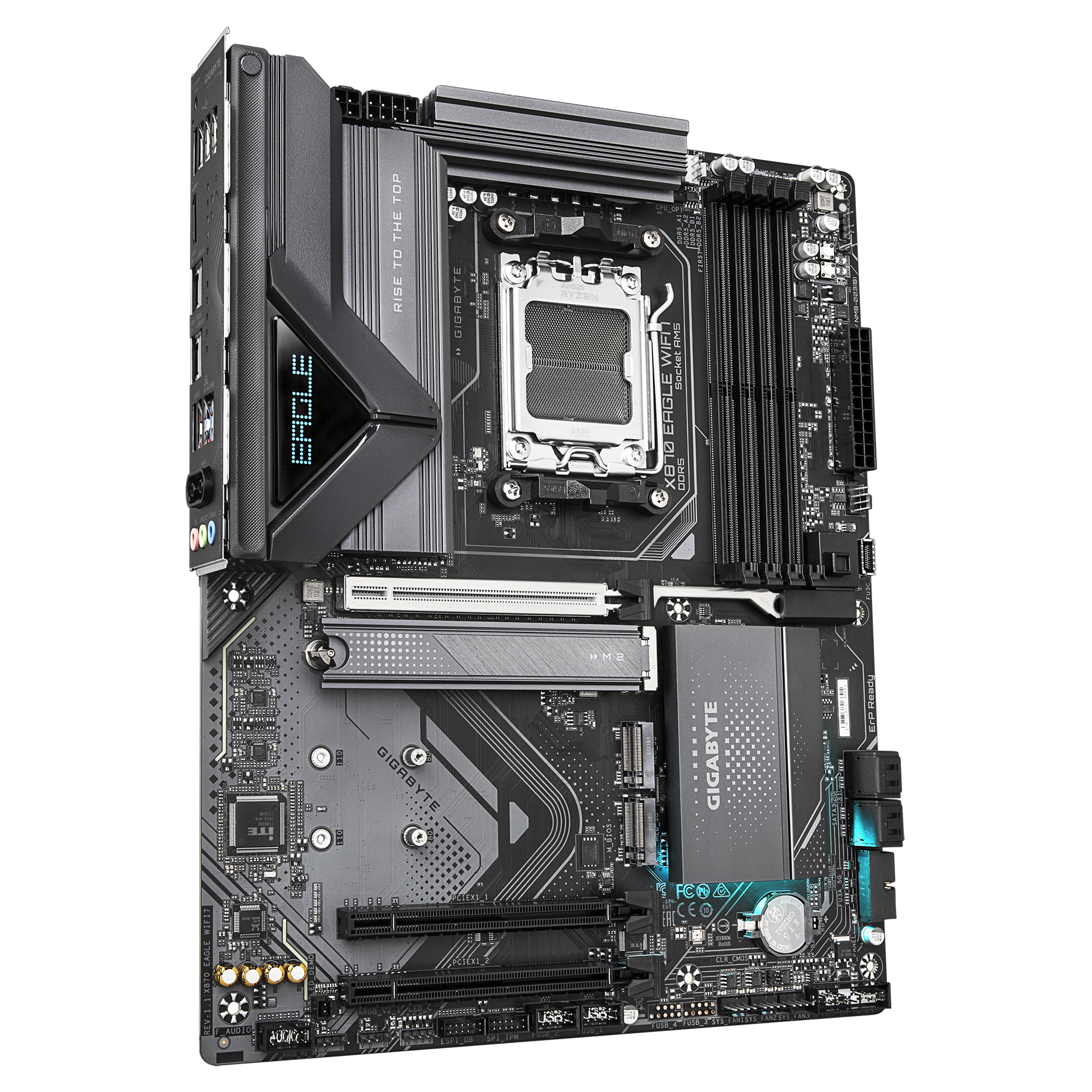

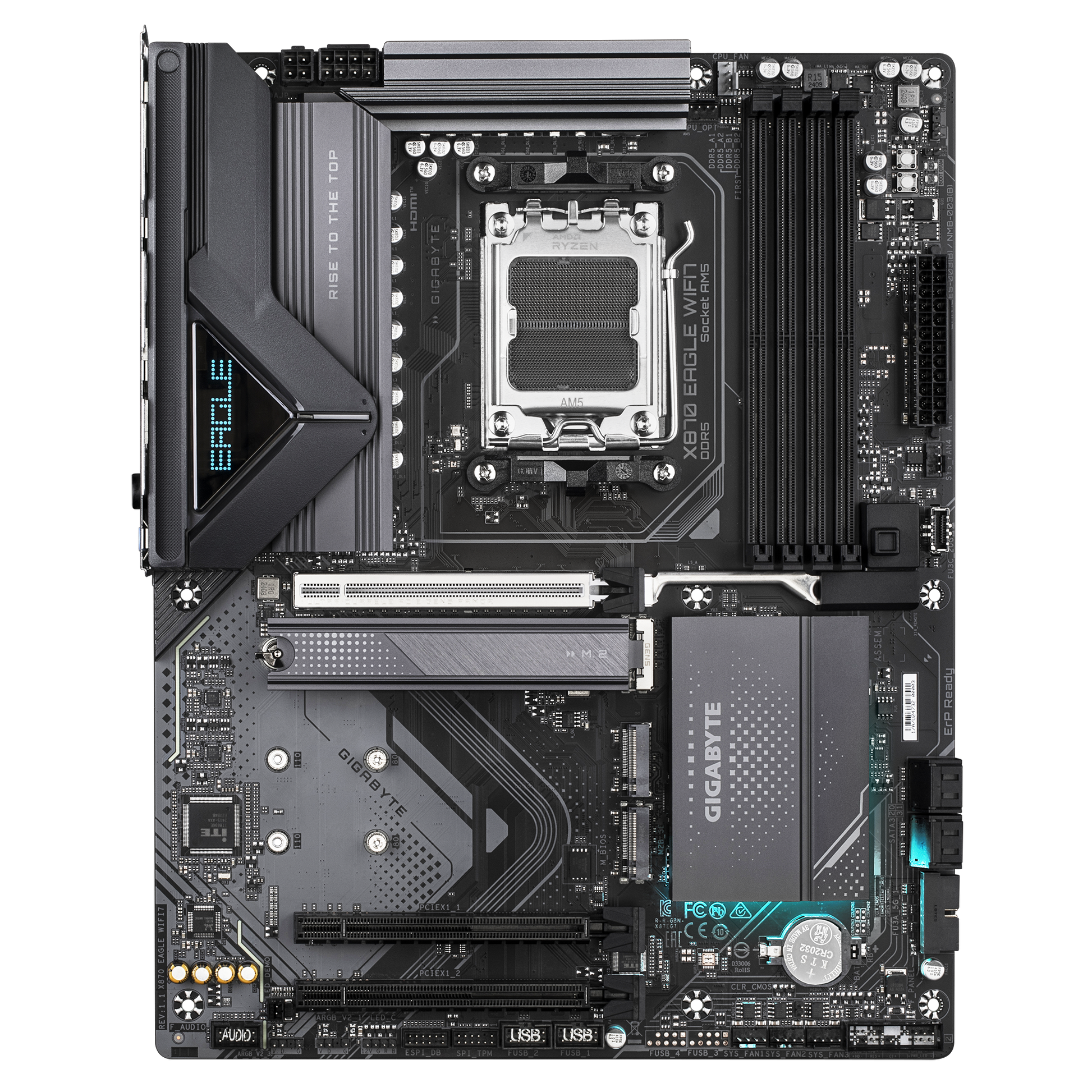

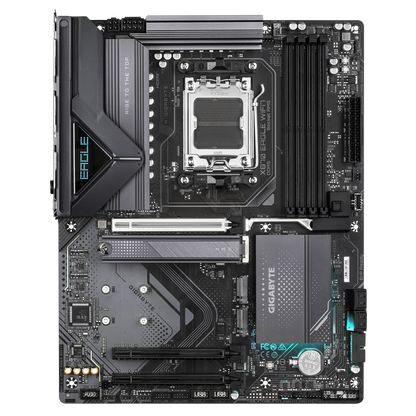

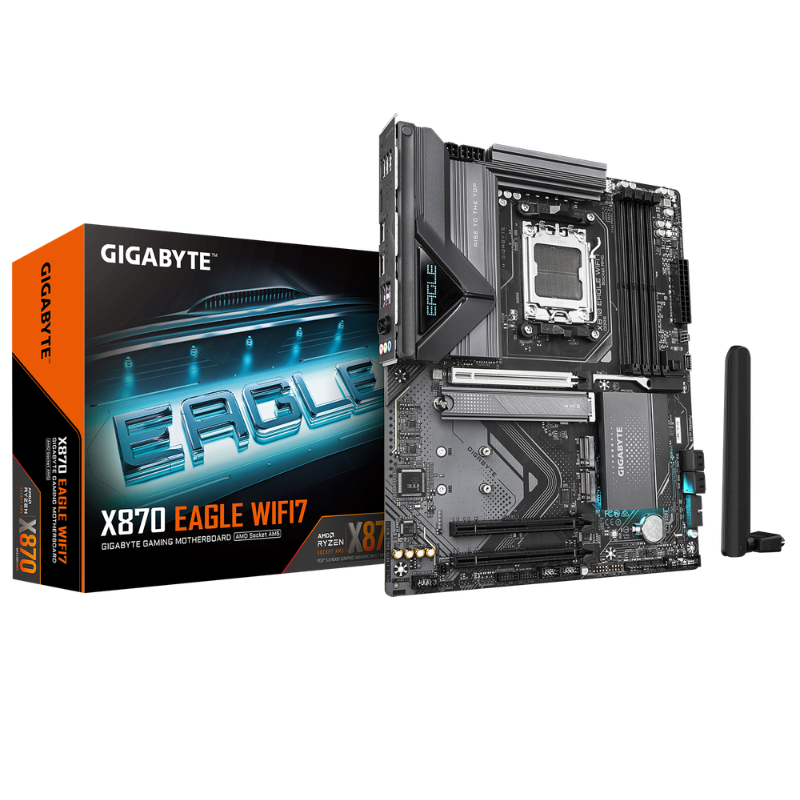

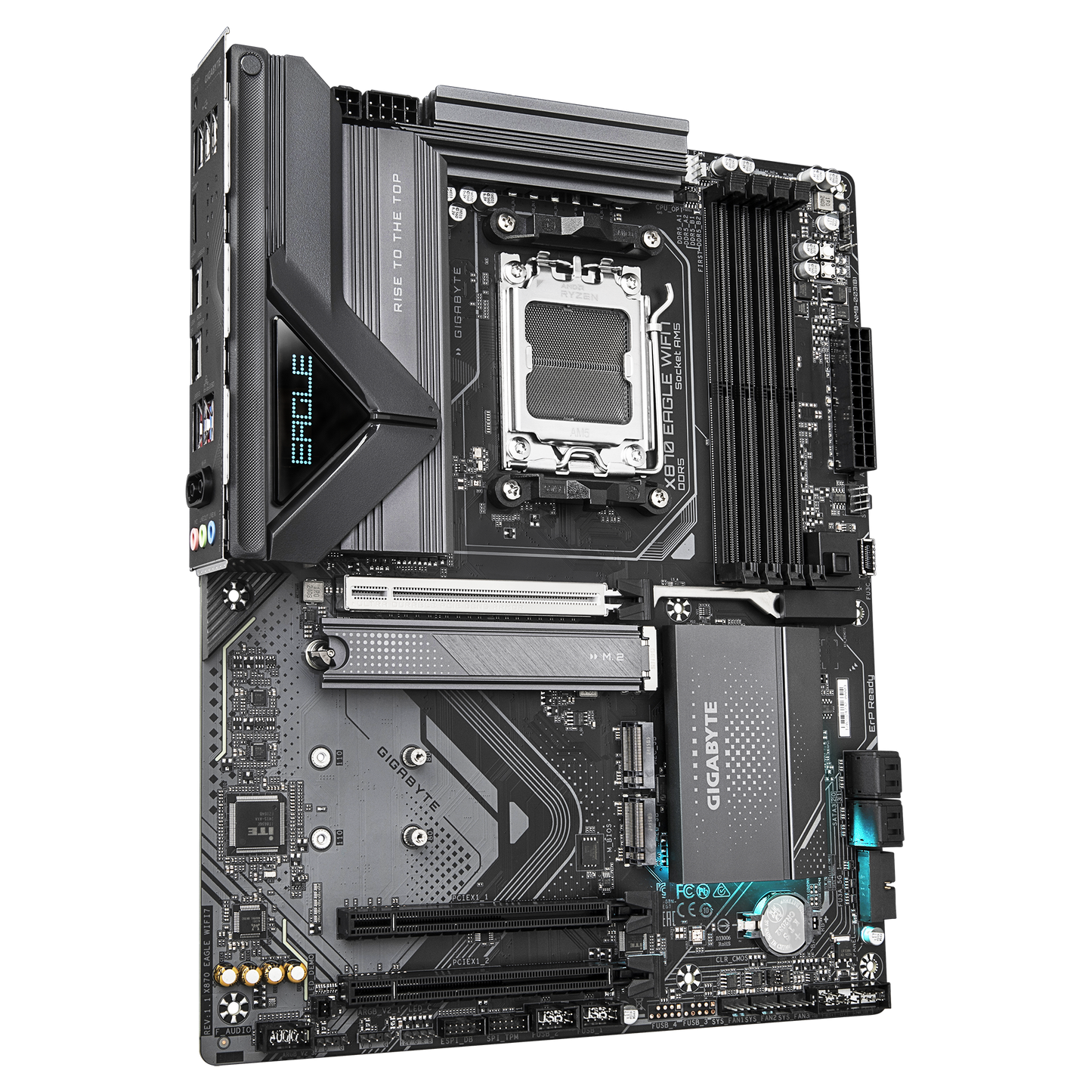

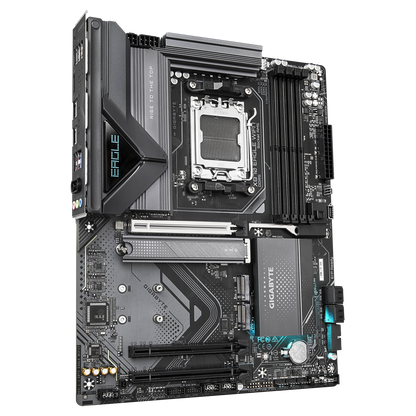

Gigabyte X870 EAGLE WIFI7 AMD X870 Ryzen Socket AM5 ATX Desktop Motherboard
Gigabyte X870 EAGLE WIFI7 AMD X870 Ryzen Socket AM5 ATX Desktop Motherboard
Regular price
R 4,550.00
Regular price
R 5,499.00
Sale price
R 4,550.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | EAGLE Series |
| Model | X870 EAGLE WIFI7 |
| CPU Support | Supports Ryzen 7000, 8000, 9000-Series Processors |
| Chipset | AMD X870 Chipset |
| Memory Support | |
| AMD X870 Chipset | Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules |
| 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | |
| Video | |
| DisplayPort | 2x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz, supports DisplayPort 1.4, HDCP & HDR |
| HDMI | 1x HDMI 2.1 Port, supporting a maximum resolution of 4096x2160@60 Hz, supports HDCP & HDR |
| Integrated graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 5.0 x16 Slot (x16 Physical)(PCIEX16) |
| AMD X870 Chipset | 2x PCIe 3.0 x1 Slots (x16 Physical) |
| Slot Configurations | PCIEX16 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode |
| PCIEX16 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode | |
| Storage | |
| CPU Direct | 1x M.2 25110/22110/2580/2280 PCIe 5.0 x4 NVMe SSD Slot (M2A_CPU) |
| AMD X870 Chipset | 1x M.2 25110/22110/2580/2280 PCIe 4.0 x2 NVMe SSD Slot (M2C_SB) |
| 1x M.2 25110/22110/2580/2280 PCIe 4.0 x4 NVMe SSD Slot (M2B_SB) | |
| NOTE: | The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2B_SB connector operates at up to x2 mode when a PCIe SSD is installed in the M2C_SB connector. |
| 4x SATA 6Gbps connectors | |
| RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices | |
| Ryzen 9000-Series RAID 5 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| Storage Configurations | M2A_CPU with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| M2A_CPU with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs | |
| Networking | |
| LAN | Realtek 2.5 Gigabit LAN 10/100/1000/2500 Mbps |
| WiFi | WiFi 7 2x2 MIMO Tri-Band Adapter |
| Bluetooth | Bluetooth 5.4 |
| Audio | |
| Codec | Realtek High-Definition Audio Codec |
| Support for 7.1 Surround with front-panel jack retasking, jack detection | |
| Connectivity | |

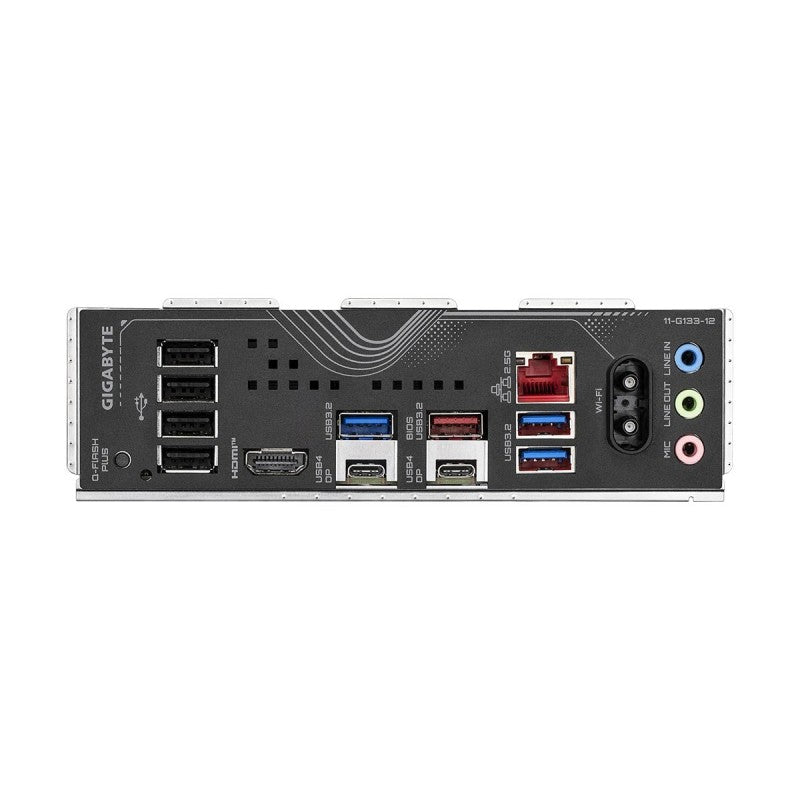

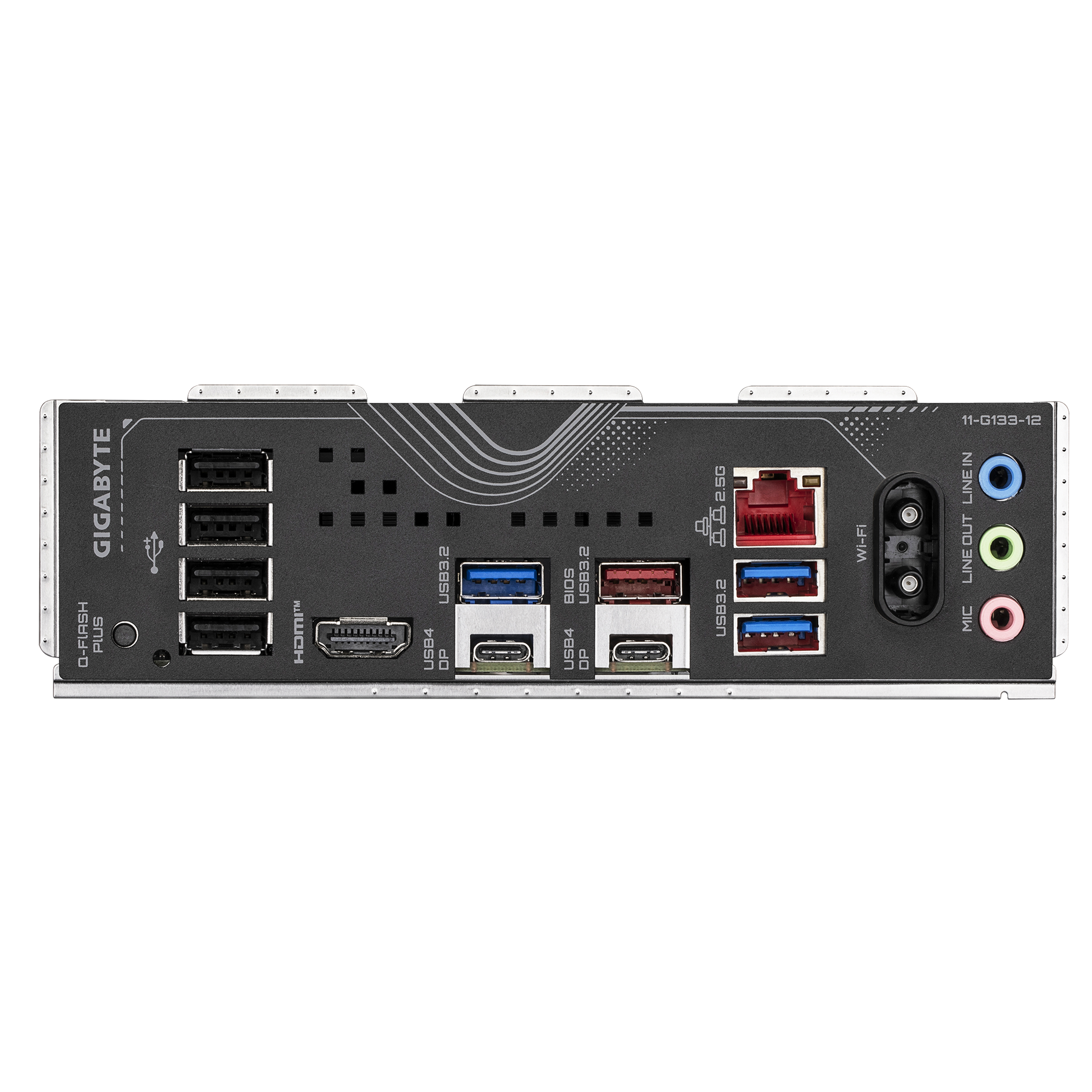

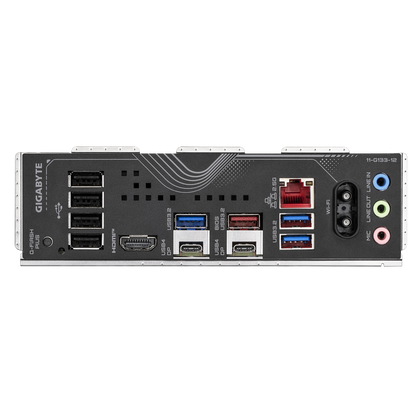

| Ports | 2x USB 40Gbps Type-C Ports with DisplayPort |
| 1x USB 10Gbps Type-A Port | |
| 3x USB 5Gbps Type-A Ports | |
| 4x USB 2.0 Type-A Ports | |
| 1x HDMI 2.1 Port (TMDS) | |
| 3x 3.5mm Audio Jacks | |
| 2x SMA Connectors | |
| 1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port | |
| Buttons | 1x Q-Flash Plus button |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x 4-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 1x CPU fan/water cooling pump header | |
| 4x system fan headers | |
| 3x addressable RGB Gen2 LED strip headers | |
| 1x RGB LED strip header | |
| 4x SATA 6Gb/s connectors | |
| 3x M.2 Socket 3 connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x USB Type-C header, with USB 3.2 Gen 2x2 support | |
| 1x USB 3.2 Gen 1 header | |
| 2x USB 2.0/1.1 headers | |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1x power button | |
| 1x reset button | |
| 1x reset jumper | |
| 1x Clear CMOS jumper | |
| I/O Controller | iTE I/O Controller Chip |
| BIOS | 1x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor, 305 x 244 mm (H x W) |
| Operating System Support | Windows 11 64-bit |
| Boxed Accessories | User's Manual |
| Quick Installation Guide | |
| 1x Wireless antenna | |
| 2x SATA cables | |
| 1x G-Connector (front panel) | |
| M.2 screw(s) | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
