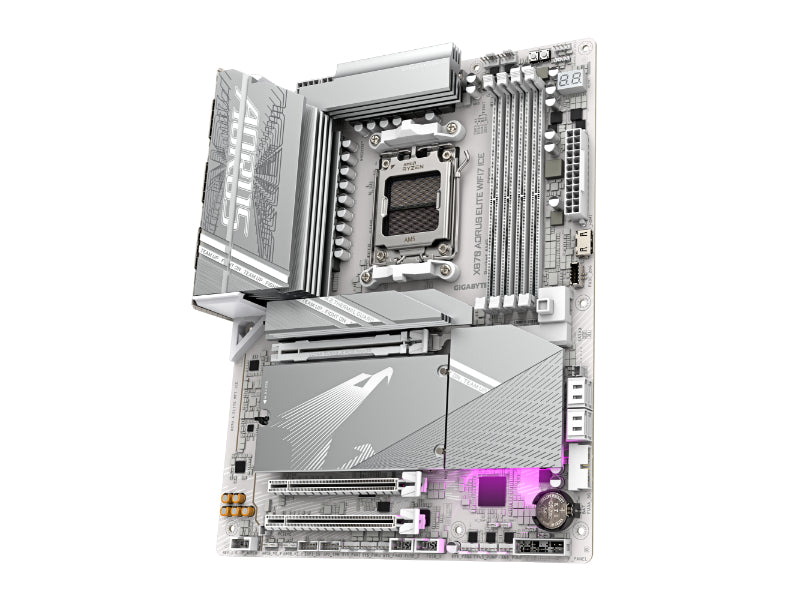

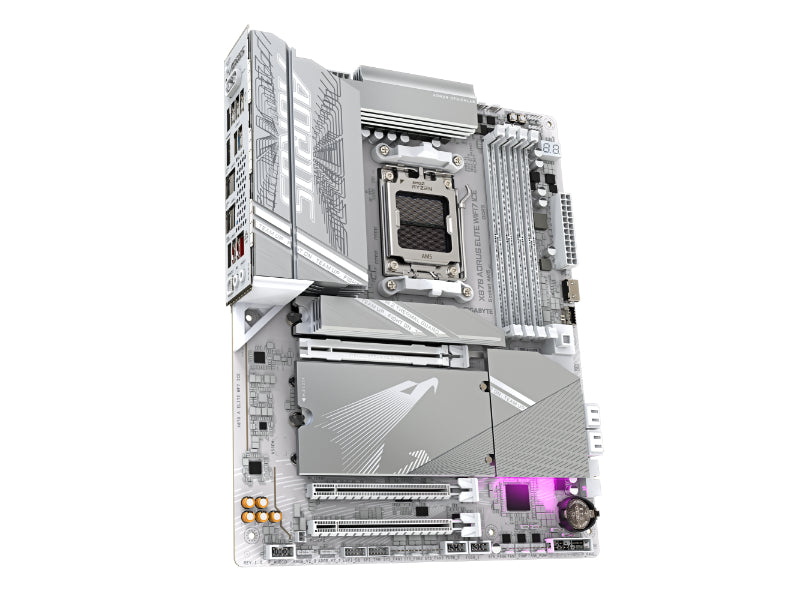

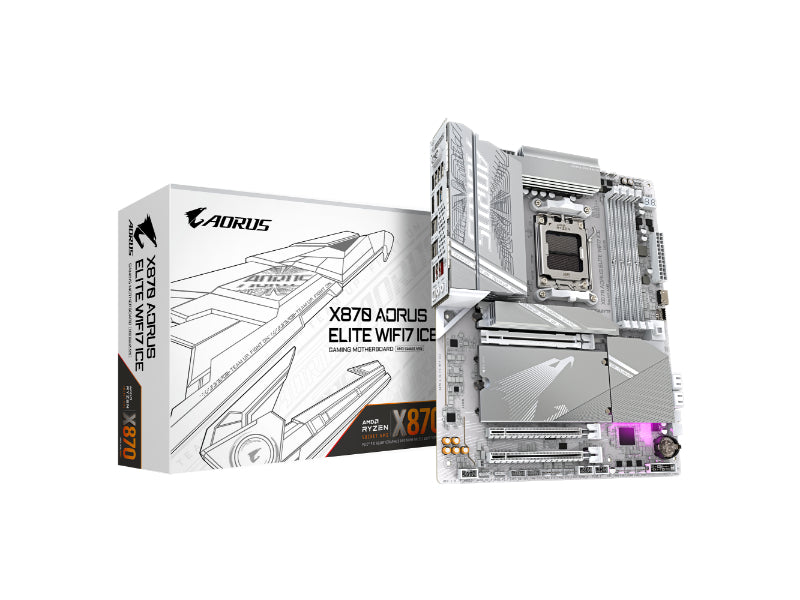

Gigabyte X870 AORUS ELITE WIFI 7 ICE AMD X870 Ryzen Socket AM5 ATX Desktop Motherboard
Gigabyte X870 AORUS ELITE WIFI 7 ICE AMD X870 Ryzen Socket AM5 ATX Desktop Motherboard
Regular price
R 7,099.00
Regular price
Sale price
R 7,099.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | X870 AORUS ELITE WIFI 7 ICE |
| Model | GA-X870-AORUS-ELITE-WIFI7-ICE |
| CPU | AMD Socket AM5, support for: |
| AMD Ryzen 9000 Series Processors | |
| AMD Ryzen 8000 Series Processors | |
| AMD Ryzen 7000 Series Processors | |
| Chipset | AMD X870 |
| Memory | Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules |
| 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) | |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller: |
| - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz | |
| * Support for DisplayPort 1.4 version and HDR. | |
| Integrated Graphics Processor with AMD Radeon Graphics support: | |
| - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| * Support for HDMI 2.1 version, HDCP 2.3, and HDR. | |
| ** Support native HDMI 2.1 TMDS compatible ports. | |
| - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz | |
| * Support for HDMI 1.4 version | |
| (Graphics specifications may vary depending on CPU support.) | |
| Support for up to quad-display at the same time | |
| Audio | Realtek ALC1220 CODEC |
| * The back panel line out jack supports DSD audio. | |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Support for S/PDIF Out | |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication Module | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) |
| - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| - BLUETOOTH 5.4 | |
| - Support for 11be 160MHz wireless standard | |
| Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) | |
| - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| - BLUETOOTH 5.4 | |
| - Support for 11be 160MHz wireless standard | |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode | |
| * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. | |
| When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. | |
| AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode | |
| AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode | |
| (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) | |
| Chipset: | |
| - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
| * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector. | |
| - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) | |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: |
| AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs | |
| AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs | |
| AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs | |
| 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: | |
| AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs | |
| * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used. | |
| 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs | |
| 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices | |
| * RAID 5 is only available on AMD Ryzen 9000 Series Processors. | |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| USB | CPU+ASMedia USB4 controller: |
| - 2 x USB4 USB Type-C ports on the back panel | |
| CPU+USB 3.2 Gen 1 Hub: | |
| - 4 x USB 3.2 Gen 1 ports on the back panel | |
| CPU+USB 2.0 Hub: | |
| - 4 x USB 2.0/1.1 ports on the back panel | |
| Chipset: | |
| - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through | |
| the internal USB header | |
| - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| - 2 x USB 3.2 Gen 1 ports available through the internal USB header | |
| - 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 2 x 8-pin ATX 12V power connectors | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 4 x system fan headers | |
| 2 x system fan/water cooling pump headers | |
| 3 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 4 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C header, with USB 3.2 Gen 2x2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x noise detection header | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x HDMI port (Note) | |
| 1 x power button | |
| 1 x reset button | |
| 2 x temperature sensor headers | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |

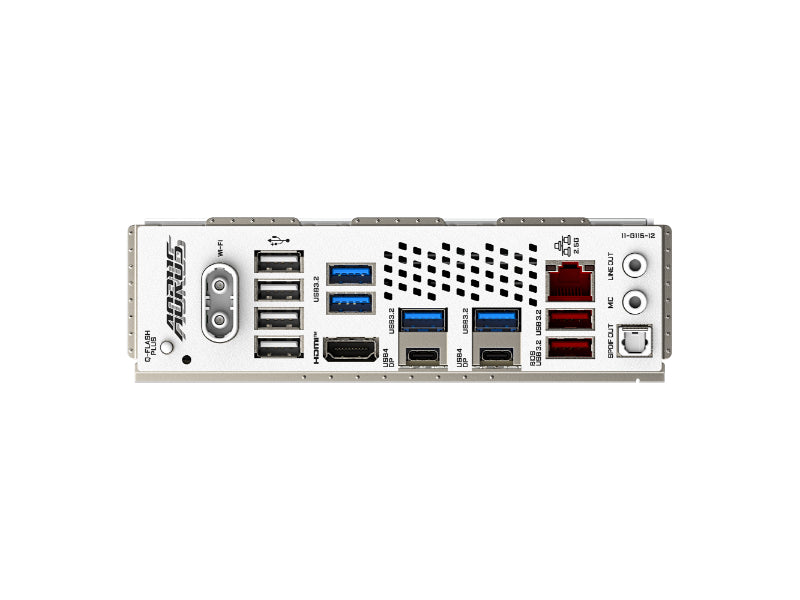

| Back Panel Connectors | 1 x Q-Flash Plus button |
| 1 x HDMI port (Note) | |
| 2 x antenna connectors (2T2R) | |
| 2 x USB4 USB Type-C ports (DisplayPort (Note)) | |
| 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 4 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 1 x optical S/PDIF Out connector | |
| 2 x audio jacks | |
| I/O Controller | iTE I/O Controller Chip |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor |
| 30.5cm x 24.4cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
