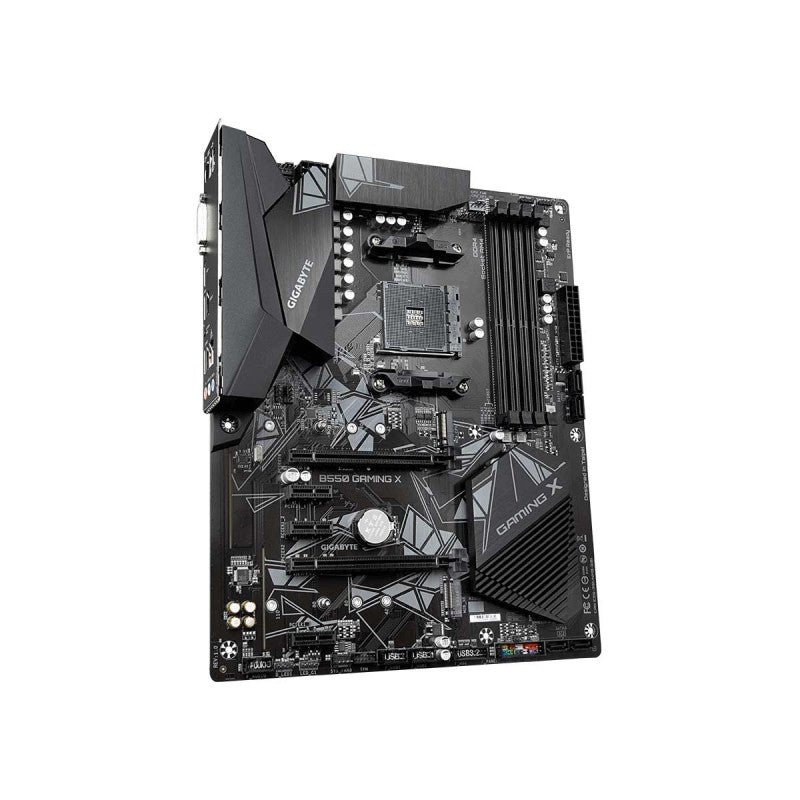

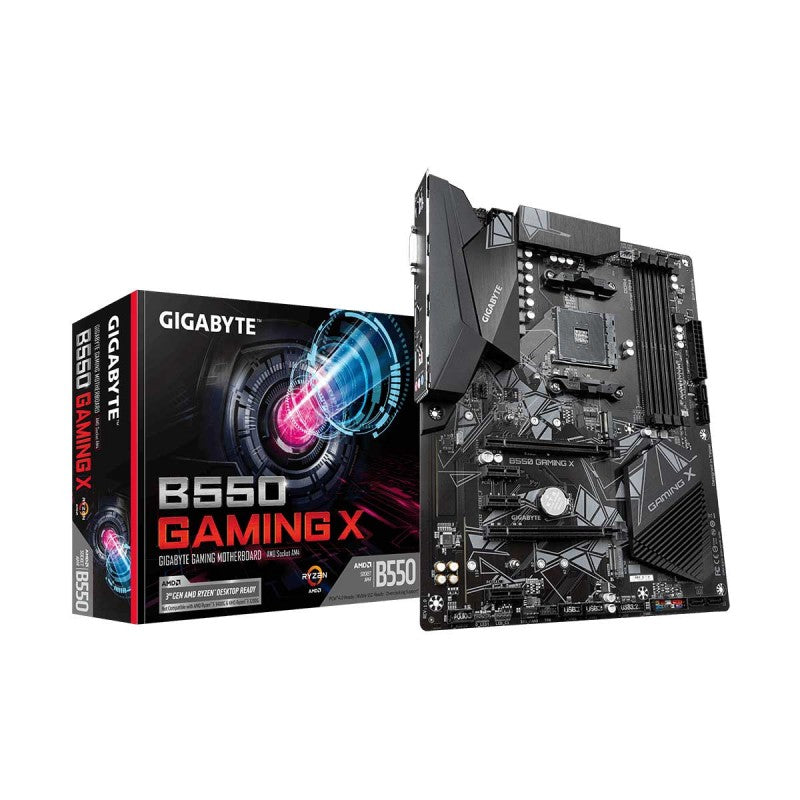

Gigabyte V2 B550 Gaming X V2 AMD B550 Ryzen Socket AM4 ATX Desktop Motherboard
Gigabyte V2 B550 Gaming X V2 AMD B550 Ryzen Socket AM4 ATX Desktop Motherboard
Regular price
R 2,699.00
Regular price
R 3,199.00
Sale price
R 2,699.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | Gigabyte Gaming AMD |
| Model | GA-B550-GAMING-X V2 |
| CPU | AMD Socket AM4 |
| Support for AMD Ryzen 5000 Series / 3rd Generation AMD Ryzen processors / 3rd Generation AMD Ryzen with Radeon Graphics processors | |
| * Refer to www.Gigabyte.com for the CPU Support List. | |
| Chipset | AMD A550 |
| Memory | 4x DDR4 DIMM sockets (Dual Channel) |
| - Supports up to 128 GB (32 GB single DIMM capacity) of system memory | |
| AMD Ryzen 5000 series processors/ 3rd Generation AMD Ryzen : | |
| - Support for DDR4 4400(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules | |
| 3rd Gen AMD Ryzen with Radeon Graphics processors: | |
| - Support for DDR4 4733(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3600(OC) / 3333(OC) /3200/2933/2667/2400/2133 MHz memory modules | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8 / 2Rx8 memory modules | |
| Support for non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| * Refer to www.Gigabyte.com for the Memory Support List. | |
| Expansion Slots | CPU |
| 1x PCI Express x16 slot (PCIEX16) | |
| - 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode | |
| - 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode | |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset | |
| 1x PCI Express x16 slot (PCIEX2) | |
| - Support PCIe 3.0 x2 mode | |
| 3x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3) | |
| - Support PCIe 3.0 x1 mode | |
| Onboard Graphics | Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: |
| - 1x DVI-D port, supporting a maximum resolution of 1920x1200 @60 Hz | |
| * The DVI-D port does not support D-Sub connection by adapter. | |
| - 1x HDMI port, supporting a maximum resolution of 4096x2160 @60 Hz | |
| * Support for HDMI 2.1 version, HDCP 2.3, and HDR. | |
| Maximum shared memory of 16 GB | |
| Storage Interface | CPU |
| 1x M.2 connector (M2A_CPU), supporting Socket 3, M key, type 2242 / 2260 / 2280 / 22110 SSDs: | |
| - 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4 / x2 SSDs | |
| - 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4 / x2 SSDs | |
| Chipset | |
| 1x M.2 connector (M2B_SB), supporting Socket 3, M key, type 2242 / 2260 / 2280 / 22110 SSDs | |
| - Support SATA and PCIe 3.0 x4 / x2 SSDs | |
| 4x SATA 6Gb/s connectors, integrated in the Chipset | |
| - Support for RAID 0, RAID 1, and RAID 10 | |
| USB | CPU |
| 1x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
| 3x USB 3.2 Gen 1 ports on the back panel | |
| Chipset | |
| 1x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header | |
| 2x USB 3.2 Gen 1 ports available through the internal USB header | |
| 6x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) | |
| Audio | Realtek Audio codec |
| High Definition Audio | |
| 2 / 4 / 5.1 / 7.1-channel | |
| * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. | |
| * Please visit the Gigabyte website for details on configuring the audio software. | |
| LAN | Realtek GbE LAN chip (1000 Mbit / 100 Mbit) |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 1x water cooling CPU fan header | |
| 3x system fan headers | |
| 2x addressable LED strip headers | |
| 2x RGB LED strip headers | |
| 1x CPU cooler LED strip/RGB LED strip header | |
| 2x M.2 Socket 3 connectors | |
| 4x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x USB Type-C port, with USB 3.2 Gen 1 support | |
| 1x USB 3.2 Gen 1 header | |
| 2x USB 2.0/1.1 headers | |
| 1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| 1x Clear CMOS jumper | |

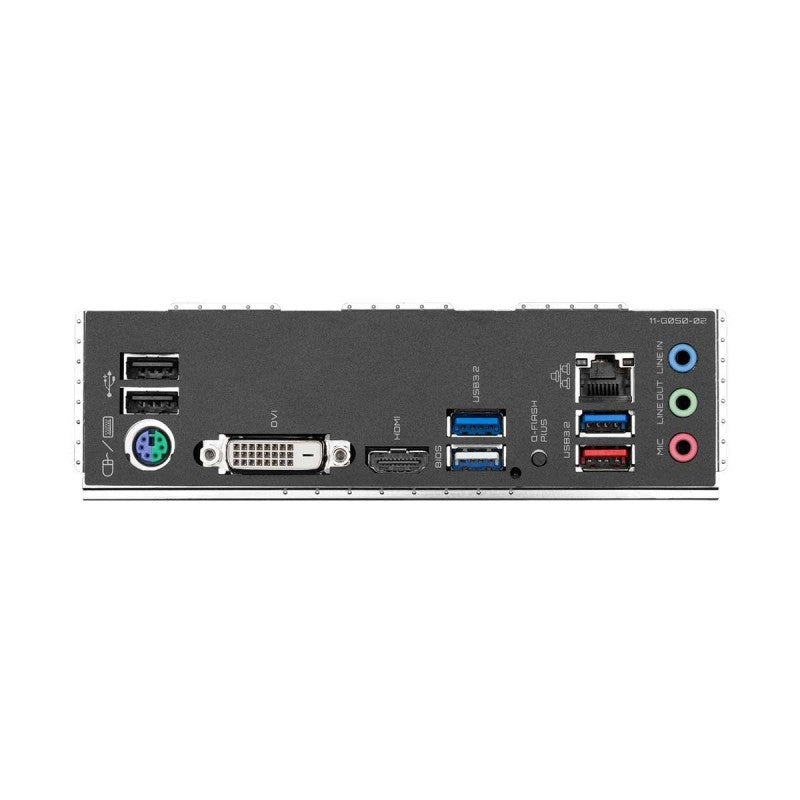

| Back Panel Ports | 2x USB 2.0/1.1 ports |
| 1x PS/2 keyboard/mouse port | |
| 1x DVI-D port | |
| 1x HDMI port | |
| 3x USB 3.2 Gen 1 ports | |
| 1x USB 3.2 Gen 2 Type-A port (red) | |
| 1x Q-Flash Plus button | |
| 1x RJ-45 port | |
| 3x audio jacks | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Overheating warning | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan speed control function is supported will depend on the cooler you install. | |
| BIOS | 1x 128 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Features | Support for Gigabyte BIOS APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| Support for Q-Flash Plus | |
| - Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card | |
| Support for Q-Flash | |
| Support for Xpress Install | |
| 10 + 3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs | |
| Ultra Durable PCIe 4.0 Ready x16 Slot | |
| Dual Ultra-Fast NVMe PCIe 4.0 / 3.0 x4 M.2 Connectors | |
| Gigabyte Exclusive 8118 Gaming LAN with Bandwidth Management | |
| Front USB 3.2 Gen1 Type-C and HDMI & DVI-D | |
| High Quality Audio Capacitors and Audio Noise Guard | |
| RGB Fusion 2.0 support Addressable LED & RGB LED Strips | |
| Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP | |
| Anti-Sulfur Resistors Design | |
| Bundled Software | Norton Internet Security (OEM version) |
| Realtek 8118 Gaming LAN Bandwidth Control Utility | |
| Operating System | Support for Windows 10 64-bit |
| Form Factor | ATX |
| 30.5 x 24.4 cm | |
| Note | Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. |
| Most hardware / software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, the manufacturer will update them on the Gigabyte website. | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
