| SPECIFICATIONS |
| Brand |
Gigabyte |
| Series |
GAMING OC |
| Model |

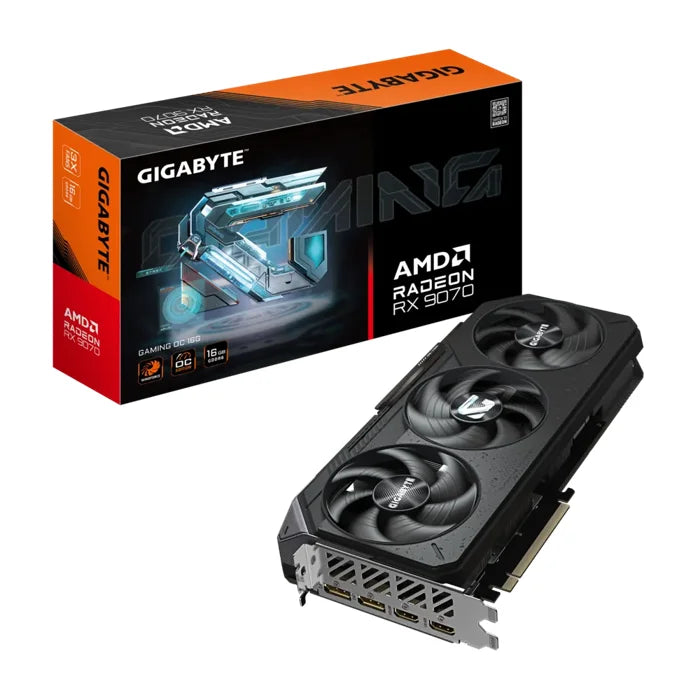

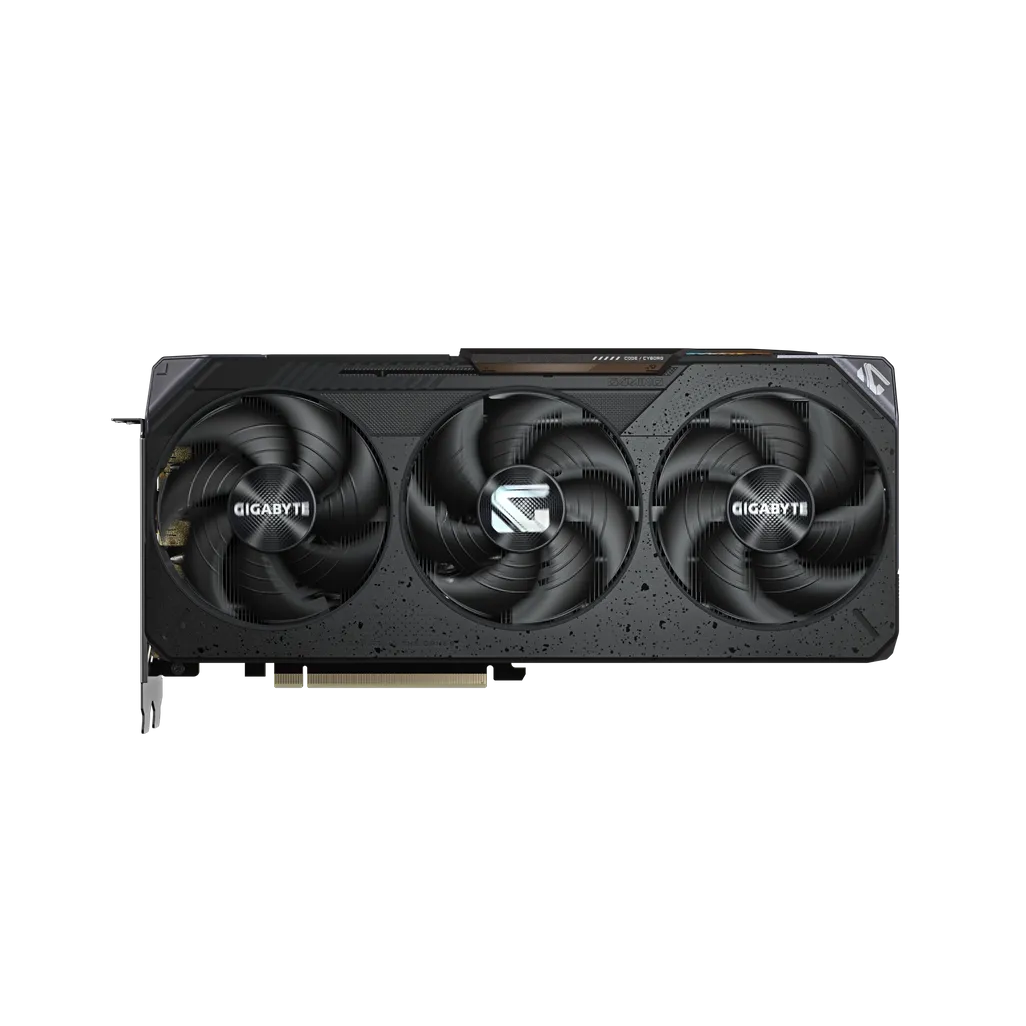

Radeon RX 9070 GAMING OC(GV-R9070GAMING OC-16GD) |
| Chipset |
| GPU |
Radeon RX 9070 |
| Chipset Manufacturer |
AMD |
| Interface |
PCIe 4.0 x16 |
| Compute Units |
56 |
| Ray Accelerators |
56 |
| ROPs |
128 |
| Core Clock |
Boost Clock: up to 2700 MHz |
| Game Clock: up to 2210 MHz |
| Stream Processors |
3584 |
| GPU Architecture |
AMD RDNA 4 Architecture |
| Memory |
| Infinity Cache |
80MB |
| Effective Memory Clock |
20 Gbps |
| Memory Size |
16GB |
| Memory Interface |
256 bit |
| Memory Type |
GDDR6 |
| 3D API |
| DirectX |
Microsoft DirectX 12 Ultimate |
| OpenGL |
OpenGL 4.6 |
| Vulkan |
Vulkan Optimized |
| Connectivity |
| Ports |
3x DisplayPort v2.1a |
| 1x HDMI 2.1b |
| Multi-Monitor Support |
4 |
| Maximum Digital Resolution |
7680 x 4320 |
| VR Ready |
Yes |
| General |
| Features |
WINDFORCE Cooling System |
| Hawk Fan |
| Server-grade Thermal Conductive Gel |
| RGB Lighting |
| Dual BIOS (Performance / Silent) |
| Reinforced Structure |
| large Copper Plate |
| Composite Copper Heat Pipe |
| Screen Cooling |
| Sliding Side Plate |
| AMD Radiance Display Engine |
| AMD Radeon Boost technology |
| AMD Radeon Anti-Lag* technology |
| AMD FidelityFX technologies |
| AMD FidelityFX Super Resolution technology |
| Microsoft DirectX 12 Ultimate |
| Microsoft DirectStorage |
| Vulkan Optimized |
| AMD smart technologies |
| AMD Software: Adrenalin Edition application |
| AMD Noise Suppression |
| AMD Privacy View |
| AMD Radeon Super Resolution technology |
| AMD Link |
| AMD Freesync technology |
| Power Requirements |
| Recommended Power Supply |
750W |
| Power Connector |
2x 8-Pin |
| Physical Aspects |
| Form Factor |
ATX |
| Slot Width |
50mm |
| Dimensions |
288mm x 132mm x 50mm |
| Warranty Information |
| Warranty |
3 Year Warranty |
