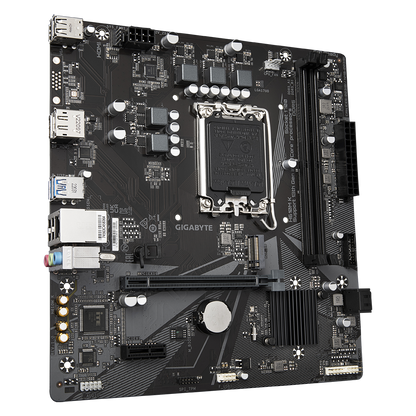

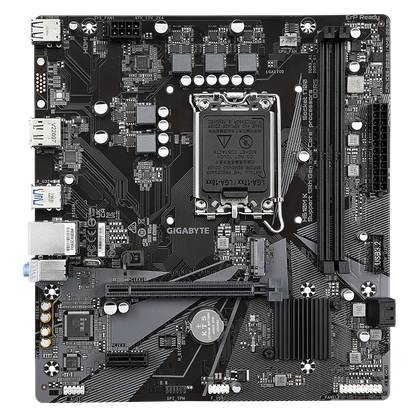

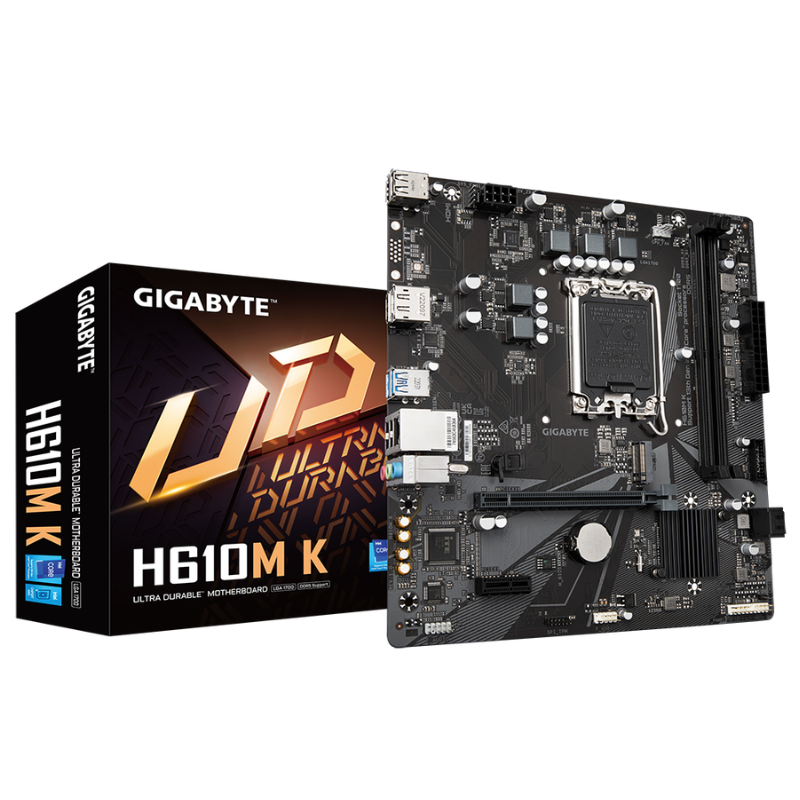

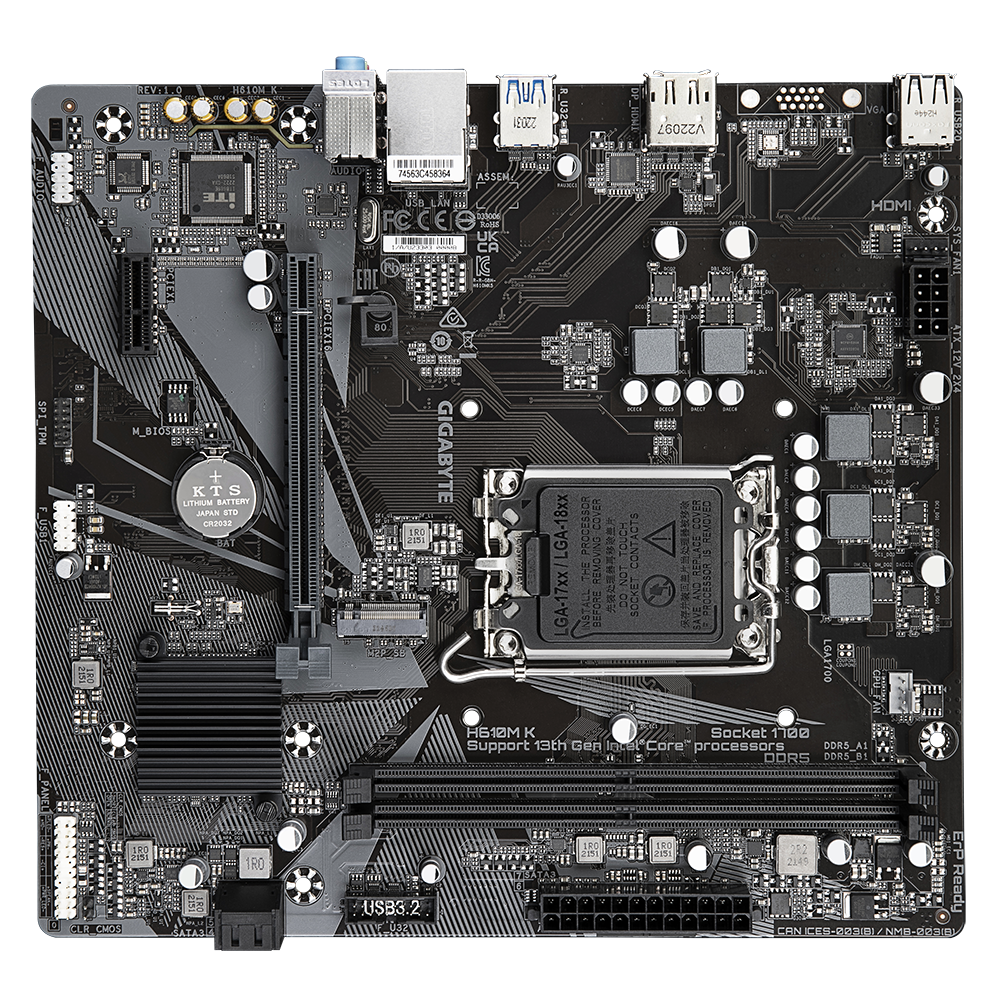

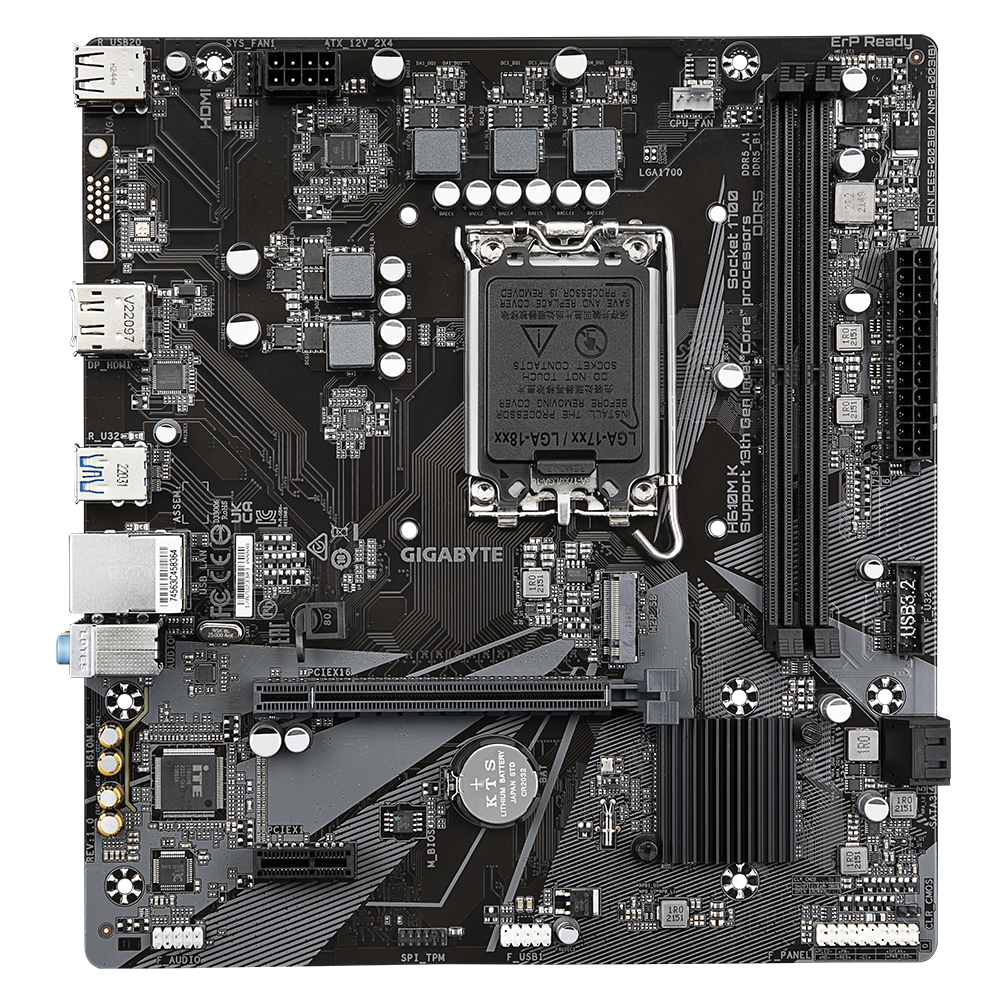

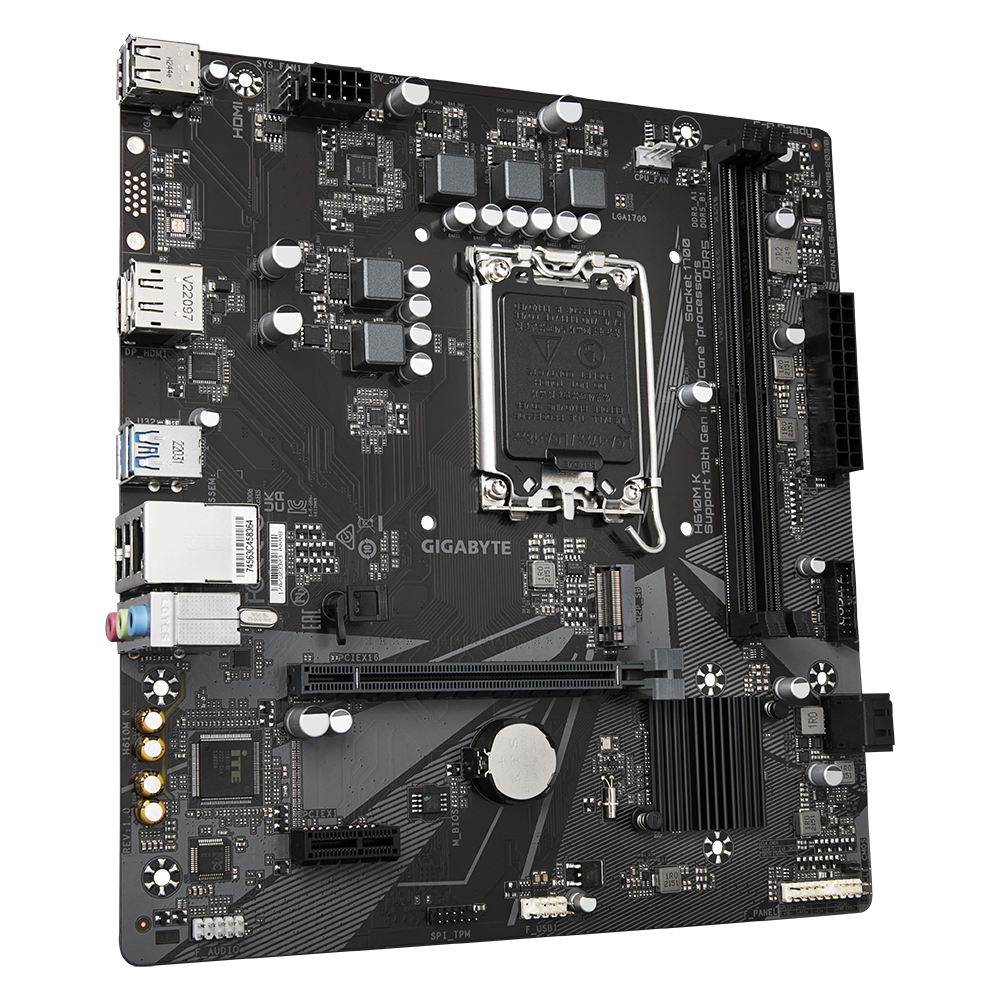

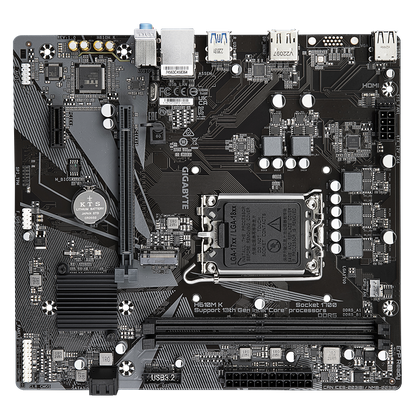

Gigabyte H610M K Ultra Durable DDR4 H610M-K-DDR4 Intel H610 LGA 1700 Raptor Lake Micro-ATX Desktop Motherboard
Gigabyte H610M K Ultra Durable DDR4 H610M-K-DDR4 Intel H610 LGA 1700 Raptor Lake Micro-ATX Desktop Motherboard
Regular price
R 1,899.00
Regular price
Sale price
R 1,899.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
We accept
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | H610 Series |
| Model | H610M-K-DDR4 |
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors* |
| L3 cache varies with CPU | |
| Chipset | Intel H610 Express Chipset |
| Memory | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules |
| 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| (Please refer "Memory Support List" for more information.) | |
| Onboard Graphics | Realtek Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Expansion Slots | CPU: |
| 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 | |
| Chipset: | |
| 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 | |
| Storage Interface | Chipset: |
| 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) | |
| 2 x SATA 6Gb/s connectors | |
| USB | Chipset: |
| 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
| 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x system fan header | |
| 1 x M.2 Socket 3 connector | |
| 2 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB 3.2 Gen 1 header | |
| 1 x USB 2.0/1.1 header | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1 x Clear CMOS jumper | |

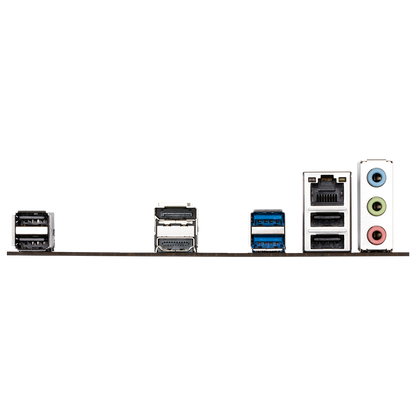

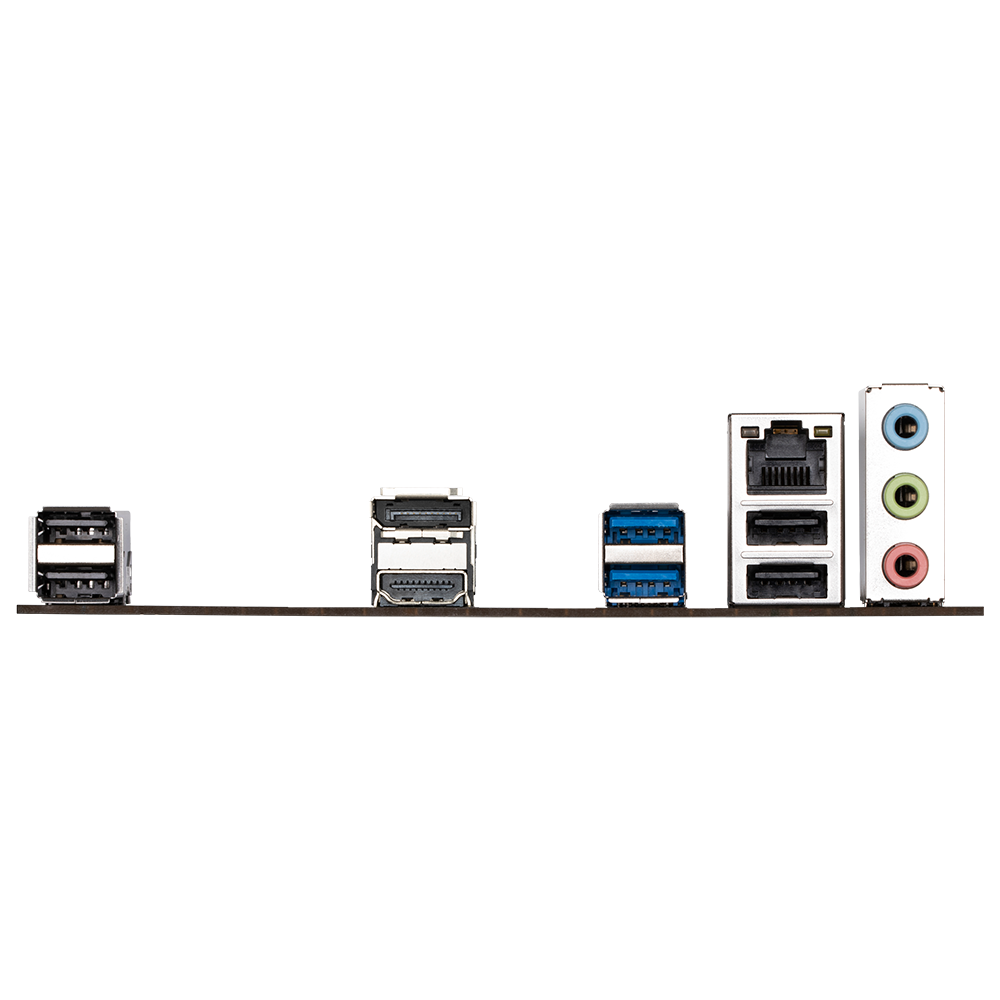

| Back Panel Connectors | 1 x HDMI port |
| 2 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| I/O Controller | iTE I/O Controller Chip |
| BIOS | 1 x 128 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor |
| 22.6cm x 18.5cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
