| SPECIFICATIONS |
| Brand |
Gigabyte |
| Series |
EAGLE OC ICE SFF |
| Model |
GeForce RTX 5070 EAGLE OC ICE SFF 12G (GV-N5070EAGLEOC ICE-12GD) |
| Chipset |
| GPU |
GeForce RTX 5070 |
| Chipset Manufacturer |
NVIDIA |
| Interface |
PCIe 5.0 x16 |
| Core Clock |
2587 MHz |
| CUDA Cores |
6144 |
| GPU Architecture |
NVIDIA Blackwell |
| Memory |
| Effective Memory Clock |
28Gbps |
| Memory Size |
12GB |
| Memory Interface |
192-bit |
| Memory Type |
GDDR7 |
| 3D API |
| DirectX |
Microsoft DirectX 12.1 Ultimate |
| OpenGL |
OpenGL 4.6 |
| Vulkan |
Vulkan 1.4 API |

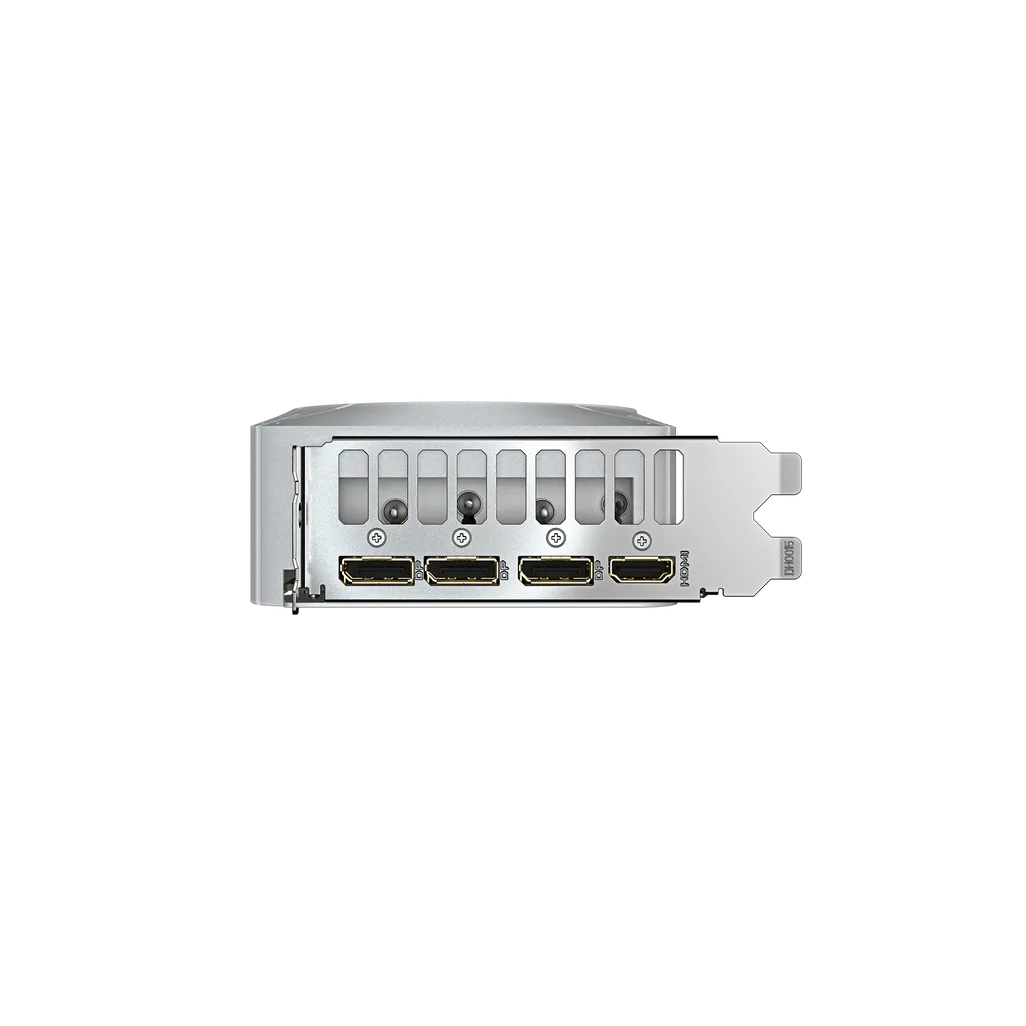

| Connectivity |
| Ports |
3x DisplayPort 2.1b |
| 1x HDMI 2.1b |
| Multi-Monitor Support |
4 |
| Maximum Digital Resolution |
7680 x 4320 |
| VR Ready |
Yes |
| General |
| SLI Support |
N/A |
| Features |
NVIDIA Optical Flow Accelerator Technology |
| 4th Gen Ray Tracing Cores |
| 5th Gen Tensor Cores |
| PCI Express Gen 5 |
| Real-Time Ray Tracing Technology |
| NVIDIA DLSS 4.0 with Frame Generation and Frame Warp |
| NVIDIA GeForce Game Ready & Studio Drivers |
| NVIDIA G-Sync Premium |
| NVIDIA Reflex 2 |
| NVIDIA Broadcast |
| NVIDIA AV1 Encoder |
| NVIDIA Omniverse 3D Design |
| NVIDIA Canvas |
| NVIDIA GPU Boost |
| NVIDIA Encoder, 9th Generation |
| NVIDIA Decoder, 6th Generation |
| WINDFORCE Cooling System |
| Hawk Fan |
| Server-grade Thermal Conductive Gel |
| NVIDIA SFF-ready |
| RGB Lighting |
| Reinforced structure |
| Large Copper Plate |
| Composite Copper Heat Pipe |
| Power Requirements |
| Recommended Power Supply |
750W |
| Power Connector |
1x 16-Pin |
| Physical Aspects |
| Form Factor |
ATX |
| Slot Width |
50mm |
| Dimensions |
290mm x 120mm x 50mm |
| Warranty Information |
| Warranty |
3 Year Warranty |
