| SPECIFICATIONS |
| Brand |
Gigabyte |
| Series |
WINDFORCE Series |
| Model |

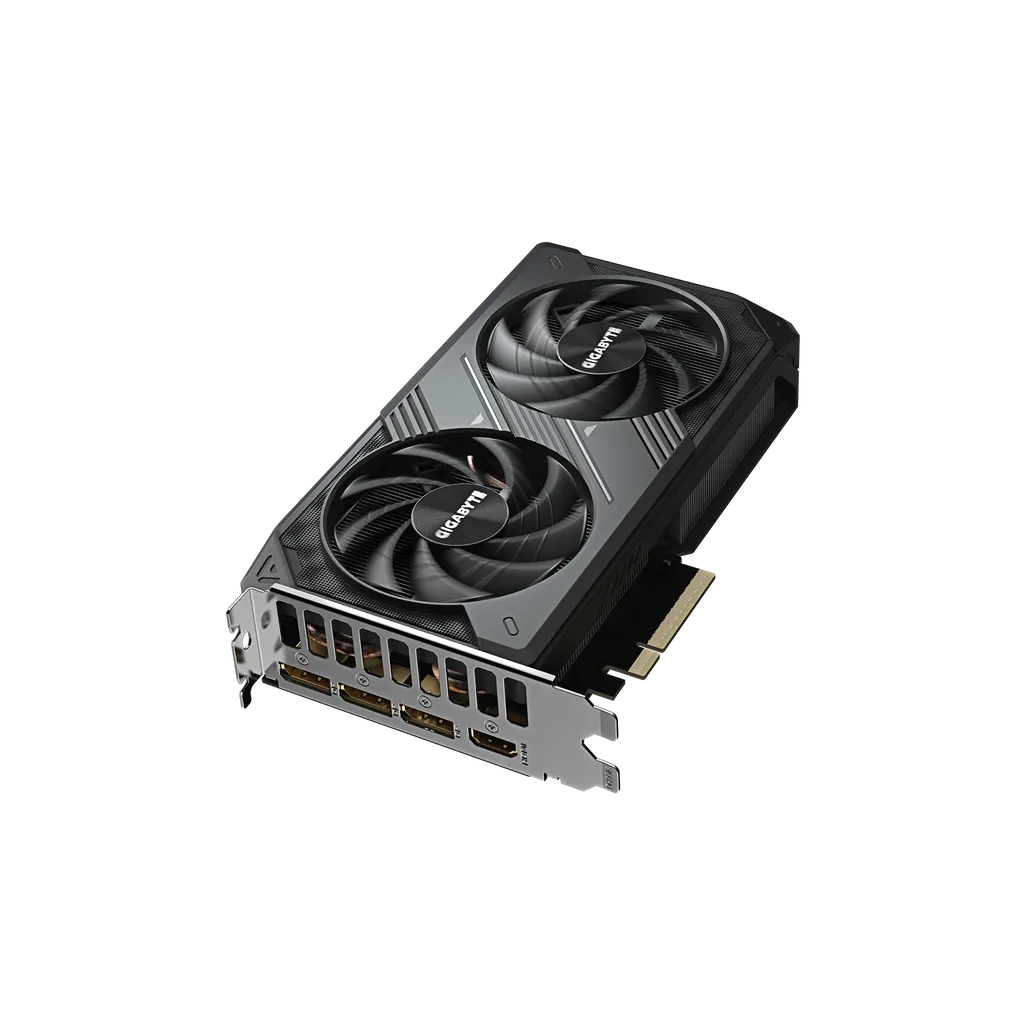

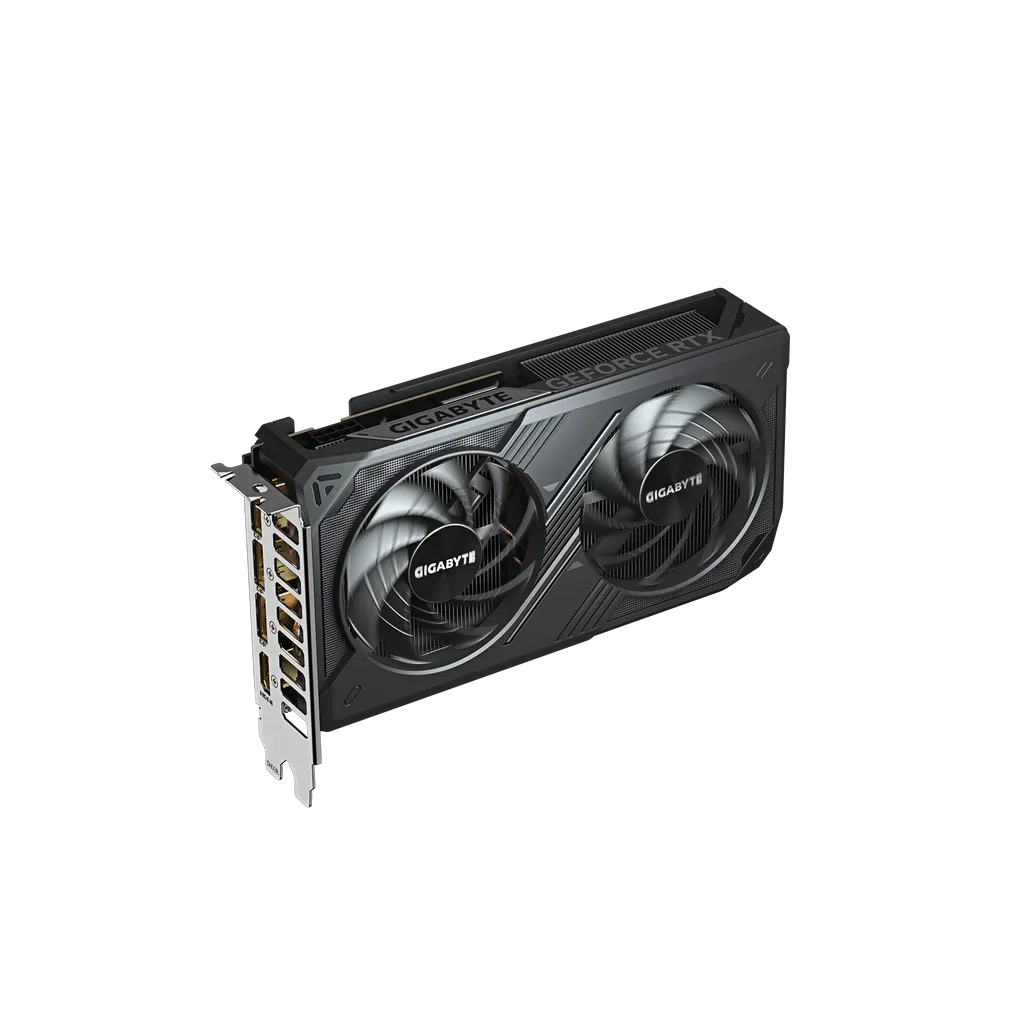

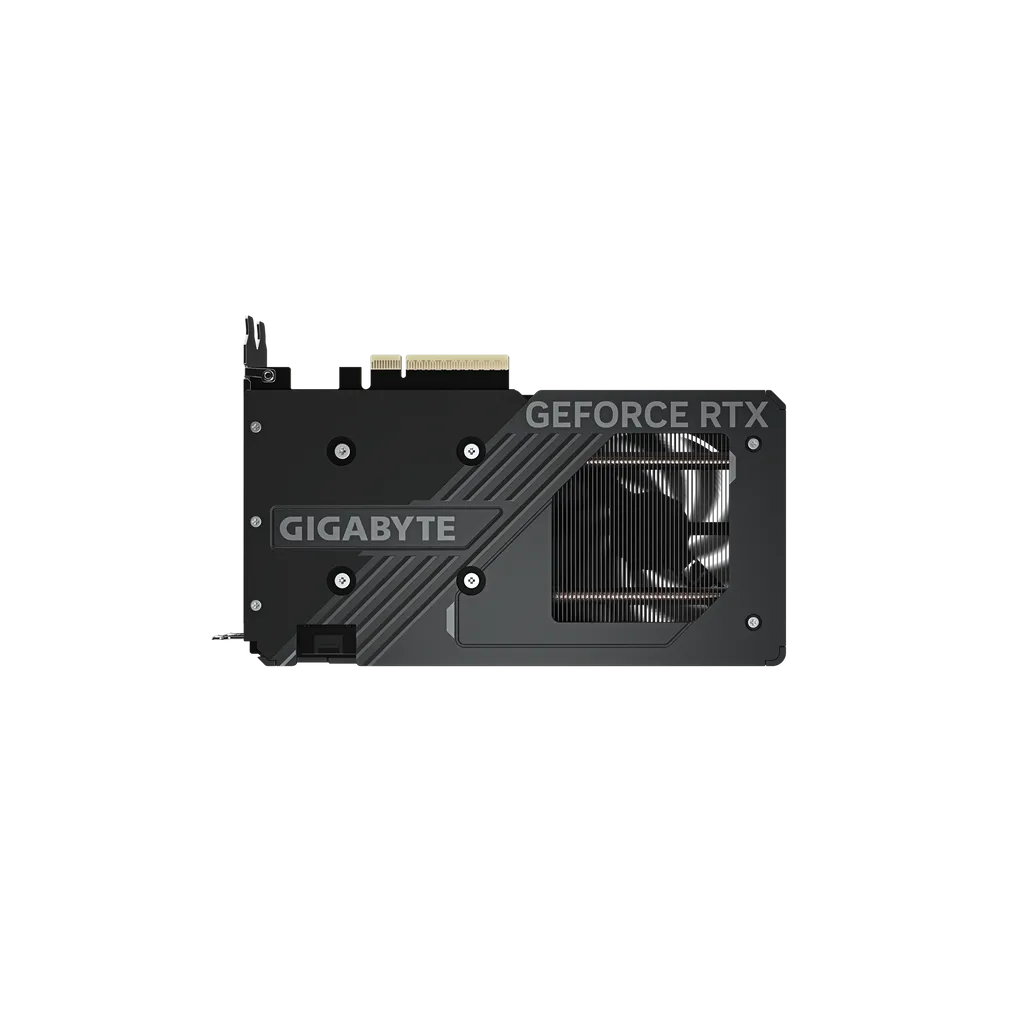

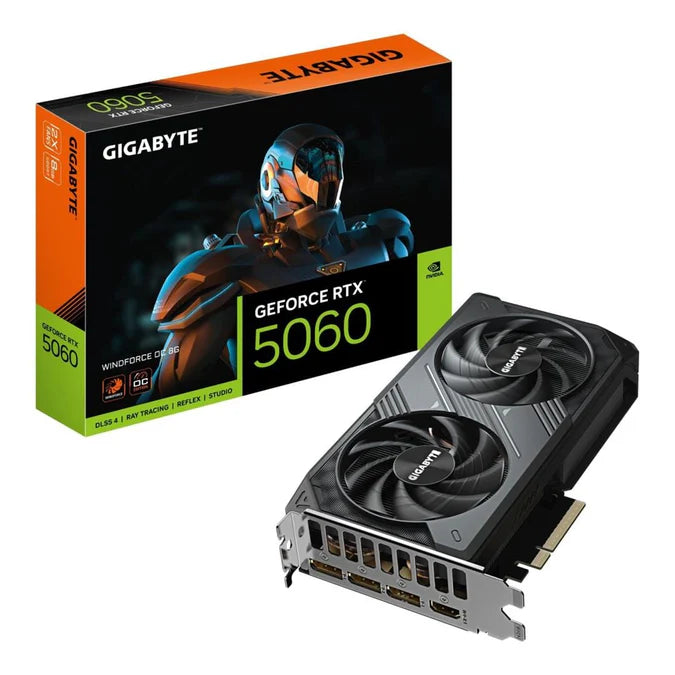

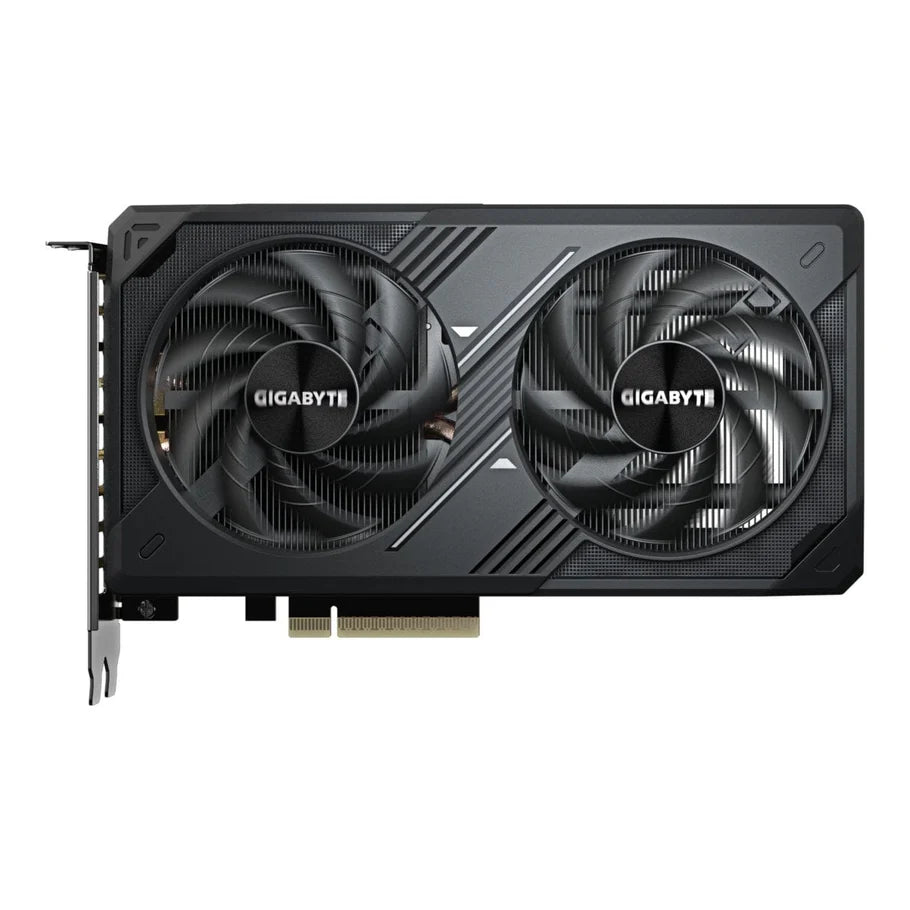

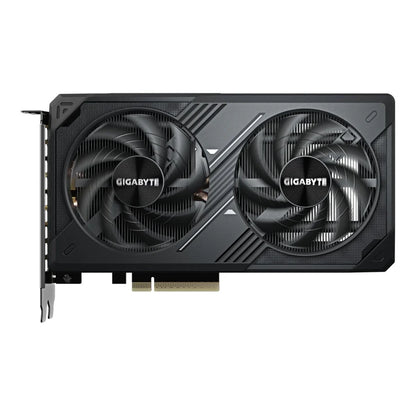

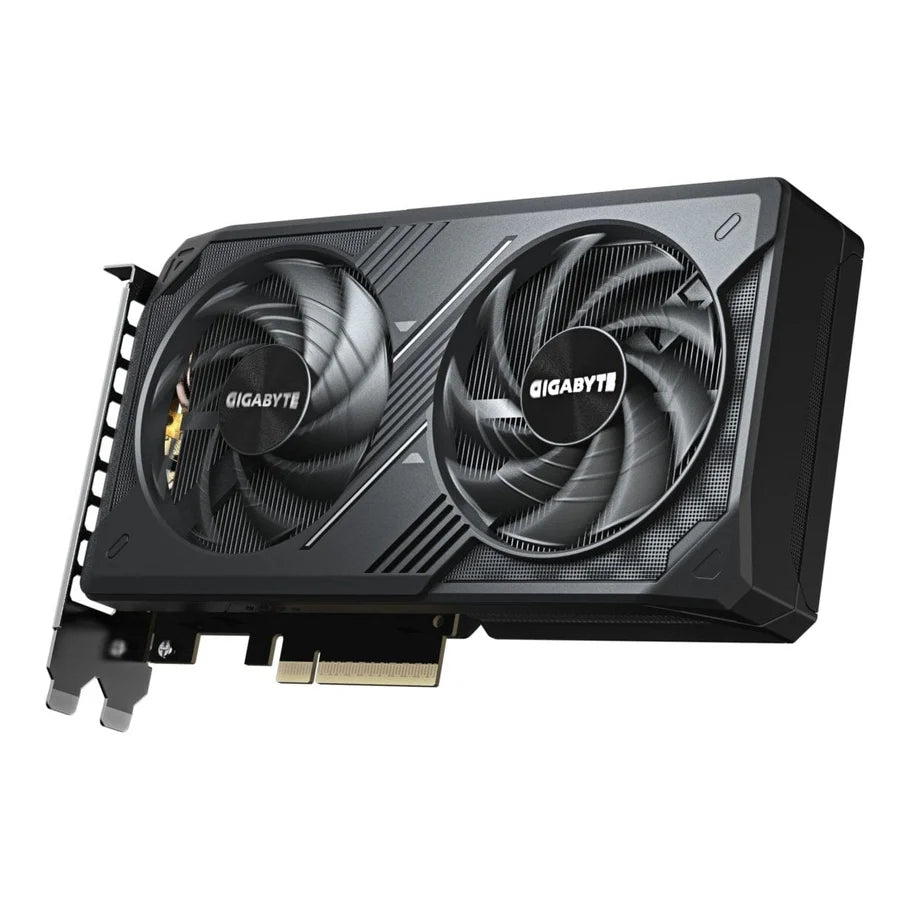

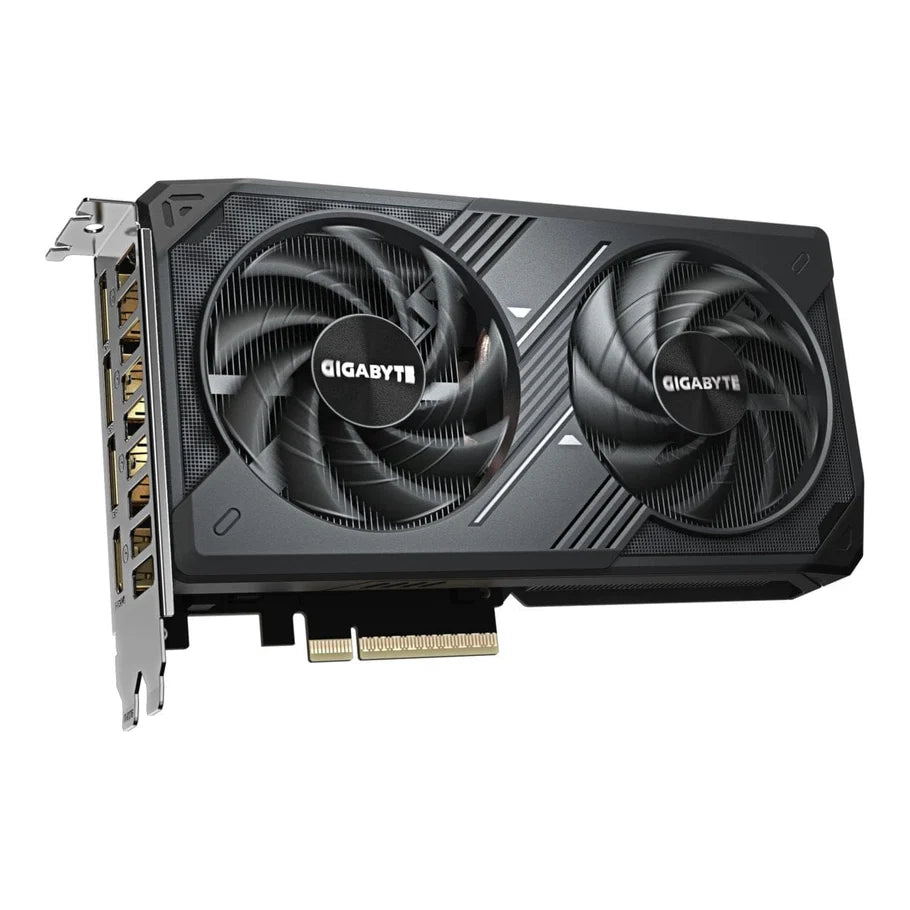

GeForce RTX 5060 WINDFORCE OC 8G (GV-N5060WF2OC-8GD) |
| Chipset |
| GPU |
GeForce RTX 5060 |
| Chipset Manufacturer |
NVIDIA |
| Interface |
PCIe 5.0 x8 |
| Boost Clock |
Up to 2512 MHz |
| CUDA Cores |
3840 Cores |
| GPU Architecture |
NVIDIA Blackwell |
| Memory |
| Effective Memory Clock |
28Gbps |
| Memory Size |
8GB |
| Memory Interface |
128-bit |
| Memory Type |
GDDR7 |
| 3D API |
| DirectX |
Microsoft DirectX 12.1 Ultimate |
| OpenGL |
OpenGL 4.6 |
| Vulkan |
Vulkan 1.4 API |
| Connectivity |
| Ports |

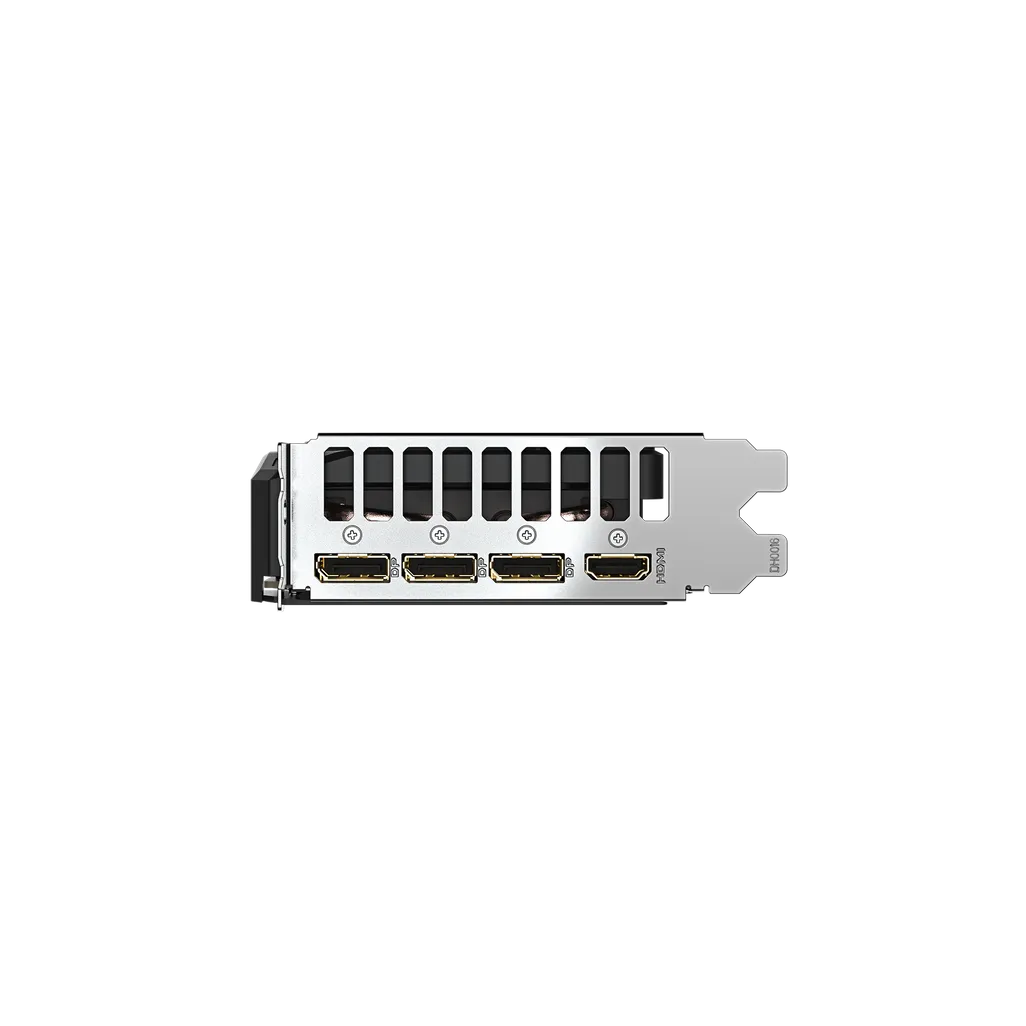

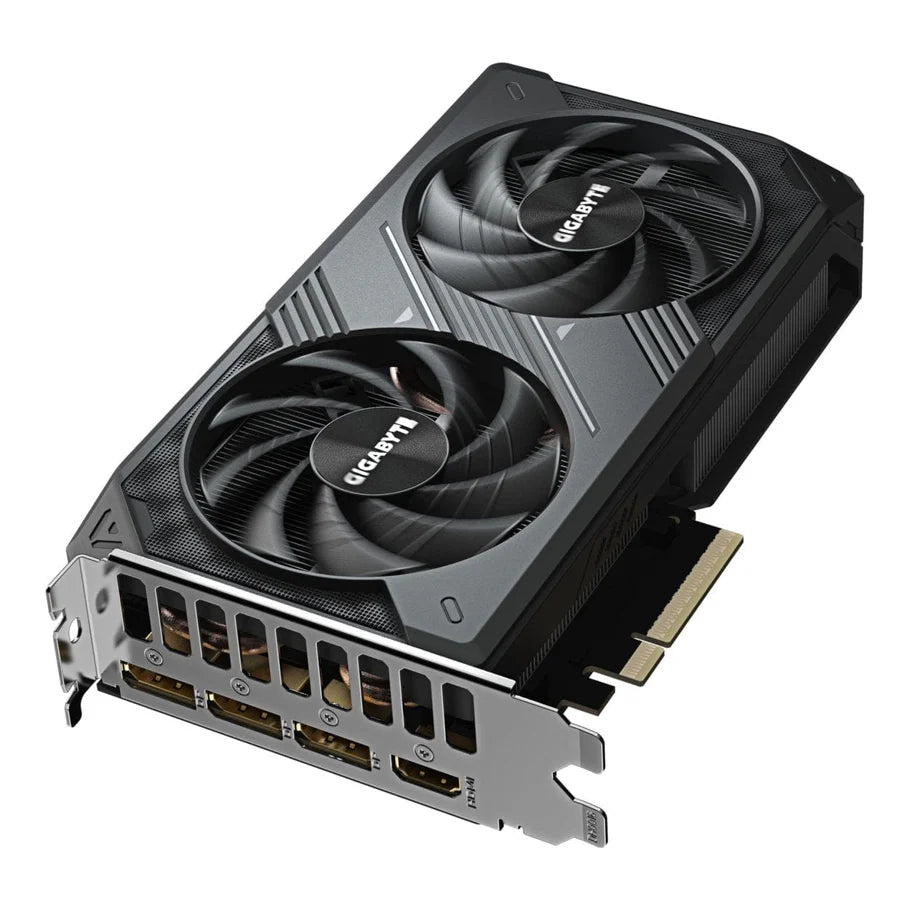

1x HDMI 2.1b |
| 3x DisplayPort 2.1a |
| HDCP Support |
Yes, 2.3 |
| Multi-Monitor Support |
Up to 4x simultaneous |
| Maximum Digital Resolution |
7680 x 4320 |
| VR Ready |
Yes |
| General |
| Features |

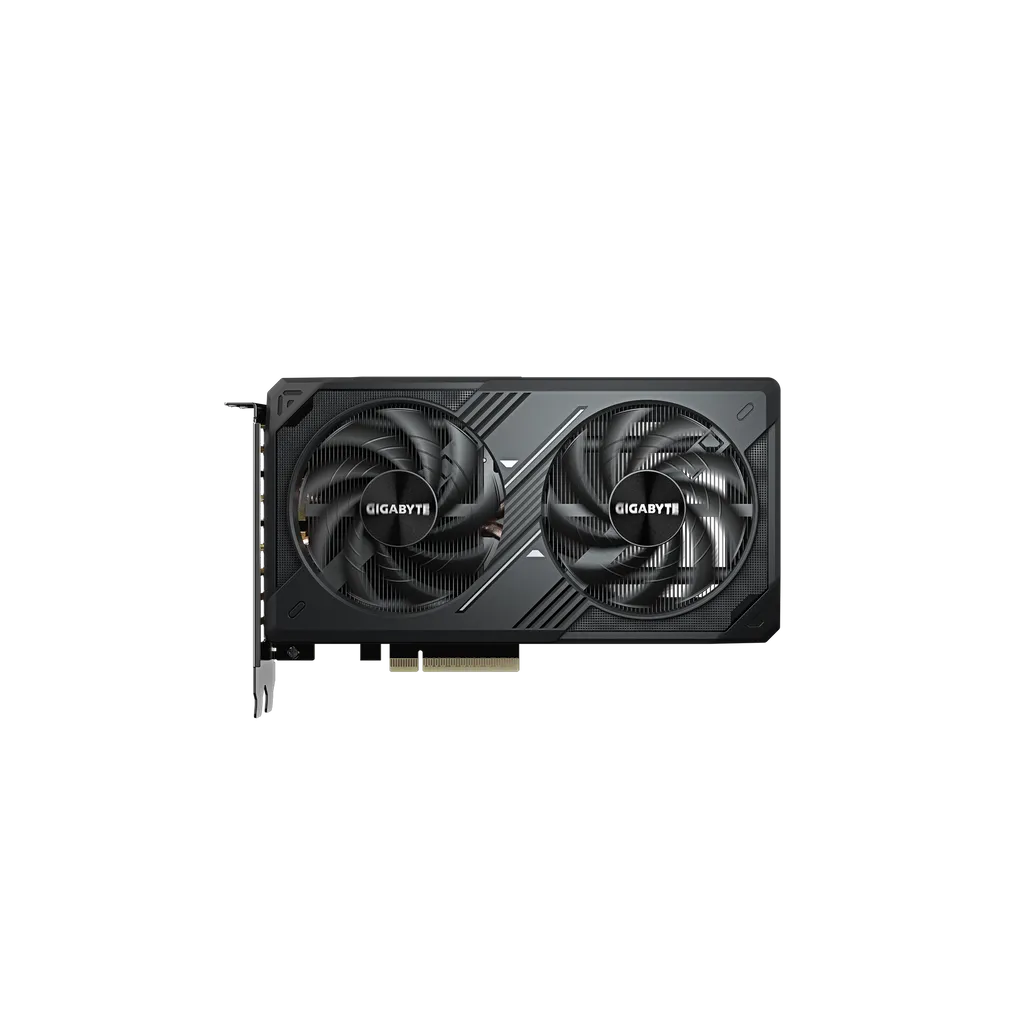

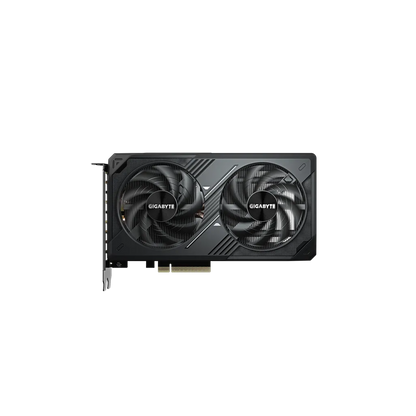

Gigabyte WINDFORCE 2X Cooling System with Hawk Fans |
| Gigabyte AI TOP Utility |
| Server-Grade Thermal Conductive Gels & Composite Metal Grease |
| Gigabyte Control Center |
| NVIDIA Optical Flow Accelerator Technology |
| 4th Gen Ray Tracing Cores |
| 5th Gen Tensor Cores |
| PCI Express Gen 5 |
| Real-Time Ray Tracing Technology |
| NVIDIA DLSS 4.0 with Frame Generation and Frame Warp |
| NVIDIA GeForce Game Ready & Studio Drivers |
| NVIDIA G-Sync Premium |
| NVIDIA Reflex 2 |
| NVIDIA Broadcast |
| NVIDIA AV1 Encoder |
| NVIDIA Omniverse 3D Design |
| NVIDIA Canvas |
| NVIDIA GPU Boost |
| NVIDIA Encoder, 9th Generation |
| NVIDIA Decoder, 6th Generation |
| Power Requirements |
| Recommended Power Supply |
450W |
| Power Connector |

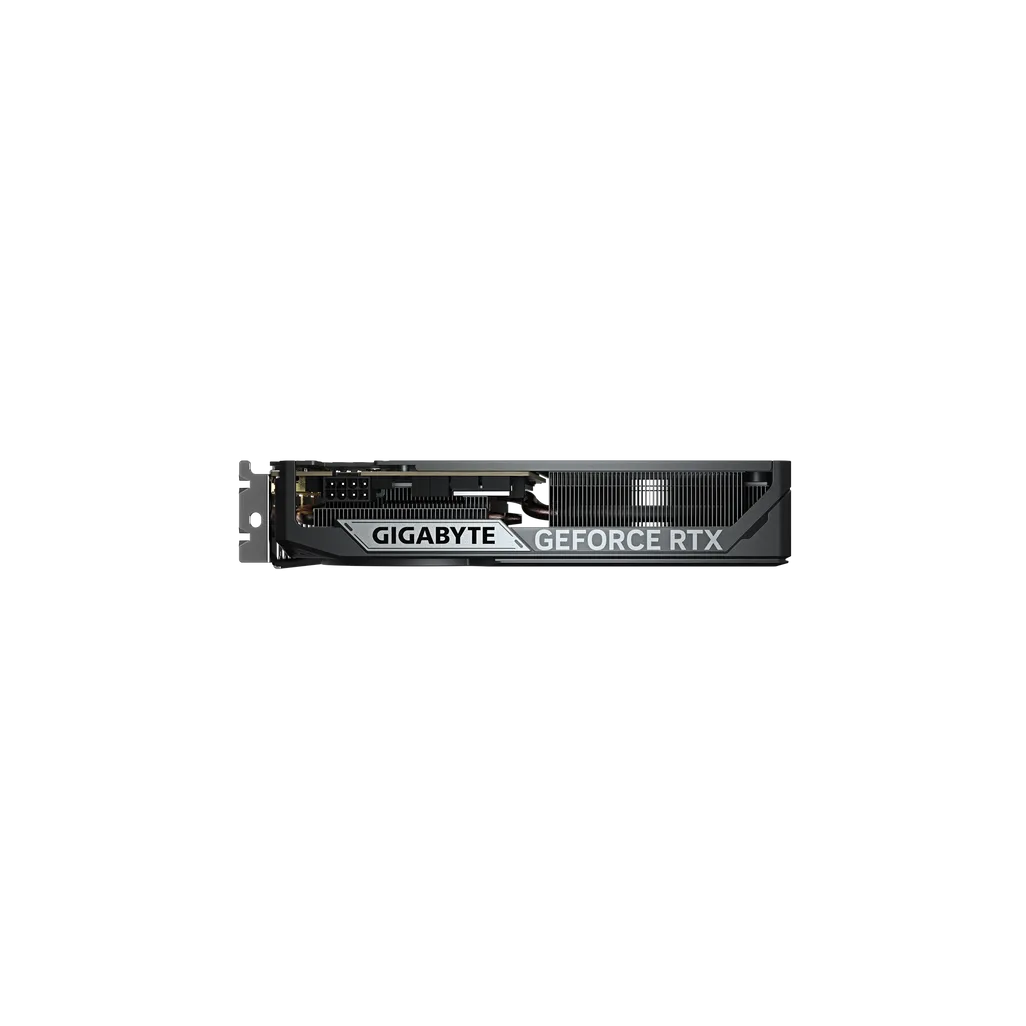

1x 8-pin PCI PEG Connector |
| Physical Aspects |
| Form Factor |
ATX |
| Slot Width |
2 Slot |
| Dimensions |
199 x 116 x 40mm (L x W x H) |
| RGB |
N/A |
| Boxed Accessories |

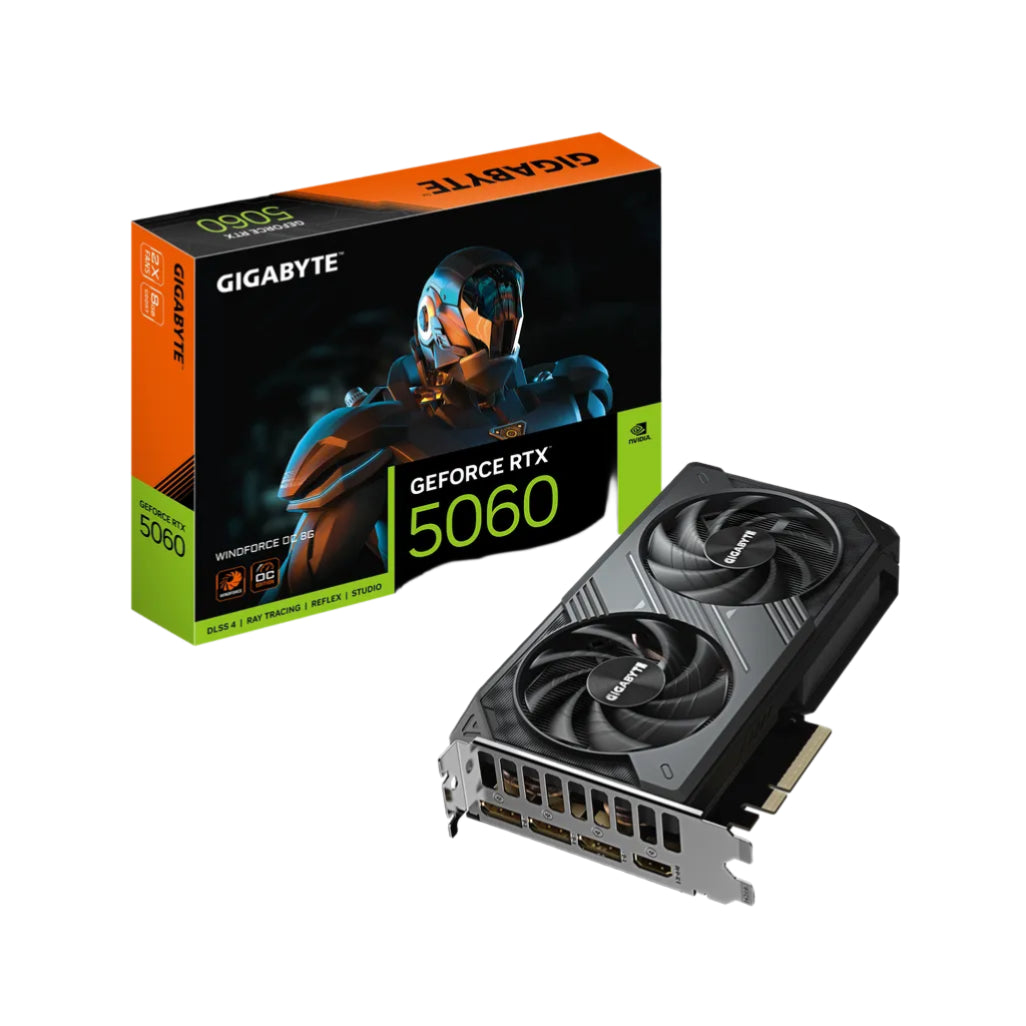

Quick guide |
| Warranty Information |
| Warranty |
3 Year Warranty |
