| SPECIFICATIONS |
| Brand |
Gigabyte |
| Series |
AERO Series |
| Model |
GeForce RTX 4060 AERO OC 8G (GV-N4060AERO OC-8GD) |
| Chipset |
| GPU |
GeForce RTX 4060 |
| Chipset Manufacturer |
NVIDIA |
| Interface |
PCIe 4.0 x8 (x16 Physical) |
| Base Clock |
1830 MHz |
| Boost Clock |
Up to 2550 MHz |
| CUDA Cores |
3072 |
| GPU Architecture |
Nvidia Ada Lovelace |
| Memory |
| Effective Memory Clock |
17 Gbps |
| Memory Size |
8GB |
| Memory Interface |
128-bit |
| Memory Type |
GDDR6 |
| 3D API |
| DirectX |
12 Ultimate |
| OpenGL |
4.6 |
| Vulkan |
Vulkan RT API |

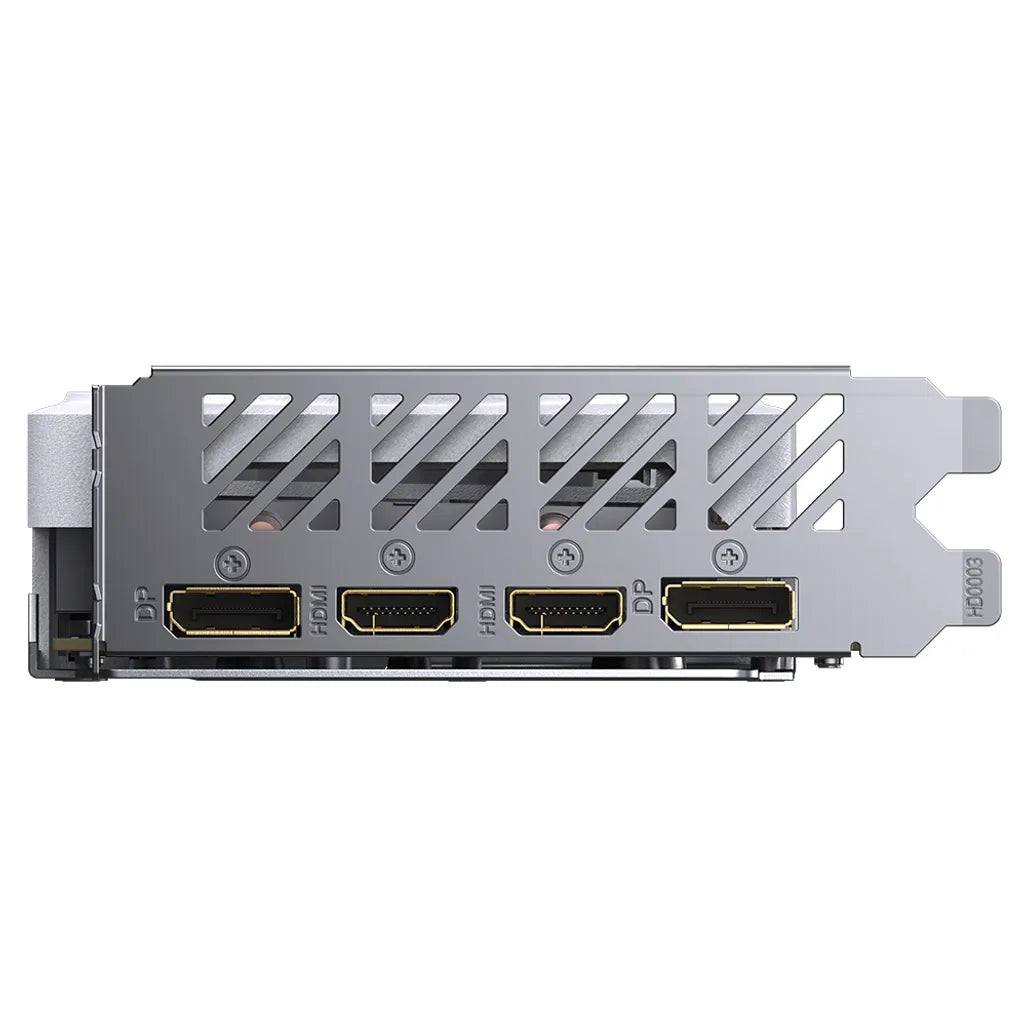

| Connectivity |
| Ports |
2x DisplayPort 1.4a |
| 2x HDMI 2.1 |
| HDCP Support |
2.3 |
| Multi-Monitor Support |
4 |
| Maximum Digital Resolution |
7680 x 4320 |
| VR Ready |
Yes |
| General |
| Features |
Gigabyte WINDFORCE 3x Cooling System with AERO Design |
| Gigabyte 3D Active Fan Design |
| Gigabyte RGB Fusion |
| Dual BIOS |
| Metal Back Plate |
| Anti-sag bracket |
| 3rd Generation Ray Tracing Cores |
| 4th Generation Tensor Cores |
| NVIDIA DLSS 3.0 |
| NVIDIA Reflex |
| NVIDIA Broadcast |
| Resizable BAR |
| NVIDIA GeForce Experience |
| NVIDIA Ansel |
| NVIDIA FreeStyle |
| NVIDIA ShadowPlay |
| NVIDIA Highlights |
| NVIDIA G-SYNC |
| Game Ready Drivers |
| NVIDIA Studio Drivers |
| NVIDIA Omniverse |
| Microsoft DirectX 12 Ultimate |
| NVIDIA GPU Boost |
| NVIDIA NVLink |
| NVIDIA Encoder (NVENC) |
| NVIDIA Decoder (NVDEC) |
| AV1 Encode |
| AV1 Decode |
| Power Requirements |
| Total Board Power |
150 |
| Recommended Power Supply |
450W |
| Power Connector |
1x 8-Pin PEG Connector |
| Physical Aspects |
| Form Factor |
ATX |
| Dimensions |
281 x 117 x 38mm (L x W x H) |
| Boxed Accessories |
Quick Start Guide |
| Warranty Information |
| Warranty |
3 Year Warranty |
