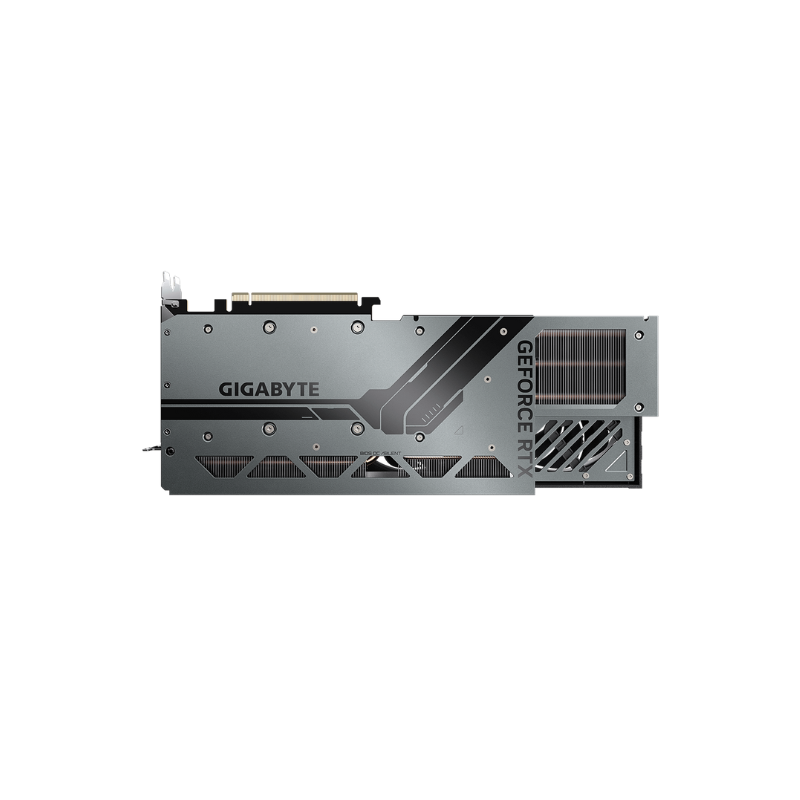

The WINDFORCE cooling system features three 110mm unique blade fans, alternate spinning, 11 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation. The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER . The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection. The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience. When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.
Graphics Processing
GeForce RTX 4080 16GB
Core Clock
2535 MHz (Reference Card: 2505 MHz)
CUDA Cores
9728
Ray Tracing Cores
76
Tensor Cores
304
Streaming Multi-Processors
76
Memory Clock
22400 MHz
Memory Size
16 GB
Memory Type
GDDR6X
Memory Bus
256 bit
Memory Bandwidth (GB/sec)
716.8 GB/s
Card Bus
PCI-E 4.0 x16
Digital max resolution
7680 x 4320
Multi-view
4
Card size
342 x 150 x 75 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
850w
Power Connectors
1 x 16-pin
Output

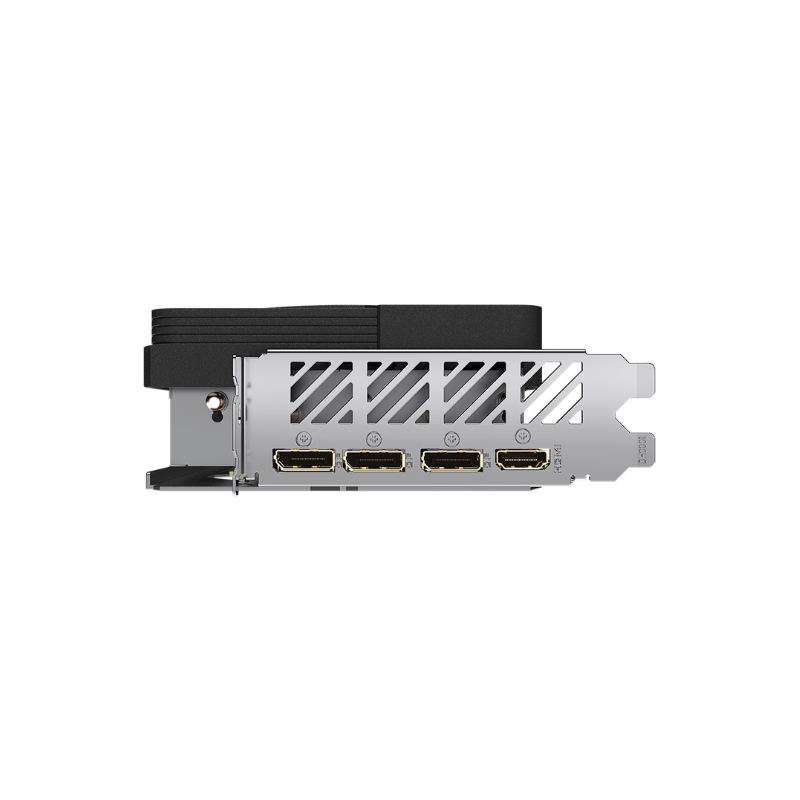

3 x DisplayPort 1.4a 1 x HDMI 2.1
Multi-GPU Support
No
Accessories
Quick guide Warranty registration Anti-sag bracket Anti-sag bracket installation guide One 16 pin to triple 8-pin power adaptor
