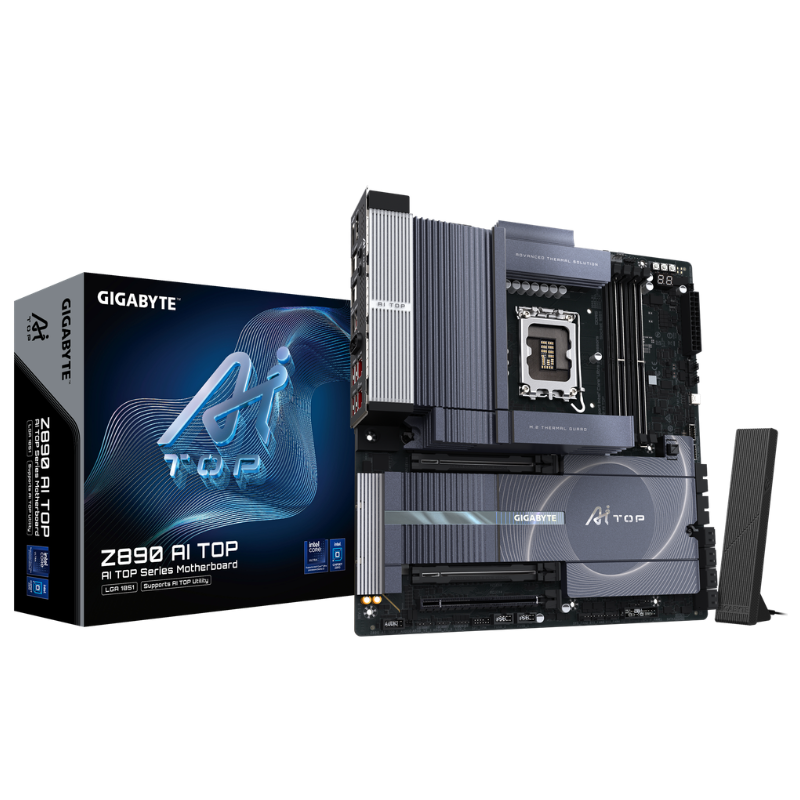

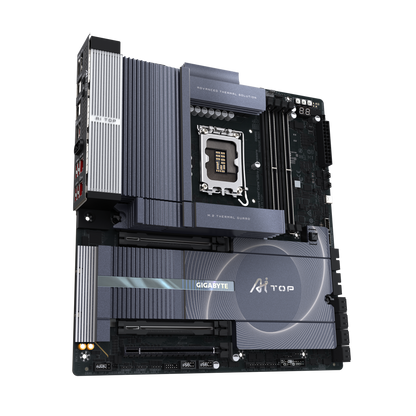

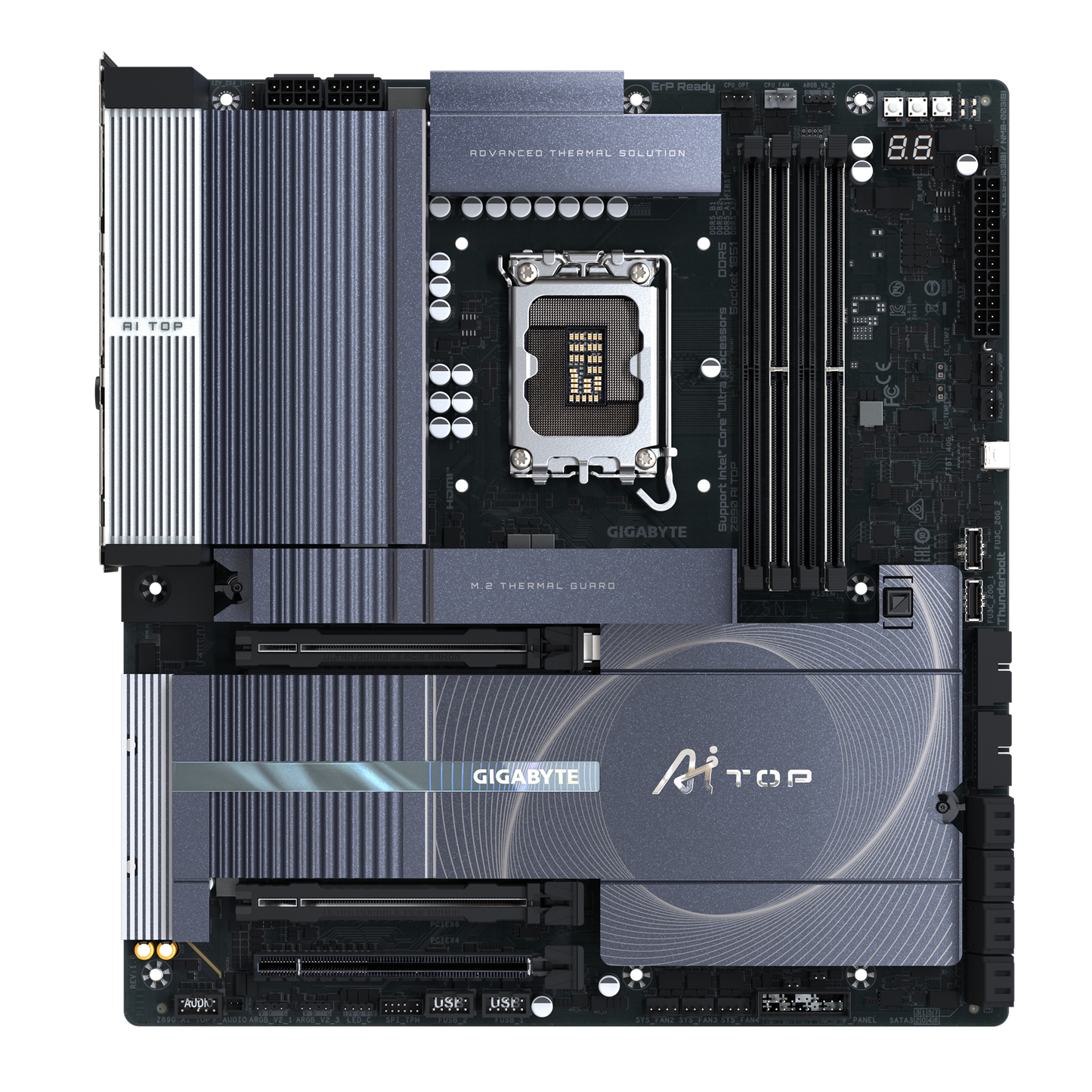

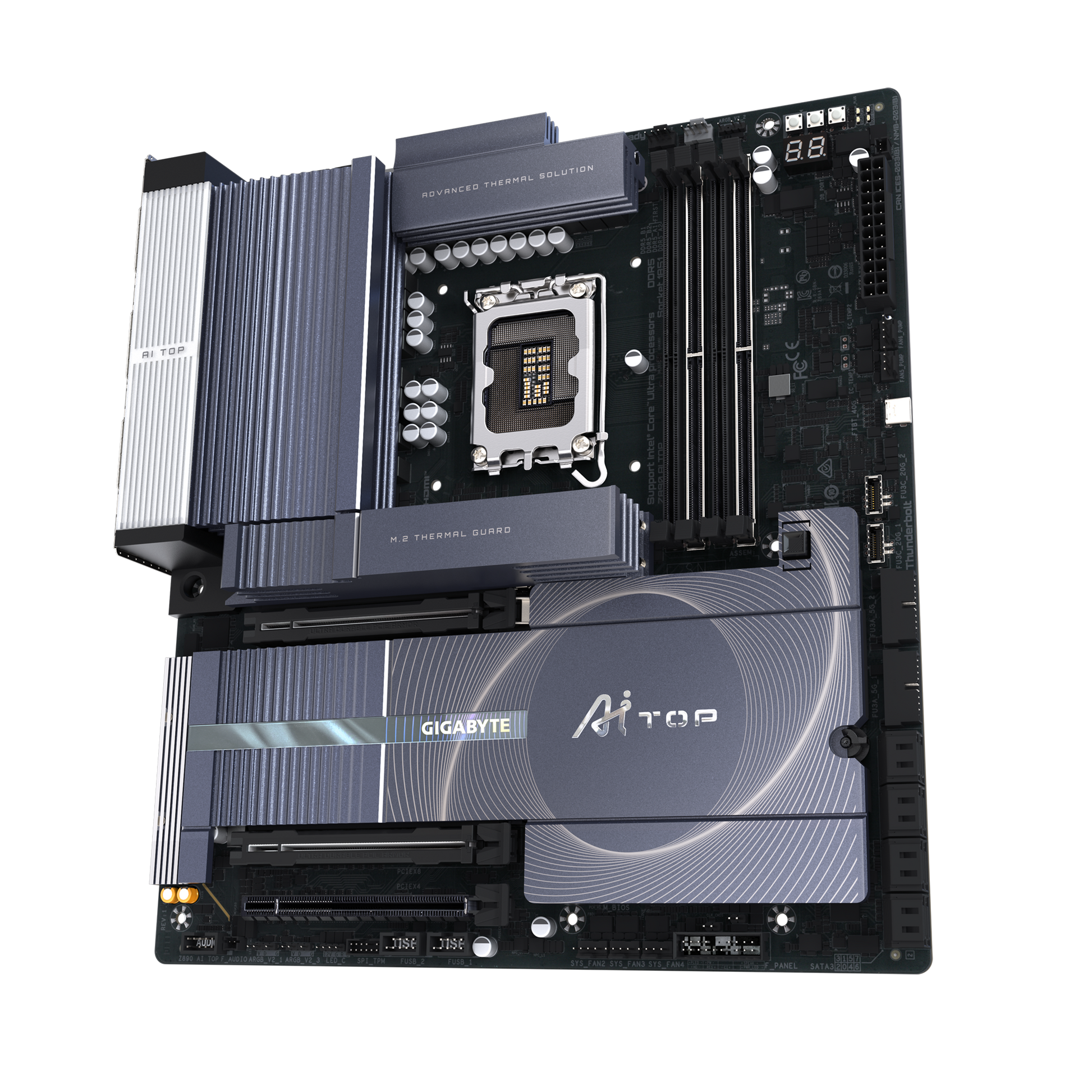

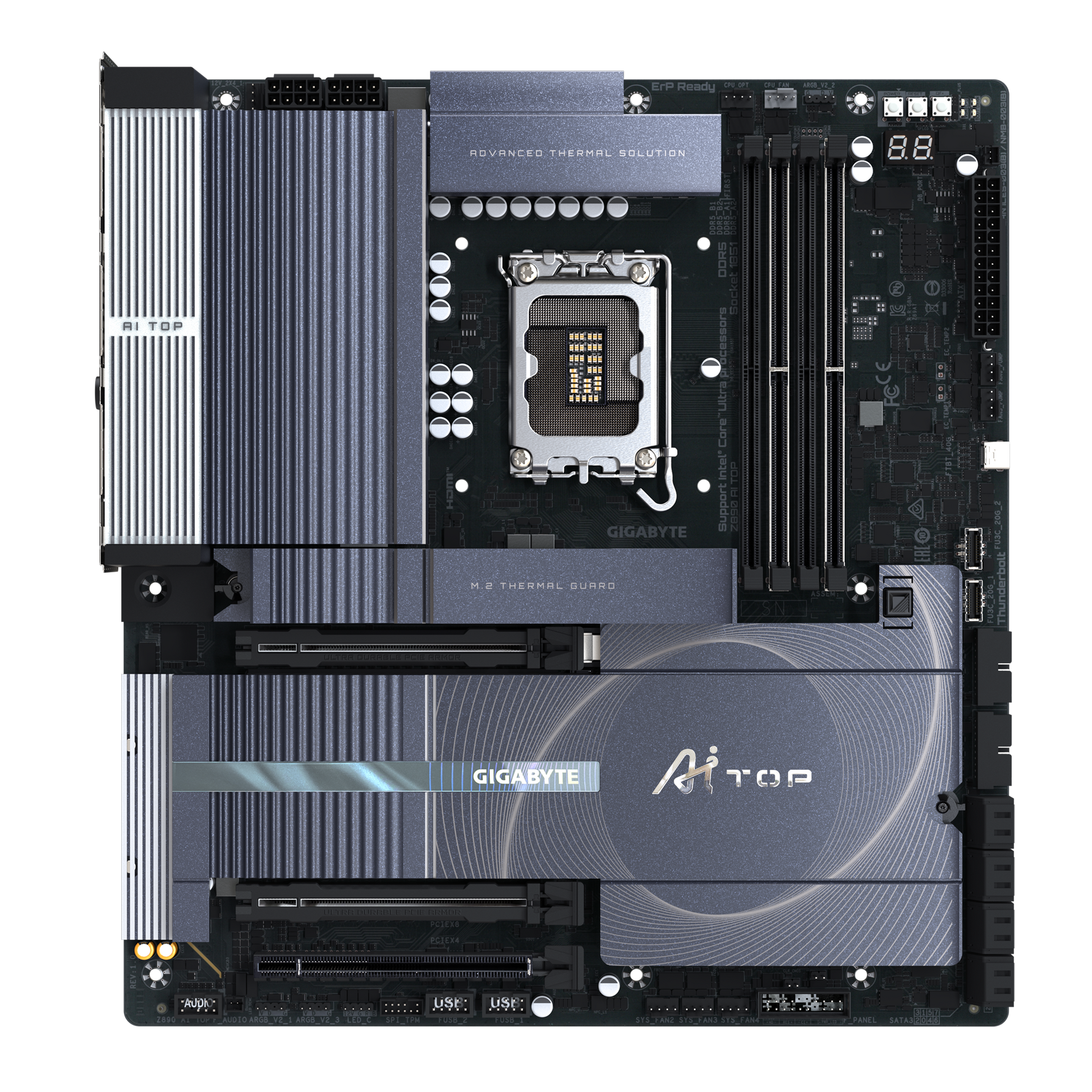

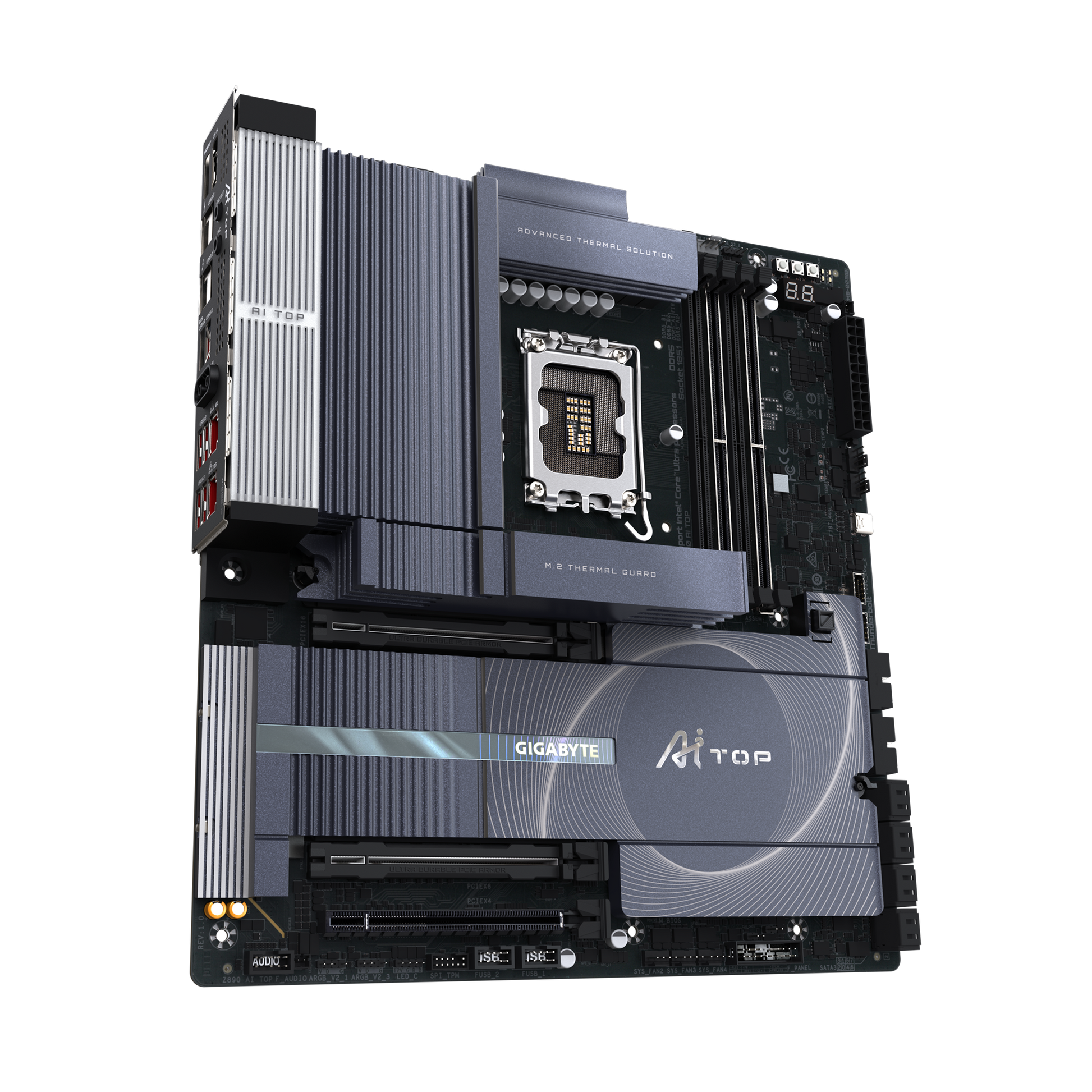

Gigabyte GA-Z890-AI-TOP Z890 AI TOP Intel Z890 Arrow Lake LGA1851 E-ATX Desktop Motherboard
Gigabyte GA-Z890-AI-TOP Z890 AI TOP Intel Z890 Arrow Lake LGA1851 E-ATX Desktop Motherboard
Regular price
R 15,999.00
Regular price
Sale price
R 15,999.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
We accept
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | AI TOP |
| Model | Z890 AI TOP (GA-Z890-AI-TOP) |
| CPU | LGA1851 socket: Support for Intel Core Ultra Processors |
| L3 cache varies with CPU | |
| * Please refer to "CPU Support List" for more information. | |
| Chipset | Intel Z890 Express Chipset |
| Memory | Support for DDR5 9500(O.C)/ 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. |
| 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Support CUDIMM memory module | |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) | |
| Onboard Graphics | Integrated Graphics Processor+Intel Thunderbolt 5 Controller: |
| - 2 x Intel Thunderbolt 5 connectors (USB4 USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 7680x4320@60 Hz (single display output) | |
| * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.) | |
| * Support for DisplayPort 2.1 version and HDCP 2.3 | |
| Integrated Graphics Processor-Intel HD Graphics support: | |
| - 1 x Front Intel Thunderbolt 4 connector (USB4 USB Type-C port), supporting DisplayPort and Thunderbolt video outputs | |
| When a Thunderbolt monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output). | |
| When a USB4 USB Type-C monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output). | |
| * Support for DisplayPort 2.1 version and HDCP 2.3 | |
| - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| * Support for HDMI 2.1 version and HDCP 2.3. | |
| (Graphics specifications may vary depending on CPU or graphics card support.) | |
| Support for up to triple-display at the same time | |
| Audio | ESS ES9260 CODEC (rear panel audio) |
| - High Definition Audio | |
| - 2-channel | |
| Realtek ALC897 CODEC (front panel audio) | |
| LAN | 2 x Marvell AQtion AQC113C 10GbE LAN chips |
| (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | Intel Wi-Fi 7 BE200 |
| - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | |
| - BLUETOOTH 5.4 | |
| - Support for 11be 320MHz wireless standard | |
| (Actual data rate may vary depending on environment and equipment.) | |
| * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) | |
| ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. | |
| Expansion Slots | CPU: |
| - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) | |
| - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8) | |
| * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. | |
| * The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. | |
| If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
| * The PCIEX4 slot shares bandwidth with the M2L_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2L_SB connector. | |
| Storage Interface | CPU: |
| - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) | |
| - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) | |
| Chipset: | |
| - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2L_SB) | |
| - 4 x SATA 6Gb/s connectors (SATA3 4~7) | |
| Chipset+ASMedia ASM1164 chip: | |
| - 4 x SATA 6Gb/s connectors (SATA3 0~3) | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| USB | Chipset+Intel Thunderbolt 5 Controller: |
| - 2 x Intel Thunderbolt 5 (USB Type-C) ports on the back panel | |
| *Support up to 80Gbps with Thunderbolt devices | |
| *Support up to 40Gbps with USB4 devices | |
| *Support up to 20Gbps with USB 3.2 devices | |
| CPU: | |
| - 1 x USB4 USB Type-C port onboard | |
| - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header | |
| Chipset: | |
| - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header | |
| - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| - 2 x USB 3.2 Gen 1 ports on the back panel | |
| Chipset+USB 3.2 Gen 2 Hub: | |
| - 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| Chipset+USB 3.2 Gen 1 Hub: | |
| - 4 x USB 3.2 Gen 1 ports available through the internal USB headers | |
| Chipset+USB 2.0 Hub: | |
| - 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 2 x 8-pin ATX 12V power connectors | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 4 x system fan headers | |
| 2 x system fan/water cooling pump headers | |
| 3 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 4 x M.2 Socket 3 connectors | |
| 8 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x Intel Thunderbolt 4 connector (USB4 USB Type-C port) | |
| 2 x USB Type-C headers, with USB 3.2 Gen 2x2 support | |
| 2 x USB 3.2 Gen 1 headers | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x power button | |
| 1 x reset button | |
| 1 x Q-Flash Plus button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| 2 x temperature sensor headers | |
| 1 x noise detection header | |

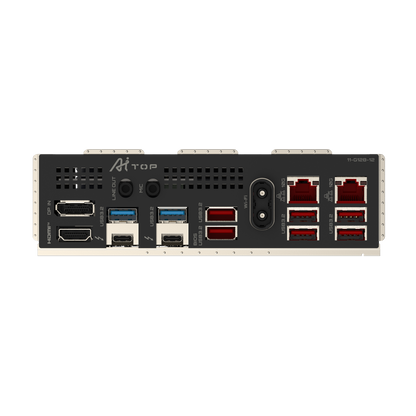

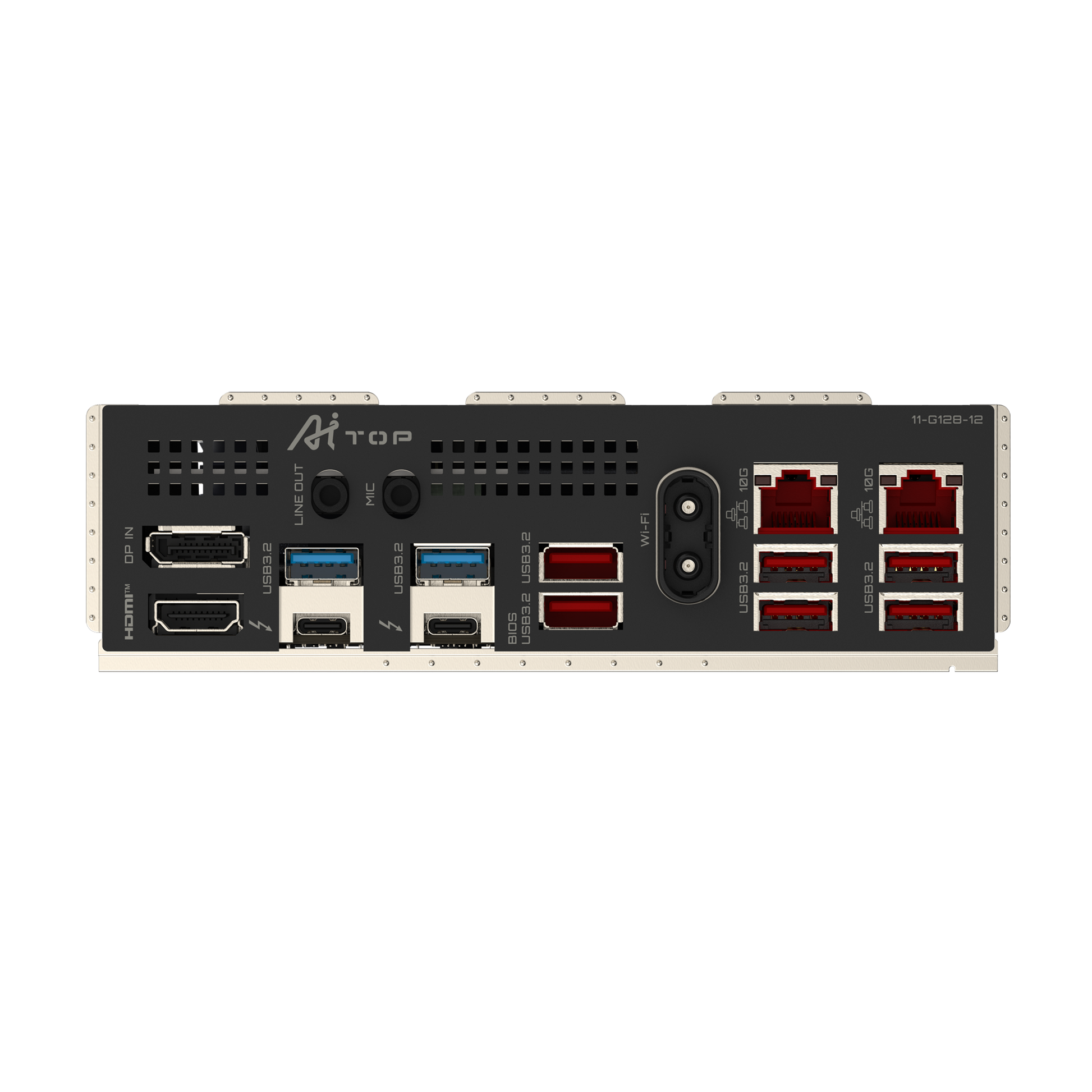

| Back Panel Connectors | 1 x DisplayPort In port |
| 1 x HDMI port (Note) | |
| 2 x audio jacks | |
| 2 x Intel Thunderbolt 5 connectors (USB Type-C ports) | |
| 2 x USB 3.2 Gen 1 ports | |
| 6 x USB 3.2 Gen 2 Type-A ports (red) | |

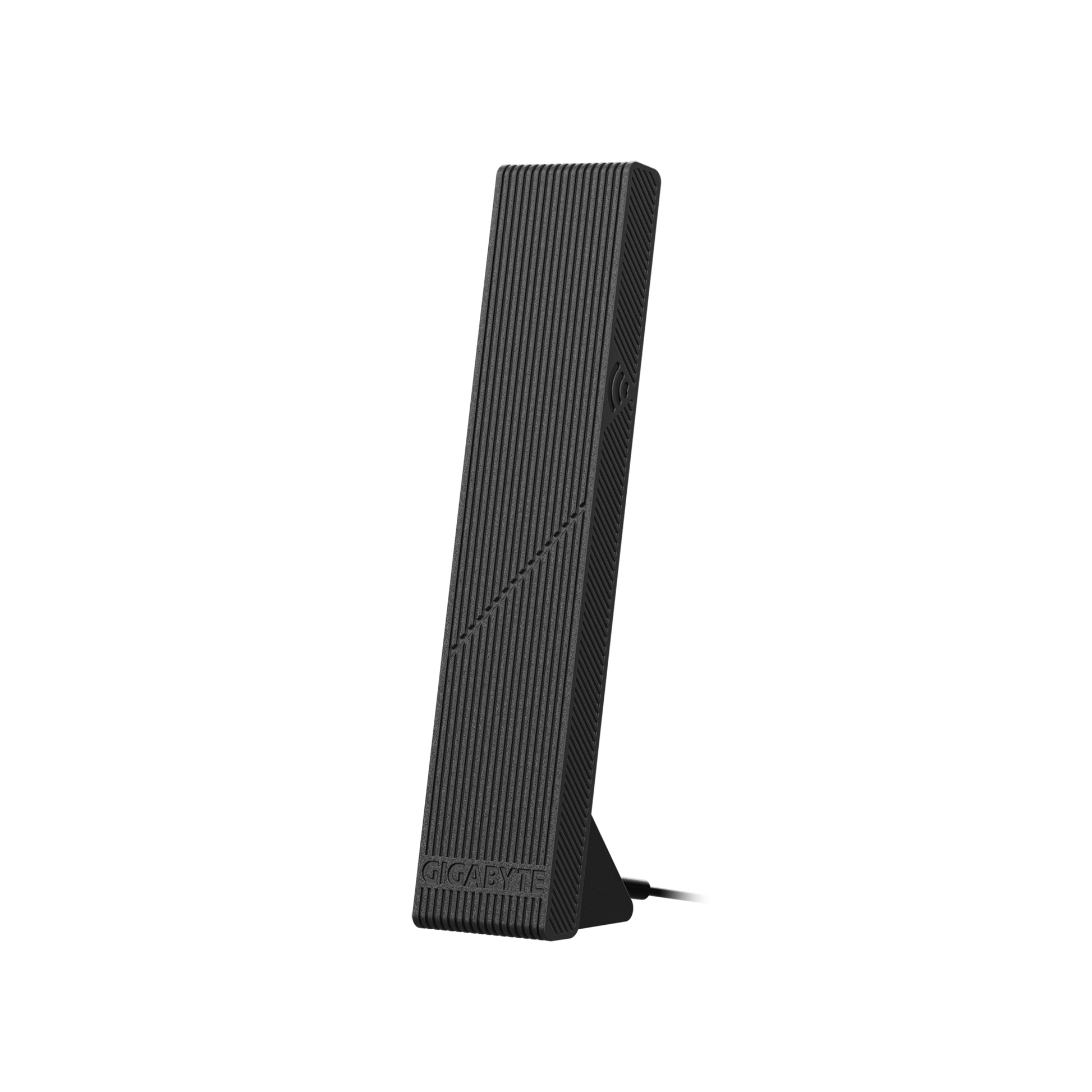

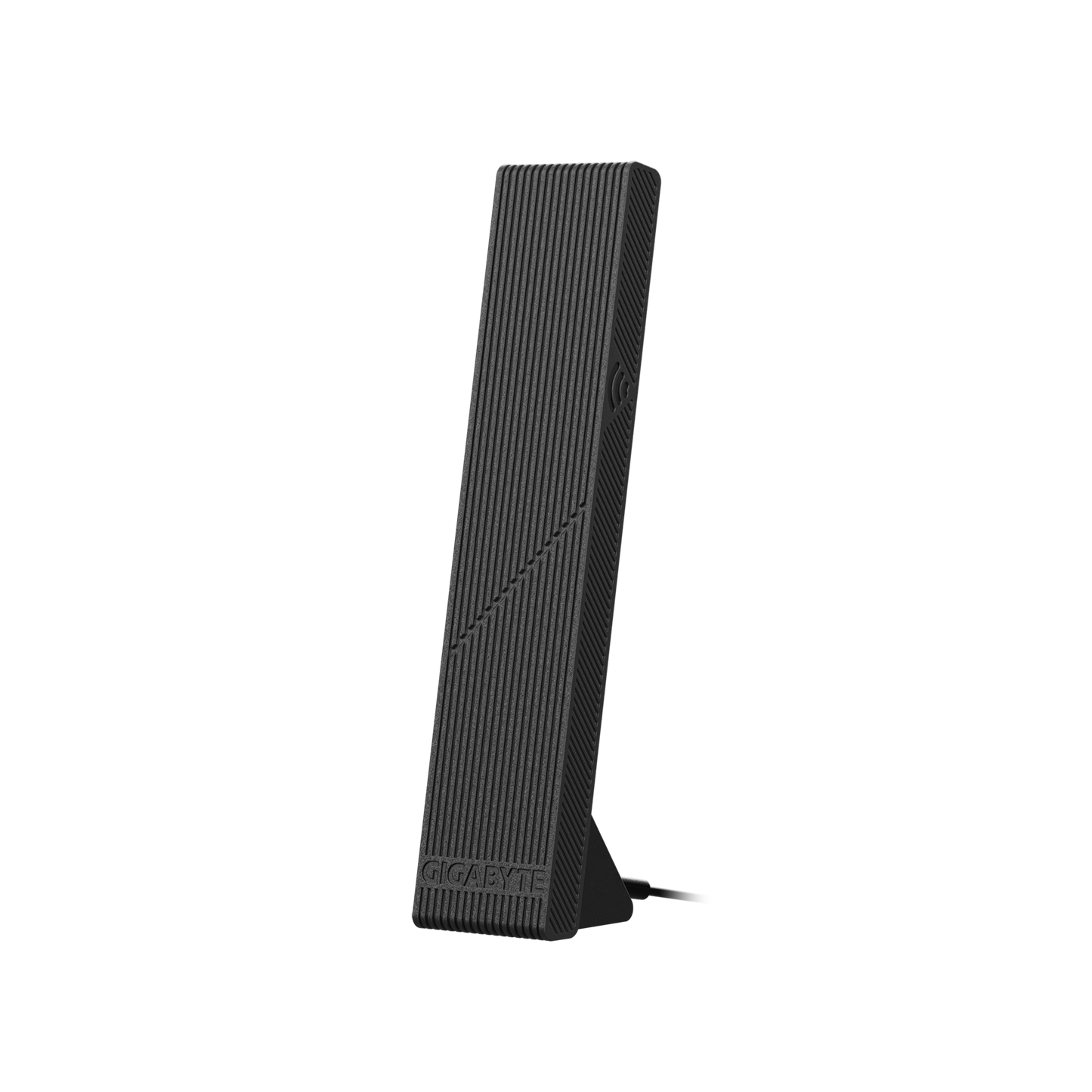

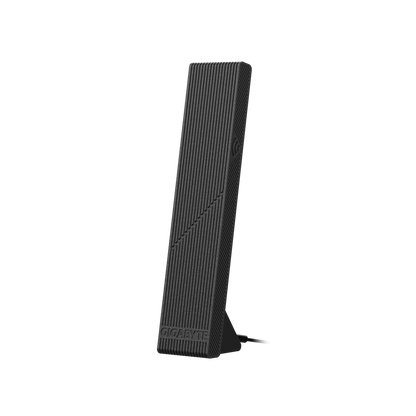

| 2 x antenna connectors (2T2R) | |
| 2 x RJ-45 ports | |
| (Note) Actual support may vary by CPU. | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| Noise detection | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | E-ATX Form Factor |
| 30.5cm x 28.5cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
