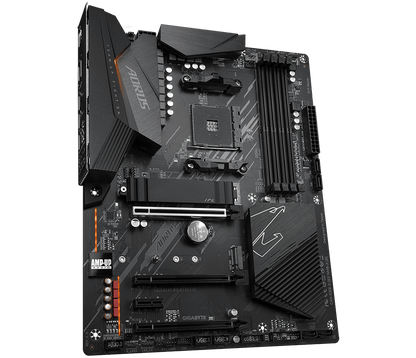

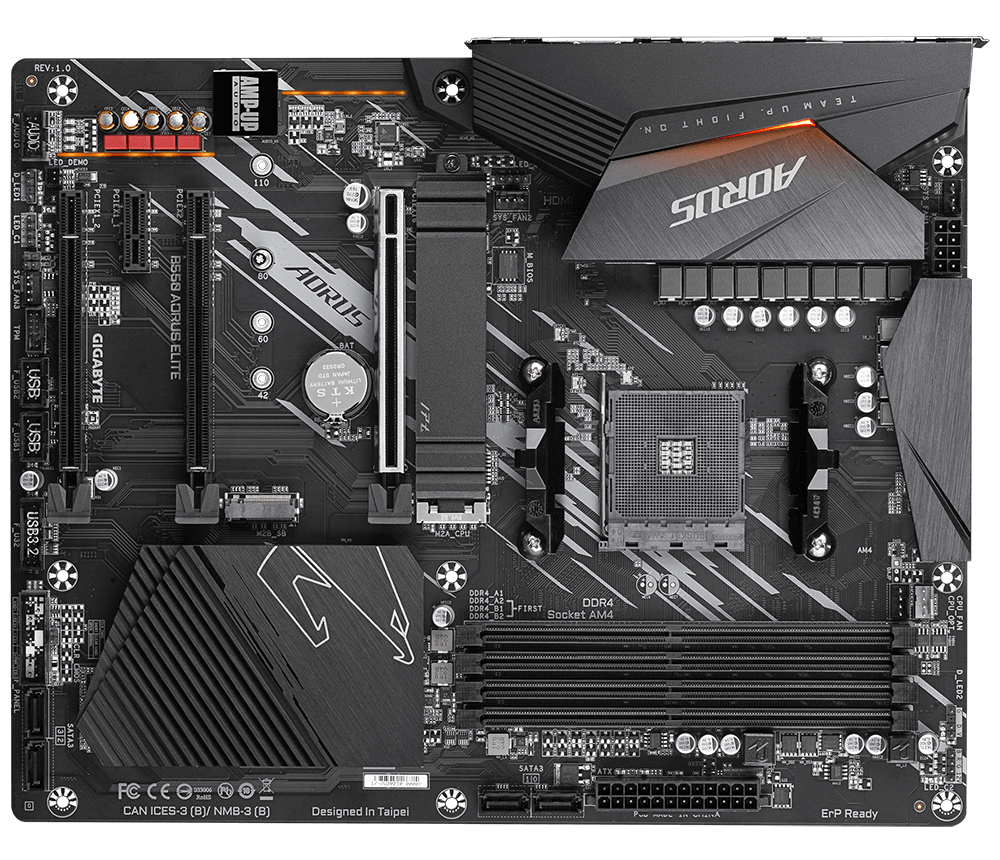

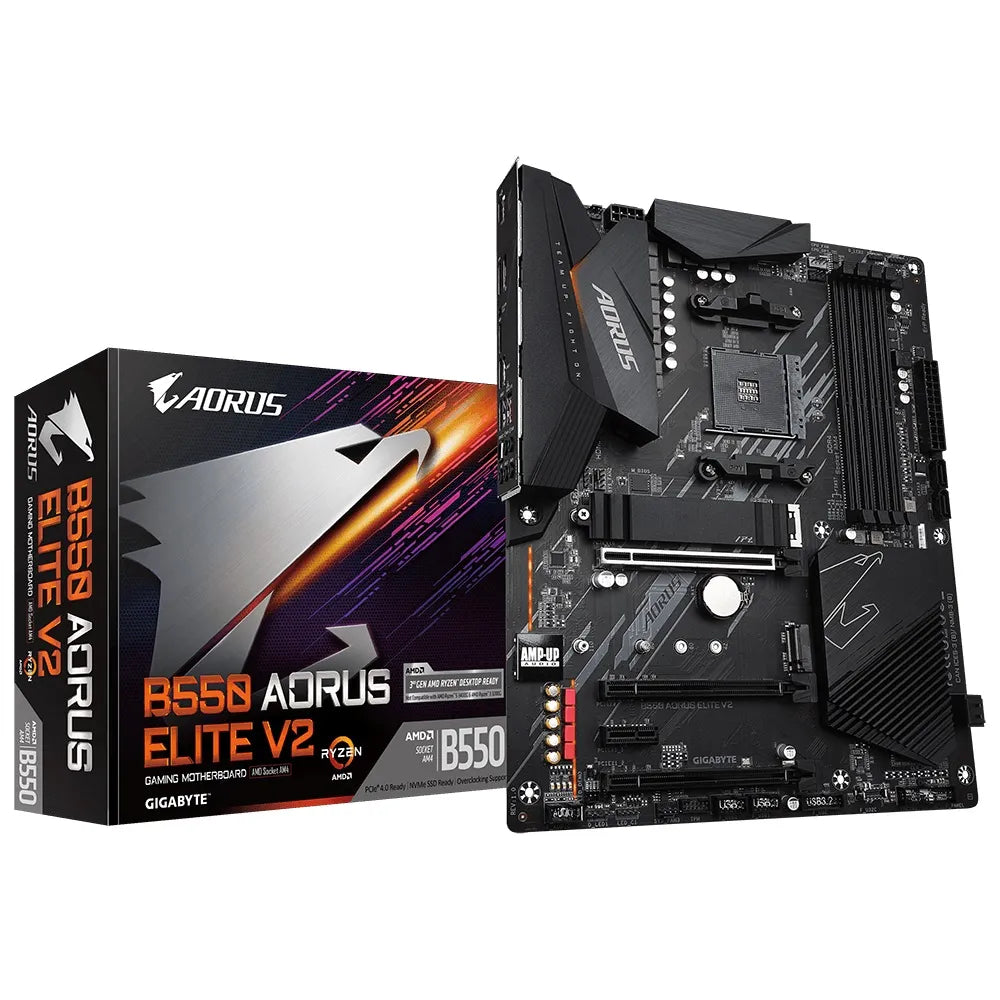

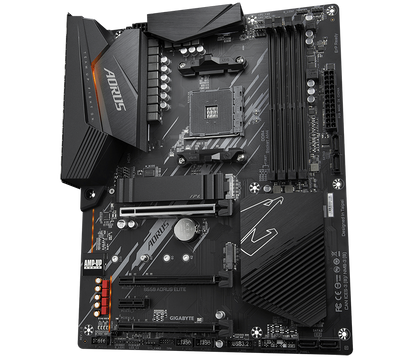

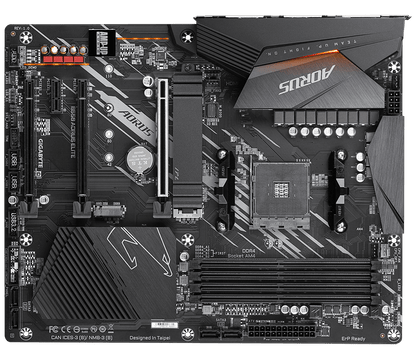

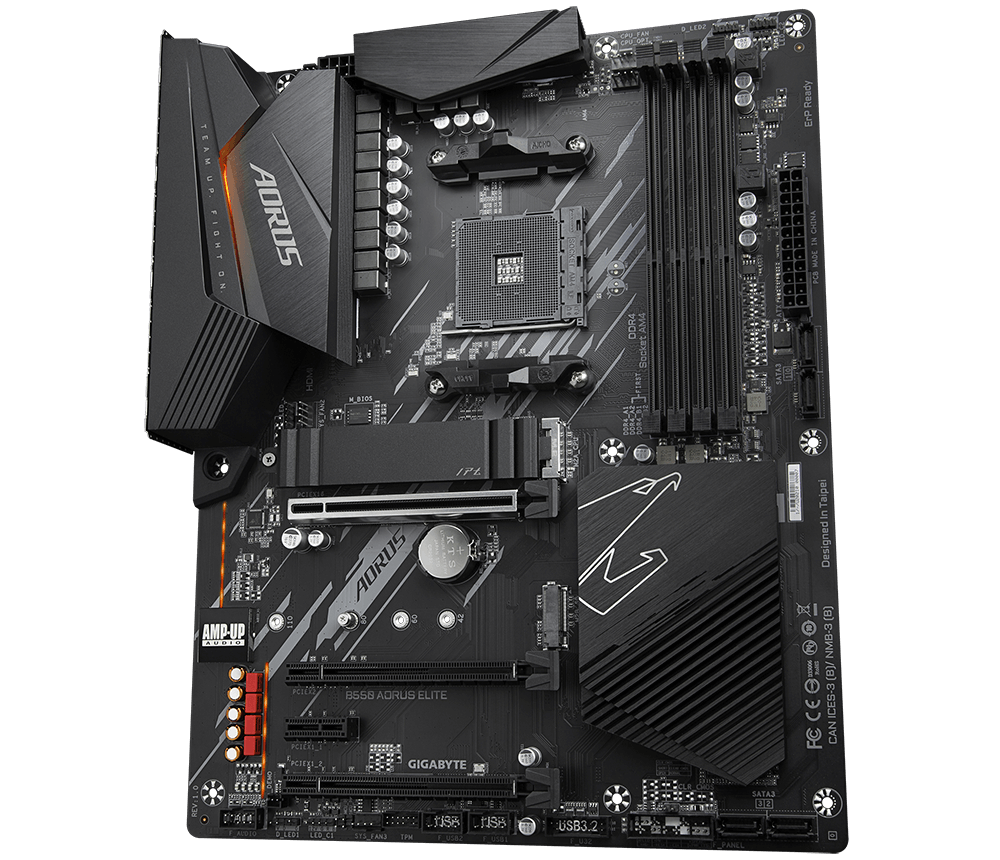

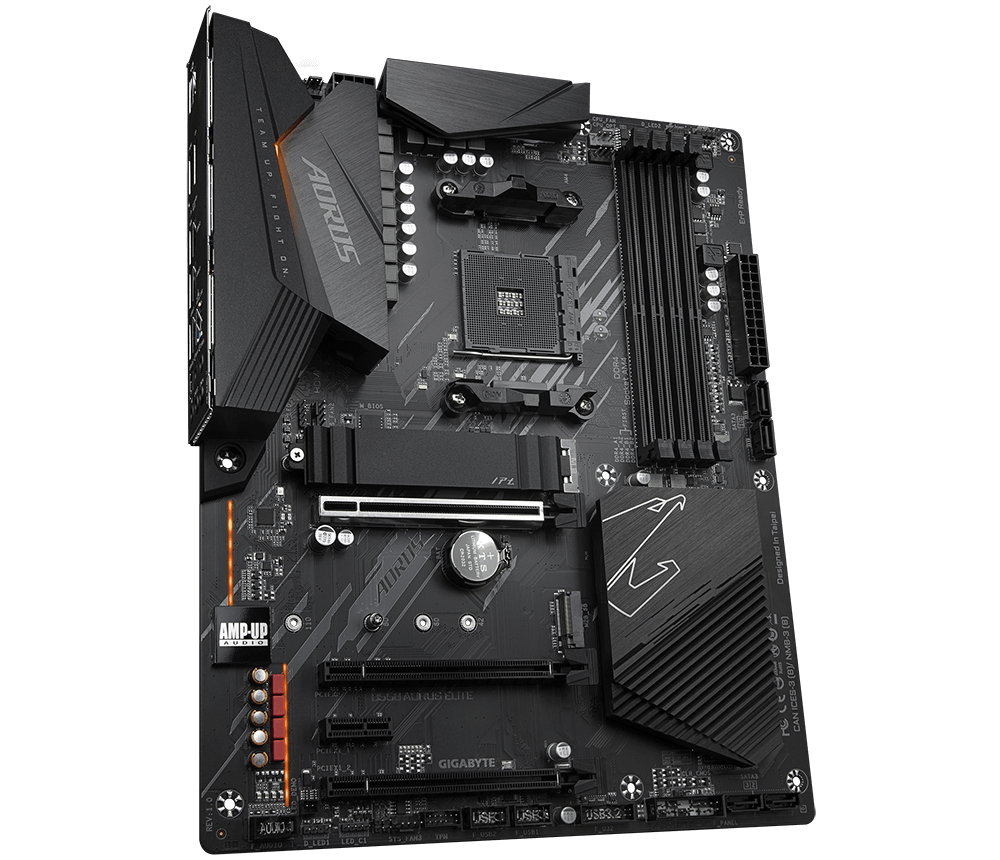

Gigabyte GA-B550-AORUS-ELITEV2 B550 AORUS ELITE V2 AMD B550 Ryzen Socket AM4 ATX Desktop Motherboard
Gigabyte GA-B550-AORUS-ELITEV2 B550 AORUS ELITE V2 AMD B550 Ryzen Socket AM4 ATX Desktop Motherboard
Regular price
R 3,399.00
Regular price
Sale price
R 3,399.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | AORUS ELITE Series |
| Model | B550 AORUS ELITE V2 (GA-B550-AORUS-ELITEV2) |
| CPU Support | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors |
| Chipset | AMD B550 Chipset |
| Memory Support | |
| AMD B550 Chipset | 4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (support varies by CPU) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Video | |
| DisplayPort | 1x HDMI 2.1 (TMDS) port, supports a maximum resolution of 4096x2160 @ 60Hz, Support HDCP 2.3 & HDR |
| HDMI | 1x DisplayPort 1.4 Port, supports a maximum resolution of 5120x2880 @ 60Hz, Support HDCP 2.3 & HDR |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Electrical, x16 Physical Slot (PCIEX16) |
| AMD B550 Chipset | 1x PCIe 3.0 x2 Electrical, x16 Physical slot (PCIEX2) |
| 1x PCIe 3.0 x1 Electrical, x16 Physical slot (PCIEX1_2) | |
| 1x PCIe 3.0 x1 Electrical, x1 Physical slot (PCIEX1_1) | |
| Slot Configurations | PCIEX16 supports PCIe 4.0 x16 mode with Ryzen 5000, 3000 Series Processors |
| PCIEX16 supports PCIe 3.0 x16 mode with Ryzen 5000G, 4000G, 3000G Series Processors | |
| Storage | |
| CPU Direct | 1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs |
| AMD B550 Chipset | 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs |
| 4x SATA 3.0 6Gbps connectors | |
| Storage Configurations | Support for SATA RAID 0, RAID 1, and RAID 10 |
| M2A_CPU supports PCIe 4.0 mode with Ryzen 5000, 3000 Series Processors | |
| M2A_CPU supports PCIe 3.0 mode with Ryzen 5000G, 4000G, 3000G Series Processors | |
| Networking | |
| LAN | Realtek 2.5 Gigabit LAN Adapter |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek ALC1200 High-Definition Audio Codec |
| Support for 2/4/5.1/7.1-channel Surround | |
| Supports for Optical S/PDIF Digital Audio | |

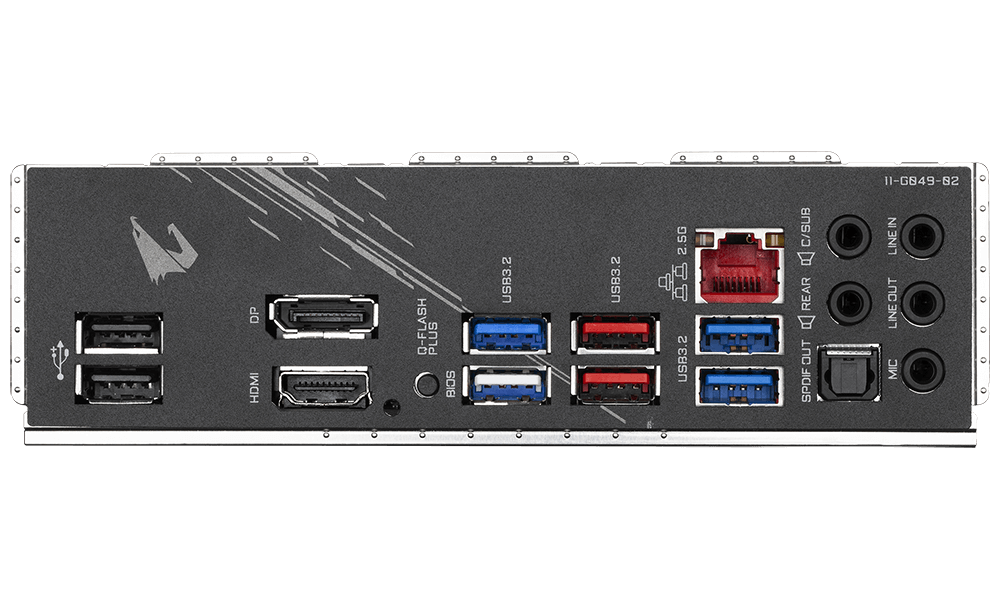

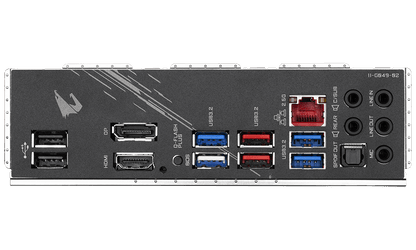

| Connectivity | |
| Ports | 2x USB 10Gbps Type-A Ports |
| 3x USB 5Gbps Type-A Ports | |
| 2x USB 2.0 Type-A Ports | |
| 1x HDMI 2.1 (TMDS) Port | |
| 1x DisplayPort 1.4 Port | |
| 5x 3.5mm Audio Jacks | |
| 1x Optical S/PDIF Audio Port | |
| 1x 2.5 Gigabit Ethernet RJ-45 LAN Port | |
| Buttons | 1x Q-Flash Plus Button |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 2x M.2 Socket 3 connectors | |
| 4x SATA 6Gb/s connectors | |
| 1x CPU fan header | |
| 1x water cooling CPU fan header | |
| 3x system fan headers | |
| 1x CPU cooler LED strip/RGB LED strip header | |
| 2x addressable LED strip headers | |
| 2x RGB LED strip headers | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x USB Type-C port, with USB 3.2 Gen 1 support | |
| 1x USB 3.2 Gen 1 header | |
| 2x USB 2.0/1.1 headers | |
| 1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| 1x Clear CMOS jumper | |
| I/O Controller | iTE I/O Controller Chip |
| LED Displays | N/A |
| BIOS | 1x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor, 305 x 244 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit (Recommended) | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
