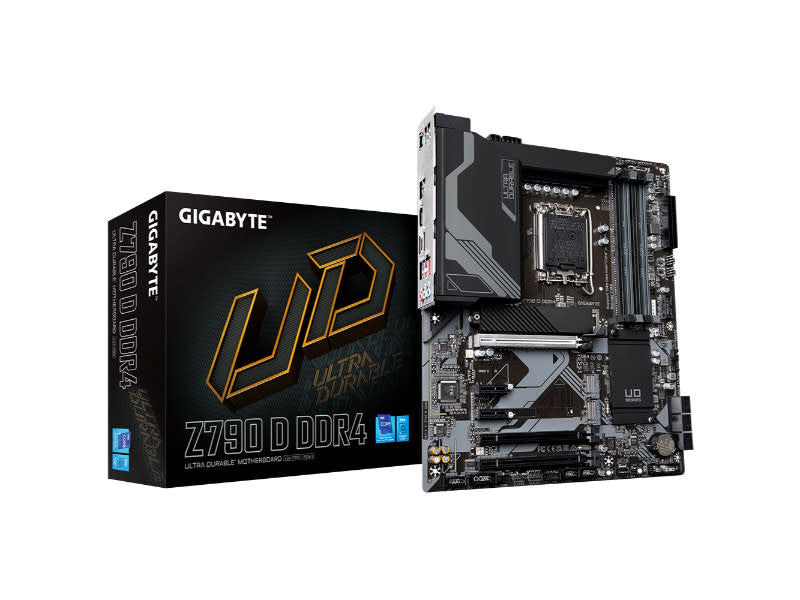

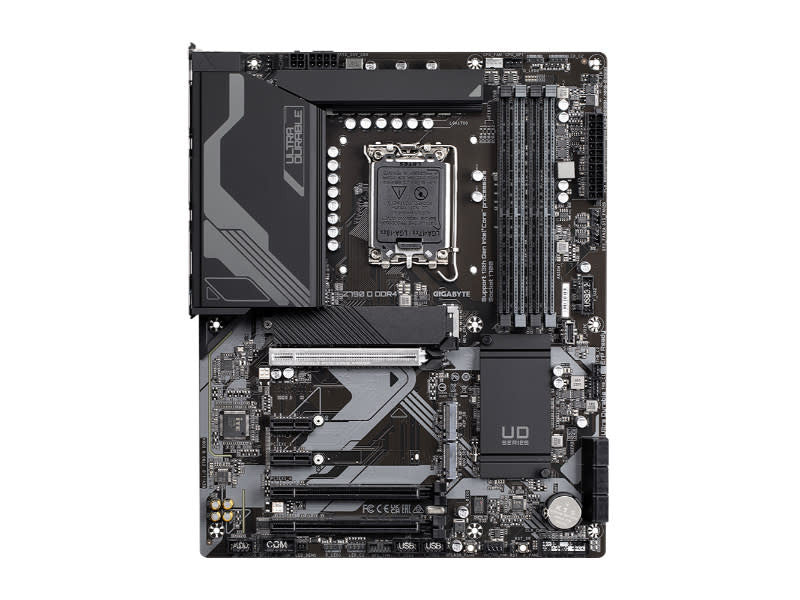

Gigabyte DDR4 Z790 D DDR4 Intel Z790 Raptor Lake LGA 1700 ATX DDR4 Desktop Motherboard
Gigabyte DDR4 Z790 D DDR4 Intel Z790 Raptor Lake LGA 1700 ATX DDR4 Desktop Motherboard
Regular price
R 4,199.00
Regular price
Sale price
R 4,199.00
Unit price
/
per
SPECIFICATIONS | |
Brand | Gigabyte |
Series | Z790 D DDR4 |
Model | GA-Z790D-DDR4 |
CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
L3 cache varies with CPU | |
Chipset | Intel Z790 Express Chipset |
Memory | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules |
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
Dual channel memory architecture | |
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
Support for Extreme Memory Profile (XMP) memory modules | |
Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
* Support for HDMI 2.0 version and HDCP 2.3. | |
Audio | Realtek Audio CODEC |
High Definition Audio | |
2/4/5.1/7.1-channel | |
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
Support for S/PDIF Out | |
LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Expansion Slots | CPU: |
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) | |
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
Chipset: | |
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) | |
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) | |
Support for AMD CrossFire technology (PCIEX16 and PCIEX4) | |
Storage Interface | CPU: |
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
Chipset: | |
2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) | |
6 x SATA 6Gb/s connectors | |
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices | |
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
USB | Chipset: |
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support | |
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header | |
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
Chipset+1 USB 2.0 Hub: | |
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) | |
Internal I/O Connectors | 1 x 24-pin ATX main power connector |
1 x 8-pin ATX 12V power connector | |
1 x 4-pin ATX 12V power connector | |
1 x CPU fan header | |
1 x water cooling CPU fan header | |
3 x system fan headers | |
1 x system fan/water cooling pump header | |
2 x addressable LED strip headers | |
2 x RGB LED strip headers | |
3 x M.2 Socket 3 connectors | |
6 x SATA 6Gb/s connectors | |
1 x front panel header | |
1 x front panel audio header | |
1 x S/PDIF Out header | |
1 x USB Type-C header, with USB 3.2 Gen 1 support | |
1 x USB 3.2 Gen 1 header | |
2 x USB 2.0/1.1 headers | |
1 x serial port header | |
2 x Thunderbolt add-in card connectors | |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
1 x reset button | |
1 x Q-Flash Plus button | |
1 x reset jumper | |
1 x Clear CMOS jumper | |

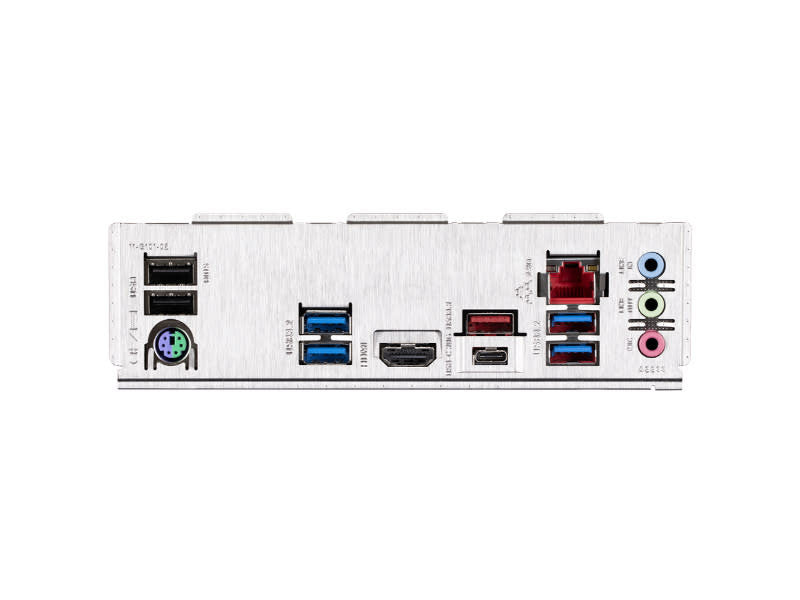

Back Panel Connectors | 1 x USB Type-C port, with USB 3.2 Gen 2x2 support |
1 x USB 3.2 Gen 2 Type-A port (red) | |
4 x USB 3.2 Gen 1 ports | |
2 x USB 2.0/1.1 ports | |
1 x HDMI 2.0 port | |
1 x RJ-45 port | |
3 x audio jacks | |
I/O Controller | iTE I/O Controller Chip |
H/W Monitoring | Voltage detection |
Temperature detection | |
Fan speed detection | |
Water cooling flow rate detection | |
Fan fail warning | |
Fan speed control | |
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
BIOS | 1 x 256 Mbit flash |
Use of licensed AMI UEFI BIOS | |
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Operating System | Support for Windows 11 64-bit |
Support for Windows 10 64-bit | |
Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
Warranty Information | |
Warranty | 3 Year Warranty |
