Gigabyte B850M EAGLE WIFI6E ICE AMD B850 Ryzen Socket AM5 White Micro-ATX Desktop Motherboard
Gigabyte B850M EAGLE WIFI6E ICE AMD B850 Ryzen Socket AM5 White Micro-ATX Desktop Motherboard
Regular price
R 4,299.00
Regular price
Sale price
R 4,299.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
We accept
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | EAGLE Series |
| Model | B850M EAGLE WIFI6E ICE |
| CPU Support | Supports Ryzen 7000, 8000, 9000-Series Processors |
| Chipset | AMD B850 Chipset |
| Memory Support | |
| AMD B850 Chipset | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. |
| 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | |
| Video | |
| DisplayPort | 2x DisplayPort 1.4 Ports, supporting a maximum resolution of 4K @ 144Hz, supports HDCP & HDR |
| HDMI | 1x HDMI 2.1 (TMDS) Port, supporting a maximum resolution of 4096x2160@ 60Hz, supports HDCP & HDR |
| Integrated graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 5.0 x16 Slot (x16 Physical) |
| AMD B850 Chipset | 1x PCIe 3.0 x4 Slot (x16 Physical) |
| Slot Configurations | PCIE5 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode |
| PCIE5 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode | |
| Storage | |
| CPU Direct | 1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs |
| 1x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs | |
| AMD B850 Chipset | 4x SATA 6Gbps connectors |
| Ryzen 9000-Series RAID 5 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices | |
| Storage Configurations | M2A_CPU with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| M2A_CPU with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs | |
| M2B_CPU with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs | |
| M2B_CPU with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x2 SSDs | |
| Please consult your motherboard manual for CPU support with SSDs in the M.2_2 slot. | |
| Networking | |
| LAN | Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port |
| WiFi | Realtek RTL8852CE WiFi 6E Tri-Band Adapter |
| Bluetooth | Bluetooth 5.3 |
| Audio | |
| Codec | Realtek High-Definition Audio Codec |
| Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |

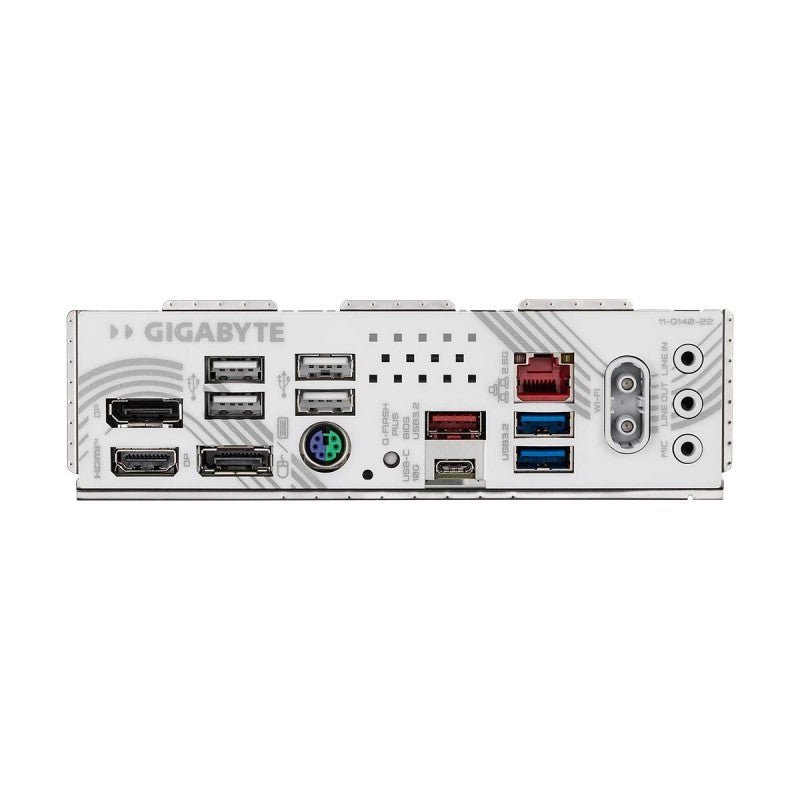

| Connectivity | |
| Ports | 1x USB 10Gbps Type-C Port |
| 1x USB 10Gbps Type-A Port | |
| 2x USB 5Gbps Type-A Ports | |
| 4x USB 2.0 Type-A Ports | |
| 2x DisplayPort 1.4 Ports | |
| 1x HDMI 2.1 (TMDS) Port | |
| 3x 3.5mm Audio Jacks | |
| 2x Antenna Connectors | |
| 1x PS/2 Combo Port (Keyboard, Mouse) | |
| 1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port | |
| Buttons | 1x Q-Flash Plus BIOS Button |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 1x CPU fan/water cooling pump header | |
| 1x system fan header | |
| 1x system fan/water cooling pump header | |
| 3x addressable RGB Gen2 LED strip headers | |
| 1x RGB LED strip header | |
| 4x SATA 6Gb/s connectors | |
| 2x M.2 Socket 3 connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x USB Type-C header, with USB 3.2 Gen 2 support | |
| 1x USB 3.2 Gen 1 header | |
| 2x USB 2.0/1.1 headers | |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1x reset button | |
| 1x reset jumper | |
| 1x Clear CMOS jumper | |
| LEDs | Gigabyte Q-LED Array (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| I/O Controller | iTE I/O Controller Chip |
| BIOS | 1x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro-ATX Form Factor, 244 x 244 mm (H x W) |
| Operating System Support | Windows 11 64-bit |
| Boxed Accessories | User's Manual |
| Quick Installation Guide | |
| One antenna | |
| Two SATA cables | |
| One G Connector | |
| M.2 screw(s) | |
| One pack of M.2 thick/thin rubber pads | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
