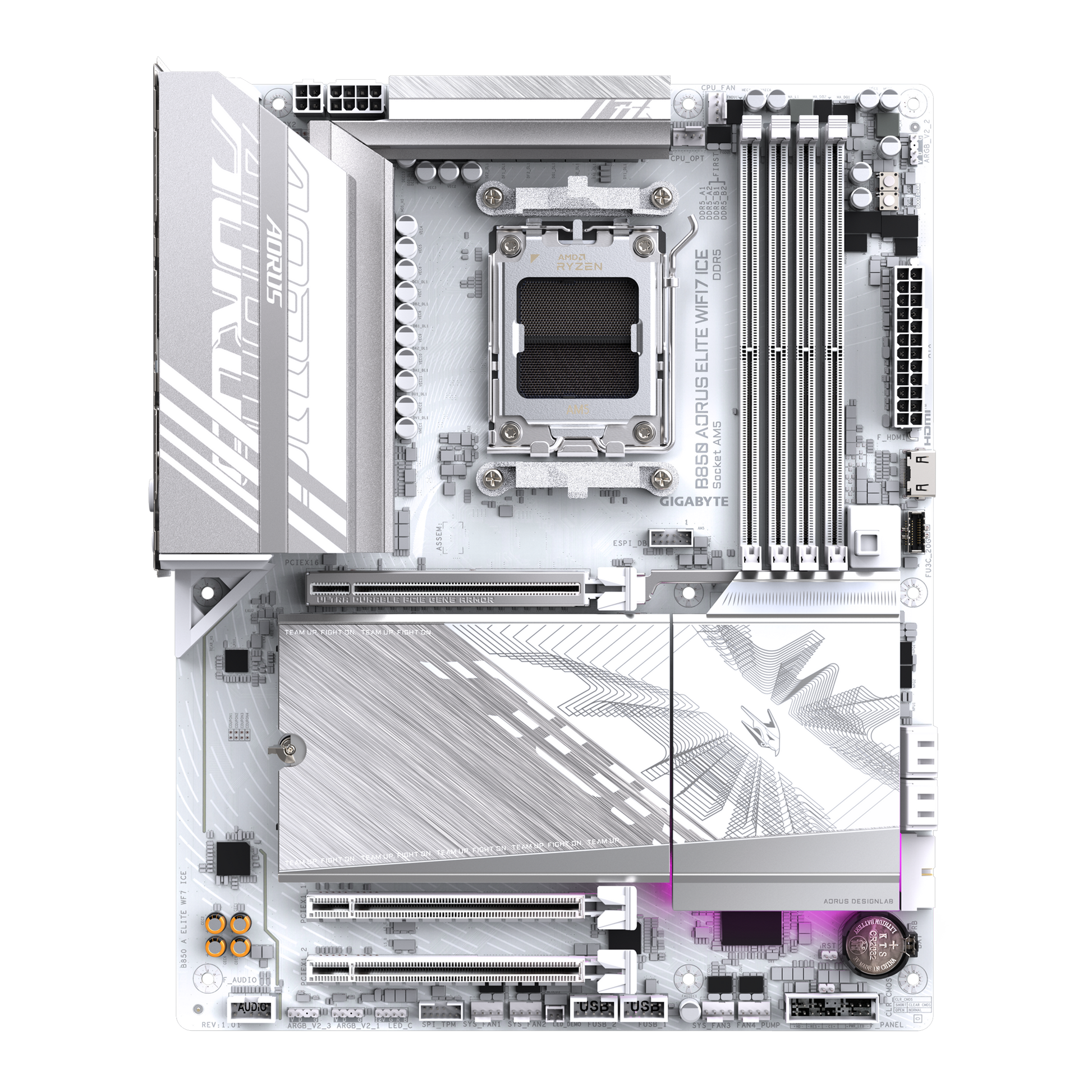

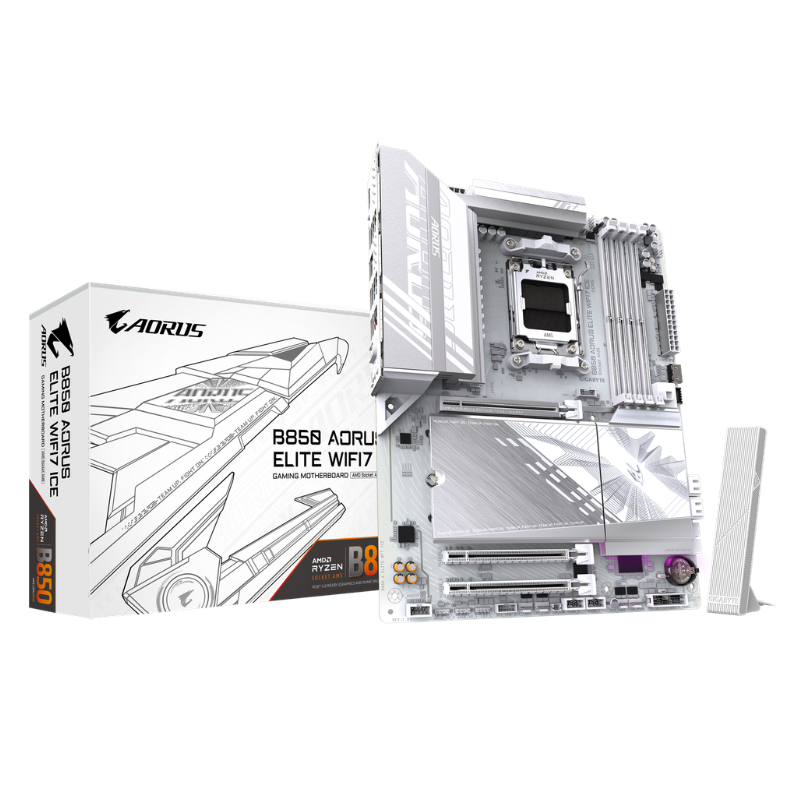

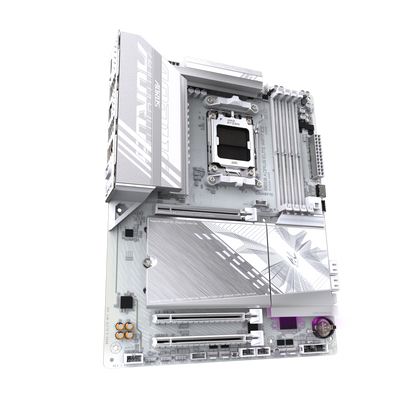

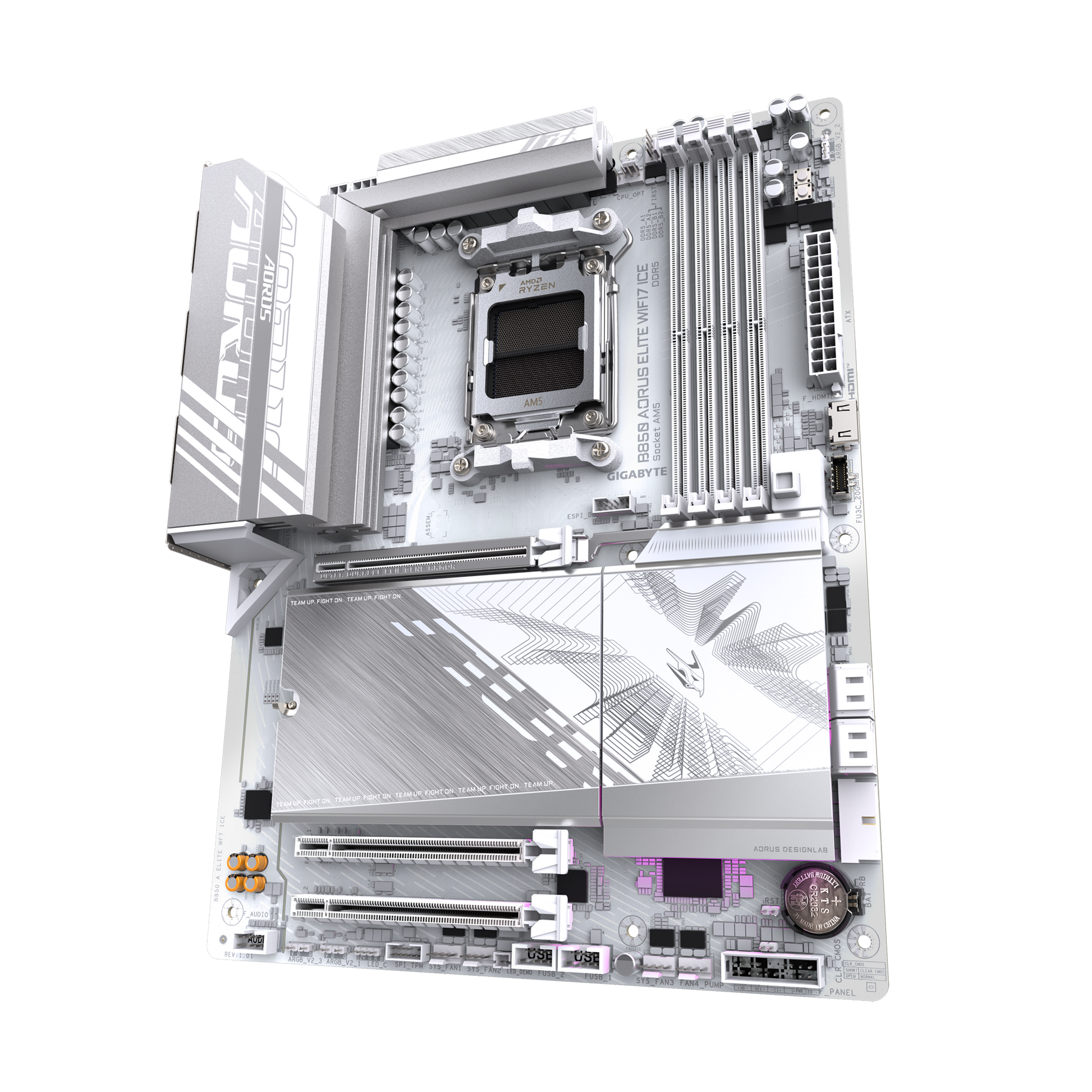

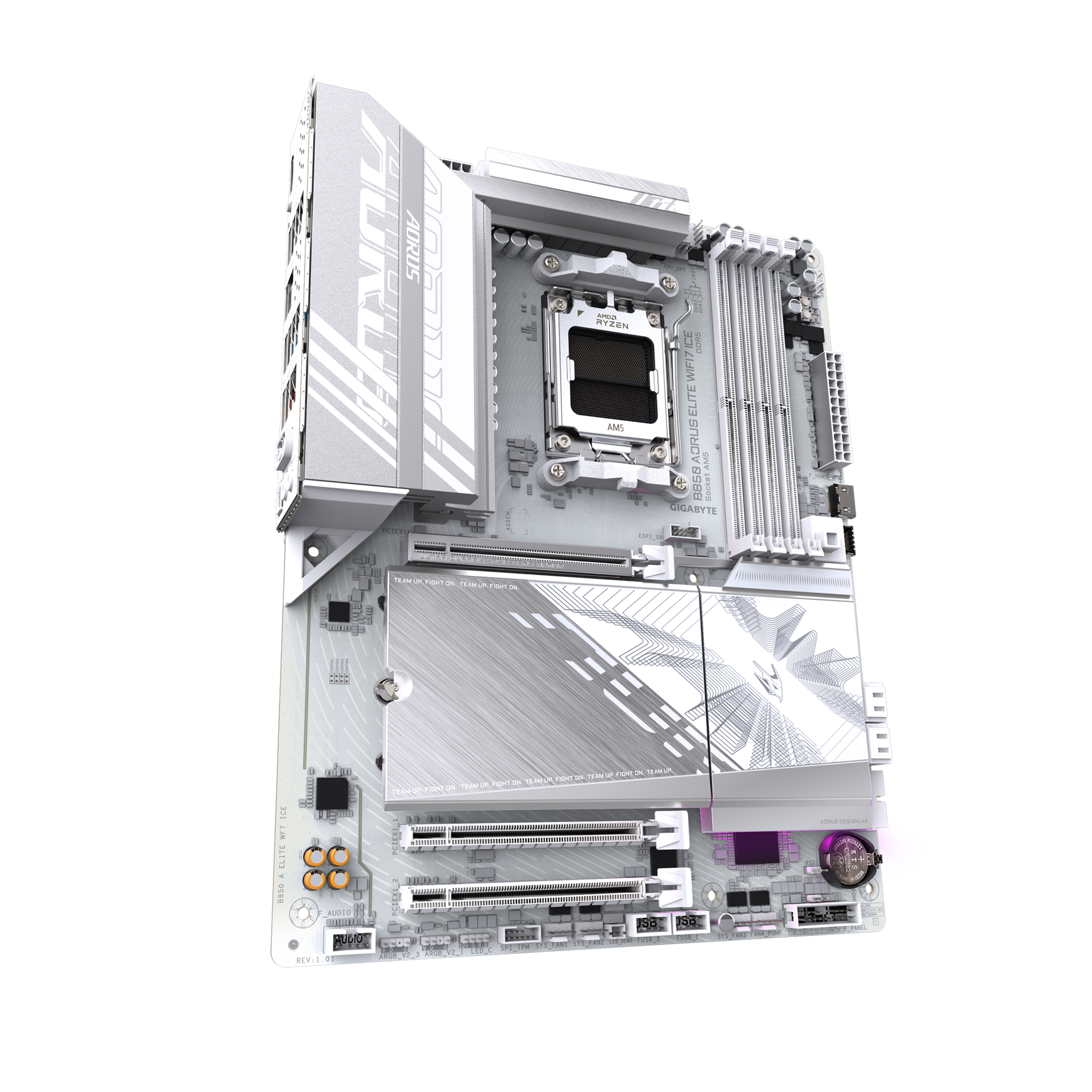

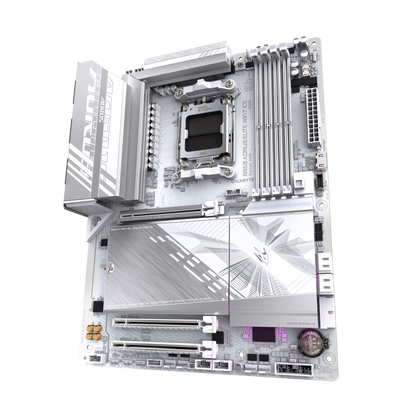

Gigabyte B850 AORUS ELITE WIFI7 ICE AMD B850 Ryzen Socket AM5 ATX Desktop Motherboard
Gigabyte B850 AORUS ELITE WIFI7 ICE AMD B850 Ryzen Socket AM5 ATX Desktop Motherboard
Regular price
R 4,999.00
Regular price
Sale price
R 4,999.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
We accept
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | Gaming Motherboards |
| Model | B850 A ELITE WF7 ICE (B850-AORUS-ELITE-WIFI7-ICE) |
| CPU | AMD Socket AM5 |
| AMD Ryzen 9000 Series Processors | |
| AMD Ryzen 8000 Series Processors | |
| AMD Ryzen 7000 Series Processors | |
| Chipset | AMD B850 |
| Memory | DDR5 8200(O.C), 8000(O.C), 7950(O.C), 7900(O.C), 7800(O.C), 7600(O.C), 7400(O.C), 7200(O.C), 7000(O.C), 6800(O.C), 6600(O.C), 6400(O.C), 6200(O.C), 6000(O.C), 5800(O.C), 5600(O.C), 5200, 4800, 4400 MT/s |
| 4 x DDR5 DIMM sockets | |
| Up to 256 GB system memory | |
| Dual channel memory architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO) | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules. Please refer to "Memory Support List" on GIGABYTE's website for more information. | |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon Graphics |
| 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz | |
| Supports DisplayPort 1.4 version and HDR. | |
| 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz | |
| Supports HDMI 1.4 version. | |
| Graphics specifications may vary depending on CPU support. | |
| Audio | Realtek Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Support for S/PDIF Out | |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | Realtek Wi-Fi 7 RTL8922AE |
| 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | |
| BLUETOOTH 5.4 | |
| Support for 11be 160MHz wireless standard | |
| Wi-Fi 7 features require Windows 11 SV3 to function properly (no driver support for Windows 10). | |
| Wi-Fi 7 channels on the 6 GHz band availability depends on individual country's regulations. | |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU |
| AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode | |
| AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode | |
| AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode | |
| The PCIEX16 slot can only support a graphics card or an NVMe SSD. | |
| If only one graphics card is to be installed, install it in the PCIEX16 slot. | |
| Chipset: | |
| 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1, PCIEX1_2) | |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU |
| Supports Socket 3, M key, type 25110/22110/2580/2280 SSDs | |
| AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs | |
| AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs | |
| AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs | |
| 1 x M.2 connector (M2B_CPU), integrated in the CPU | |
| Supports Socket 3, M key, type 25110/22110/2580/2280 SSDs | |
| AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs | |
| AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs | |
| AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs | |
| Storage Interface | 1 x M.2 connector (M2C_SB), integrated in the Chipset |
| Supports Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs | |
| 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices | |
| RAID 5 is only available on AMD Ryzen 9000 Series Processors. | |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| USB | CPU: |
| 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support | |
| 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| CPU USB 2.0 Hub: | |
| 4 x USB 2.0/1.1 ports on the back panel | |
| Chipset: | |
| 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header | |
| 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) | |
| 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Chipset USB 3.2 Gen 1 Hub: | |
| 4 x USB 3.2 Gen 1 ports on the back panel | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x 4-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 3 x system fan headers | |
| 1 x system fan/water cooling pump header | |
| 3 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 3 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C header, with USB 3.2 Gen 2x2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x HDMI port (Actual support may vary by CPU.) | |
| 1 x power button | |
| 1 x reset button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |

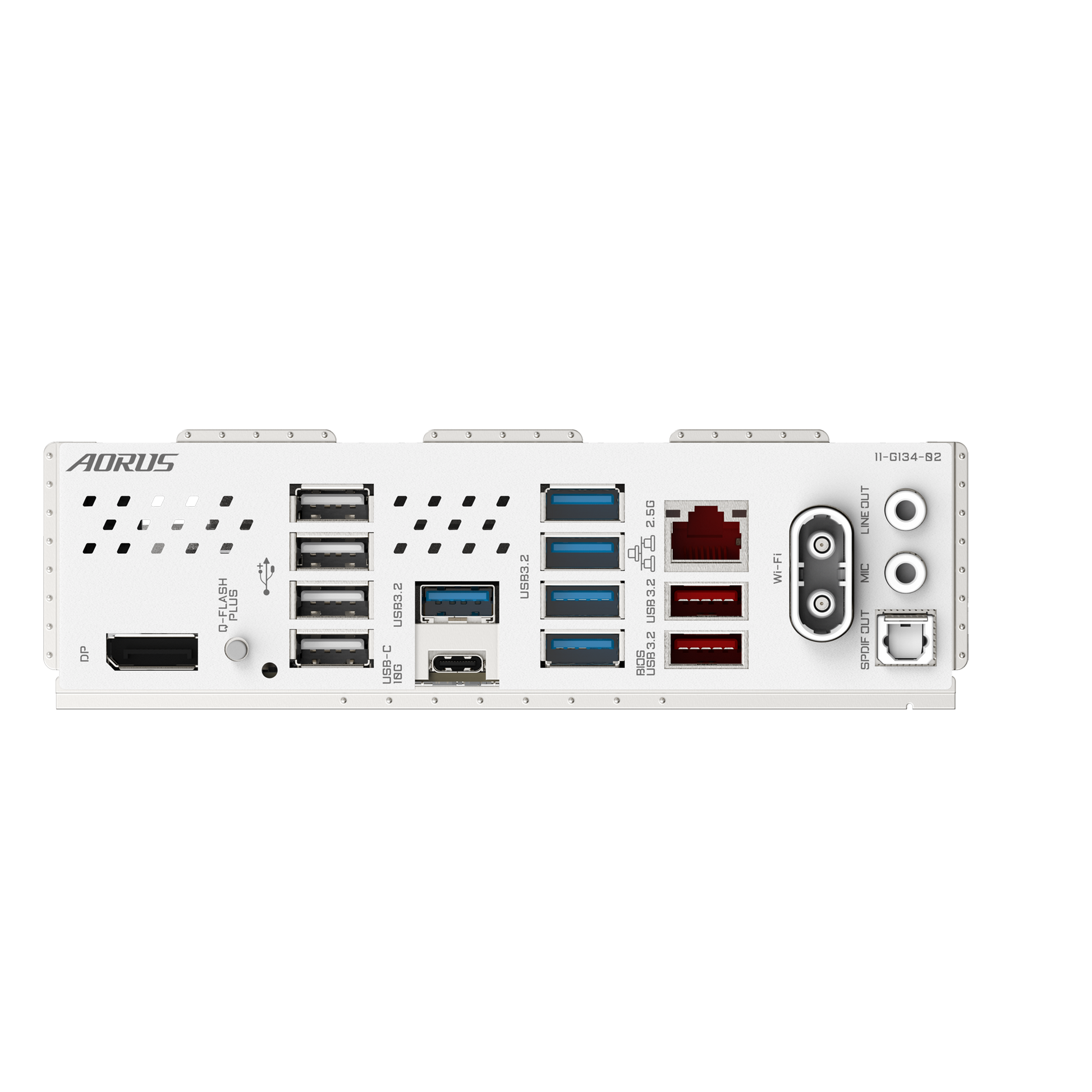

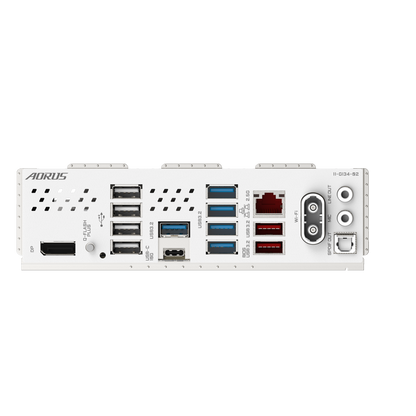

| Back Panel Connectors | 1 x DisplayPort (Actual support may vary by CPU.) |
| 1 x Q-Flash Plus button | |
| 4 x USB 2.0/1.1 ports | |
| 1 x USB Type-C port, with USB 3.2 Gen 2 support | |
| 5 x USB 3.2 Gen 1 ports | |
| 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 1 x RJ-45 port | |
| 2 x antenna connectors (2T2R) | |
| 2 x audio jacks | |
| 1 x optical S/PDIF Out connector | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | Support for GIGABYTE Control Center (GCC) |
| Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| Support for Q-Flash | |
| Support for Q-Flash Plus | |
| Support for Smart Backup | |
| Bundled Software | Norton Internet Security (OEM version) |
| LAN bandwidth management software | |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor, 30.5cm x 24.4cm |
| Warranty Information | |
| Warranty | 3 Year Warranty |
