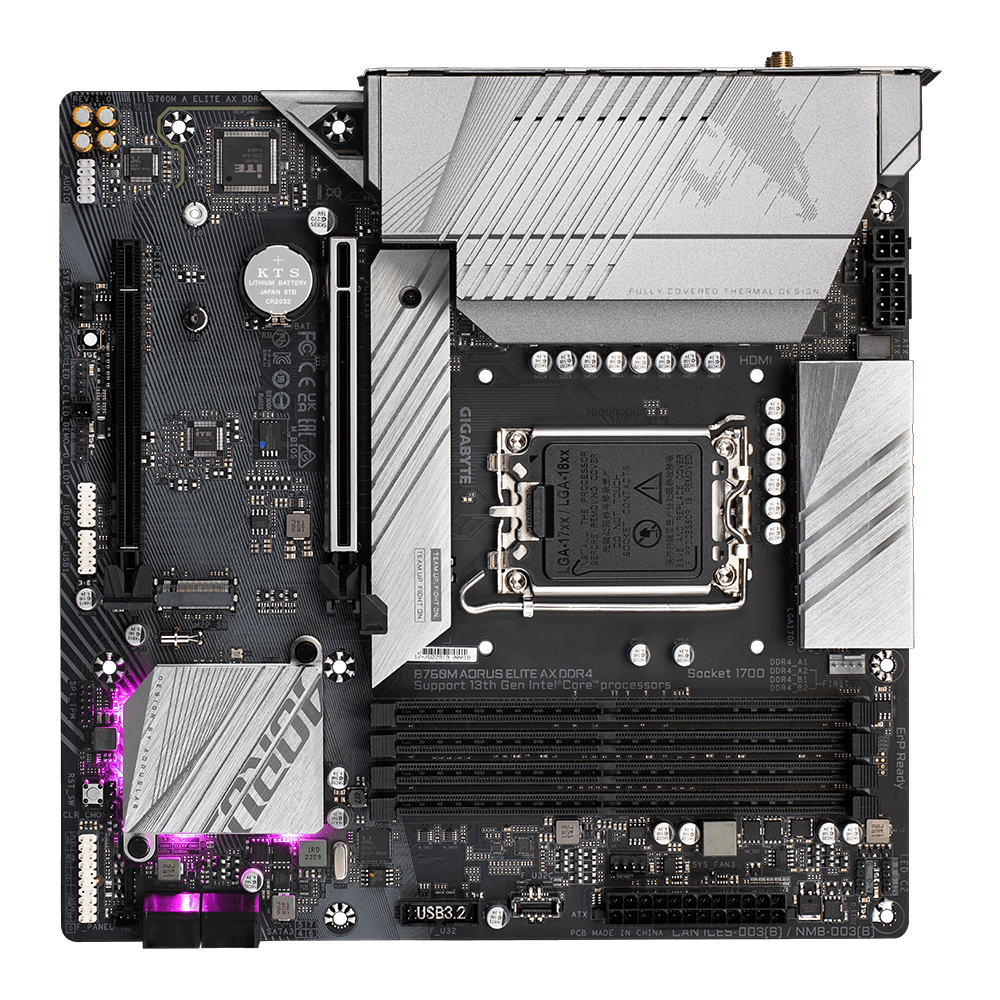

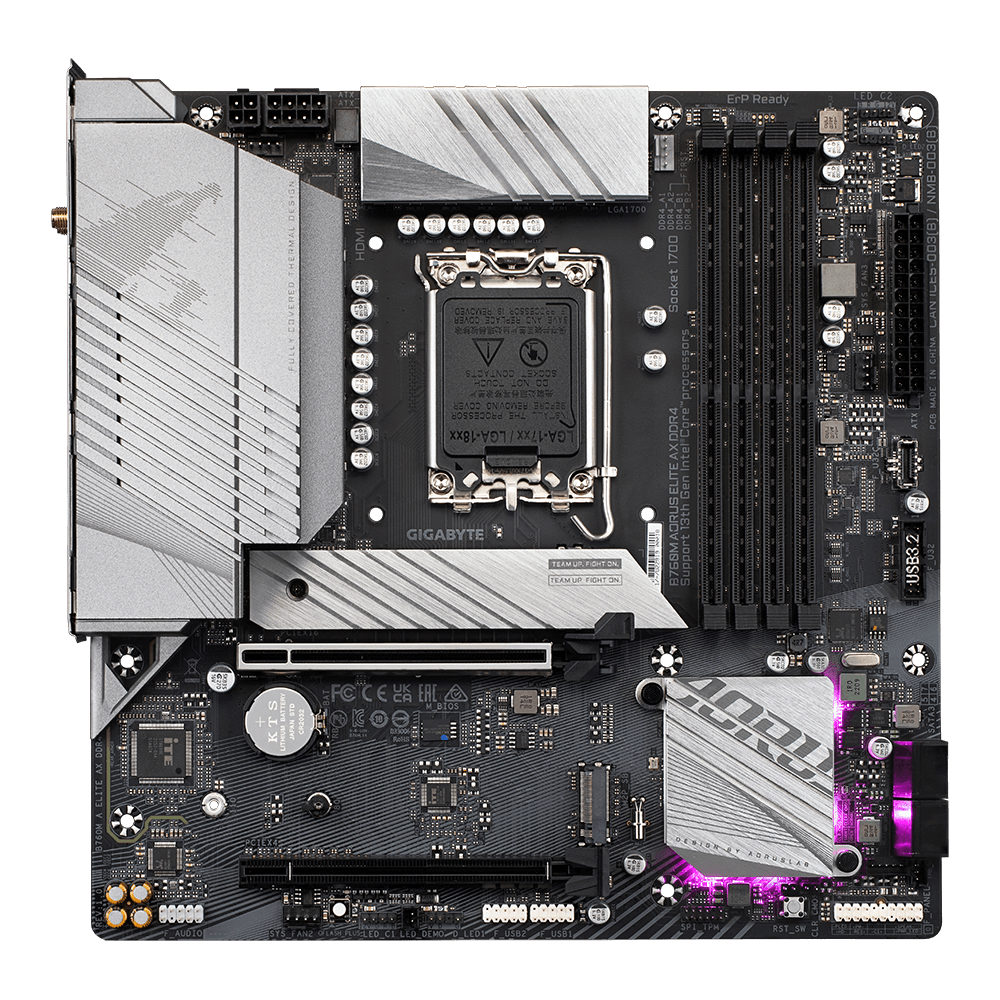

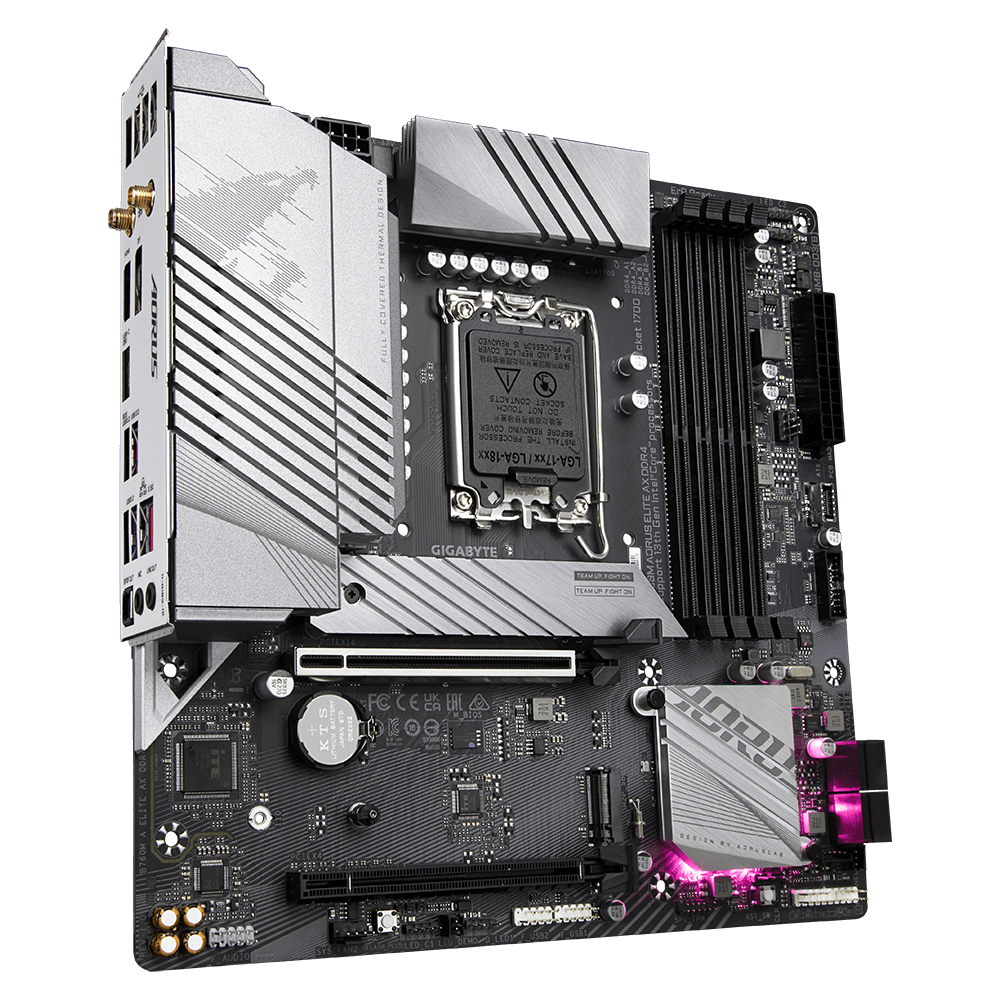

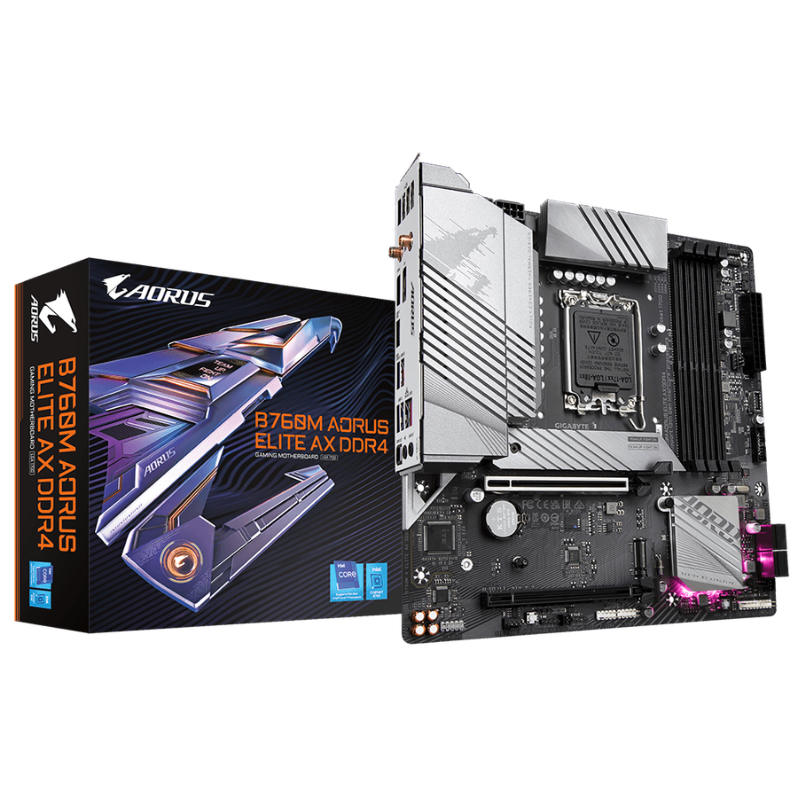

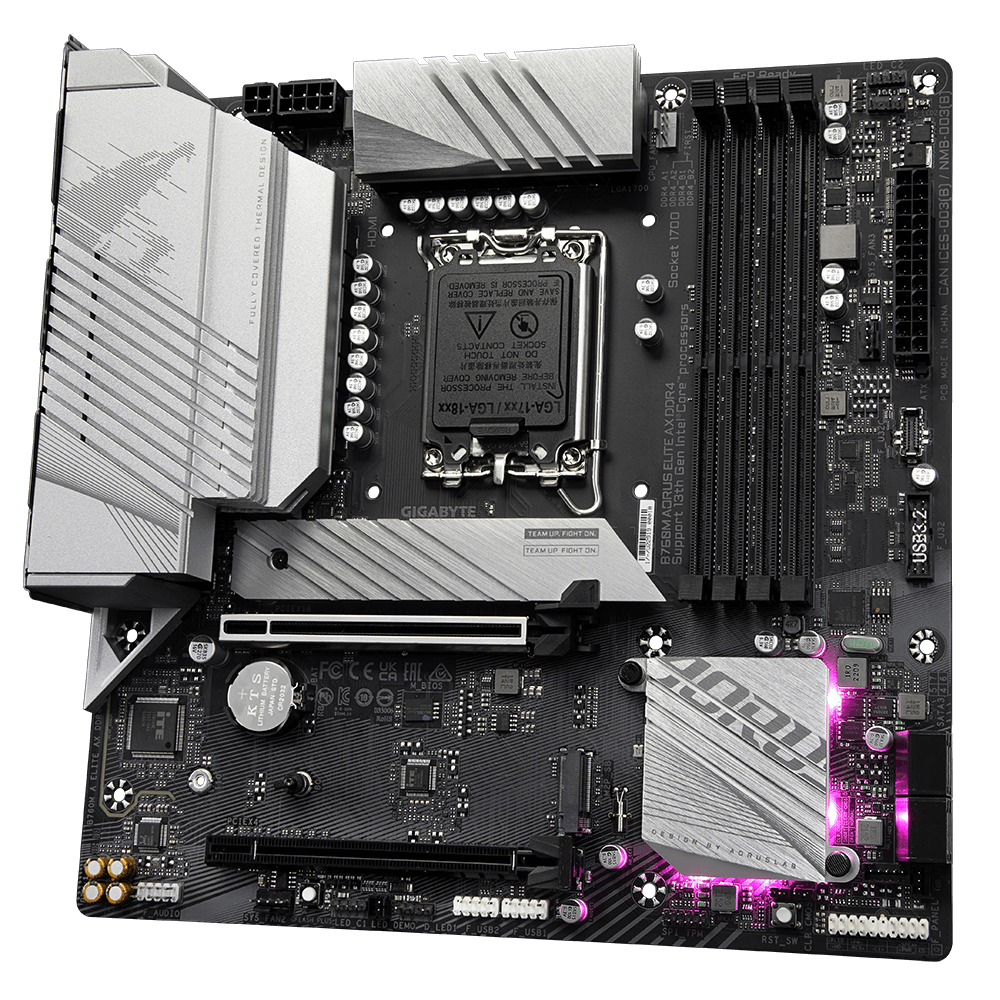

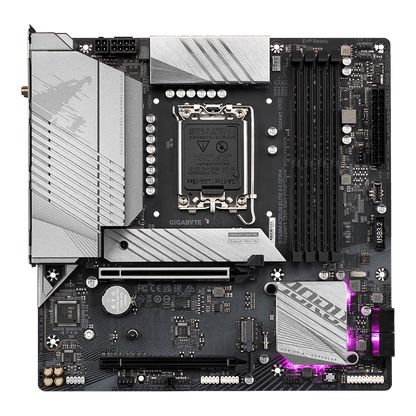

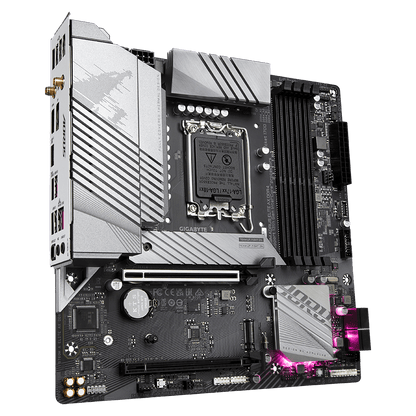

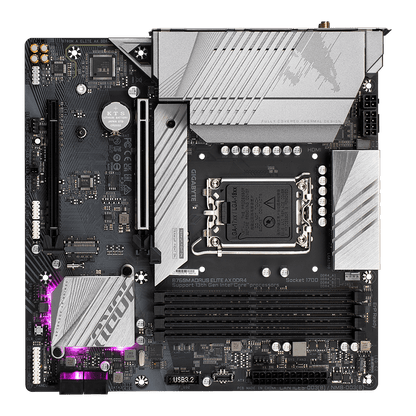

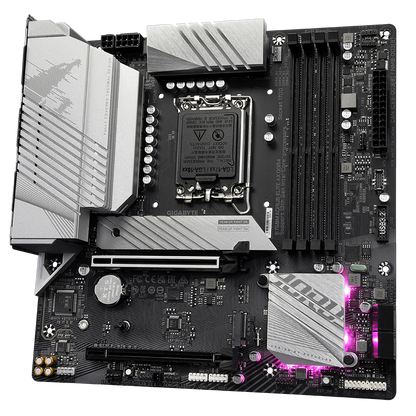

Gigabyte B760M AORUS ELITE WIFI6E DDR4 GEN5 Intel B760 LGA 1700 Raptor Lake Micro-ATX Desktop Motherboard
Gigabyte B760M AORUS ELITE WIFI6E DDR4 GEN5 Intel B760 LGA 1700 Raptor Lake Micro-ATX Desktop Motherboard
Regular price
R 3,999.00
Regular price
Sale price
R 3,999.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
We accept
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | AORUS Elite Motherboard Series |
| Model | B760M AORUS ELITE WIFI6E DDR4 GEN5 |
| CPU Support | Supports Intel 12th, 13th, 14th Gen Processors |
| Chipset | Intel B760 Chipset |
| Memory Support | |
| Intel B760 Chipset | Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules |
| 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Video | |
| DisplayPort | 1x DisplayPort 1.2 Port, supporting a maximum resolution of 4096x2304 @ 60Hz, supports HDCP, HDR |
| HDMI | 1x HDMI 2.1 Port (TMDS), supporting a maximum resolution of 4096x2160 @ 60Hz, supports HDCP, HDR |
| Integrated graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 5.0 x16 Electrical Slots (x16 Physical) (PCIEX16) |
| Intel B760 Chipset | 1x PCIe 4.0 x4 Electrical Slots (x16 Physical) (PCIEX4) |
| Storage | |
| CPU Direct | 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
| Intel B760 Chipset | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
| 4x SATA 6Gbps connectors | |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| Networking | |
| LAN | Realtek 2.5 Gigabit LAN 10/100/1000/2500Mbps |
| WiFi | Intel AX210 WiFi 6E 2x2 MIMO Tri-Band Adapter |
| Bluetooth | Bluetooth 5.3 |
| Audio | |
| Codec | Realtek ALC1220 High-Definition Audio Codec |
| Support for 7.1 Surround with front-panel jack retasking | |
| Support for S/PDIF Out | |

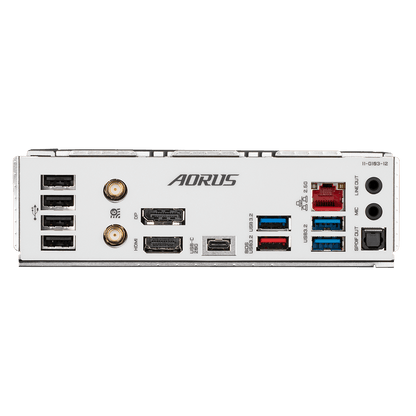

| Connectivity | |

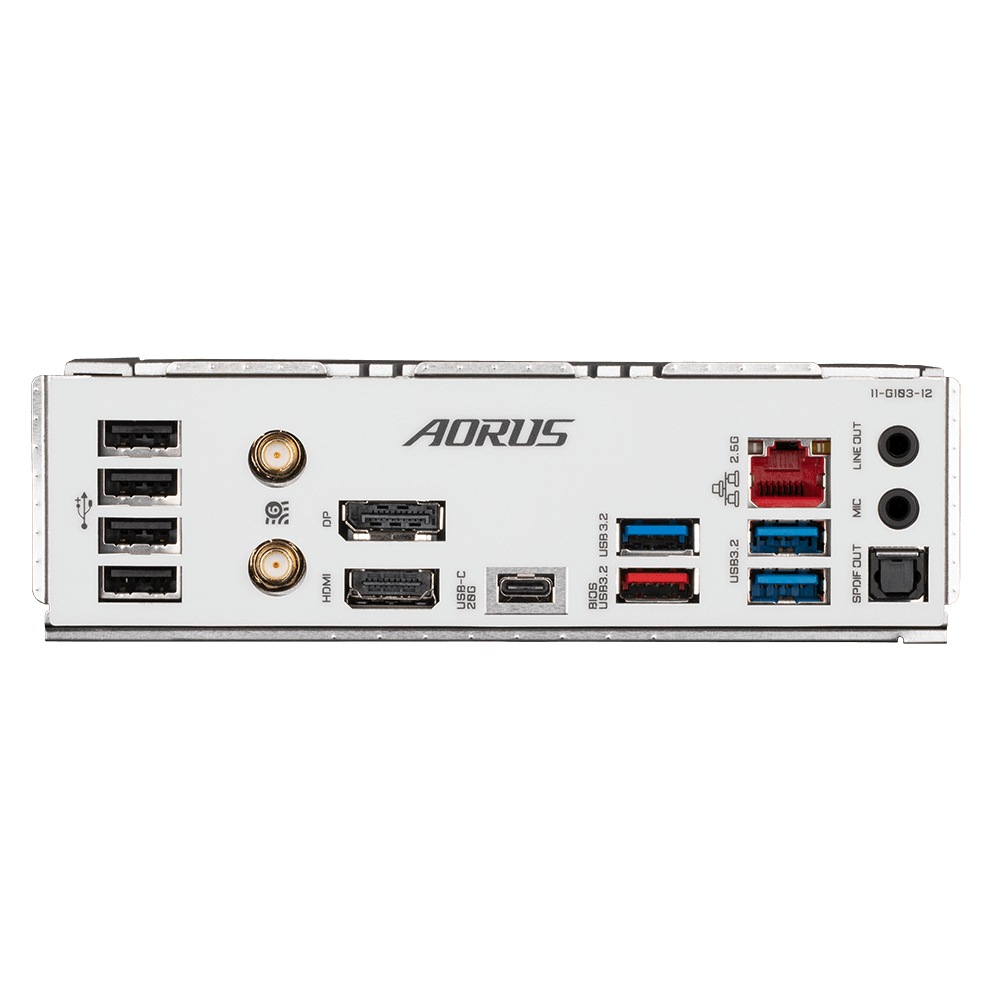

| Ports | 1x USB 20Gbps Type-C Port |
| 1x USB 10Gbps Type-A Ports | |
| 3x USB 5Gbps Type-A Ports | |
| 4x USB 2.0 Type-A Ports | |
| 1x HDMI 2.1 Port (TMDS) | |
| 1x DisplayPort 1.2 Port | |
| 2x 3.5mm Audio Jacks (Line Out, Microphone) | |
| 1x Optical S/PDIF Audio Out Port | |
| 2x SMA Connectors | |
| Buttons | 1x Q-Flash Plus BIOS button, 1x Reset Button (On Board) |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x 4-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 3x system fan headers | |
| 3x addressable RGB Gen2 LED strip headers | |
| 1x RGB LED strip header | |
| 2x M.2 Socket 3 connectors | |
| 4x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x USB Type-C header, with USB 3.2 Gen 2 support | |
| 1x USB 3.2 Gen 1 header | |
| 2x USB 2.0/1.1 headers | |
| 2x Thunderbolt add-in card connectors | |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) | |
| 1x Q-Flash Plus button | |
| 1x reset button | |
| 1x reset jumper | |
| 1x Clear CMOS jumper | |
| LEDs | 4x On-Board POST Debug LEDs |
| I/O Controller | iTE I/O Controller Chip |
| BIOS | 1x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro-ATX Form Factor, 244 x 244 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit (recommended) | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
