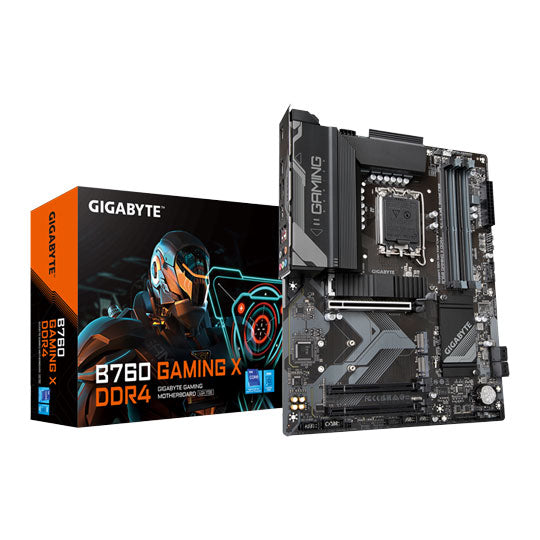

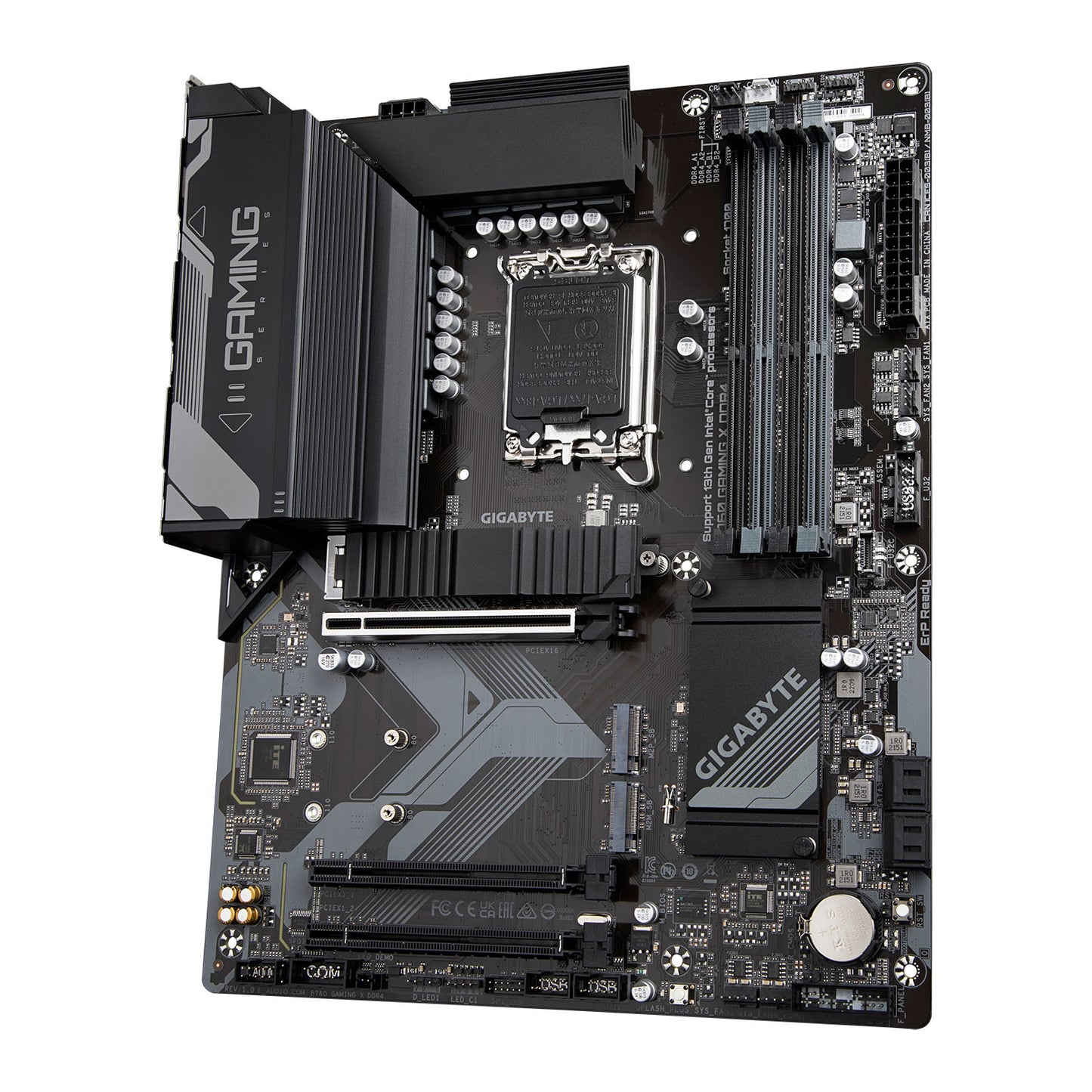

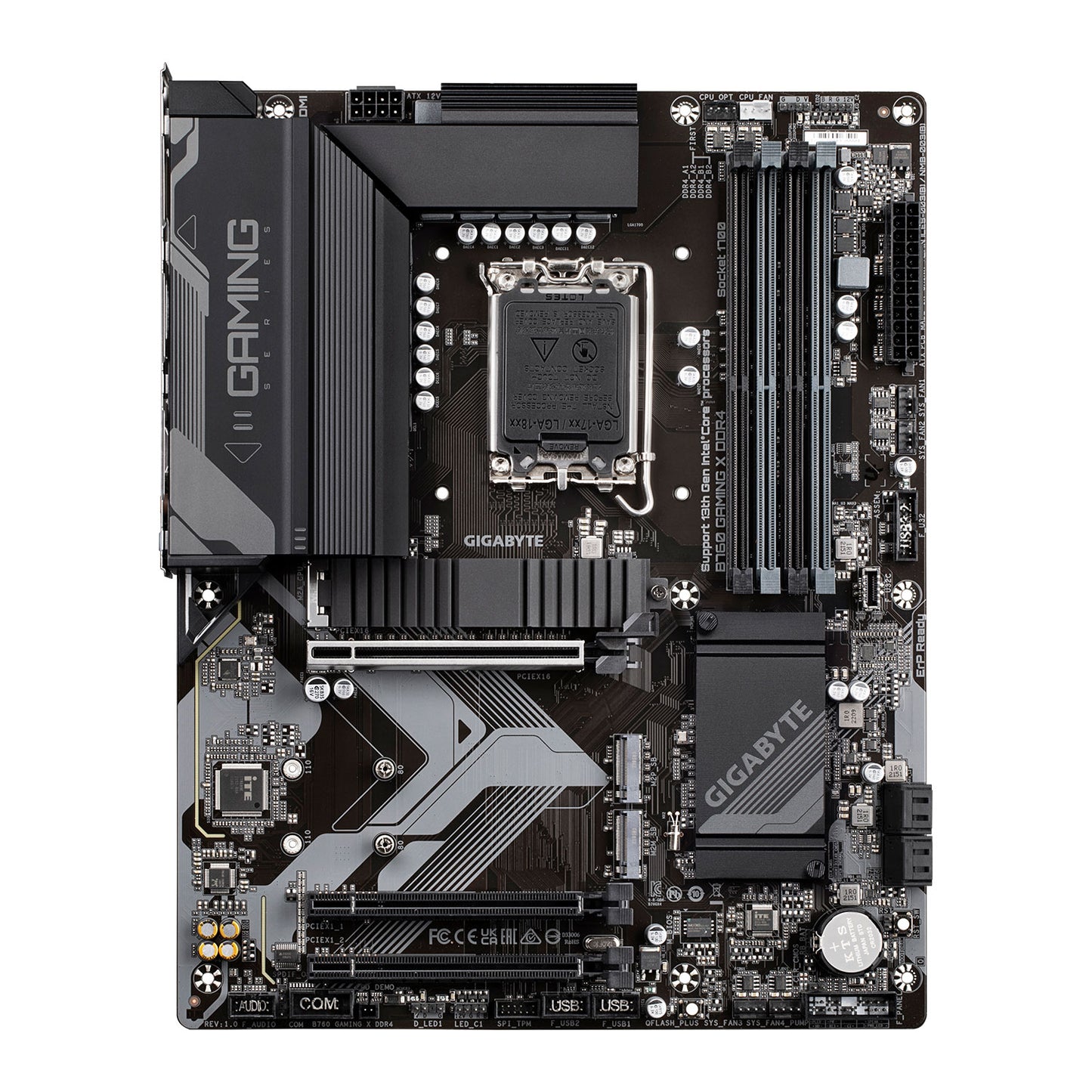

Gigabyte B760 Gaming X DDR4 Intel B760 Raptor Lake LGA 1700 ATX Desktop Motherboard
Gigabyte B760 Gaming X DDR4 Intel B760 Raptor Lake LGA 1700 ATX Desktop Motherboard
Regular price
R 3,199.00
Regular price
R 3,599.00
Sale price
R 3,199.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | Gaming X Series |
| Model | B760 GAMING X DDR4 V1.0 (GA-B760M-GAMING-X-DDR4) |
| CPU Support | LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| LGA1700 socket: Support for 13th Generation Intel Core, Pentium Gold and Celeron Processors | |
| Chipset | Intel B760 Express |
| Memory Support | |
| Intel 12th & 13th Gen Series | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules |
| 4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Video | |
| DisplayPort | 1x DisplayPort, supporting a maximum resolution of 4096x2304 @ 60 Hz, Support for DisplayPort 1.2 and HDCP 2.3 |
| HDMI | 1x HDMI port, supporting a maximum resolution of 4096x2160 @ 60 Hz, Support for HDMI 2.0 and HDCP 2.3 |
| Integrated Intel graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Physical, x16 Electrical Slot |
| Intel B760 Chipset | 2x PCIe 3.0 x1 Physical, x1 Electrical Slots |
| Storage | |
| CPU Direct | 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) |
| Intel B760 Chipset | 2x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) |
| 4x SATA 6Gb/s connectors | |
| Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 | |
| Networking | |
| LAN | Realtek 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek High-Definition Audio Codec |
| Support for S/PDIF Out | |
| 2/4/5.1/7.1-channel Surround Support with Front-Panel Jack retasking | |
| Connectivity | |

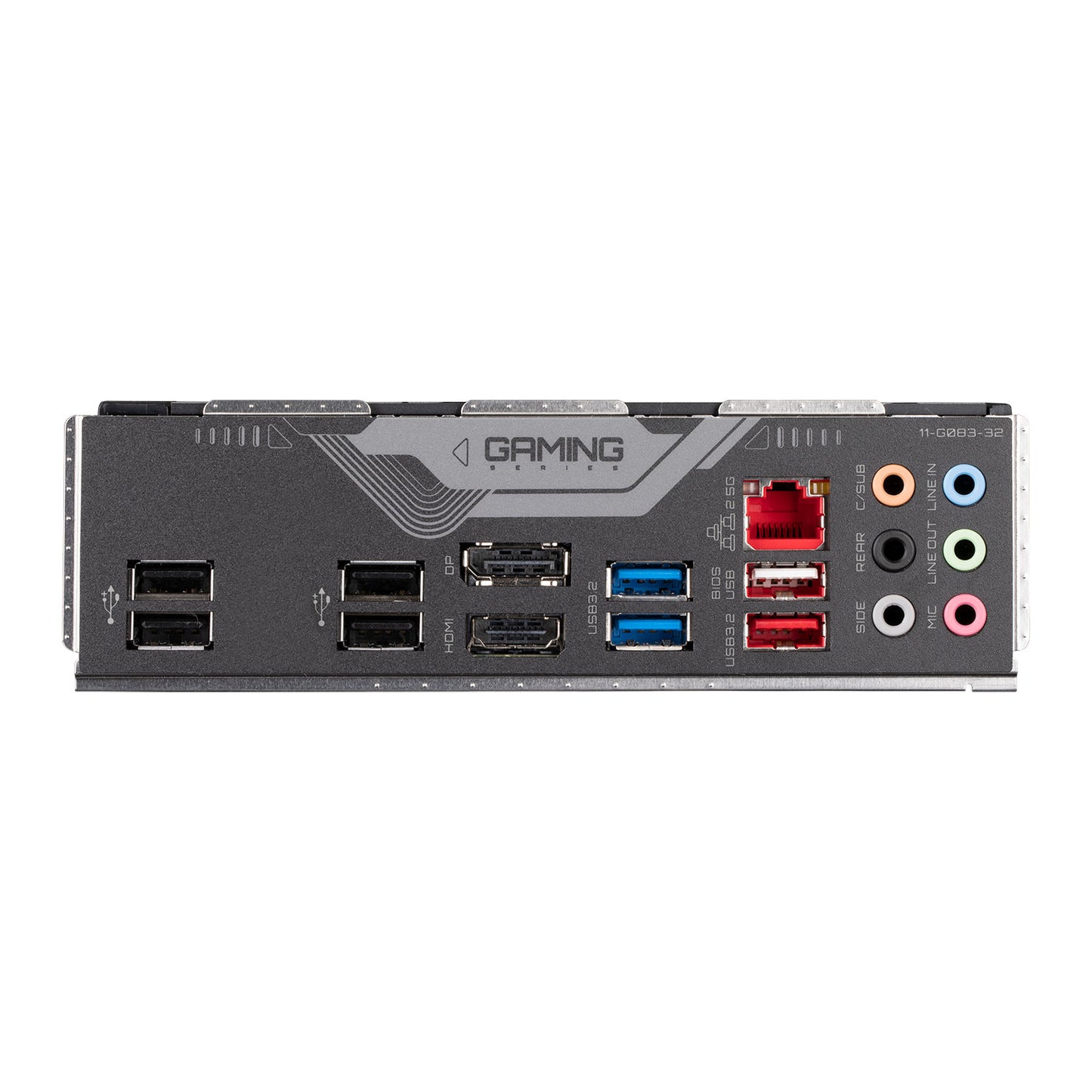

| Ports | 1x USB 3.2 Gen 2 Type-A port (red) |
| 2x USB 3.2 Gen 1 ports | |
| 5x USB 2.0/1.1 ports | |
| 1x DisplayPort | |
| 1x HDMI port | |
| 1x RJ-45 port | |
| 6x audio jacks | |
| Buttons | 1x Q-Flash Plus button |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 1x CPU fan/water cooling pump header | |
| 3x system fan headers | |
| 1x system fan/water cooling pump header | |
| 2x addressable LED strip headers | |
| 2x RGB LED strip headers | |
| 3x M.2 Socket 3 connectors | |
| 4x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x S/PDIF Out header | |
| 1x USB Type-C header, with USB 3.2 Gen 2 support | |
| 1x USB 3.2 Gen 1 header | |
| 2x USB 2.0/1.1 headers | |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1x serial port header | |
| 1x Q-Flash Plus button | |
| 1x reset button | |
| 1x reset jumper | |
| 1x Clear CMOS jumper | |
| I/O Controller | iTE I/O Controller Chip |
| LED Displays | N/A |
| BIOS | 1x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor, 30.5cm x 24.4cm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
