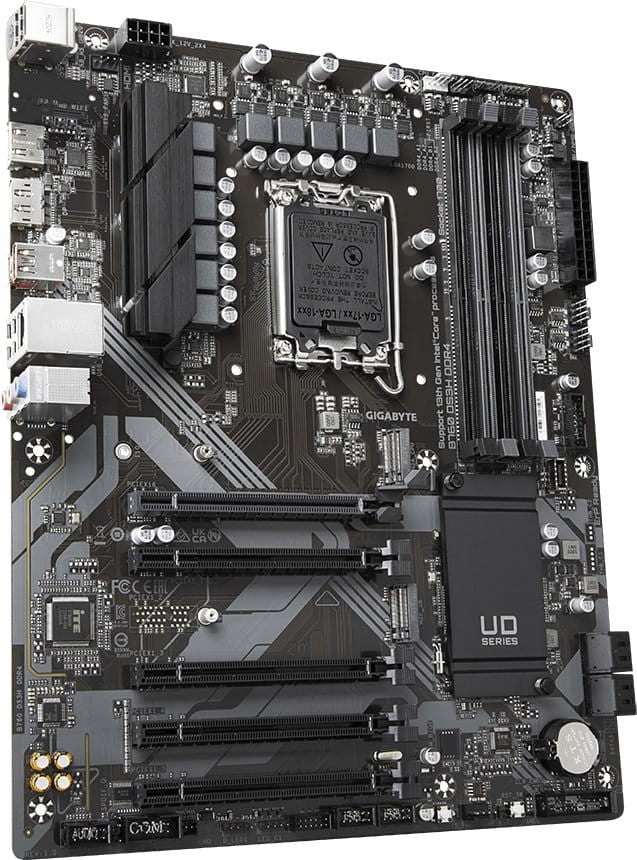

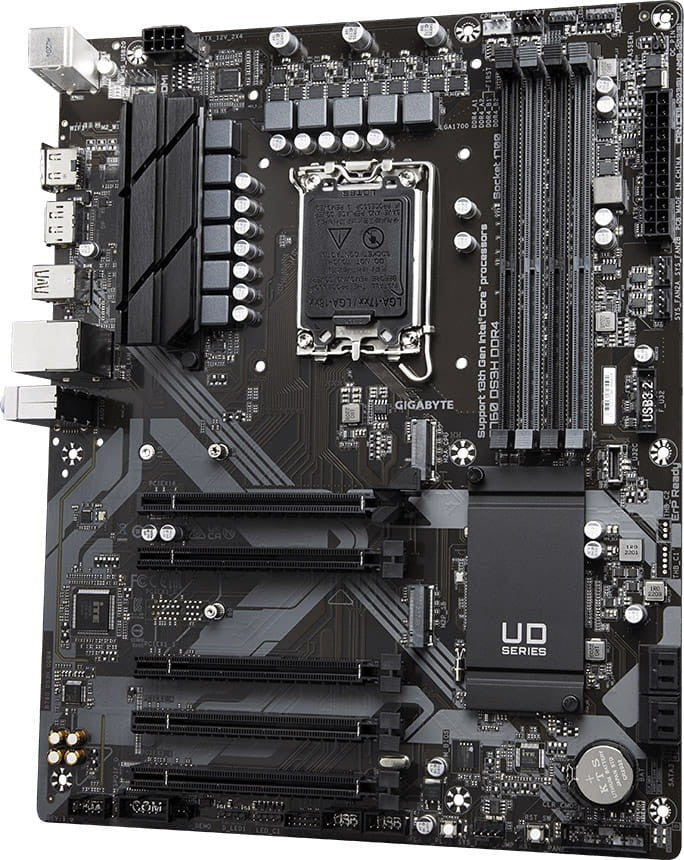

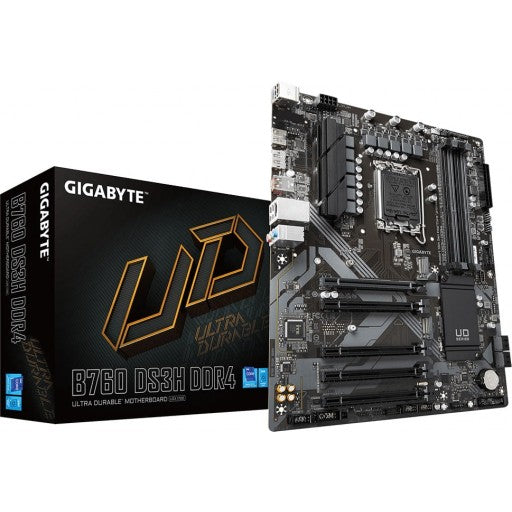

Gigabyte B760 DS3H DDR4 Intel B760 Raptor Lake LGA 1700 ATX Desktop Motherboard
Gigabyte B760 DS3H DDR4 Intel B760 Raptor Lake LGA 1700 ATX Desktop Motherboard
Regular price
R 3,299.00
Regular price
Sale price
R 3,299.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | B760 DS3H DDR4 |
| Model | GA-B760-DS3H-DDR4 |
| CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors* |
| L3 cache varies with CPU | |
| Chipset | Intel B760 Express Chipset |
| Memory | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules |
| 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
| 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| * Support for HDMI 2.0 version and HDCP 2.3. | |
| 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz | |
| * Support for DisplayPort 1.2 version and HDCP 2.3 | |
| (Graphics specifications may vary depending on CPU support.) | |
| Audio | Realtek Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Support for S/PDIF Out | |
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Expansion Slots | CPU: |
| 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) | |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 | |
| (PCIEX1_1, PCIEX1_3~PCIEX1_5) | |
| Storage Interface | CPU: |
| 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
| Chipset: | |
| 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) | |
| 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| USB | Chipset: |
| 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support | |
| 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header | |
| 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
| 2 x USB 3.2 Gen 1 ports available through the internal USB header | |
| 4 x USB 2.0/1.1 ports on the back panel | |
| Chipset 2 USB 2.0 Hubs: | |
| 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Internal I/O Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 1x CPU fan/water cooling pump header | |
| 3x system fan headers | |
| 1x system fan/water cooling pump header | |
| 2x addressable LED strip headers | |
| 2x RGB LED strip headers | |
| 2x M.2 Socket 3 connectors | |
| 4x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x S/PDIF Out header | |
| 1x USB Type-C header, with USB 3.2 Gen 1 support | |
| 1x USB 3.2 Gen 1 header | |
| 2x USB 2.0/1.1 headers | |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1x serial port header | |
| 1x Q-Flash Plus button | |
| 1x reset button | |
| 1x reset jumper | |
| 1x Clear CMOS jumper | |

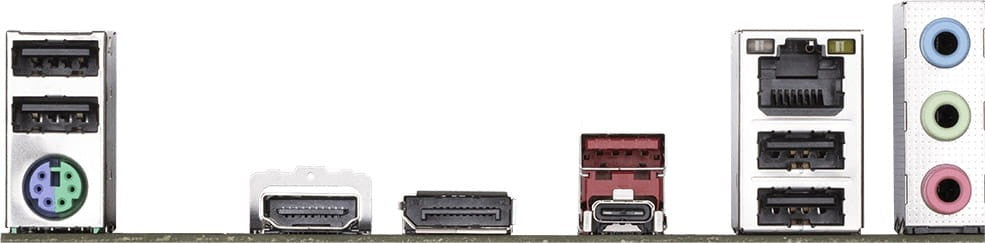

| Back Panel Connectors | 1x PS/2 keyboard/mouse port |
| 1x USB Type-C port, with USB 3.2 Gen 2x2 support | |
| 1x USB 3.2 Gen 2 Type-A port (red) | |
| 4x USB 2.0/1.1 ports | |
| 1x HDMI port | |
| 1x DisplayPort | |
| 1x RJ-45 port | |
| 3x audio jacks | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| BIOS | 1 x 128 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor |
| 30.5cm x 24.4cm | |
| Warranty Information | |
| Warranty | 3 Year Warrant |
