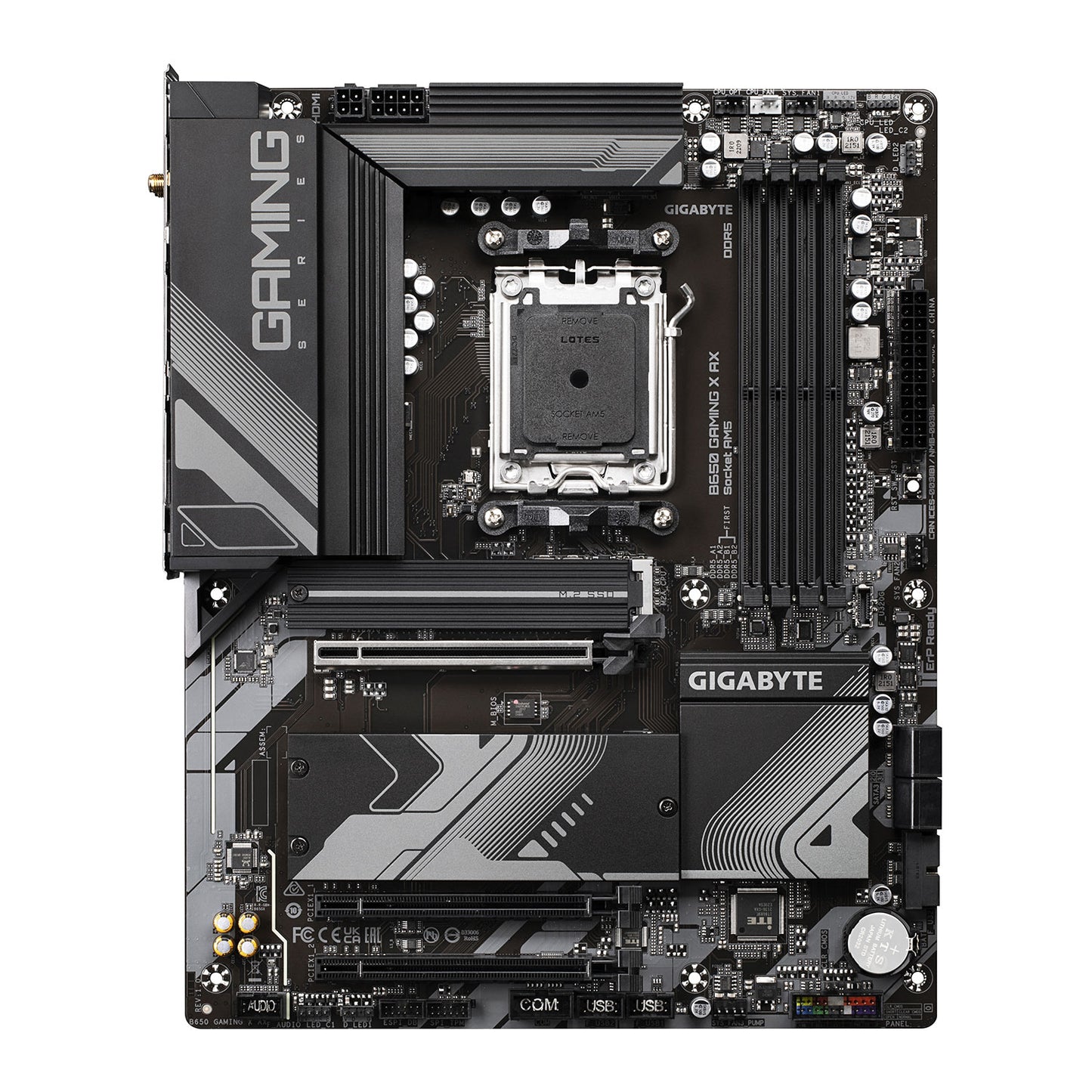

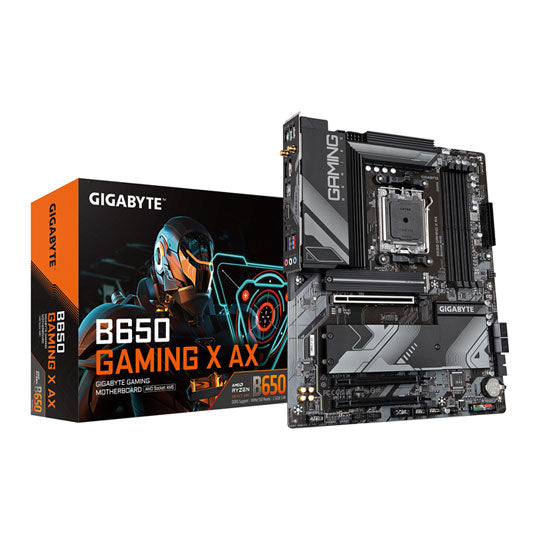

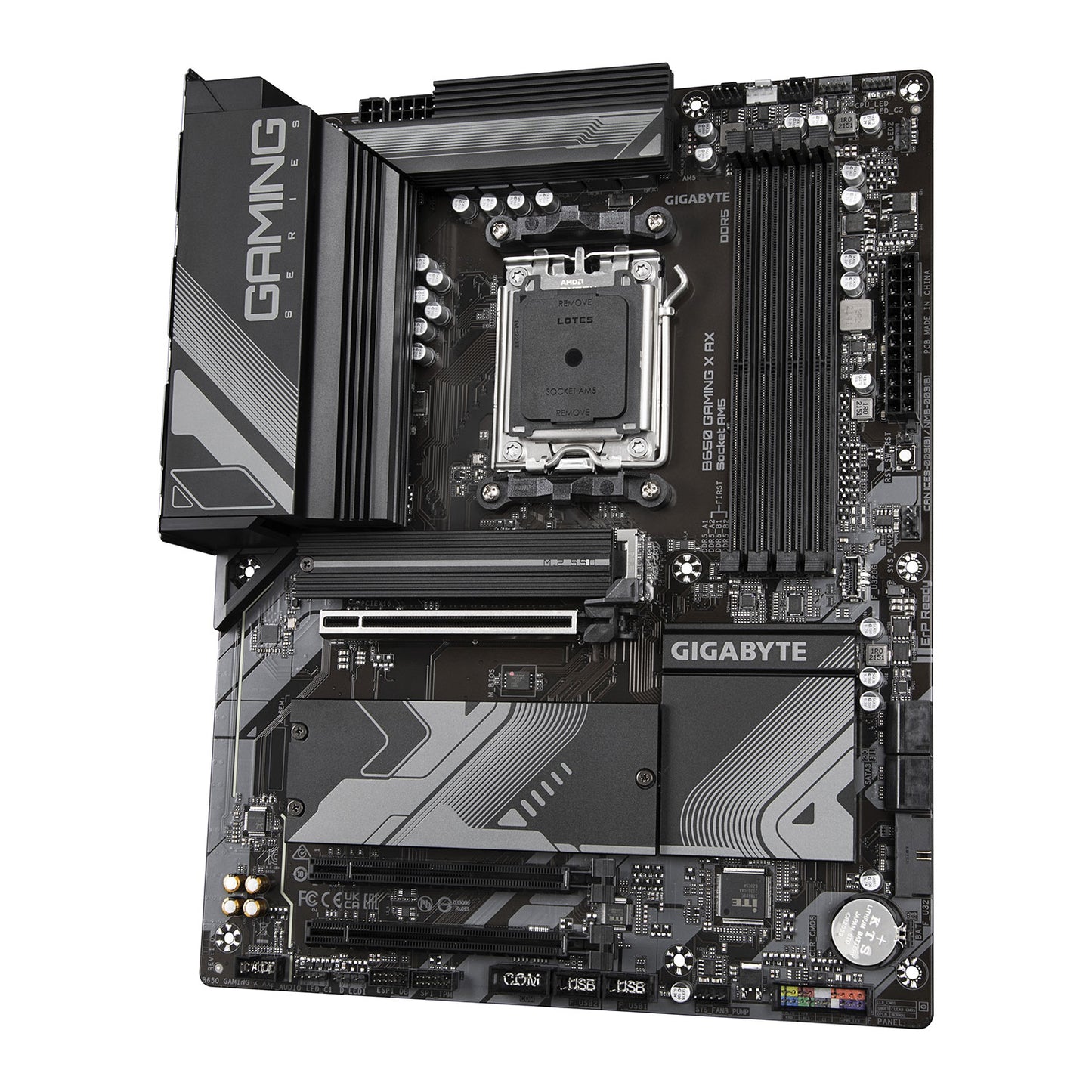

Gigabyte B650 GAMING X WiFi Ryzen Socket AM5 ATX Desktop Motherboard
Gigabyte B650 GAMING X WiFi Ryzen Socket AM5 ATX Desktop Motherboard
Regular price
R 5,299.00
Regular price
Sale price
R 5,299.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | GAMING X |
| Model | B650 GAMING X AX (GA-B650-GAMING-X-AX) Rev 1.0 / 1.1 |
| CPU Support | Supports Ryzen 7000-Series Processors |
| Chipset | AMD B650 Chipset |
| Memory Support | |
| AMD B650 Chipset | Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules |
| 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | |
| Video | |
| DisplayPort | 1x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz, Support for DisplayPort 1.4 version and HDR. |
| HDMI | 1x HDMI 2.1 TMDS port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version and HDCP 2.3. |
| Integrated graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Physical, x16 Electrical Slot |
| AMD B650 Chipset | 2x PCIe 3.0 x16 Phyical, x16 Electrical Slots |
| Storage | |
| CPU Direct | 2x M.2 Slots (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU, M2B_CPU) |
| AMD B650 Chipset | 1x M.2 Slot (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) |
| 4x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| Networking | |
| LAN | Realtek 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| WiFi | AMD RZ616 (MT7922A22M) WiFi 6E 2x2 MIMO Tri-Band Adapter for PCB Rev 1.0 |
| Intel AX210 WiFi 6E 2x2 MIMO Tri-Band Adapter for PCB Rev 1.1 | |
| Bluetooth | Bluetooth 5.2 |
| Audio | |
| Codec | Realtek High-Definition Audio Codec |
| Support for 7.1 Surround with front-panel jack retasking | |

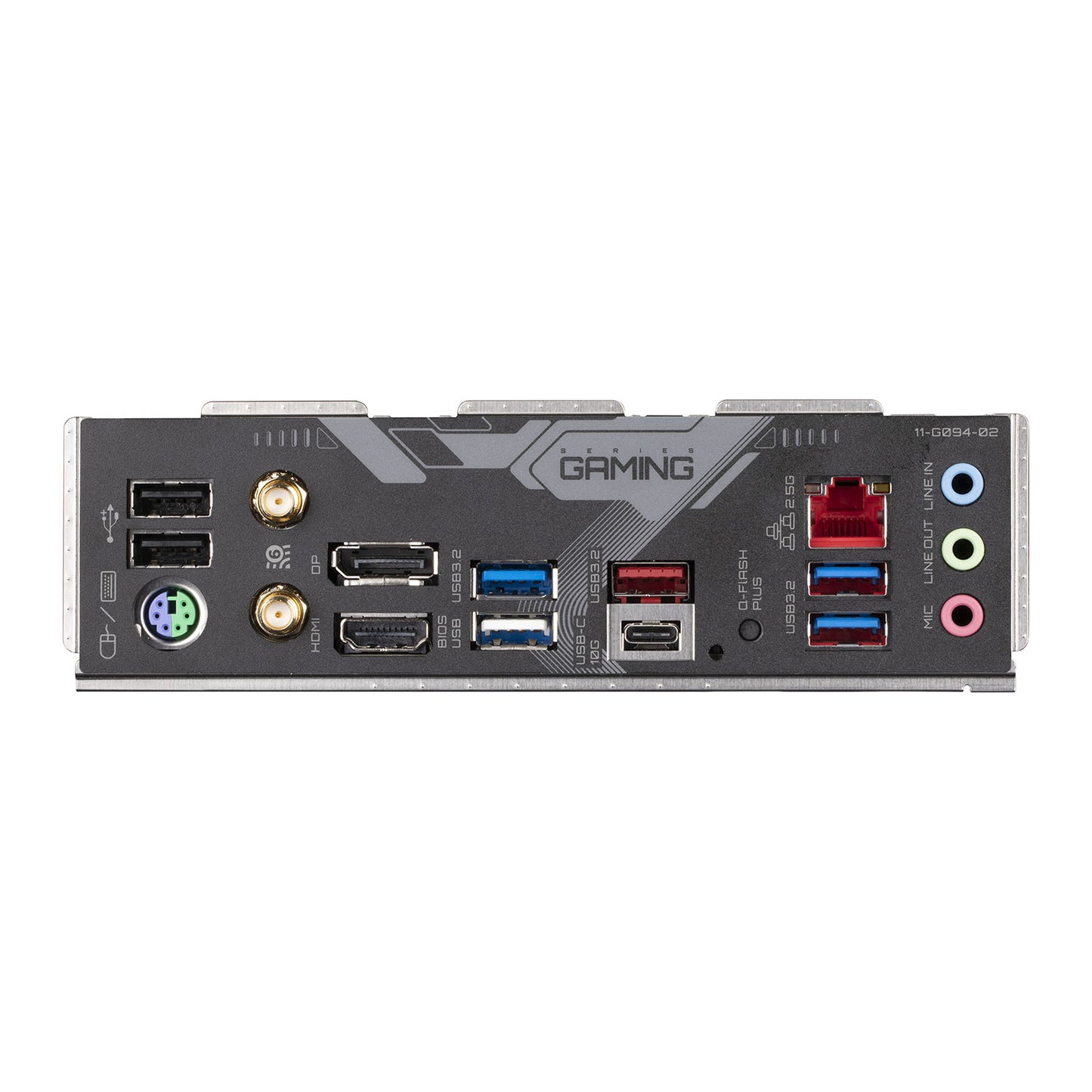

| Connectivity | |
| Ports | 2x SMA antenna connectors (2T2R) |
| 1x Q-Flash Plus button | |
| 1x DisplayPort | |
| 1x HDMI port | |
| 1x USB Type-C port, with USB 3.2 Gen 2 support | |
| 1x USB 3.2 Gen 2 Type-A port (red) | |
| 3x USB 3.2 Gen 1 Type-A ports | |
| 3x USB 2.0/1.1 Type-A ports | |
| 1x RJ-45 port | |
| 3x audio jacks | |
| Buttons | 1x Q-Flash Plus button |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x 4-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 1x water cooling CPU fan header | |
| 2x system fan headers | |
| 1x system fan/water cooling pump header | |
| 2x addressable LED strip headers | |
| 2x RGB LED strip headers | |
| 1x CPU cooler LED strip/RGB LED strip header | |
| 3x M.2 Socket 3 connectors | |
| 4x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x USB Type-C header, with USB 3.2 Gen 2x2 support | |
| 1x USB 3.2 Gen 1 header | |
| 2x USB 2.0/1.1 headers | |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1x serial port header | |
| 1x reset button | |
| 1x reset jumper | |
| 1x Clear CMOS jumper | |
| I/O Controller | iTE I/O Controller Chip |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor, 305 x 244 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Boxed Accessories | User's Manual |
| One Antenna Pair | |
| 2x SATA cables | |
| 1x M.2 screw kit | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
