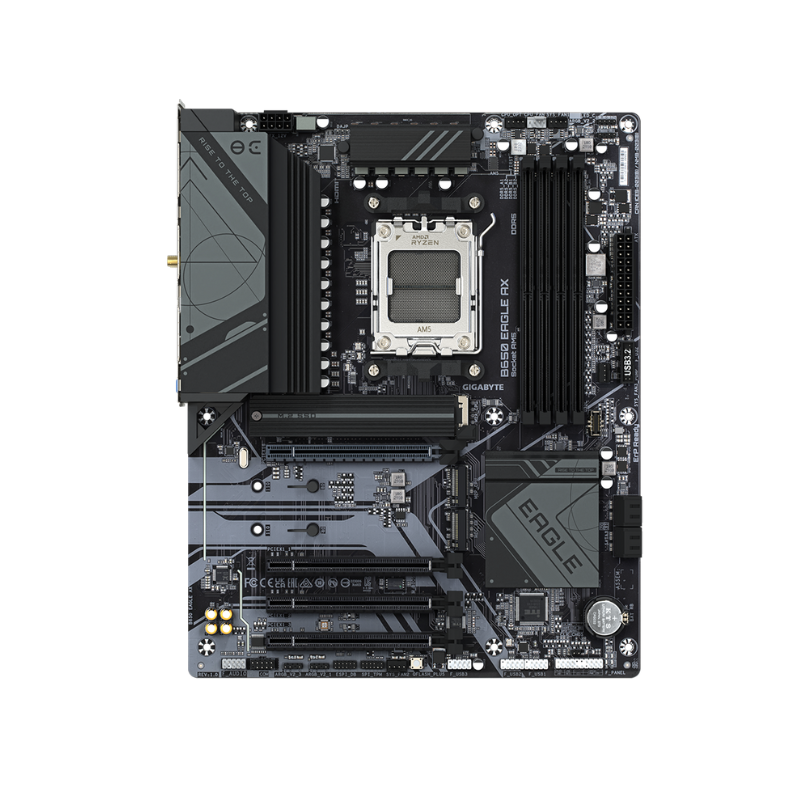

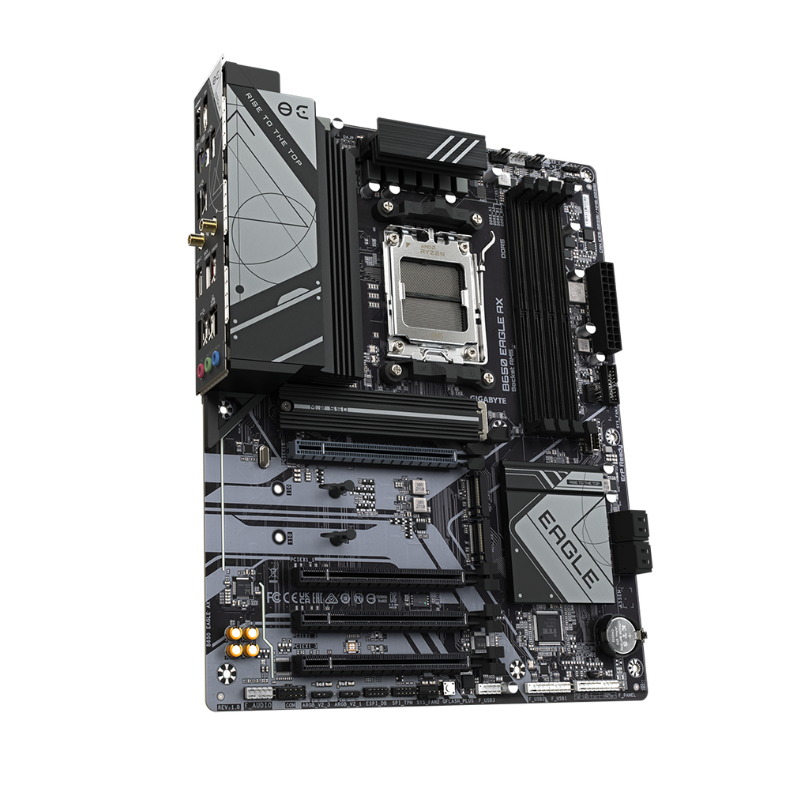

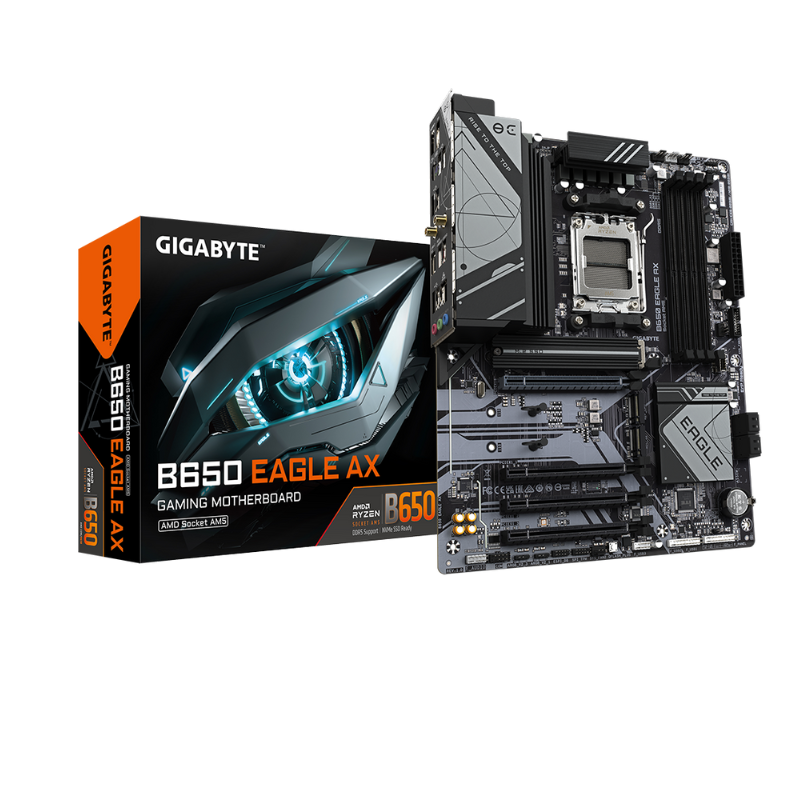

Gigabyte B650 EAGLE AX WiFi AMD B650 Ryzen Socket AM5 ATX Desktop Motherboard
Gigabyte B650 EAGLE AX WiFi AMD B650 Ryzen Socket AM5 ATX Desktop Motherboard
Regular price
R 4,099.00
Regular price
R 4,489.00
Sale price
R 4,099.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | EAGLE Series |
| Model | B650 EAGLE AX (B650-EAGLE-AX) |
| CPU Support | Supports Ryzen 7000 & 8000 Series Processors |
| Chipset | AMD B650 Chipset |
| Memory Support | |
| AMD B650 Chipset | Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules |
| 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | |
| Video | |
| DisplayPort | 1x DisplayPort 1.4 Port, supporting a maximum resolution of 3840x2160@144 Hz, supports HDCP, HDR, FreeSync |
| HDMI | 1x HDMI 2.1 Port, supporting a maximum resolution of 4096x2160@60 Hz, supports HDCP, HDR, FreeSync |
| Integrated graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Electrical Slots (x16 Physical)(PCIEX16) |
| AMD B650 Chipset | 3x PCIe 3.0 x1 Electrical Slots (x16 Physical) |
| Slot Configurations | PCIEX16 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode |
| PCIEX16 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode | |
| The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen 8000 Series-Phoenix 2 processor is used. | |
| Storage | |
| CPU Direct | 1x M.2 25110 / 2580 PCIe 5.0 x4 NVMe SSD Slot (M2A_CPU) |
| 1x M.2 22110 / 2280 PCIe 4.0 x2 NVMe SSD Slot (M2P_CPU) | |
| AMD B650 Chipset | 1x M.2 22110 / 2280 PCIe 4.0 x4 NVMe SSD Slot (M2C_SB) |
| 4x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| Storage Configurations | M2A_CPU with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| M2A_CPU with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs | |
| M2P_CPU with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x2 SSDs | |
| M2P_CPU with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x2 SSDs | |
| Networking | |
| LAN | Realtek Gigabit LAN 10/100/1000Mbps |
| WiFi | Realtek RTL8852CE WiFi 6E 2x2 MIMO Tri-Band Adapter |
| WiFi 6E 6Ghz support requires Windows 11 | |
| Bluetooth | Bluetooth 5.3 |
| Bluetooth 5.3 support requires Windows 11 | |
| Audio | |
| Codec | Realtek High-Definition Audio Codec |
| Support for 7.1 Surround with front-panel jack retasking | |
| Connectivity | |

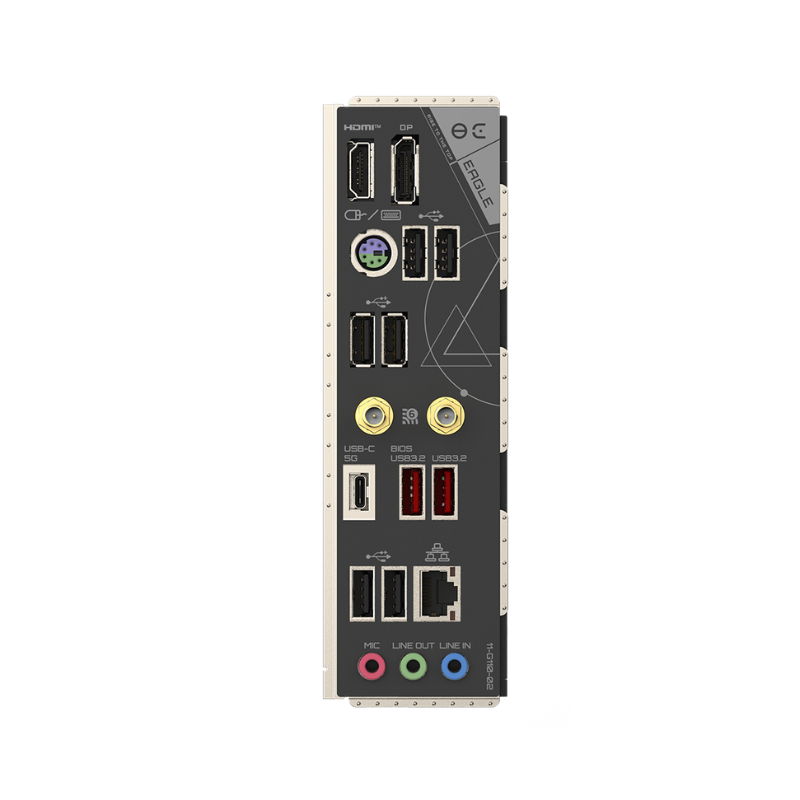

| Ports | 1x USB 5Gbps Type-C Port |
| 2x USB 10Gbps Type-A Port | |
| 6x USB 2.0 Type-A Ports | |
| 1x DisplayPort 1.4 Port | |
| 1x HDMI 2.1 Port | |
| 1x PS/2 Combo Port (Keyboard/Mouse) | |
| 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone) | |
| 2x SMA Connectors | |
| 1x Gigabit Ethernet RJ-45 LAN Port | |
| Buttons | 1x Q-Flash Plus button |
| General | |
| Internal Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 2 x system fan headers | |
| 1 x system fan/water cooling pump header | |
| 3 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 3 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C header, with USB 3.2 Gen 1 support | |
| 1 x USB 3.2 Gen 1 header | |
| 3 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ | |
| GC-TPM2.0 SPI V2 module only) | |
| 1 x Q-Flash Plus button | |
| 1 x serial port header j | |
| 1 x Clear CMOS jumper | |
| I/O Controller | iTE I/O Controller Chip |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor, 305 x 244 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Boxed Accessories | User's Manual |
| 1x Pair moving antennas | |
| 1x I/O Shield | |
| 2x SATA cables | |
| 1x M.2 screw | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
