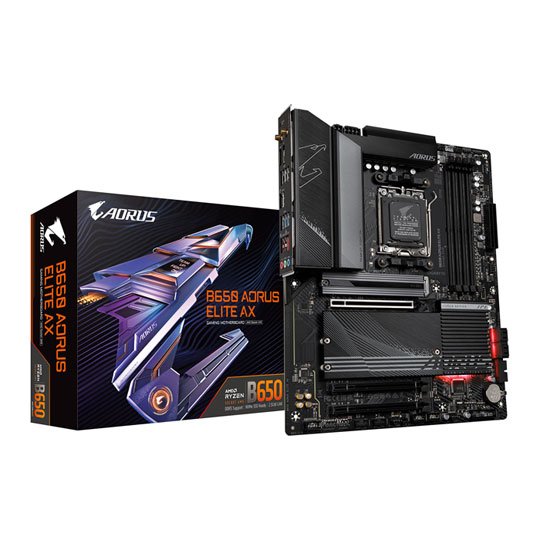

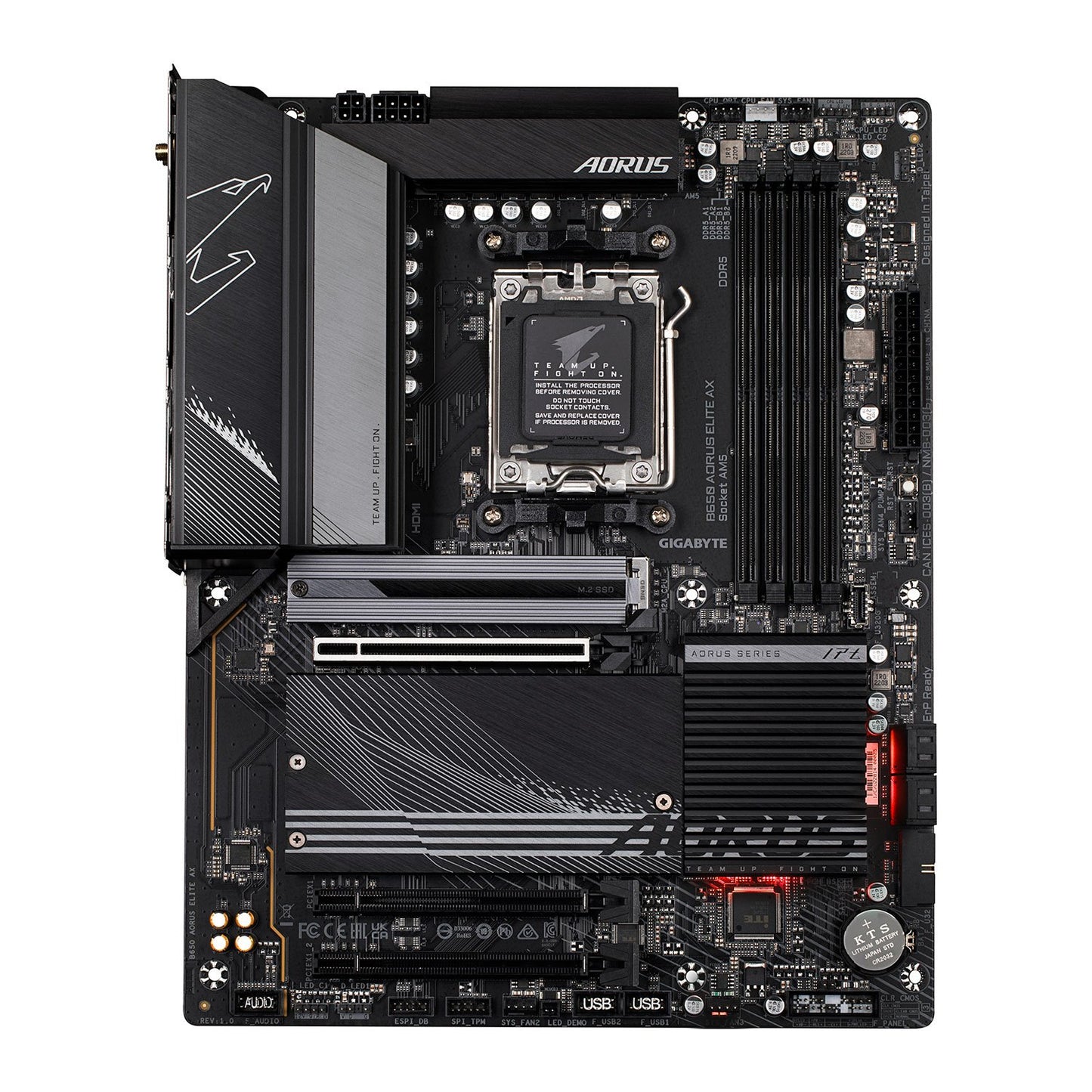

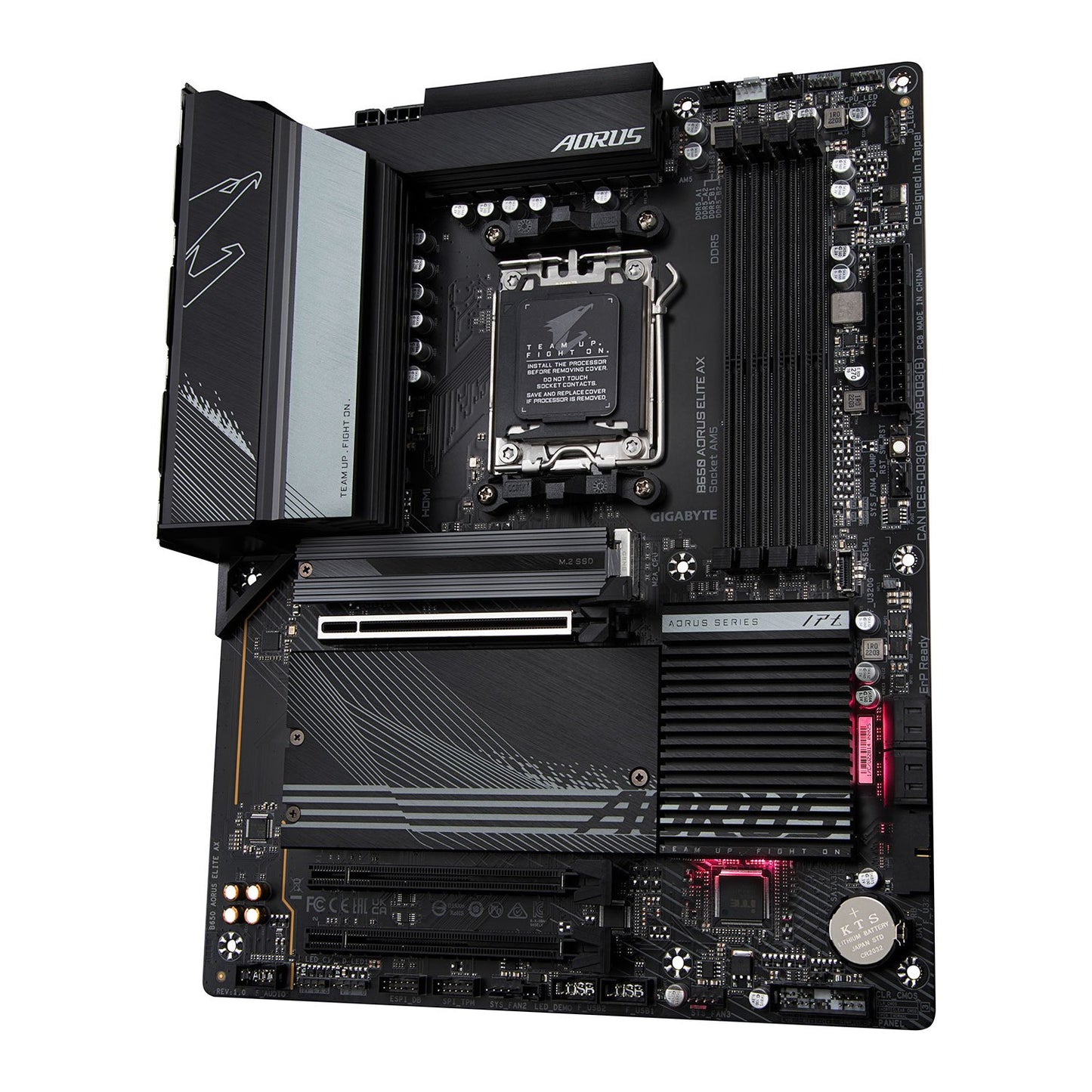

Gigabyte B650 AORUS ELITE AX AMD B650 Ryzen Socket AM5 ATX Desktop Motherboard
Gigabyte B650 AORUS ELITE AX AMD B650 Ryzen Socket AM5 ATX Desktop Motherboard
Regular price
R 4,969.00
Regular price
Sale price
R 4,969.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | Aorus Gaming Motherboards |
| Model | B650 AORUS ELITE |
| CPU | 1. AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors |
| (Please refer "CPU Support List" for more information.) | |
| Chipset | 1. AMD B650 |
| Memory | 1. Support for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHz memory modules |
| 2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| 3. Dual channel memory architecture | |
| 4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| 5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory module | |
| (Please refer "Memory Support List" for more information.) | |
| Onboard Graphics | Integrated Graphics Processor: |
| 1. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz | |
| * Support for DisplayPort 1.4 version and HDR. | |
| 2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| * Support for HDMI 2.1 version and HDCP 2.3. | |
| ** Support native HDMI 2.1 TMDS compatible ports. | |
| (Graphics specifications may vary depending on CPU support.) | |
| Audio | 1. Realtek Audio CODEC |
| 2. High Definition Audio | |
| 3. 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| LAN | 1. Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | CPU: |
| 1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) | |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| 1. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) | |
| Storage interface | CPU: |
| 1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) | |
| * Actual support may vary by CPU. | |
| 2. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) | |
| Chipset: | |
| 1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) | |
| 2. 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| USB | CPU: |
| 1. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support | |
| 2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| CPU USB 2.0 Hub: | |
| 1. 4 x USB 2.0/1.1 ports on the back panel | |
| Chipset: | |
| 1. 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header | |
| 2. 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) | |
| 3. 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Chipset USB 3.2 Gen 1 Hub: | |
| 1. 4 x USB 3.2 Gen 1 ports on the back panel | |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector | |
| 3. 1 x 4-pin ATX 12V power connector | |
| 4. 1 x CPU fan header | |
| 5. 1 x water cooling CPU fan header | |
| 6. 3 x system fan headers | |
| 7. 1 x system fan/water cooling pump header | |
| 8. 2 x addressable LED strip headers | |
| 9. 2 x RGB LED strip headers | |
| 10. 1 x CPU cooler LED strip/RGB LED strip header | |
| 11. 3 x M.2 Socket 3 connectors | |
| 12. 4 x SATA 6Gb/s connectors | |
| 13. 1 x front panel header | |
| 14. 1 x front panel audio header | |
| 15. 1 x USB Type-C header, with USB 3.2 Gen 2x2 support | |
| 16. 1 x USB 3.2 Gen 1 header | |
| 17. 2 x USB 2.0/1.1 headers | |
| 18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 19. 1 x reset button | |
| 20. 1 x reset jumper | |
| 21. 1 x Clear CMOS jumper | |

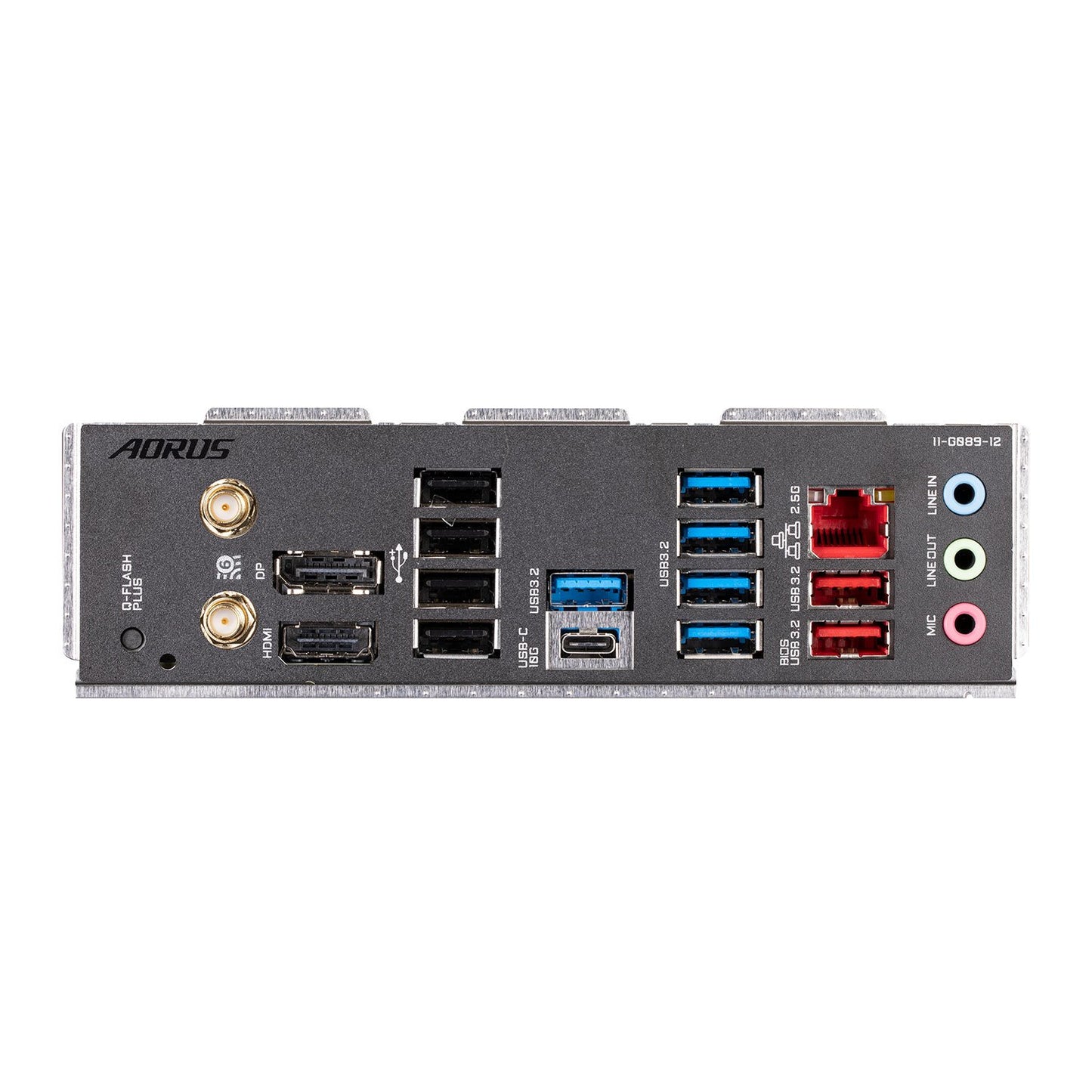

| Back Panel Connectors | 1. 1 x Q-Flash Plus button |
| 2. 1 x DisplayPort | |
| 3. 1 x HDMI port | |
| 4. 1 x USB Type-C port, with USB 3.2 Gen 2 support | |
| 5. 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 6. 5 x USB 3.2 Gen 1 ports | |
| 7. 4 x USB 2.0/1.1 ports | |
| 8. 1 x RJ-45 port | |
| 9. 3x Audio Jacks | |
| I/O Controller | 1. iTE I/O Controller Chip |
| H/W Monitoring | 1. Voltage detection |
| 2. Temperature detection | |
| 3. Fan speed detection | |
| 4. Water cooling flow rate detection | |
| 5. Fan fail warning | |
| 6. Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | 1. Support for GIGABYTE Control Center (GCC) |
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| 2. Support for Q-Flash | |
| 3. Support for Q-Flash Plus | |
| Bundled Software | 1. Norton Internet Security (OEM version) |
| 2. LAN bandwidth management software | |
| Operating System | 1. Support for Windows 11 64-bit |
| 2. Support for Windows 10 64-bit | |
| Form Factor | 1. ATX Form Factor; 30.5cm x 24.4cm |
| Warranty Information | |
| Warranty | 3 Year Warranty |
