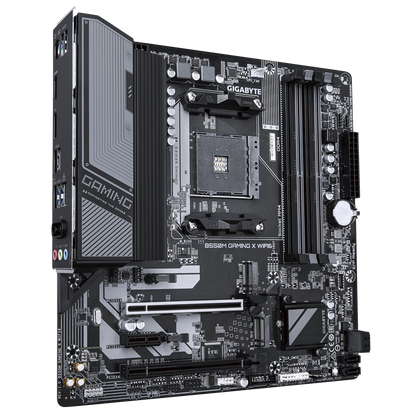

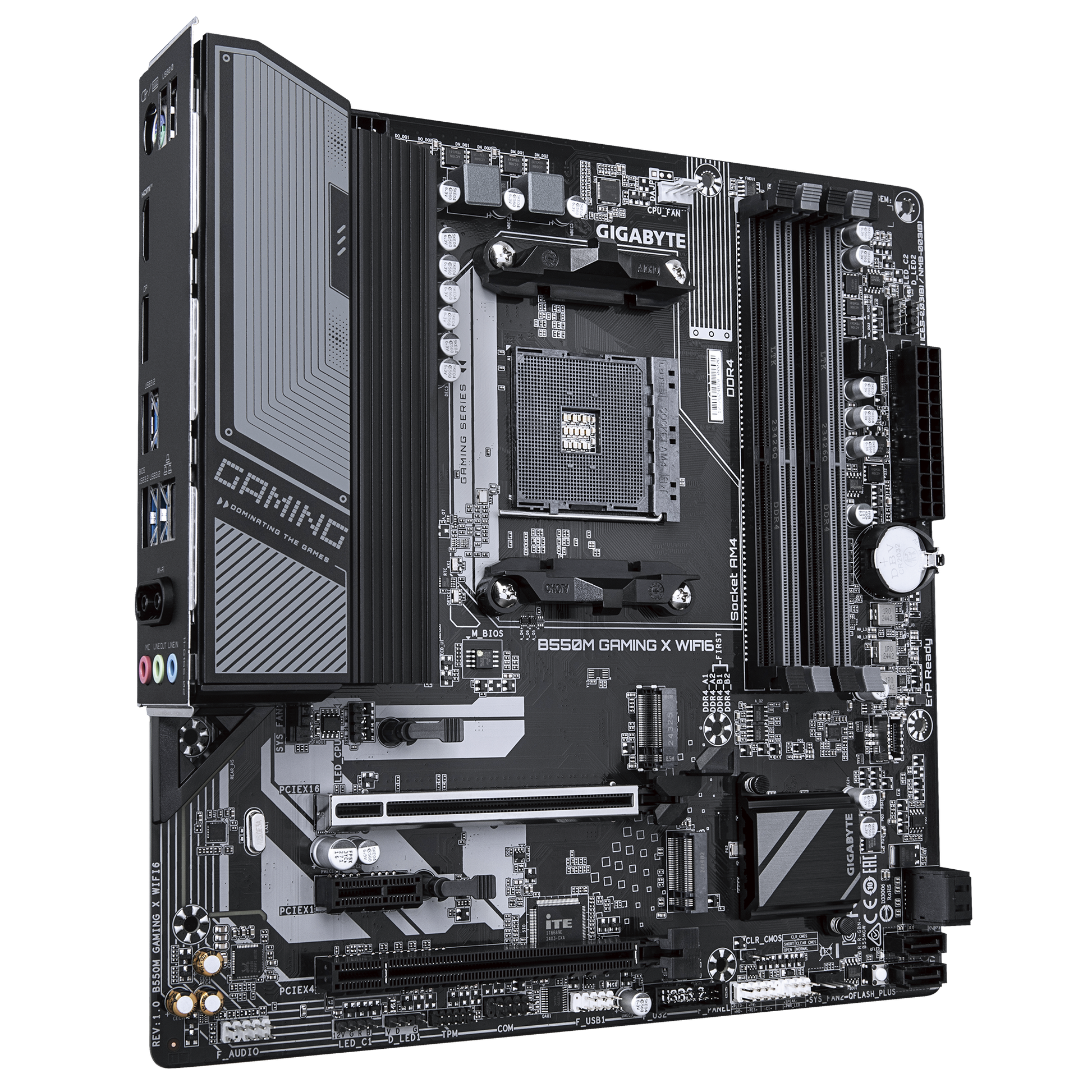

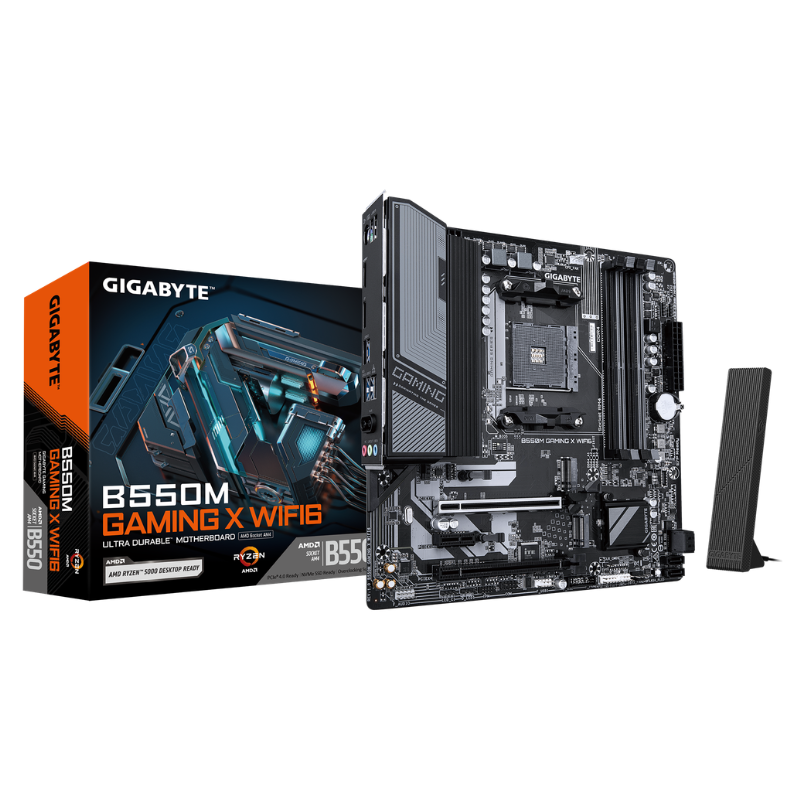

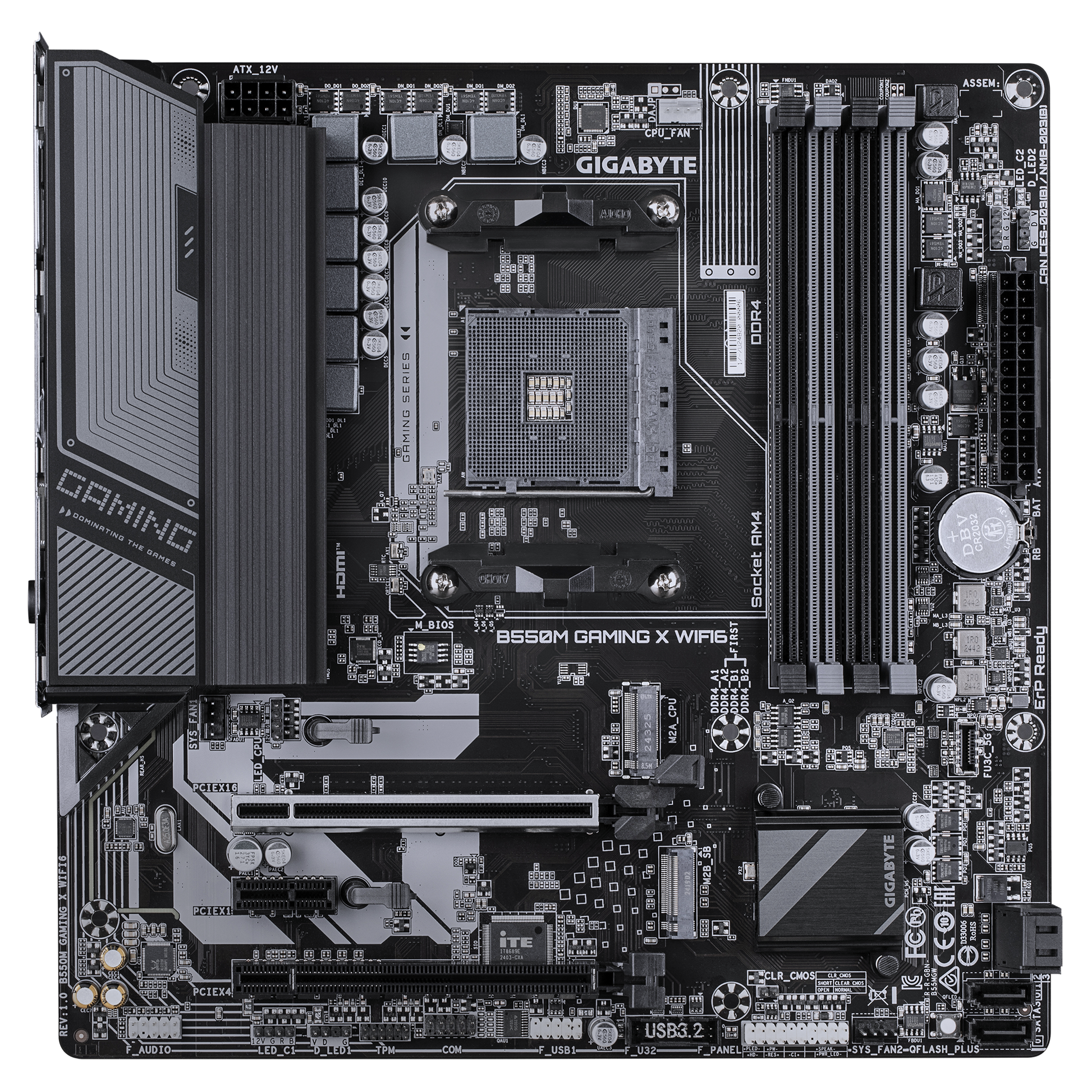

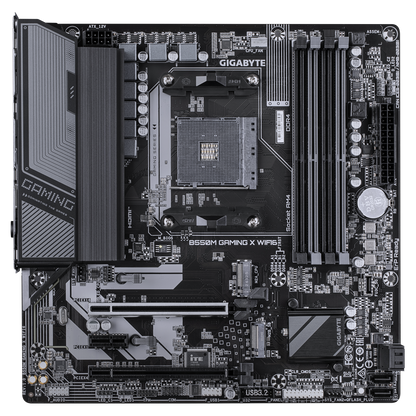

Gigabyte B550M GAMING X WIFI6 AMD B550 Ryzen Socket AM4 Micro-ATX Desktop Motherboard
Gigabyte B550M GAMING X WIFI6 AMD B550 Ryzen Socket AM4 Micro-ATX Desktop Motherboard
Regular price
R 3,299.00
Regular price
Sale price
R 3,299.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | GAMING X Series |
| Model | B550M GAMING X WIFI6 |
| CPU Support | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors |
| Chipset | AMD B550 Chipset |
| Memory Support | |
| AMD B550 Chipset | 4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory |
| Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Video | |
| DisplayPort | 1x HDMI 2.1 (TMDS) port, supports a maximum resolution of 4096x2160 @ 60Hz, Support HDCP 2.3 & HDR |
| HDMI | 1x DisplayPort 1.4 Port, supports a maximum resolution of 5120x2880 @ 60Hz, Support HDCP 2.3 & HDR |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Electrical, x16 Physical Slot |
| AMD B550 Chipset | 1x PCIe 3.0 x4 Electrical, x16 Physical slot |
| 1x PCIe 3.0 x1 Electrical, x1 Physical slot | |
| Storage | |
| CPU Direct | 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot (PCIe Gen 3 with Ryzen 5000G / 4000G Series) |
| AMD B550 Chipset | 1x M.2 2280 PCIe 3.0 x2 NVMe SSD Slot |
| 4x SATA 3.0 6Gbps connectors | |
| Support for SATA RAID 0, RAID 1, and RAID 10 | |
| Networking | |
| LAN | Realtek Gigabit LAN 10/100/1000Mb/s |
| WiFi | Realte Wi-Fi 6 RTL8851BE Dual-Band Adapter |
| Bluetooth | Bluetooth 5.3 |
| Audio | |
| Codec | Realtek ALC1220 High-Definition Audio Codec |
| Support for 7.1 Surround with front-panel jack retasking | |

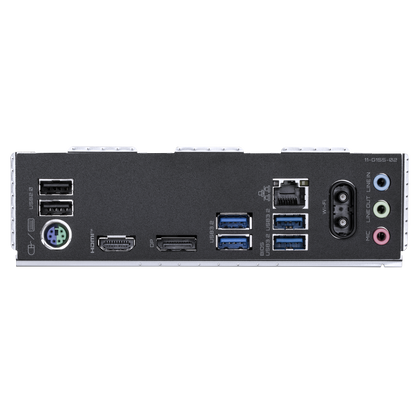

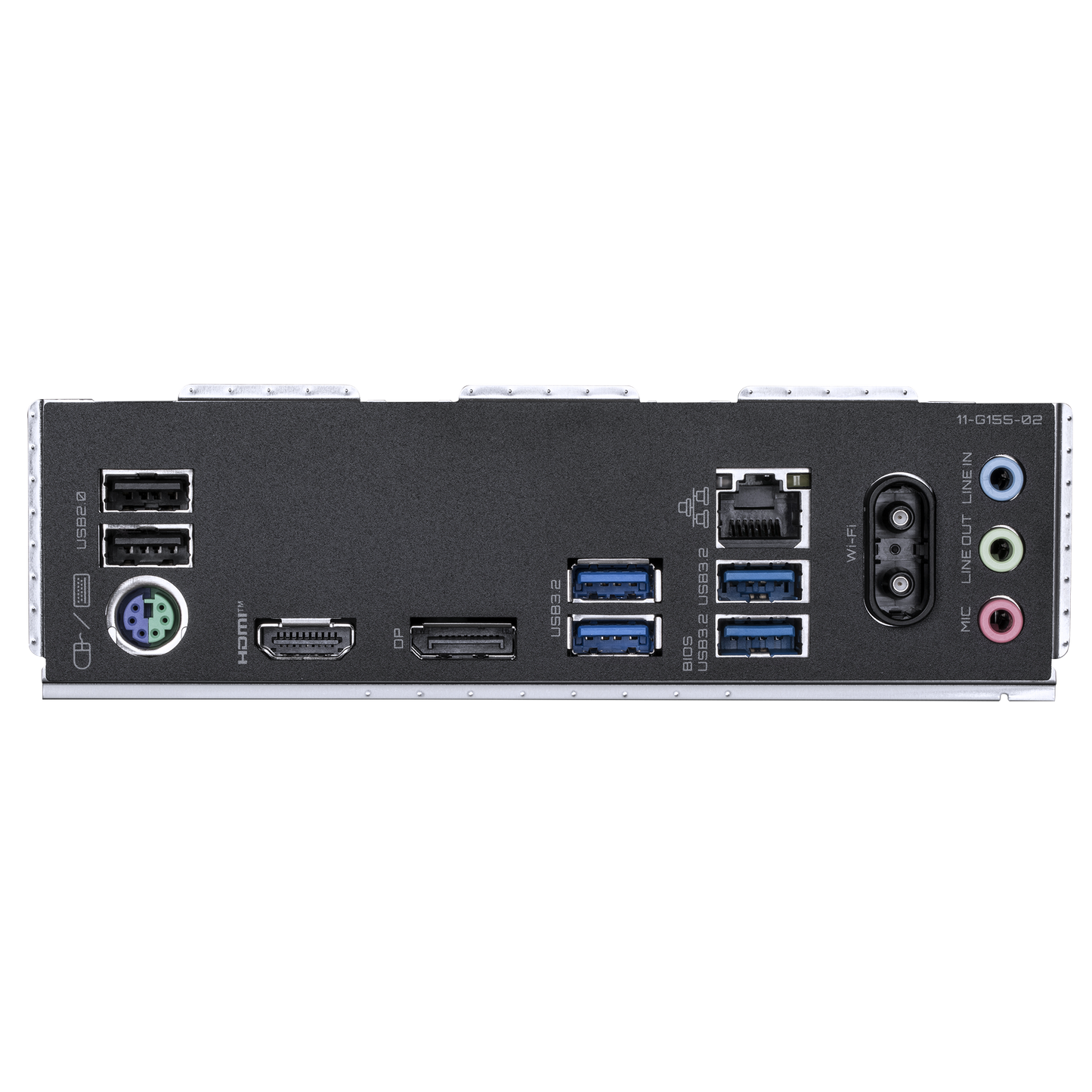

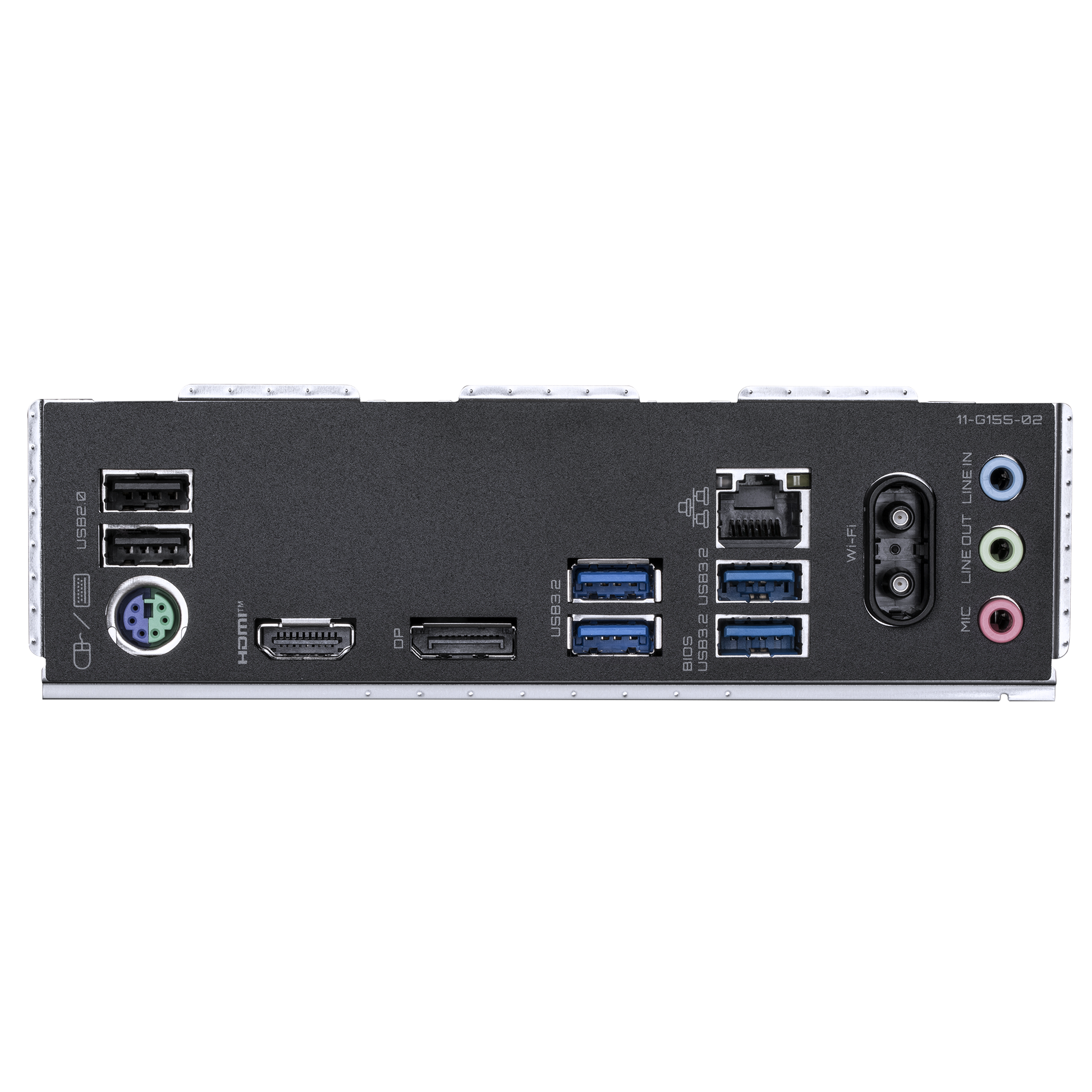

| Connectivity | |
| Ports | 4x USB 5Gbps Type-A Ports |
| 2x USB 2.0 Type-A Ports | |
| 1x HDMI 2.1 (TMDS) Port | |
| 1x DisplayPort 1.4 Port | |
| 3x 3.5mm Audio Jacks | |
| 2x Antenna Jacks | |
| 1x PS/2 Combo Port (Keyboard, Mouse) | |
| 1x Gigabit Ethernet RJ-45 LAN Port | |
| Buttons | 1x Q-Flash Plus Button |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 2x system fan headers | |
| 2x addressable LED strip headers | |
| 2x RGB LED strip headers | |
| 1x CPU cooler LED strip/RGB LED strip header | |
| 2x M.2 Socket 3 connectors | |
| 4x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x USB Type-C header, with USB 3.2 Gen 1 support | |
| 1x USB 3.2 Gen 1 header | |
| 1x USB 2.0/1.1 header | |
| 1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| 1x serial port header | |
| 1x Clear CMOS jumper | |
| I/O Controller | iTE I/O Controller Chip |
| LED Displays | N/A |
| BIOS | 1x 128 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro-ATX Form Factor, 244 x 244 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit (Recommended) | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
