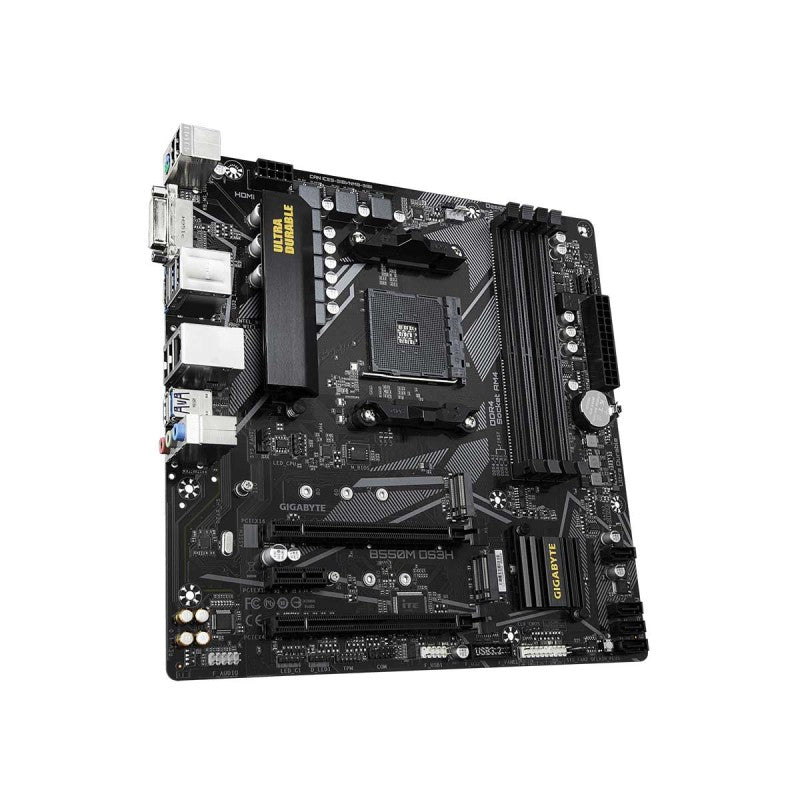

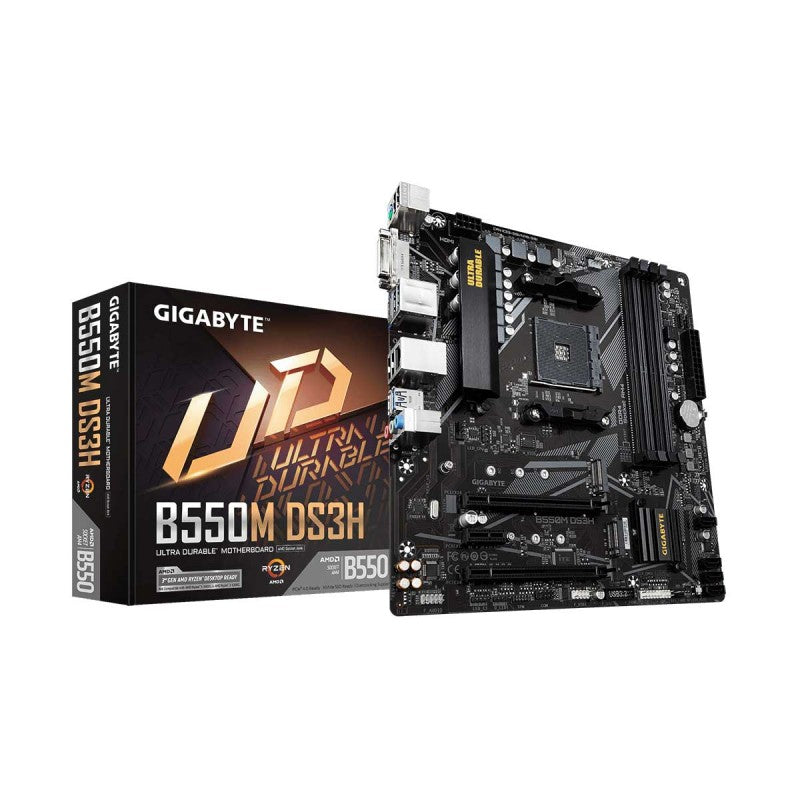

Gigabyte B550M DS3H AMD B550 Socket AM4 Micro-ATX Desktop Motherboard
Gigabyte B550M DS3H AMD B550 Socket AM4 Micro-ATX Desktop Motherboard
Regular price
R 2,649.00
Regular price
Sale price
R 2,649.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | Ultra Durable |
| Model | B550M DS3H (rev. 1.x) |
| CPU | AMD Socket AM4, Support for: AMD Socket AM4, Support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors |
| Chipset | AMD B550 |
| Memory | 4x DDR4 DIMM Sockets Supporting Up to 128 GB (32 GB Single DIMM Capacity) of System Memory |
| AMD Ryzen 5000 Series Processors/ 3rd Generation AMD Ryzen: | |
| Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules | |
| 3rd Gen AMD Ryzen with Radeon Graphics Processors: | |
| Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz Memory Modules | |
| Dual Channel Memory Architecture | |
| Support for ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules | |
| Support for Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules | |
| Support for Extreme Memory Profile (XMP) Memory Modules | |
| On-Board Graphics | Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics Processors: |
| 1x DVI-D Port, Supporting a Maximum Resolution of 1920x1200@60 Hz *1 | |
| 1x HDMI Port, Supporting a Maximum Resolution of 4096x2160@60 Hz *2 | |
| Maximum Shared Memory of 16 GB | |
| Audio | Realtek Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-Channel *3 | |
| LAN | Realtek GbE LAN Chip (1000 Mbit/100 Mbit) |
| Expansion Slots | 1x PCI Express x16 Slot (PCIEX16), Integrated in the CPU: |
| 3rd Generation AMD Ryzen Processors Support PCIe 4.0 x16 Mode | |
| 3rd Generation AMD Ryzen with Radeon Graphics Processors Support PCIe 3.0 x16 Mode *4 | |
| 1x PCI Express x16 Slot (PCIEX4), Integrated in the Chipset: | |
| Supporting PCIe 3.0 x4 Mode | |
| 1x PCI Express x1 Slot (PCIEX1), Integrated in the Chipset: | |
| Supporting PCIe 3.0 x1 Mode | |
| Storage Interface | 1x M.2 Connector (M2A_CPU), Integrated in the CPU, Supporting Socket 3, M Key, Type 2242/2260/2280/22110 SSDs: |
| 3rd Generation AMD Ryzen Processors Support SATA and PCIe 4.0 x4/x2 SSDs | |
| 3rd Generation AMD Ryzen with Radeon Graphics Processors Support SATA and PCIe 3.0 x4/x2 SSDs | |
| 1x M.2 Connector (M2B_SB), Integrated in the Chipset, Supporting Socket 3, M key, type 2242/2260/2280 SSDs: | |
| Supporting SATA and PCIe 3.0 x2 SSDs | |
| 4x SATA 6Gb/s Connectors, Integrated in the Chipset: | |
| Support for RAID 0, RAID 1, and RAID 10 | |
| USB | CPU: |
| 4x USB 3.2 Gen 1 Ports on the Back Panel | |
| Chipset: | |
| 2x USB 3.2 Gen 1 Ports Available Through the Internal USB Header | |
| 6x USB 2.0/1.1 Ports (4 Ports on the Back Panel, 2 Ports Available Through the Internal USB Header) | |
| Internal I/O Connectors | 1x 24-pin ATX Main Power Connector |
| 1x 8-pin ATX 12V Power Connector | |
| 1x CPU Fan Header *5 | |
| 2x System Fan Headers *5 | |
| 2x Addressable LED Strip Headers | |
| 2x RGB LED Strip Headers | |
| 1 x CPU Cooler LED Strip/RGB LED Strip Header | |
| 2x M.2 Socket 3 Connectors | |
| 4x SATA 6Gb/s Connectors | |
| 1x Front Panel Header | |
| 1x Front Panel Audio Header | |
| 1x USB 3.2 Gen 1 Header | |
| 1x USB 2.0/1.1 Header | |
| 1x Trusted Platform Module (TPM) Header (2x6 pin, for the GC-TPM2.0_S Module Only) | |
| 1x Serial Port Header | |
| 1x Clear CMOS Jumper | |
| 1x Q-Flash Plus Button | |

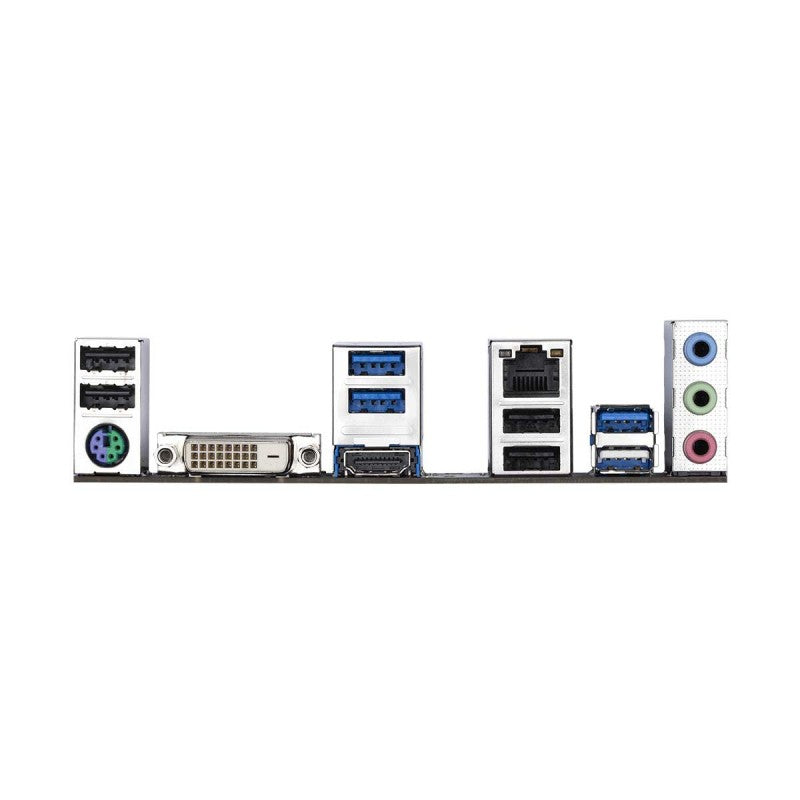

| Back Panel Connectors | 1x PS/2 Keyboard/Mouse Port |
| 1x DVI-D Port | |
| 1x HDMI Port | |
| 4x USB 3.2 Gen 1 Ports | |
| 4x USB 2.0/1.1 Ports | |
| 1x RJ-45 Port | |
| 3x Audio Jacks | |
| I/O Controller | iTE I/O Controller Chip |
| Hardware Monitoring | Voltage Detection |
| Temperature Detection | |
| Fan Speed Detection | |
| Overheating Warning | |
| Fan Fail Warning | |
| Fan Speed Control *6 | |
| BIOS | 1x 256 Mbit Flash |
| Use of Licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Operating System Support | Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Notes | *1 The DVI-D port does not support D-Sub connection by adapter. |
| *2 Support for HDMI 2.1 version, HDCP 2.3, and HDR. | |
| *3 To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. | |
| *4 For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| *5 All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. | |
| *6 Whether the fan speed control function is supported will depend on the cooler you install. | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
