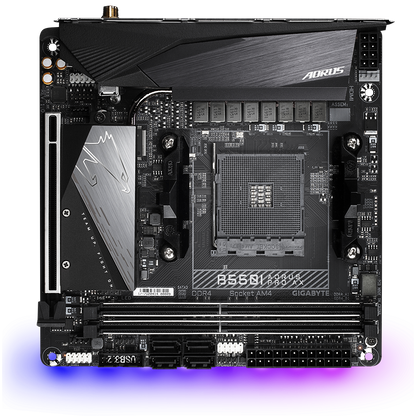

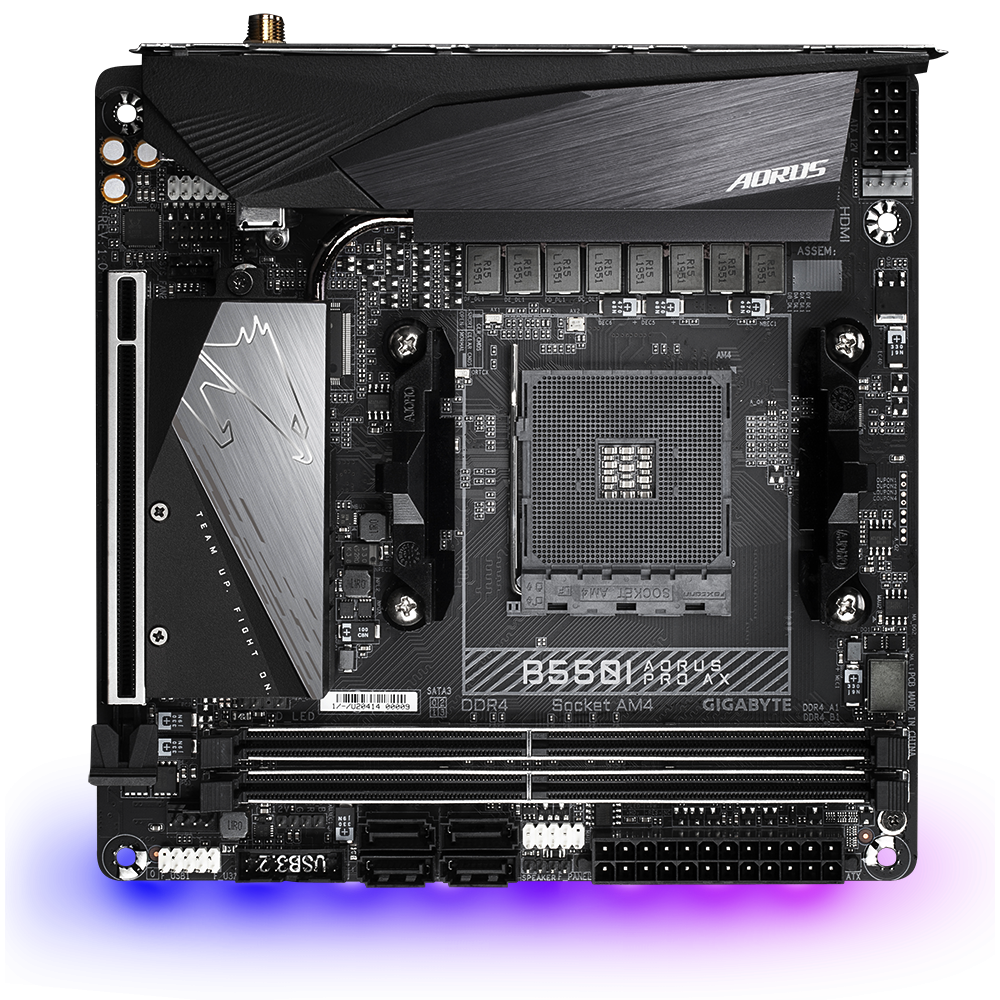

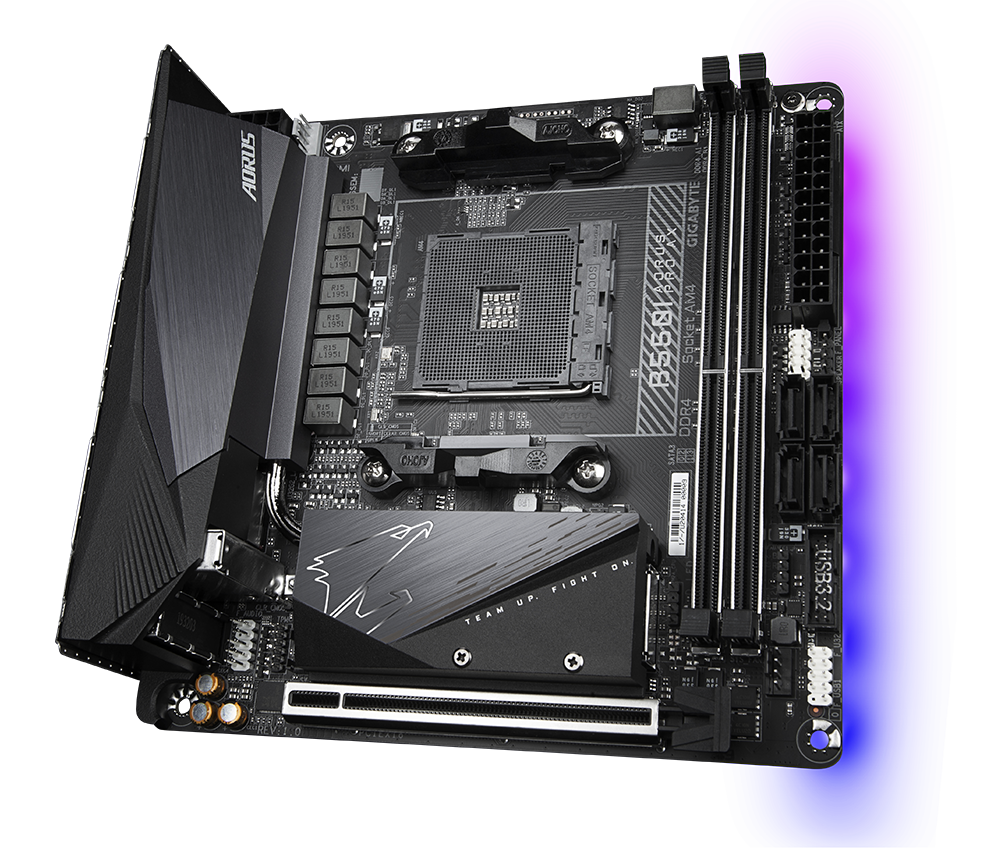

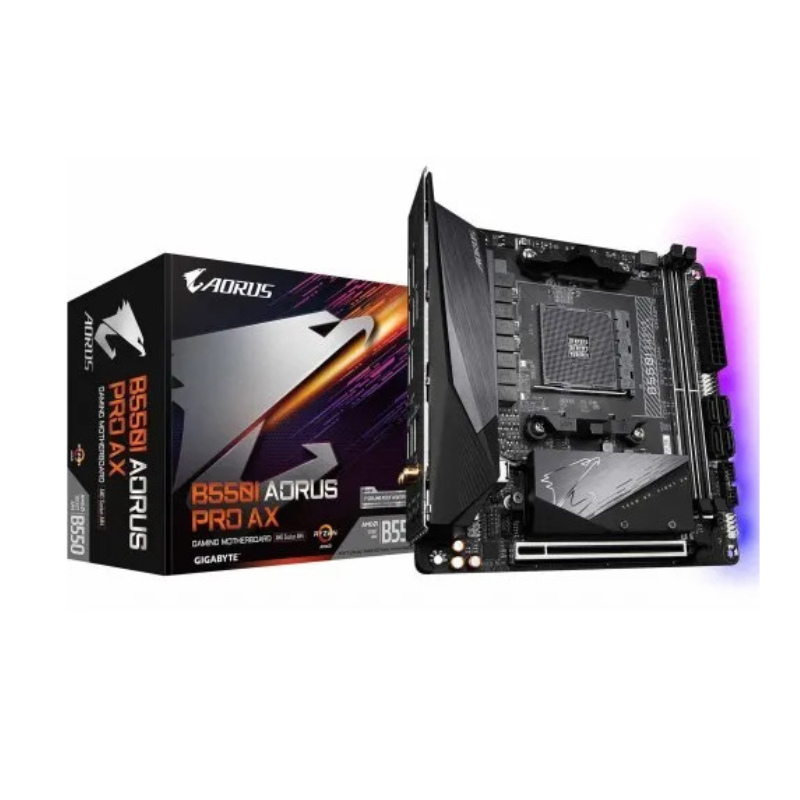

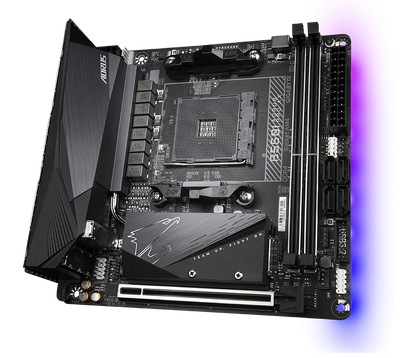

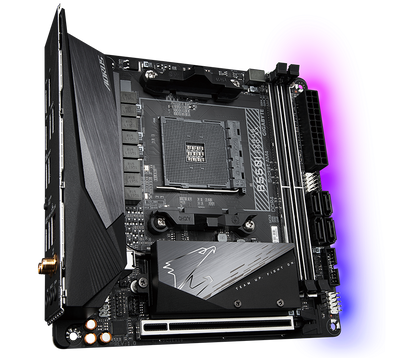

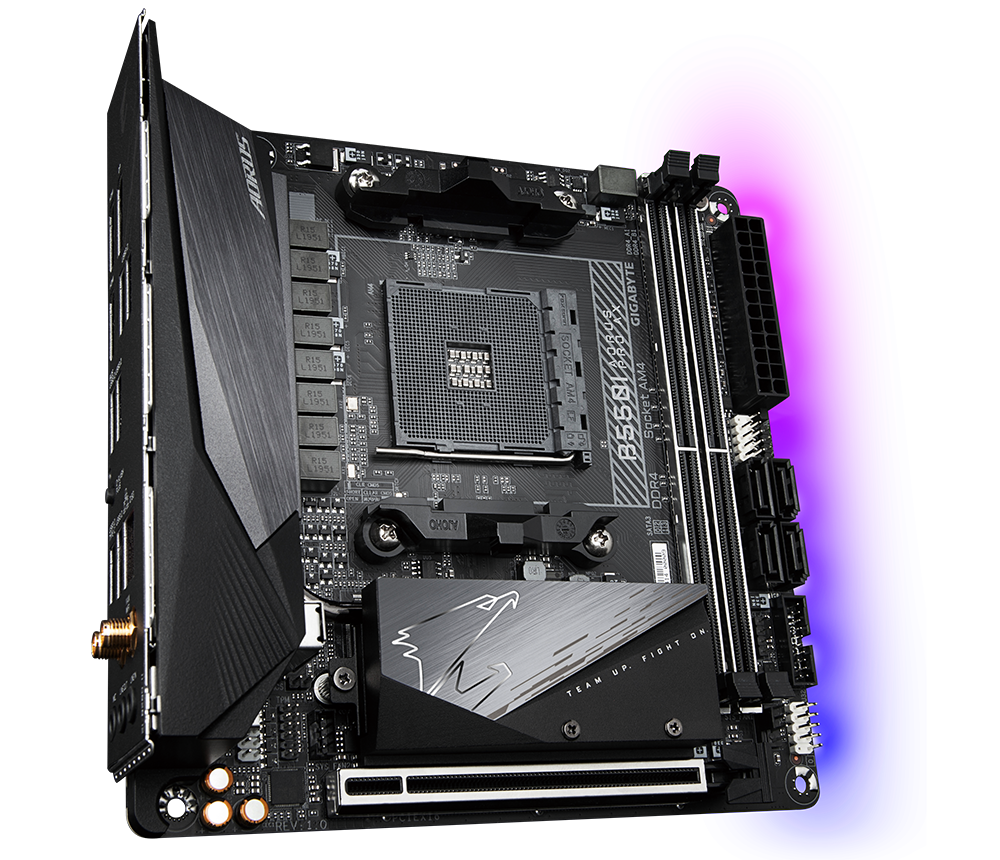

Gigabyte B550I AORUS PRO AX AMD B550 Ryzen Socket AM4 Mini-ITX Desktop Motherboard
Gigabyte B550I AORUS PRO AX AMD B550 Ryzen Socket AM4 Mini-ITX Desktop Motherboard
Regular price
R 4,299.00
Regular price
Sale price
R 4,299.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | AMD B550 |
| Model | GA-B550-I-AORUS-PRO-AX |
| CPU | AMD Socket AM4 |
| Chipset | AMD B550 |
| Memory | 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory |
| 3rd Gen AMD Ryzen Processors: | |
| Support for DDR4 4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz memory modules | |
| New Generation AMD Ryzen with Radeon Graphics processors: | |
| Support for DDR4 5300(O.C.)/5200(O.C.)/5000(O.C.)/4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz memory modules | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Onboard Graphics | Integrated in the New Generation AMD Ryzen with Radeon Graphics processors: |
| 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz | |
| * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. | |
| 2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz | |
| * Support for HDMI 2.1 version, HDCP 2.3, and HDR. | |
| Support for up to 3 displays at the same time | |
| Maximum shared memory of 16 GB | |
| Audio | Realtek ALC1220-VB codec |
| * The back panel line out jack supports DSD audio. | |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. | |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Wireless Communication Module | Intel Wi-Fi 6 AX200 |
| WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band | |
| BLUETOOTH 5 | |
| Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| * Actual data rate may vary depending on environment and equipment. | |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode | |
| New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode | |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280 SSDs: |
| - 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs | |
| - New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs | |
| 1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2260/2280 SSDs: | |
| - Supporting SATA and PCIe 3.0 x4/x2 SSDs | |
| 4 x SATA 6Gb/s connectors, integrated in the Chipset: | |
| - Support for RAID 0, RAID 1, and RAID 10 | |
| USB | CPU: |
| 4 x USB 3.2 Gen 1 ports on the back panel | |
| Chipset: | |
| 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support | |
| 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
| 2 x USB 3.2 Gen 1 ports available through the internal USB header | |
| 2 x USB 2.0/1.1 ports available through the internal USB header | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 2 x system fan headers | |
| 1 x addressable LED strip header | |
| 1 x RGB LED strip header | |
| 4 x SATA 6Gb/s connectors | |
| 2 x M.2 Socket 3 connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x speaker header | |
| 1 x USB 3.2 Gen 1 header | |
| 1 x USB 2.0/1.1 header | |
| 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| 1 x Clear CMOS jumper | |

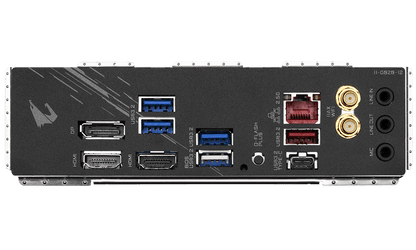

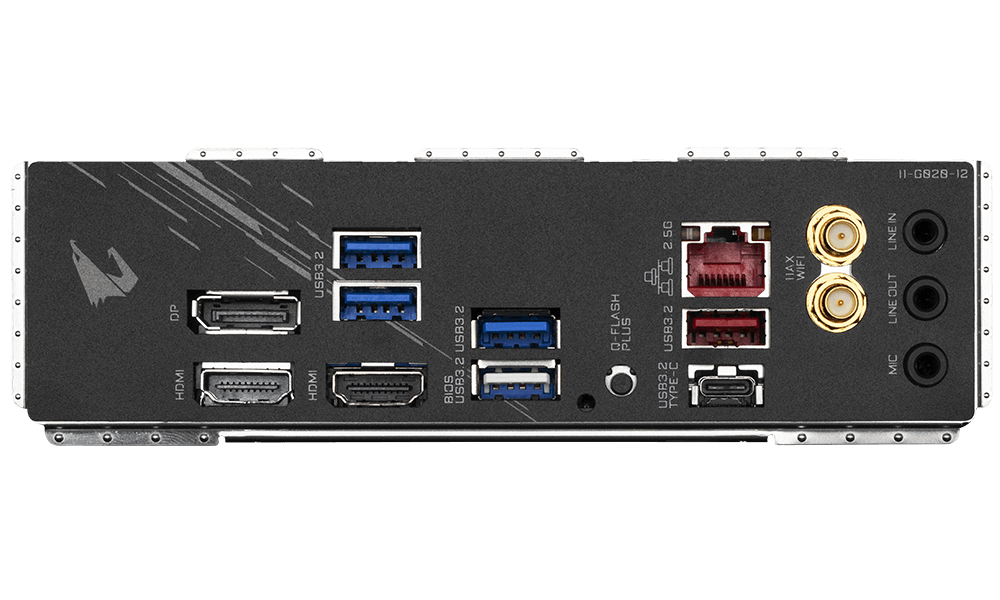

| Back Panel Connectors | 1 x DisplayPort |
| 2 x HDMI ports | |
| 1 x USB 3.2 Gen 2 Type-A port (red) | |
| 4 x USB 3.2 Gen 1 ports | |
| 1 x USB Type-C port, with USB 3.2 Gen 2 support | |
| 1 x Q-Flash Plus button | |
| 1 x RJ-45 port | |
| 2 x SMA antenna connectors (2T2R) | |
| 3 x audio jacks | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Overheating warning | |
| Fan fail warning | |
| Fan speed control | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Mini-ITX |
| 17.0cm x 17.0cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
