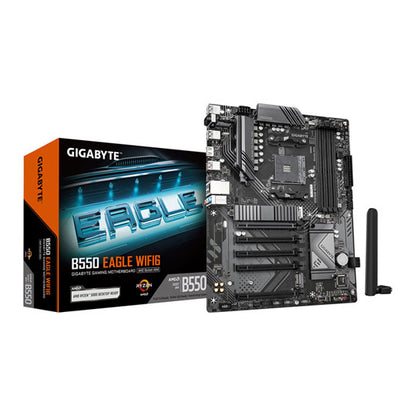

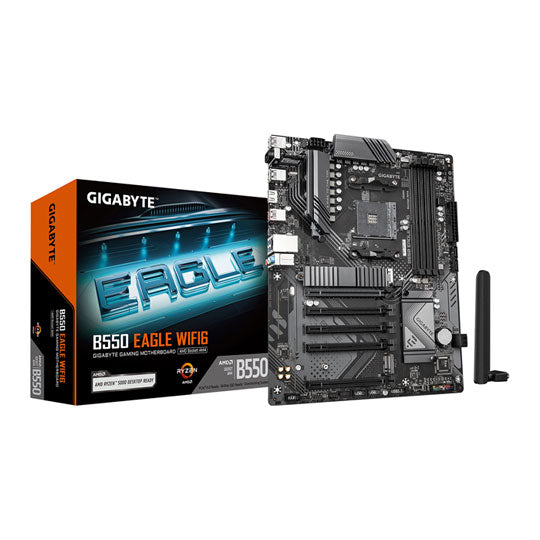

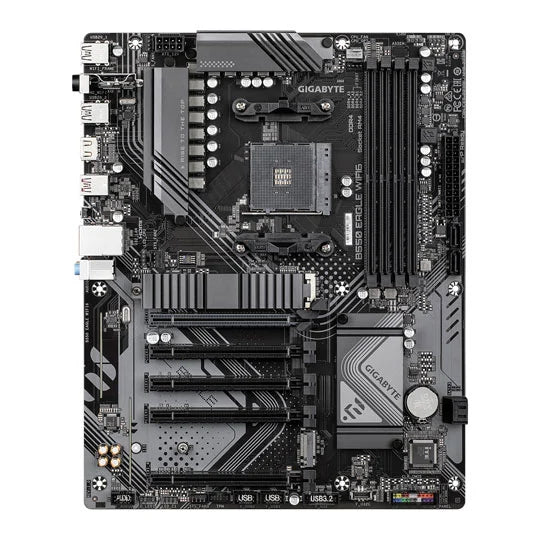

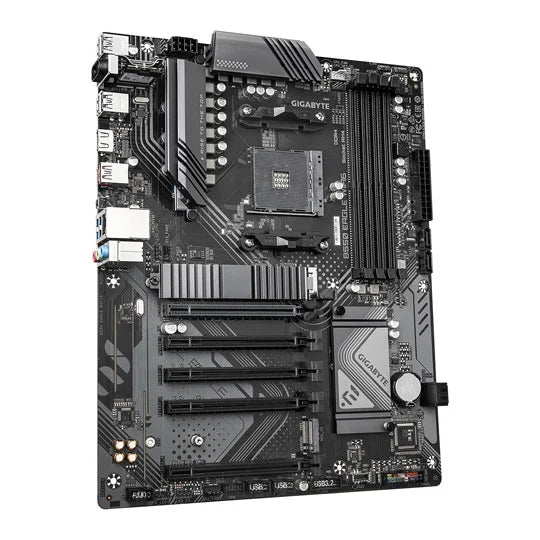

Gigabyte B550 EAGLE WiFi6 AMD AM4 Socket B550 ATX Desktop Motherboard
Gigabyte B550 EAGLE WiFi6 AMD AM4 Socket B550 ATX Desktop Motherboard
Regular price
R 3,499.00
Regular price
Sale price
R 3,499.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
We accept
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | Eagle Series |
| Model | B550 EAGLE WIFI6 |
| CPU | |
| AMD Socket AM4 | Support for AMD Ryzen 5000 G-Series Processors |
| Support for AMD Ryzen 5000 Series Processors | |
| Support for AMD Ryzen 4000 G-Series Processors | |
| Support for AMD Ryzen 3000 G-Series Processors | |
| Support for AMD Ryzen 3000 Series Processors | |
| CPU Support List | Refer to GIGABYTE website for latest CPU support list |
| Chipset | |
| Chipset Model | AMD B550 |
| Memory | |
| DIMM Slots | 4 x DDR4 DIMM |
| Maximum Memory | 128 GB |
| Single DIMM Capacity | 32 GB |
| Supported Memory Speeds | DDR4 3200 MT/s |
| DDR4 2933 MT/s | |
| DDR4 2667 MT/s | |
| DDR4 2400 MT/s | |
| DDR4 2133 MT/s | |
| Memory Architecture | Dual channel |
| ECC Memory Support | ECC Un-buffered DIMM 1Rx8 |
| ECC Un-buffered DIMM 2Rx8 | |
| Non-ECC Memory Support | Non-ECC Un-buffered DIMM 1Rx8 |
| Non-ECC Un-buffered DIMM 2Rx8 | |
| Non-ECC Un-buffered DIMM 1Rx16 | |
| Memory Profiles | Support for Extreme Memory Profile (XMP) |
| Memory Notes | CPU and memory configuration may affect supported memory types, speeds, and DRAM module count |
| Memory Support List | Refer to GIGABYTE website |
| Onboard Graphics | |
| Graphics Support | Integrated Graphics Processor with AMD Radeon Graphics |
| HDMI Ports | 1 |
| Maximum Resolution | 4096 × 2160 @ 60 Hz |
| HDMI Version | HDMI 2.1 |
| HDCP Support | HDCP 2.3 |
| HDR Support | Supported |
| HDMI Port Type | Native HDMI 2.1 TMDS compatible |
| Graphics Notes | Graphics specifications may vary depending on CPU |
| Maximum Shared Memory | 16 GB |
| Audio | |
| Audio Codec | Realtek Audio CODEC |
| Audio Type | High Definition Audio |
| Channel Support | 2-channel |
| 4-channel | |
| 5.1-channel | |
| 7.1-channel | |
| Audio Note | Audio jack functions configurable through audio software |
| LAN | |
| LAN Chipset | Realtek GbE LAN |
| LAN Speed | 1 Gbps |
| 100 Mbps | |
| 10 Mbps | |
| Wireless Communication Module | |
| Wi-Fi Chipset | Realtek Wi-Fi 6 RTL8851BE |
| Wi-Fi Standards | 802.11a |
| 802.11b | |
| 802.11g | |
| 802.11n | |
| 802.11ac | |
| 802.11ax | |
| Wi-Fi Frequency Bands | 2.4 GHz |
| 5 GHz | |
| Bluetooth Version | Bluetooth 5.3 |
| Wi-Fi Channel Width | 80 MHz |
| Wireless Note | Actual data rate varies depending on environment and equipment |
| Expansion Slots | |
| PCIe x16 Slot (CPU) | 1 |
| PCIe Mode (Ryzen 5000/3000) | PCIe 4.0 x16 |
| PCIe Mode (Ryzen 5000G/4000G/3000G) | PCIe 3.0 x16 |
| PCIEX16 Usage Note | Supports graphics card or NVMe SSD |
| PCIEX16 Installation Note | Install single GPU in PCIEX16 slot |
| PCIe Slots (Chipset) | 4 |
| Slot Type | PCIe x16 physical |
| Lane Configuration | x1 |
| PCIe Version | PCIe 3.0 |
| Slot Names | PCIEX1_1 |
| PCIEX1_2 | |
| PCIEX1_3 | |
| PCIEX1_4 | |
| Storage Interface | |
| M.2 Connector (CPU) | 1 |
| M.2 Socket Type | Socket 3 |
| Key Type | M Key |
| Supported Lengths | 22110 |
| 2280 | |
| M.2 CPU Support (Ryzen 5000/3000) | SATA |
| PCIe 4.0 x4 | |
| PCIe 4.0 x2 | |
| M.2 CPU Support (Ryzen 5000G/4000G/3000G) | SATA |
| PCIe 3.0 x4 | |
| PCIe 3.0 x2 | |
| M.2 Connector (Chipset) | 1 |
| M.2 Chipset PCIe Version | PCIe 3.0 x4 |
| PCIe 3.0 x2 | |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID NVMe Support | RAID 0 |
| RAID 1 | |
| RAID 10 | |
| RAID SATA Support | RAID 0 |
| RAID 1 | |
| RAID 10 | |
| USB | |
| CPU USB (Ryzen 5000/3000) | 1 x USB 3.2 Gen 2 Type-A (rear, red) |
| CPU USB (Ryzen 5000G/4000G/3000G) | 1 x USB 3.2 Gen 1 (rear, red) |
| Rear USB Type-C | 1 x USB 3.2 Gen 1 |
| Rear USB 3.2 Gen 1 | 2 ports |
| Internal USB Type-C | 1 x USB 3.2 Gen 1 header |
| Internal USB 3.2 Gen 1 | 2 ports via header |
| Internal USB 2.0/1.1 | 4 ports via headers |
| Rear USB 2.0/1.1 (Hub) | 4 ports |
| Internal I/O Connectors | |
| ATX Main Power | 1 x 24-pin |
| ATX 12V Power | 1 x 8-pin |
| CPU Fan Header | 1 |
| CPU Fan / Pump Header | 1 |
| System Fan Headers | 3 |
| Addressable LED Headers | 2 |
| RGB LED Headers | 2 |
| CPU Cooler LED / RGB Header | 1 |
| M.2 Connectors | 2 |
| SATA Connectors | 4 |
| Front Panel Header | 1 |
| Front Panel Audio Header | 1 |
| USB Type-C Header | 1 x USB 3.2 Gen 1 |
| USB 3.2 Gen 1 Header | 1 |
| USB 2.0/1.1 Headers | 2 |
| TPM Header | 1 (2x6-pin, GC-TPM2.0_S module) |
| Clear CMOS Jumper | 1 |

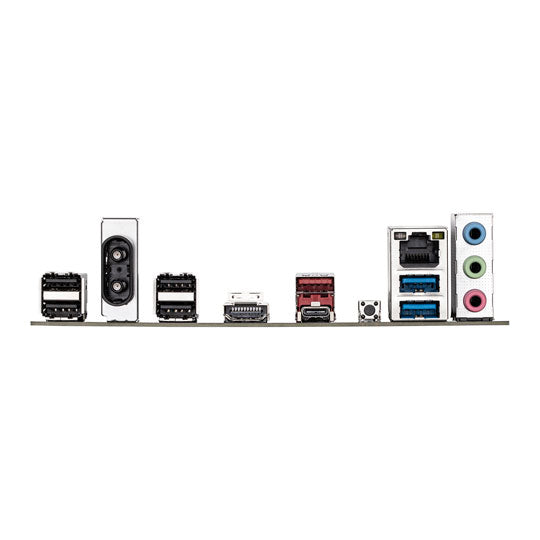

| Back Panel Connectors | |
| USB 2.0/1.1 | 4 |
| Antenna Connectors | 2 (1T1R) |
| HDMI | 1 |
| USB 3.2 Gen 2 Type-A / Gen 1 | 1 |
| USB Type-C | 1 x USB 3.2 Gen 1 |
| Q-Flash Plus Button | 1 |
| RJ-45 LAN Port | 1 |
| USB 3.2 Gen 1 | 2 |
| Audio Jacks | 3 |
| Back Panel Note | Actual support may vary by CPU |
| I/O Controller | |
| Controller Chip | iTE I/O Controller |
| Hardware Monitoring | |
| Voltage Detection | Yes |
| Temperature Detection | Yes |
| Fan Speed Detection | Yes |
| Water Cooling Flow Rate Detection | Yes |
| Fan Fail Warning | Yes |
| Fan Speed Control | Yes |
| Fan Control Note | Support depends on installed fan |
| BIOS | |
| Flash Size | 1 x 128 Mbit |
| BIOS Type | AMI UEFI BIOS |
| Standards Support | PnP 1.0a |
| DMI 2.7 | |
| WfM 2.0 | |
| SM BIOS 2.7 | |
| ACPI 5.0 | |
| Unique Features | |
| APP Center Support | Yes |
| APP Center Note | Available apps vary by motherboard |
| Supported Applications | @BIOS |
| EasyTune | |
| RGB Fusion | |
| Smart Backup | |
| System Information Viewer | |
| Q-Flash Plus Support | Yes |
| Q-Flash Support | Yes |
| Bundled Software | |
| Security Software | Norton Internet Security (OEM) |
| Network Software | LAN bandwidth management software |
| Operating System | |
| Windows 11 | 64-bit supported |
| Windows 10 | 64-bit supported |
| Form Factor | |
| Form Factor | ATX |
| Dimensions | 30.5 cm x 24.4 cm |
| Warranty Information | |
| Warranty | 3 Year Warranty |
