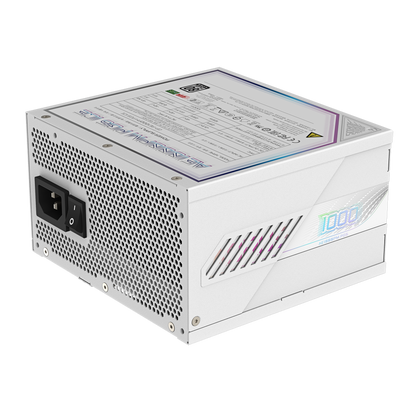

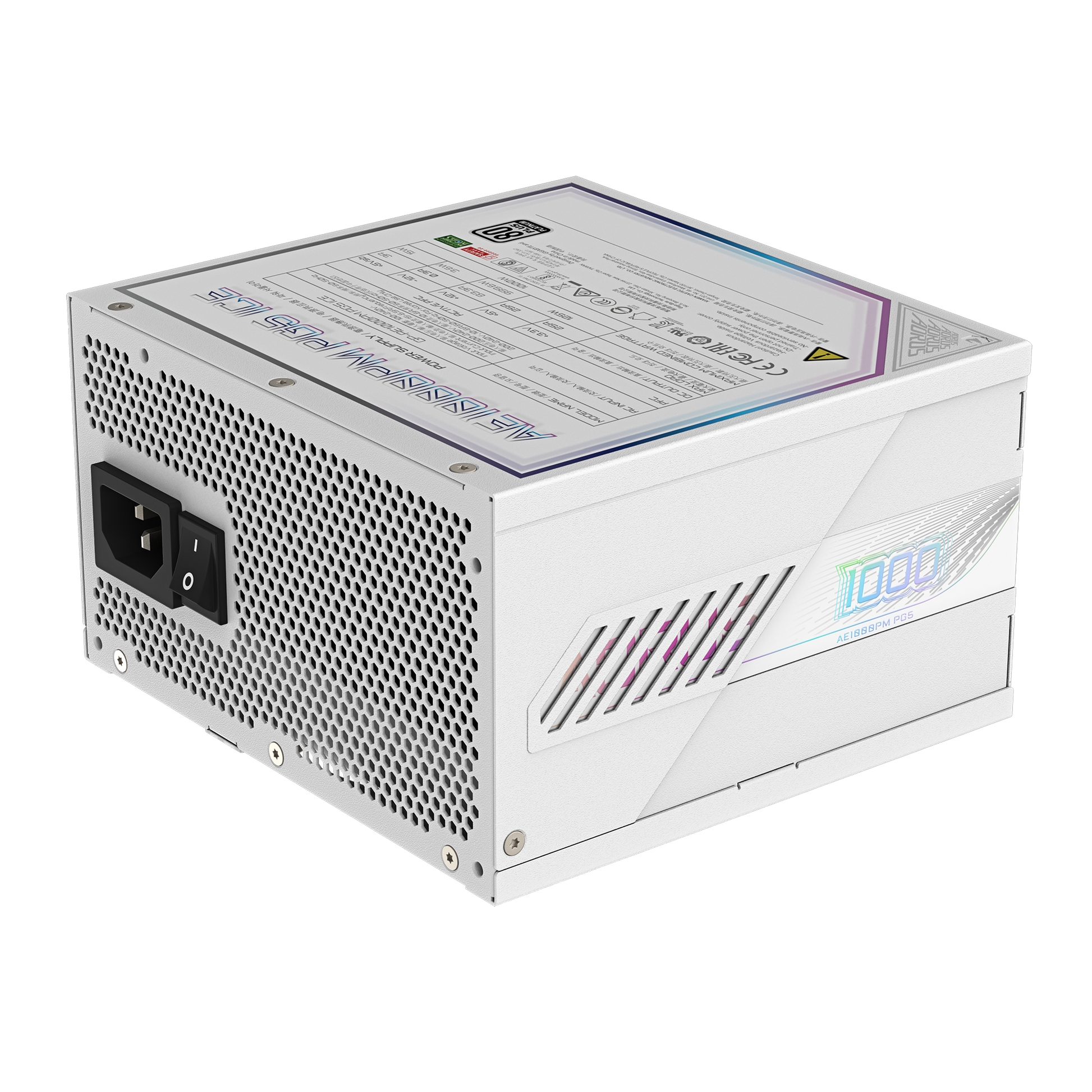

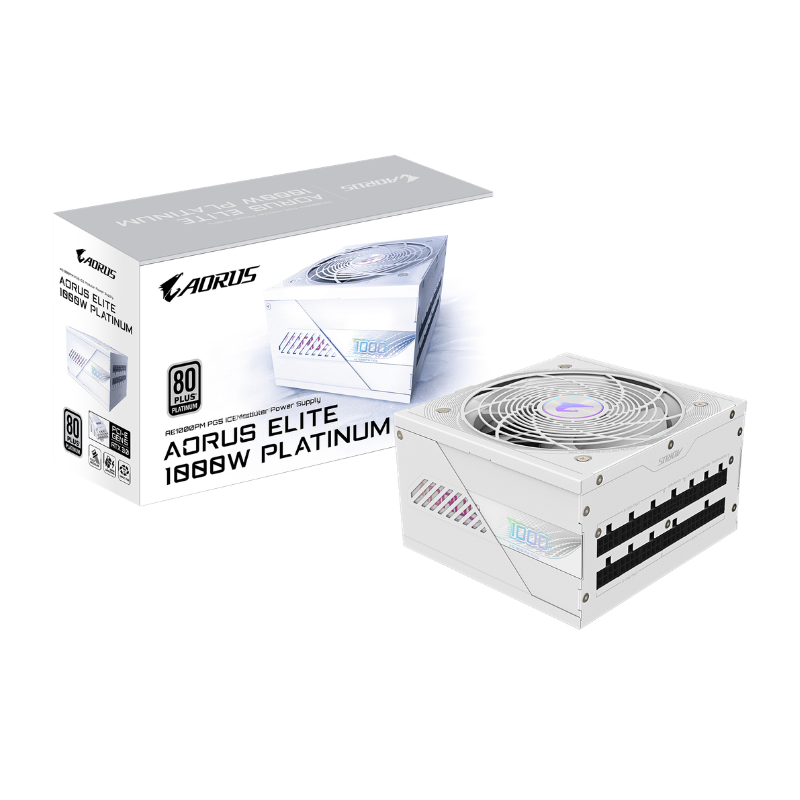

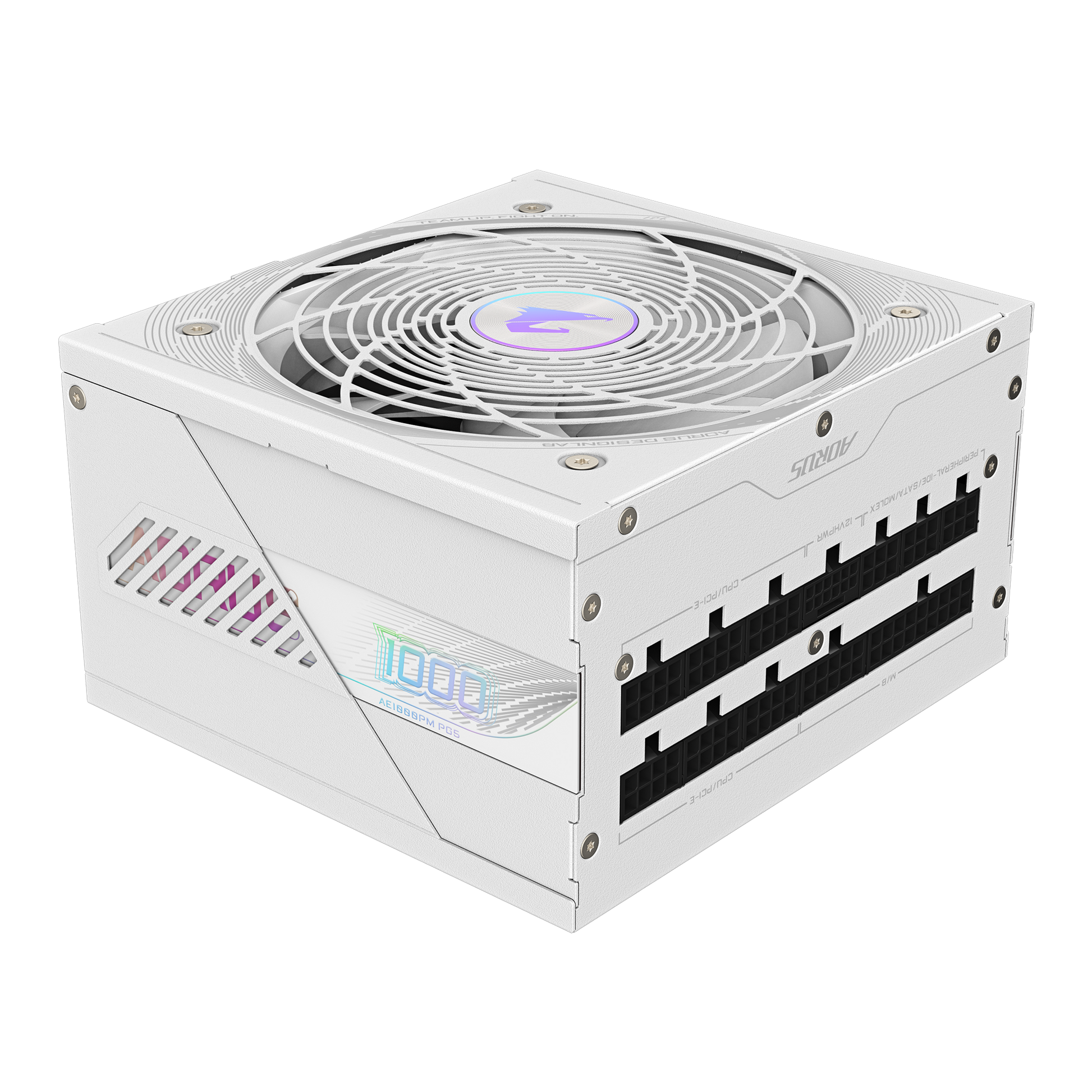

Gigabyte Aorus Elite P1000W Ice 80+ Platinum Modular PCIe Gen 5.0 PSU

FEATURES

• ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)
• 80 PLUS Platinum certified
• 100% Japanese capacitors
• 120mm smart Fluid Dynamic Bearing (FDB) fan
• Compact design
• Fully modular design
• Powerful single +12V rail
• OVP/OPP/SCP/UVP/OCP/OTP protection
• 10 years warranty

ATX 3.0 and PCIe Gen 5.0 ready

The AE1000PM PG5 ICE can sustain power excursions of up to 3 times the GPU power and 2 times the total power. It's fully compliant with the Intel ATX 3.0 standard, supporting up to 200% power excursions and achieving 70% efficiency at low loads. Additionally, the included high-quality, native 16-pin cable ensures compatibility with PCIe Gen 5.0 graphics cards, delivering up to 600 watts of power.

AORUS magnetic plate design

The unique AORUS magnetic plate can be attached to different sides of the power supply based on the user’s preference, presenting the best visual effect from any angle. Additionally, while the plate being moved on the case, its neon color printing with metallic sheen creates solid and hollow special effects for the AORUS logo.

80 PLUS Platinum certified

80 Plus Platinum certified ensures to deliver 92% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.

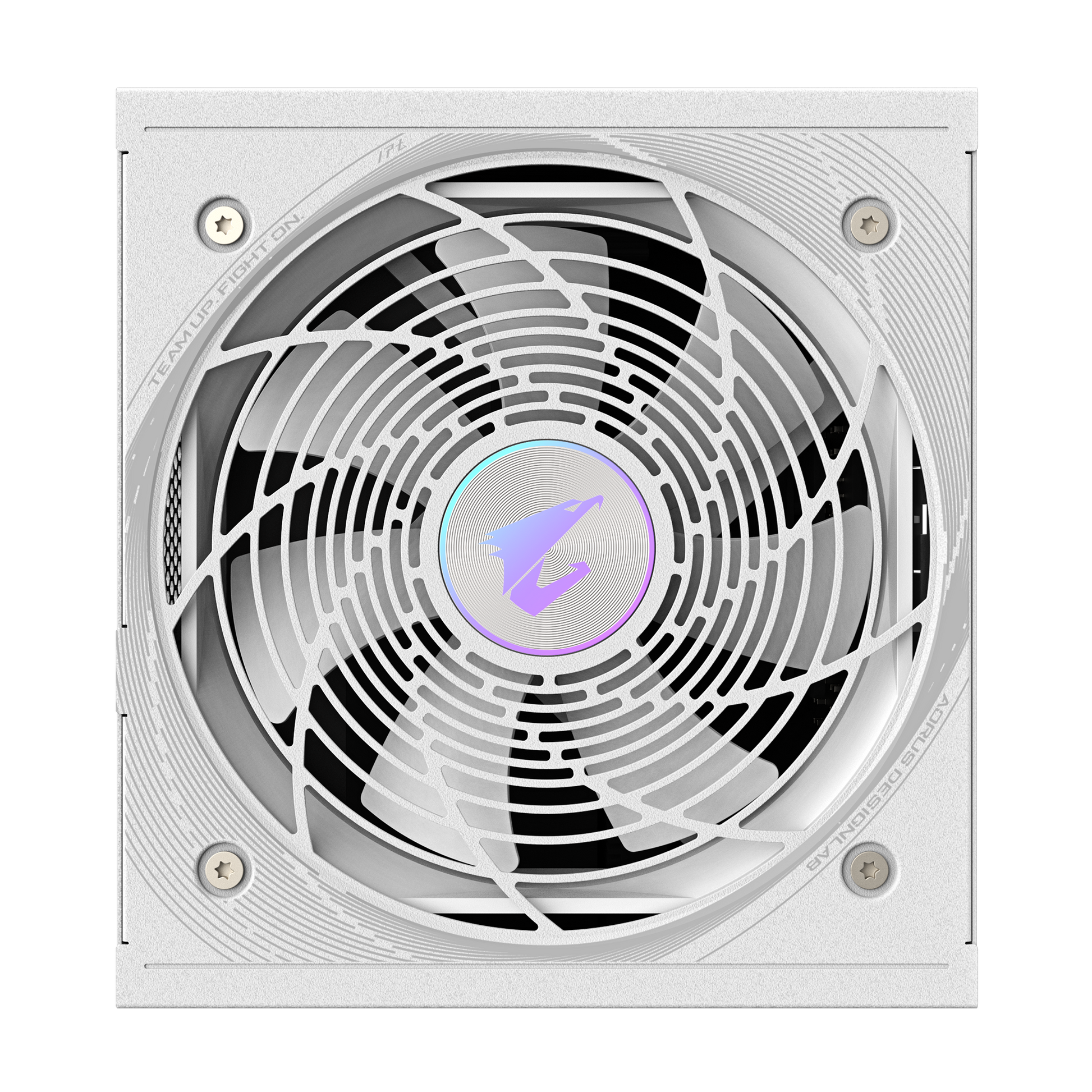

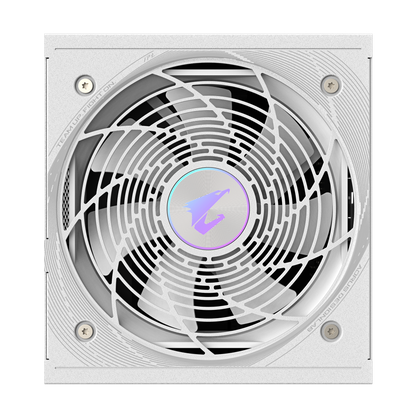

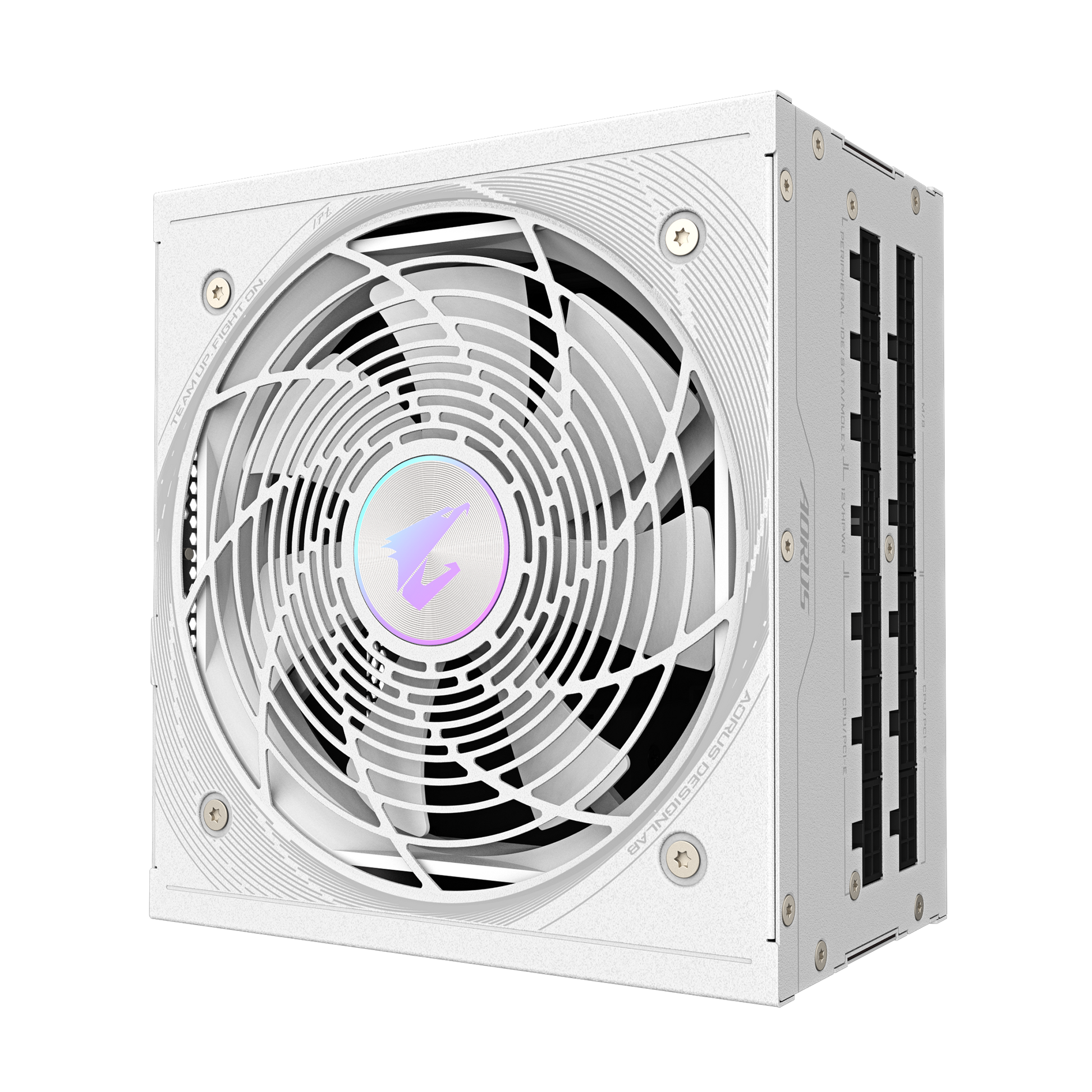

120mm smart Fluid Dynamic Bearing (FDB) fan

High-performance Fluid Dynamic Bearing fan uses oil film shock absorption technology to effectively reduce noise, making it quieter than conventional sleeve fan and providing more than twice the lifespan. In addition, the fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 50% load).

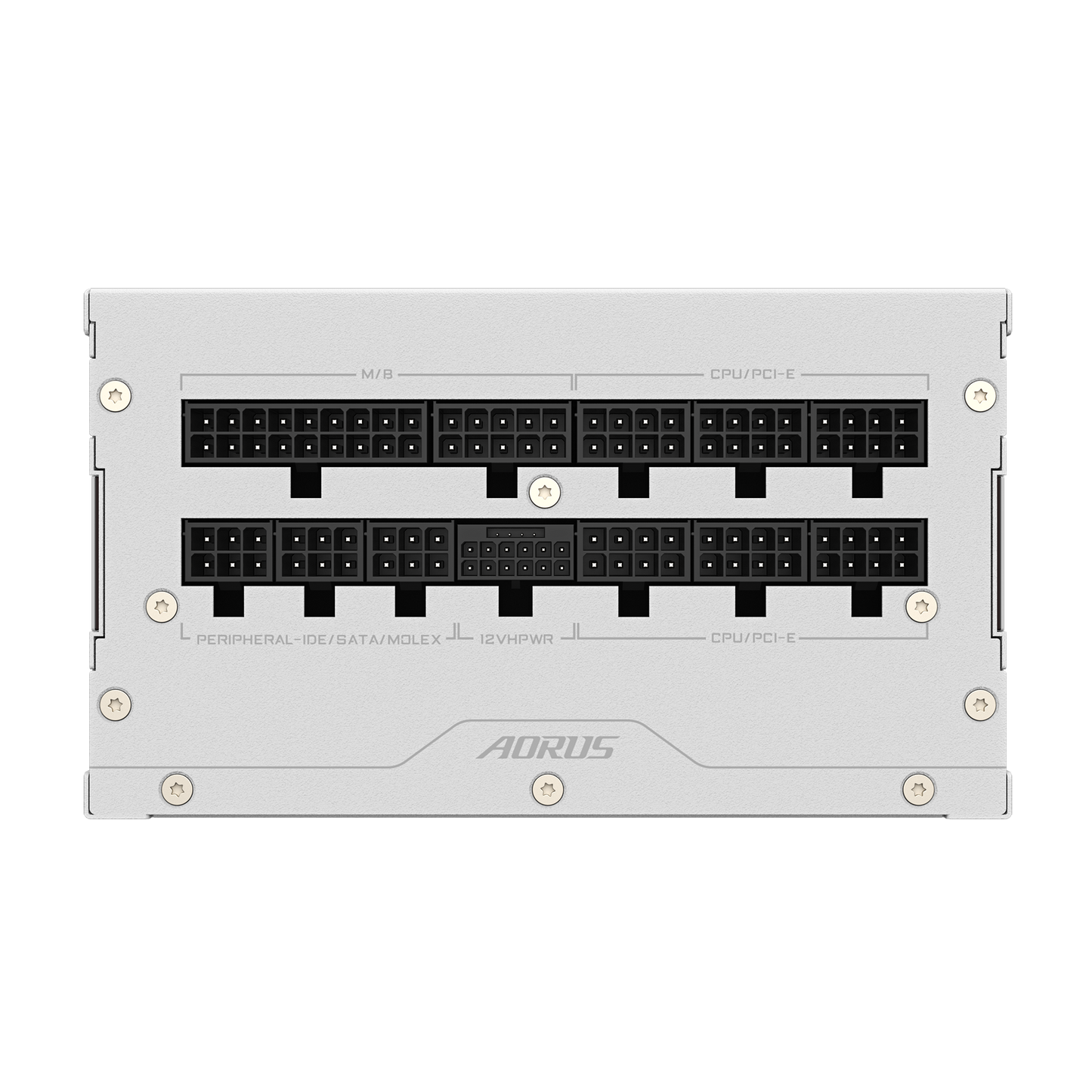

Fully modular design

All the flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.

Powerful single +12V rail

Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.

Compact design

GIGABYTE's engineering expertise in heat dissipation and material selection has shrunk the length of the power supply to an impressive 140 mm, ensuring compatibility with even space-constrained chassis.

SPECIFICATIONS

• Type: Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
• PFC:  Active PFC (>0.9 typical)
• Input Voltage:  100-240 Vac (full range)
• Input Current:  15-6.5A
• Input Frequency:  60-50 Hz
• Output Capacity:  1000W
• Dimensions:  150 x 140 x 86mm
• Fan Type:  120mm Fluid Dynamic Bearing (FDB) Fan
• 80 PLUS Platinum
• Efficiency:  92% at typical load
• MTBF:  >100,000 hours
• Protections:  OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal:  100-150ms
• Hold Up Time:  >16ms
• Cable Type:  Flat, All white

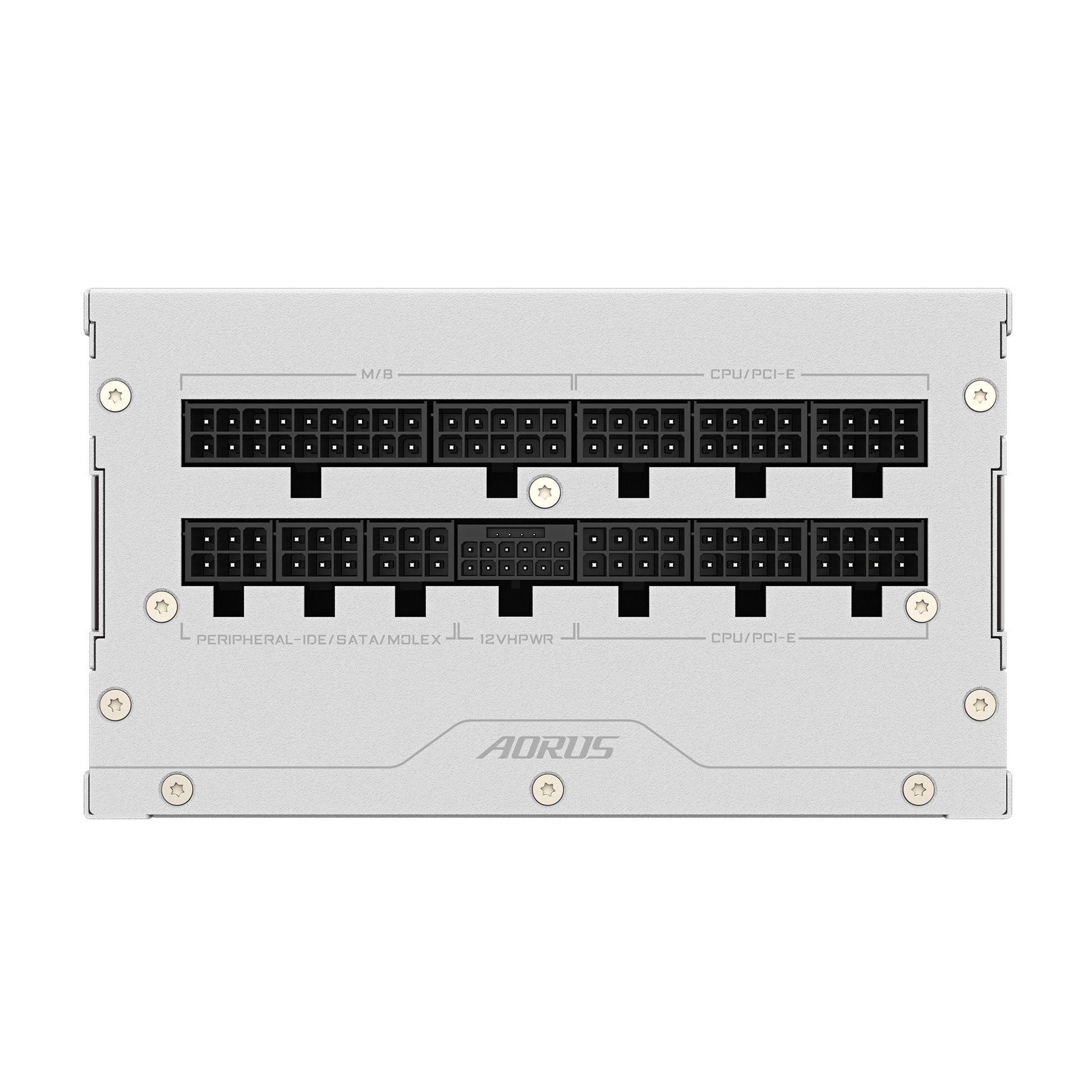

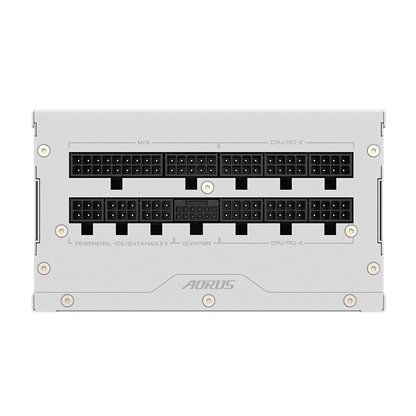

• Connectors
  • ATX/MB 20+4 Pin x1: 650mm*1
  • CPU/EPS 4+4 Pin x2: 700mm*2
  • PCI-e 16 Pin x1: 700mm*1
  • PCI-e 6+2 Pin x6: 650mm+150mm*2, 750mm*2
  • SATA x8: 600mm+150mm+150mm+150mm*2
  • 4 Pin Peripheral x4: 500mm+150mm+150mm+150mm*1
• Warranty: 10 years
