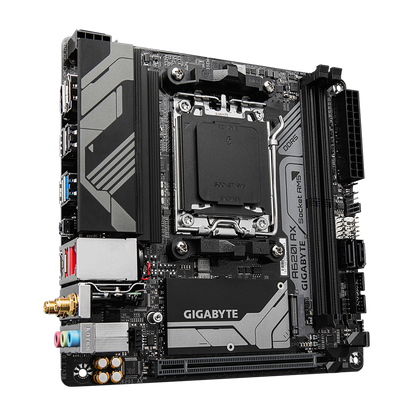

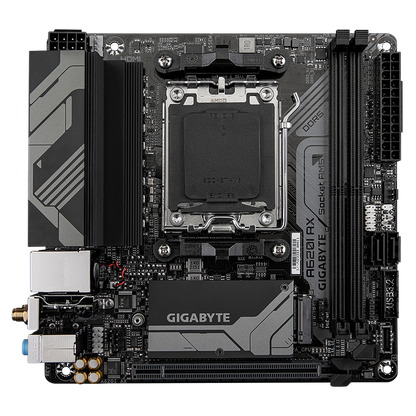

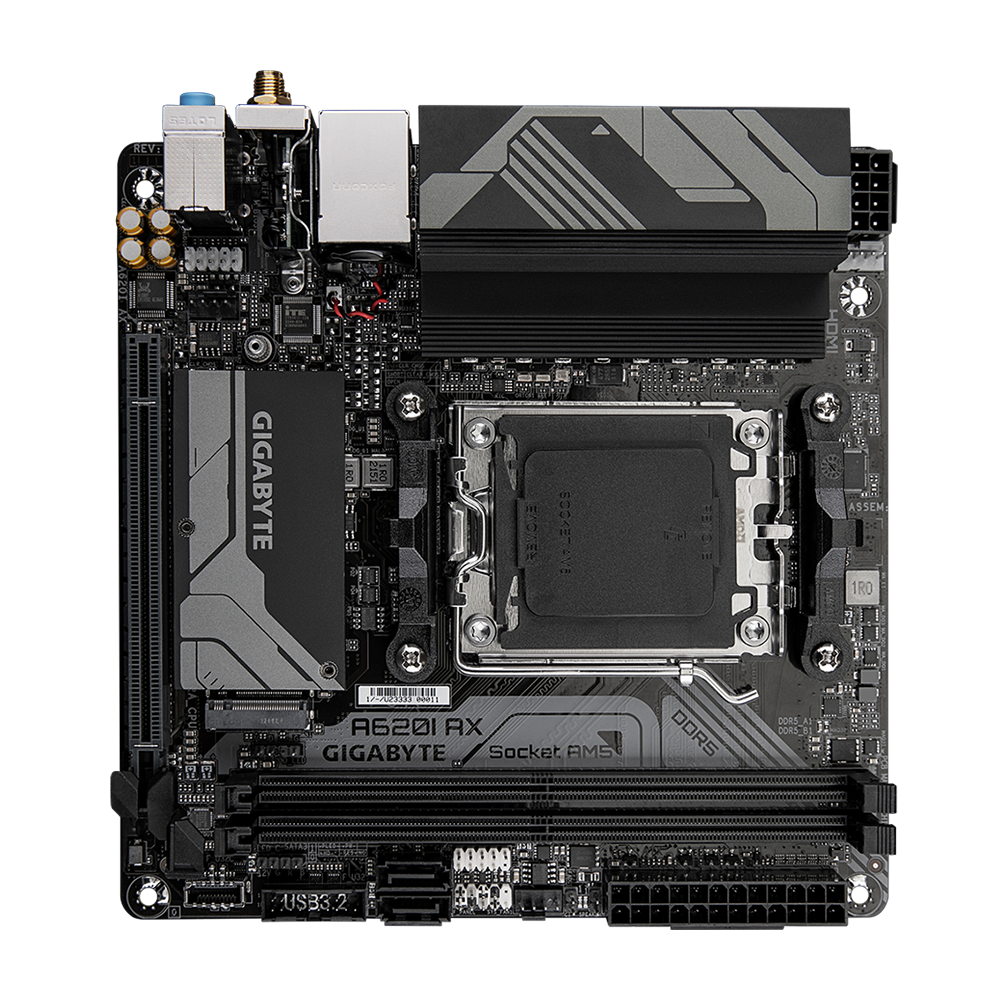

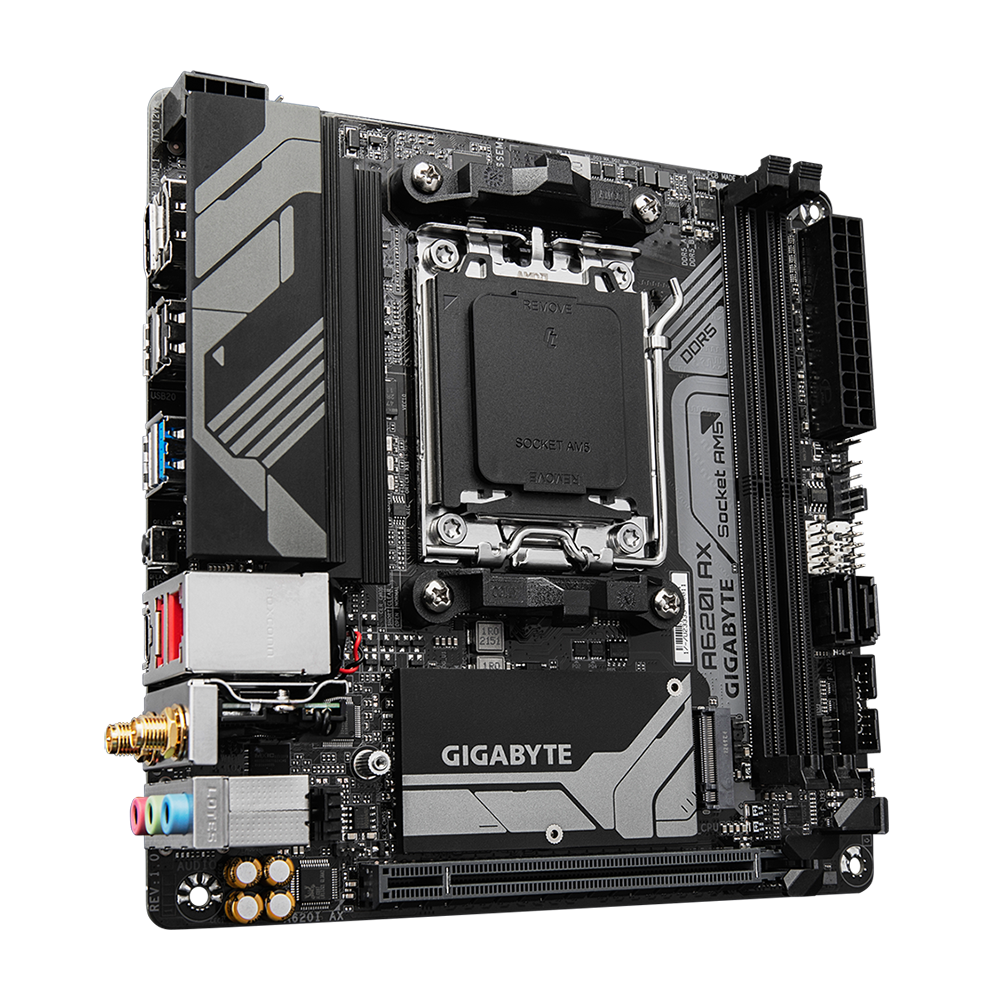

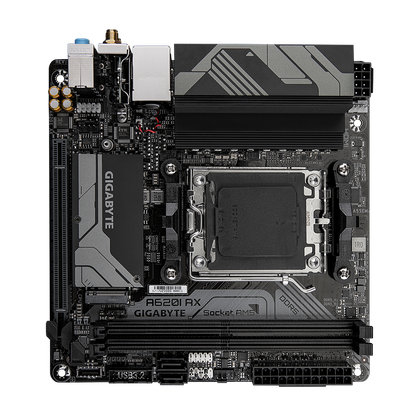

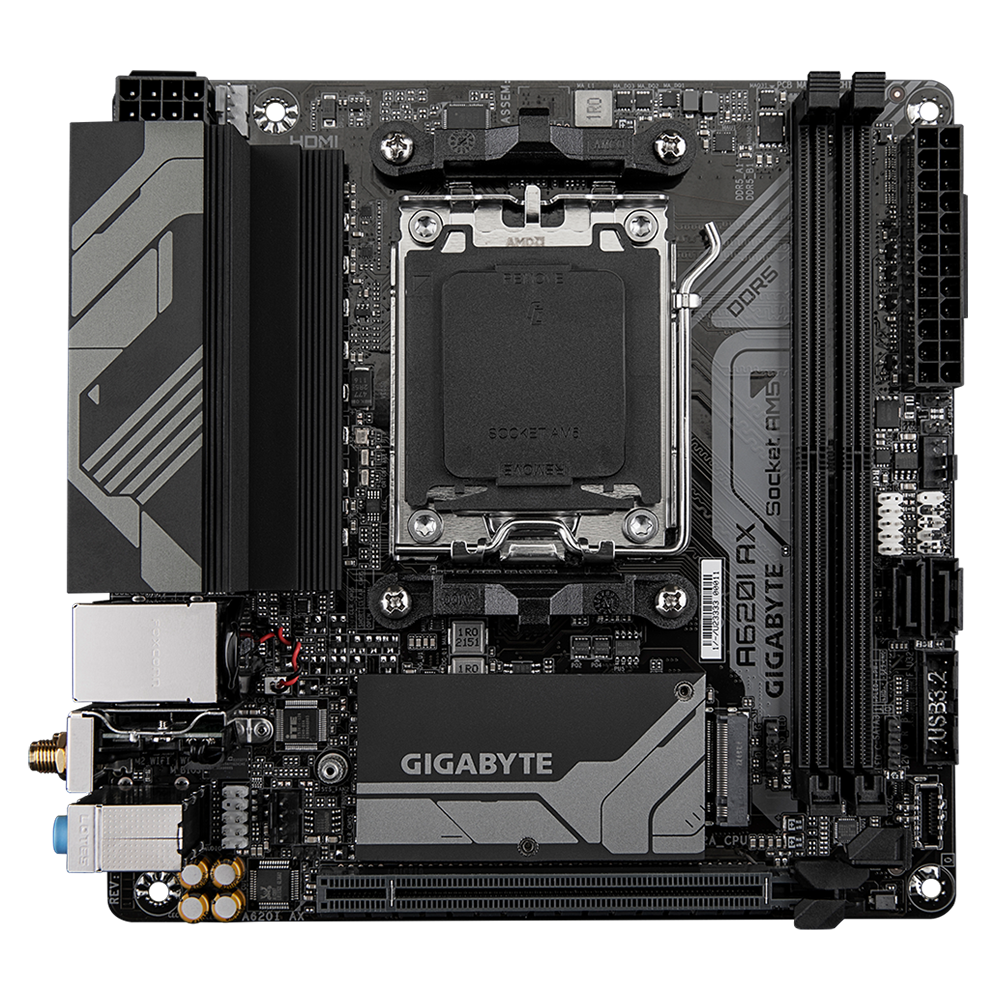

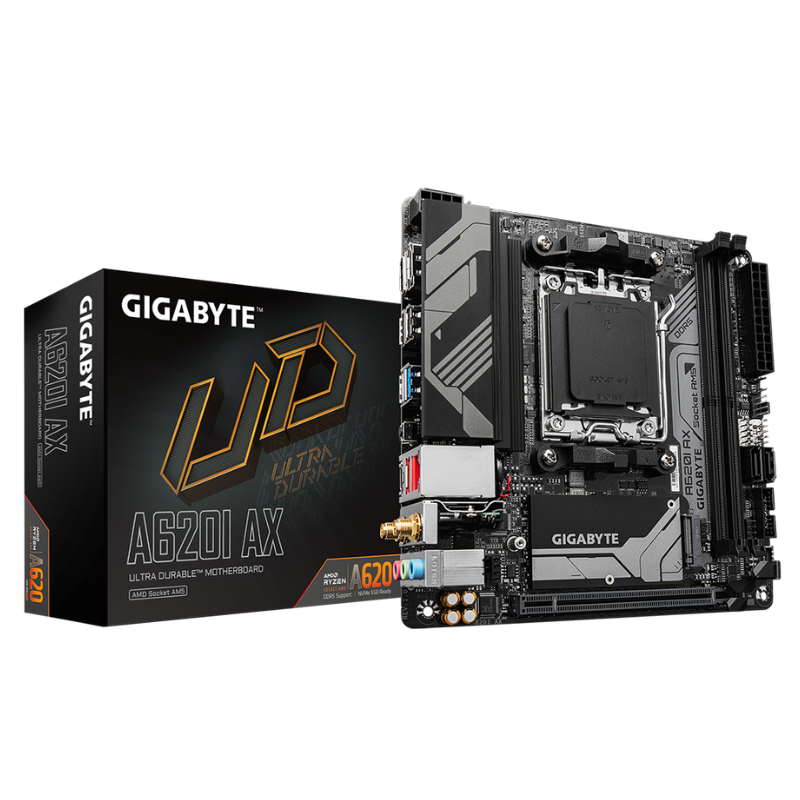

Gigabyte A620I AX Rev1.0 WiFi 6E AMD A620 Ryzen Socket AM5 Mini-ITX Desktop Motherboard
Gigabyte A620I AX Rev1.0 WiFi 6E AMD A620 Ryzen Socket AM5 Mini-ITX Desktop Motherboard
Regular price
R 3,899.00
Regular price
Sale price
R 3,899.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | Mini-ITX Series |
| Model | A620I AX (rev. 1.0) |
| CPU Support | Supports Ryzen 7000, 8000-Series Processors |
| Chipset | AMD A620 |
| Memory Support | |
| AMD Ryzen 7000 Series | Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules |
| 2x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme | |
| Memory Profile (XMP) memory modules | |
| Video | |
| HDMI | 1x HDMI 2.1 port, supporting a maximum resolution of 4096x2160 @ 60 Hz, Supports HDCP 2.3 |
| DisplayPort | 1x DisplayPort 1.4 port, supporting a maximum resolution of 3840x2160 @ 144 Hz, Support for HDCP 2.3 |
| Integrated AMD graphics Required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Physical, x16 Electrical Slot |
| Slot Configurations | PCIEX16 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode |
| PCIEX16 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode | |
| Storage | |
| CPU Direct | 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) |
| AMD A620 Chipset | 4 x SATA3 6.0 Gbps Connectors |
| RAID 0 and RAID 1 support for NVMe SSD storage devices | |
| RAID 0 and RAID 1 support for SATA storage devices | |
| Storage Configurations | M2A_CPU with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| M2A_CPU with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs | |
| Networking | |
| LAN | Realtek 2.5 Gigabit LAN Port 10/100/1000/2500Mbps |
| WiFi | WiFi 6E Tri-Band Adapter |
| Bluetooth | Bluetooth 5.3 |
| Audio | |
| Codec | Realtek High Definition Audio |
| 2/4/5.1/7.1-channel support with front-panel jack retasking | |
| Connectivity | |

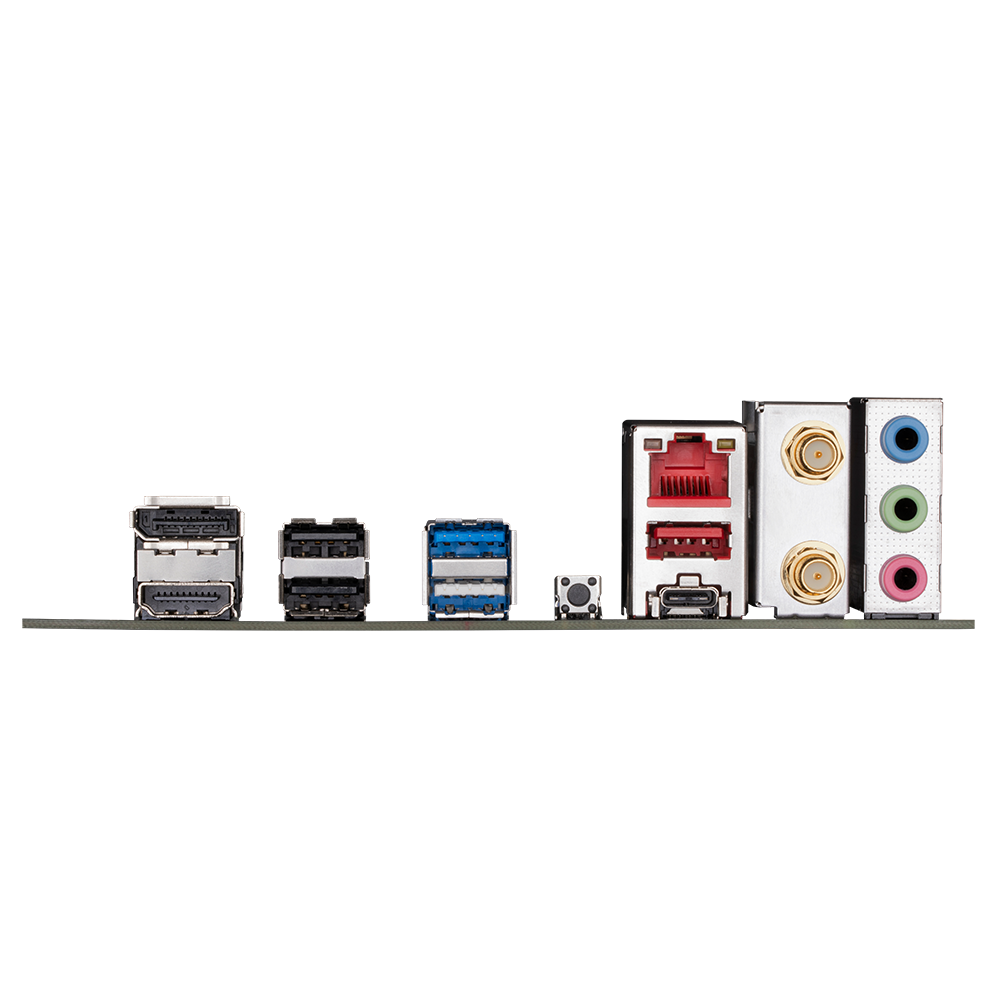

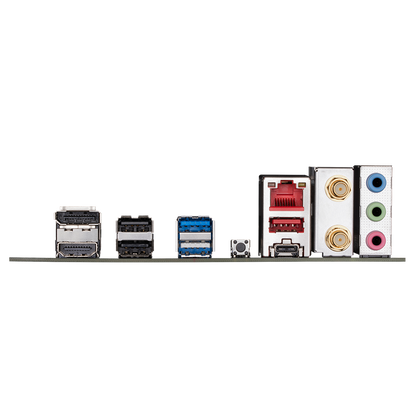

| Ports | 1x USB 5Gbps Type-C Port |
| 1x USB 10Gbps Type-A Port | |
| 1x USB 5Gbps Type-A Port | |
| 3x USB 2.0 Type-A Ports | |
| 1x HDMI 2.1 Port | |
| 1x DisplayPort 1.4 Port | |
| 2x SMA Connectors | |
| 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone) | |
| 1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port | |
| Buttons | 1x Q-Flash Plus button |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 2x system fan headers | |
| 1x addressable LED strip header | |
| 1x RGB LED strip header | |
| 1x M.2 Socket 3 connector | |
| 2x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x speaker header | |
| 1x USB Type-C header, with USB 3.2 Gen 1 support | |
| 1x USB 3.2 Gen 1 header | |
| 1x USB 2.0/1.1 header | |
| 1x Clear CMOS jumper | |
| 1x chassis intrusion header | |
| LED Displays | Gigabyte Q-Flash LED |
| I/O Controller | iTE I/O Controller Chip |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Mini-ITX Form Factor, 170 x 170 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit (recommended) | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
