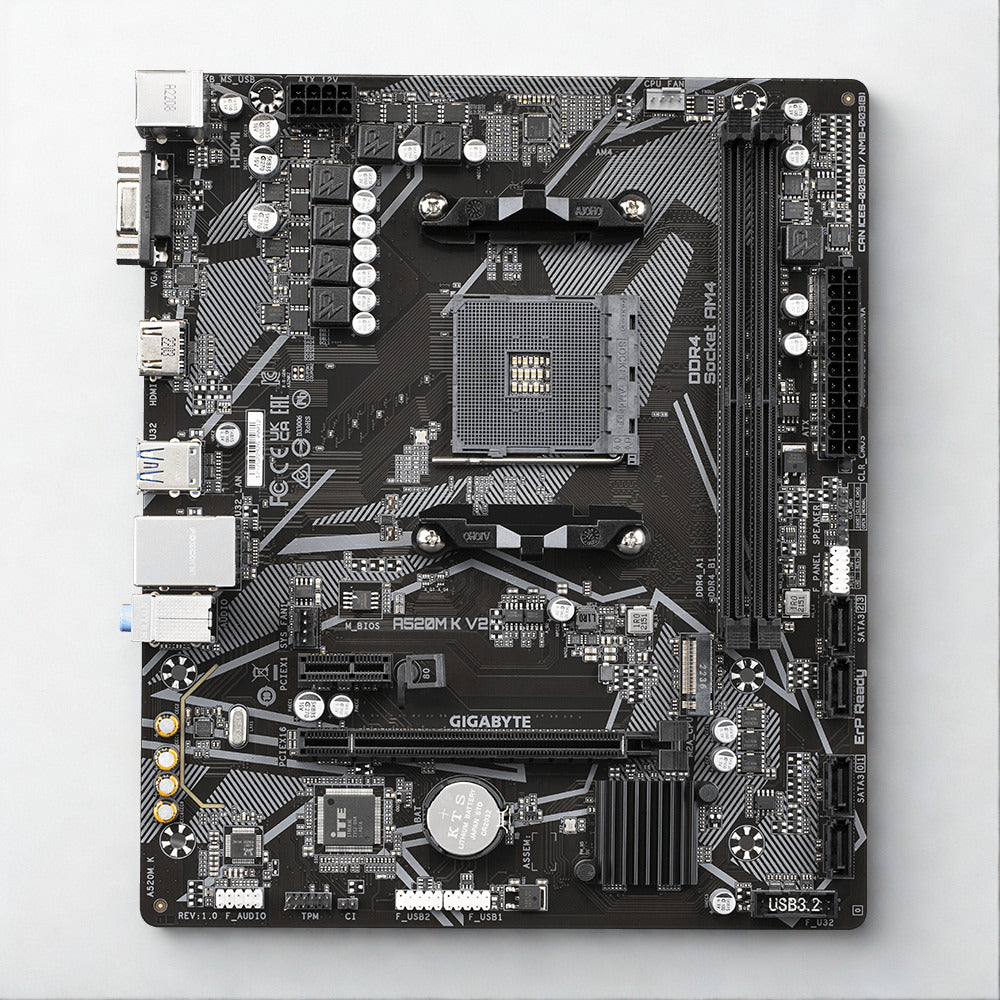

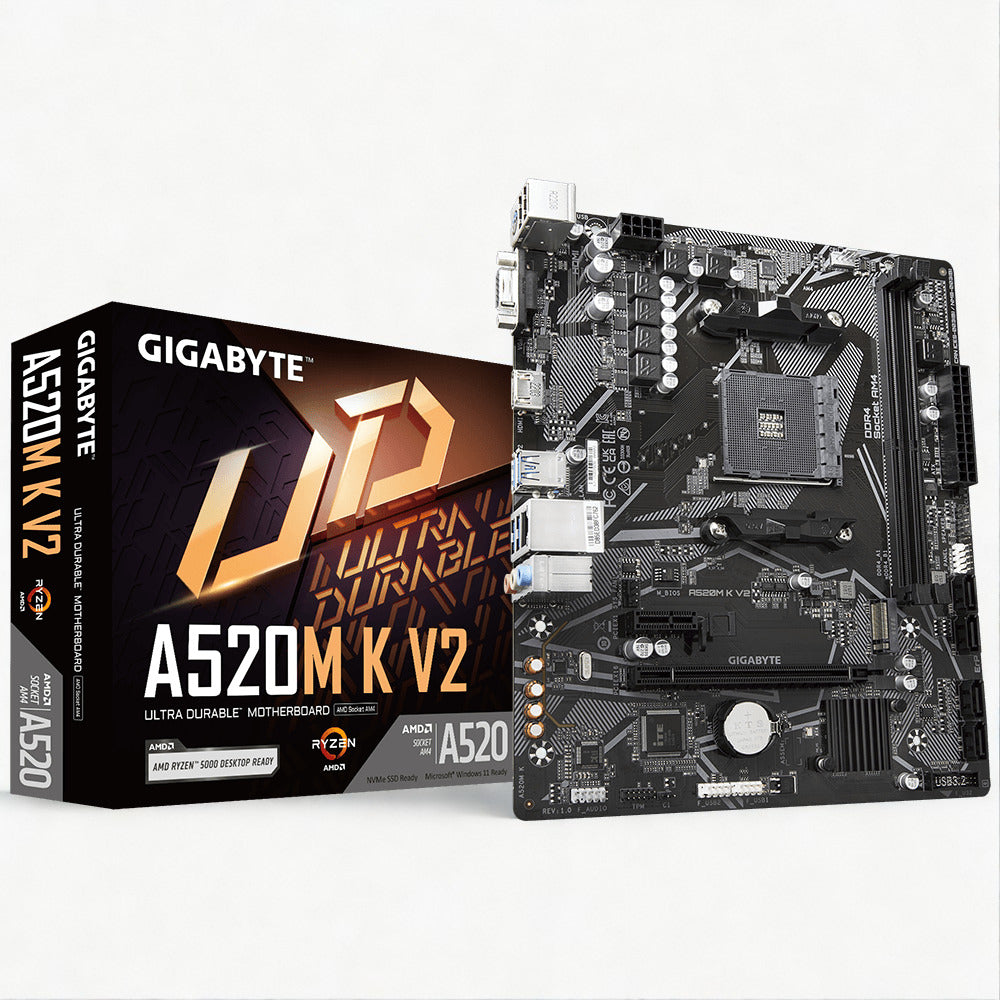

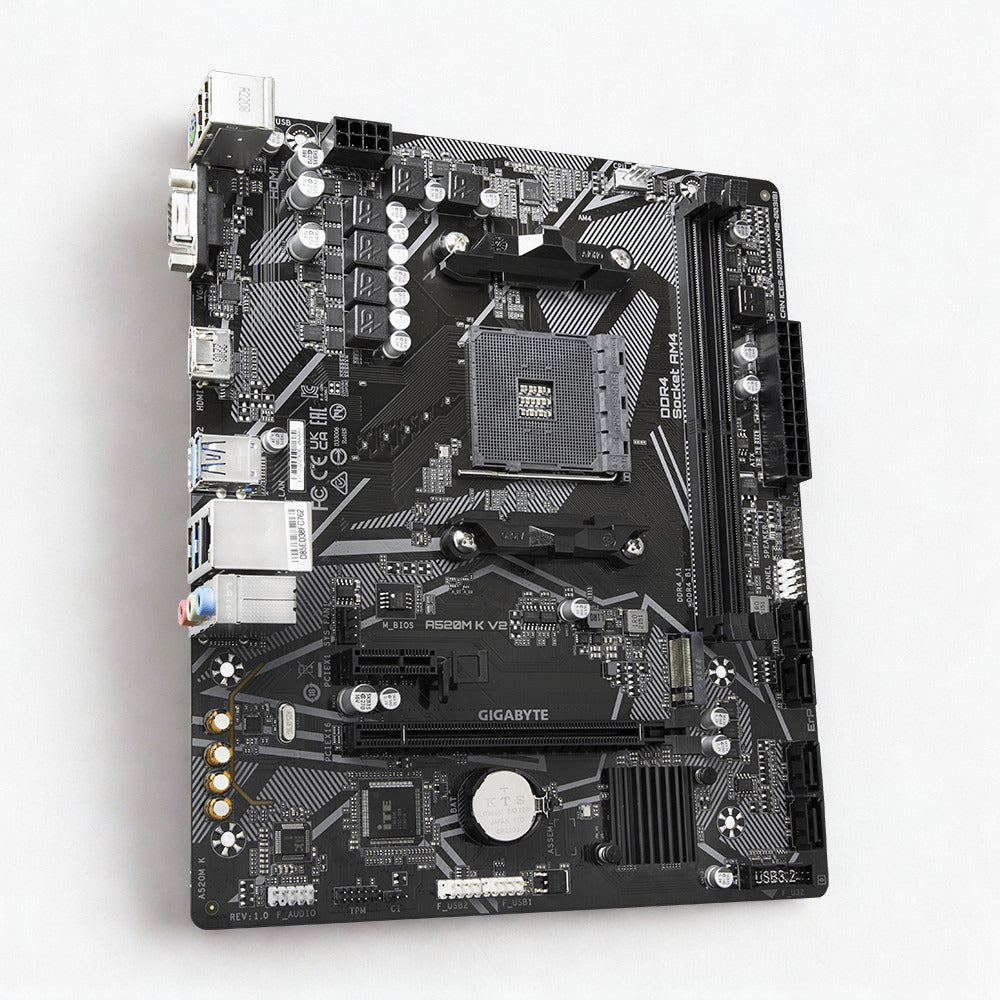

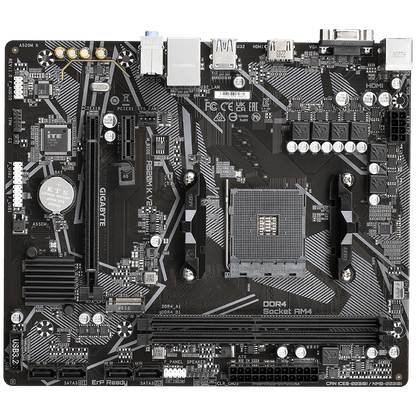

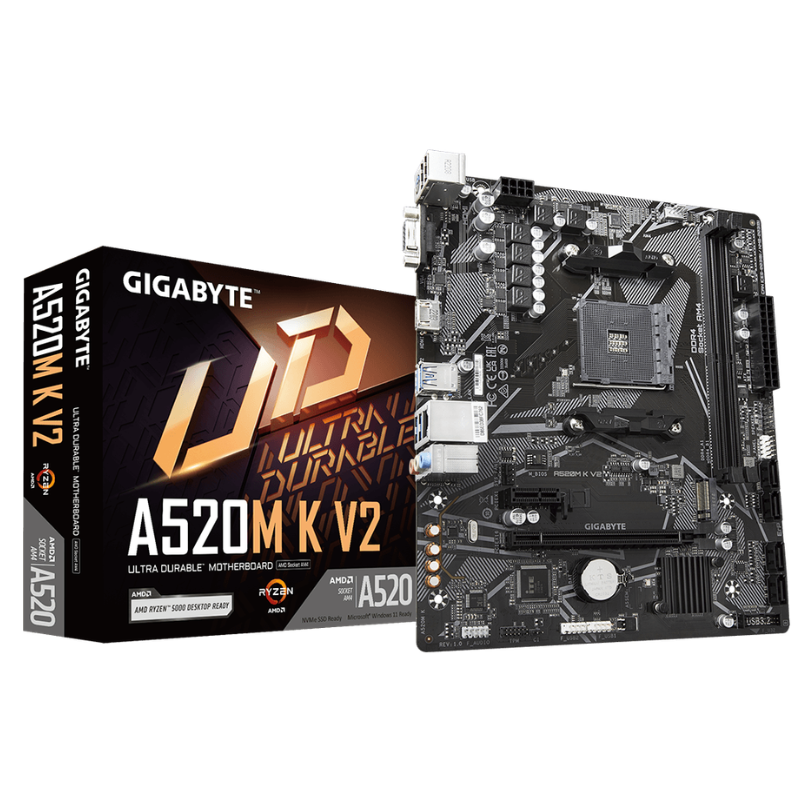

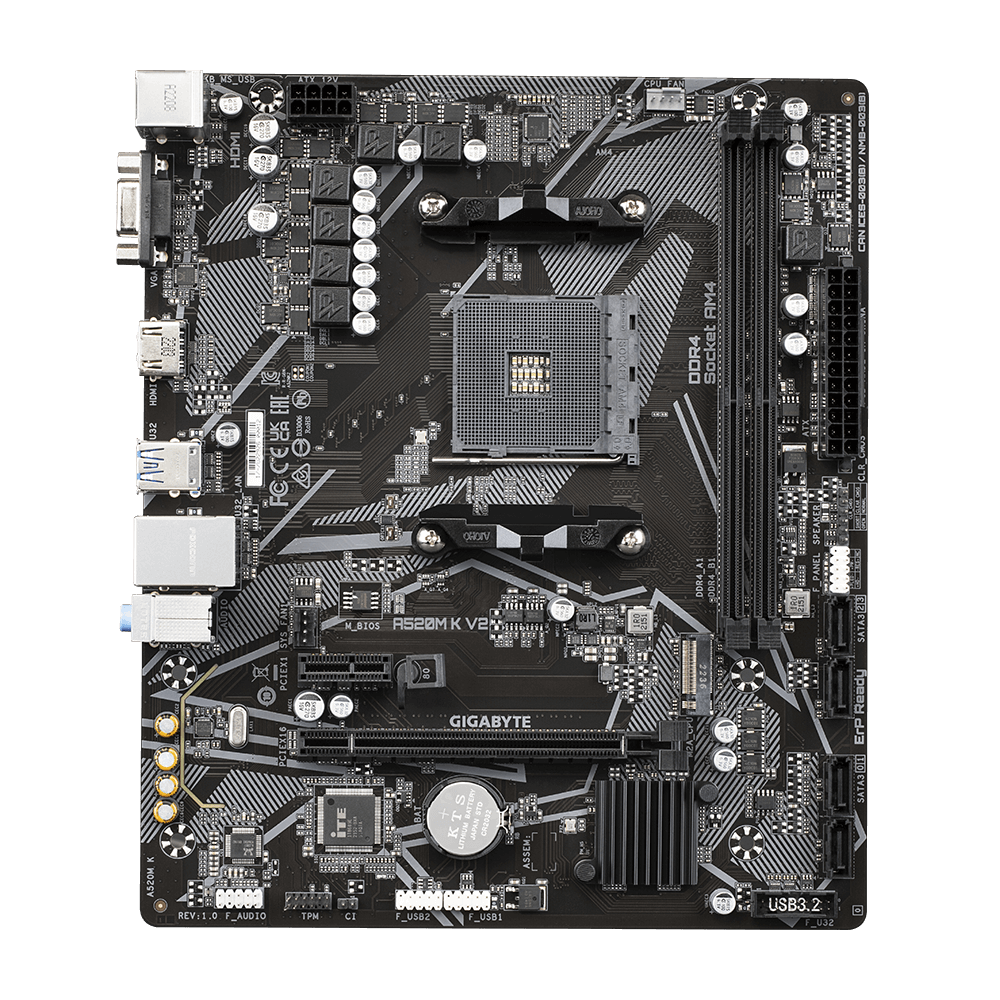

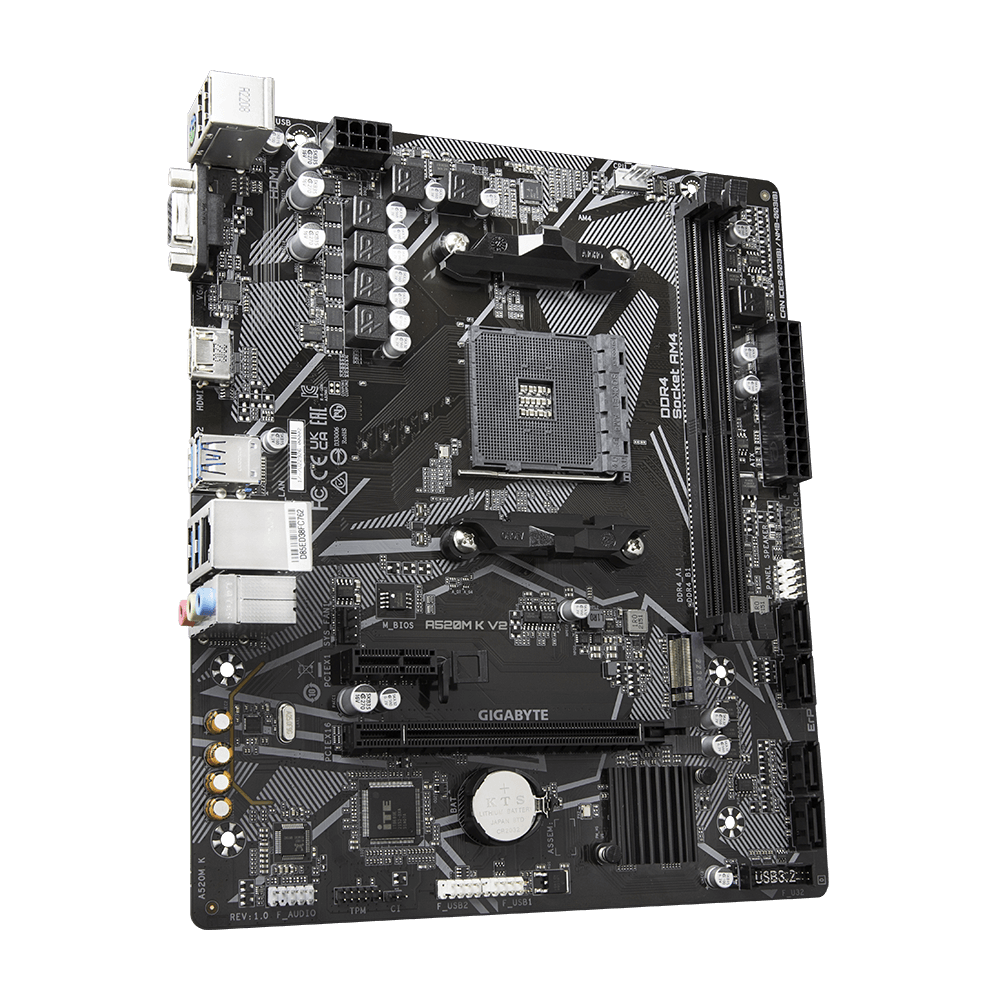

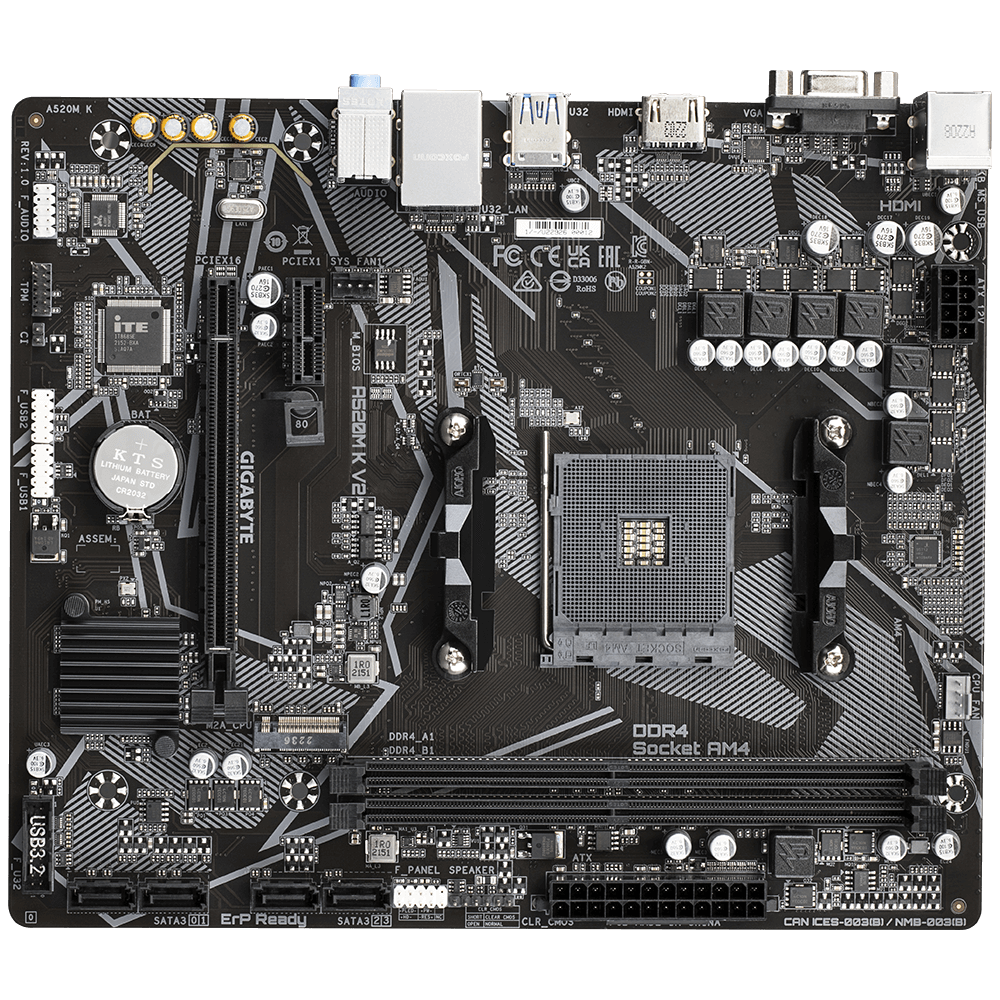

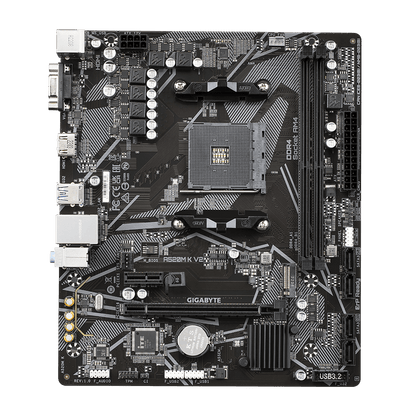

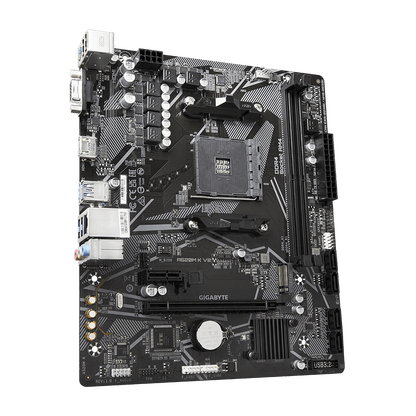

Gigabyte A520M K V2 AMD A520 Socket AM4 Micro-ATX Desktop Motherboard
Gigabyte A520M K V2 AMD A520 Socket AM4 Micro-ATX Desktop Motherboard
Regular price
R 1,349.00
Regular price
Sale price
R 1,349.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | A520 Motherboard Series |
| Model | GA-A520M-K V2 |
| CPU | AMD Socket AM4, support for: AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 and Ryzen 3000 G-Series Processors |
| Chipset | AMD A520 |
| Memory | |
| Memory Support | 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) |
| Memory Speed | DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz |
| Memory Architecture | Dual channel |
| ECC Support | ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode) |
| Non-ECC Support | Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| XMP Support | Yes |
| Onboard Graphics | |
| Ports | 1x D-Sub Port (Max resolution 1920x1200@60 Hz) |
| 1x HDMI Port (Max resolution 4096x2160@60 Hz, HDMI 2.1, HDCP 2.3, HDR) | |
| Maximum Shared Memory | 16 GB |
| Audio | |
| Audio Codec | Realtek Audio CODEC |
| Audio Channels | 2/4/5.1/7.1-channel |
| LAN | |
| LAN Chip | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Expansion Slots | |
| CPU | 1 x PCIe 3.0 x16 Slot |
| Chipset | 1 x PCIe 3.0 x1 Slot |
| Storage Interface | |
| M.2 Connectors | 1 x M.2 (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) |
| SATA Connectors | 4 x SATA 6Gb/s |
| RAID Support | RAID 0, RAID 1, and RAID 10 |
| General | |
| USB | 4 x USB 3.2 Gen 1 ports on the back panel |
| 2 x USB 3.2 Gen 1 ports available through the internal USB header | |
| 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x system fan header | |
| 1 x M.2 Socket 3 connector | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| 1 x speaker header | |
| 1 x Clear CMOS jumper | |
| 1 x chassis intrusion header | |

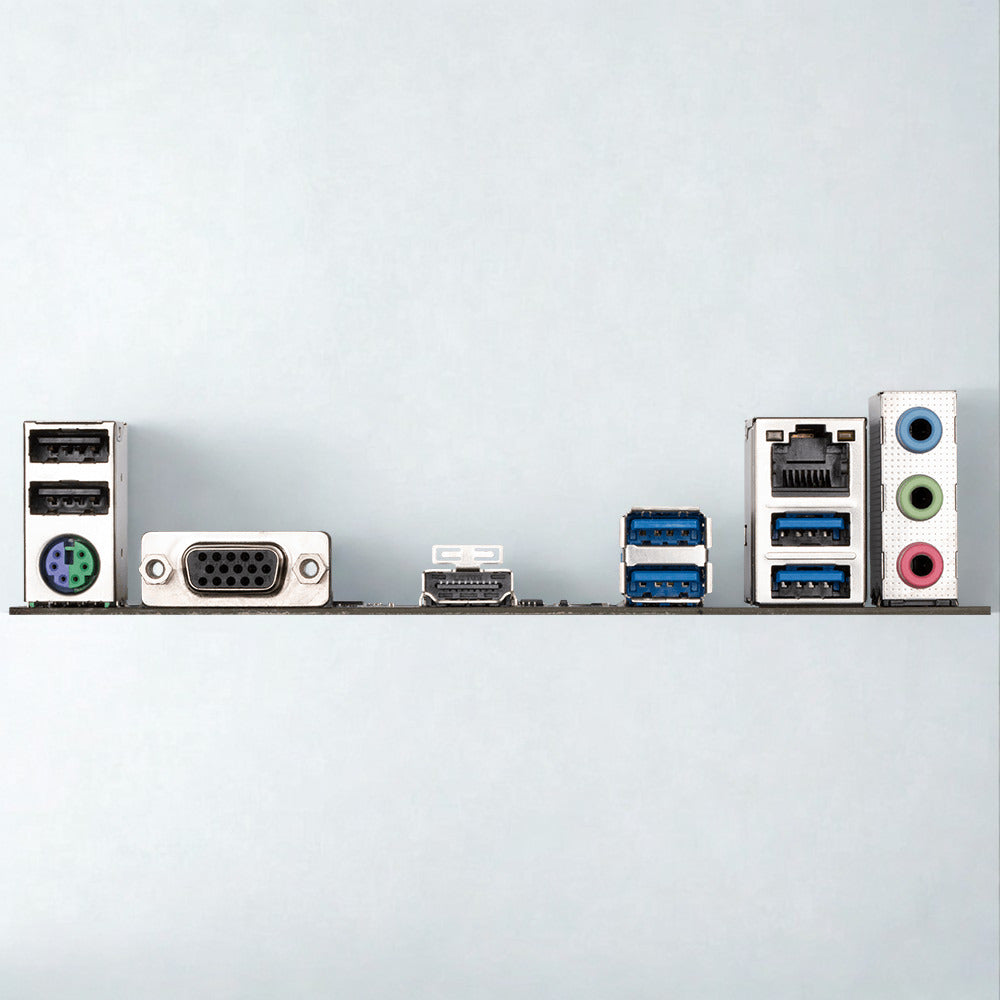

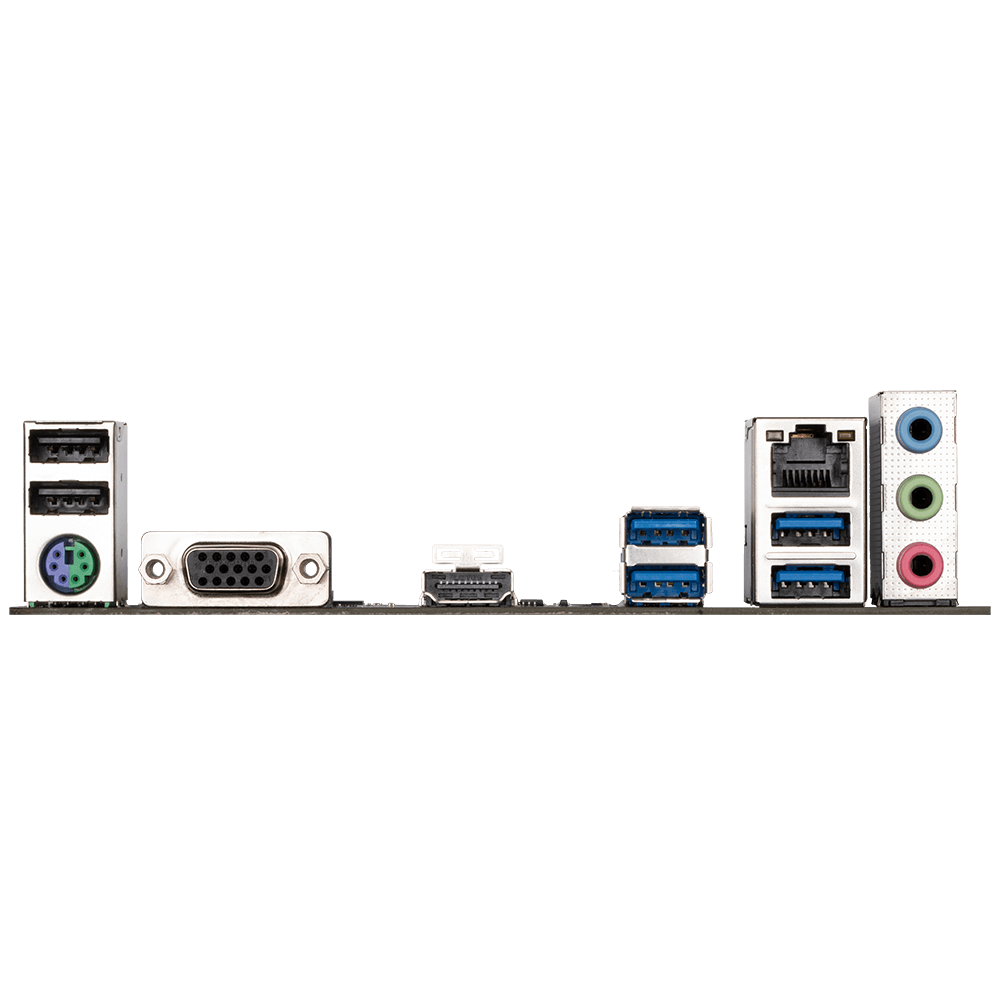

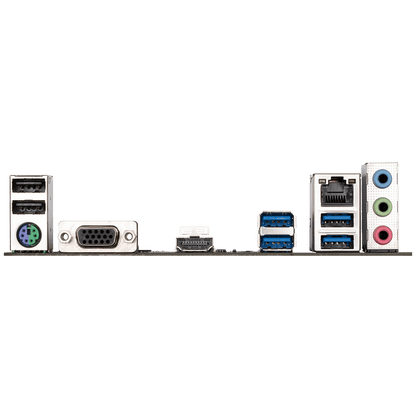

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port |
| 1 x D-Sub port | |
| 1 x HDMI port | |
| 4 x USB 3.2 Gen 1 ports | |
| 2 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Fan fail warning | |
| Fan speed control | |
| BIOS | 1 x 128 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor |
| 23.3cm x 19.8cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
