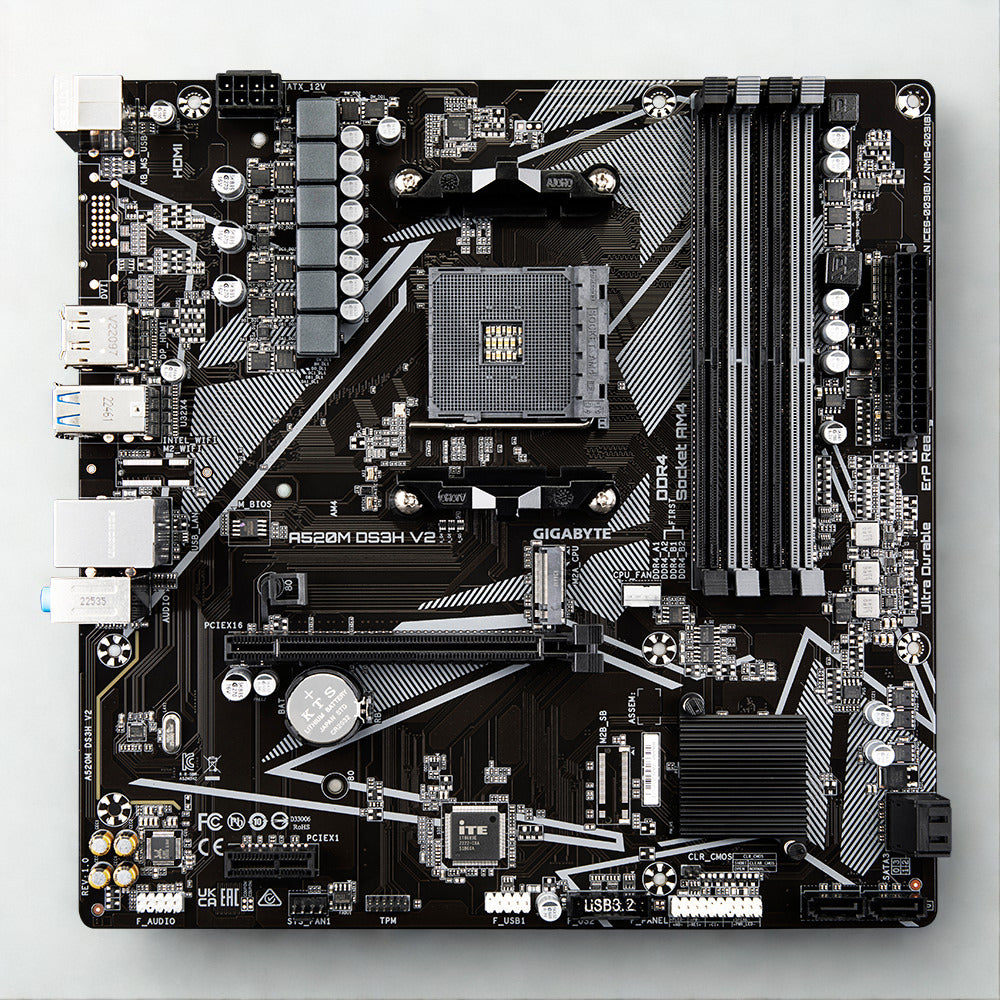

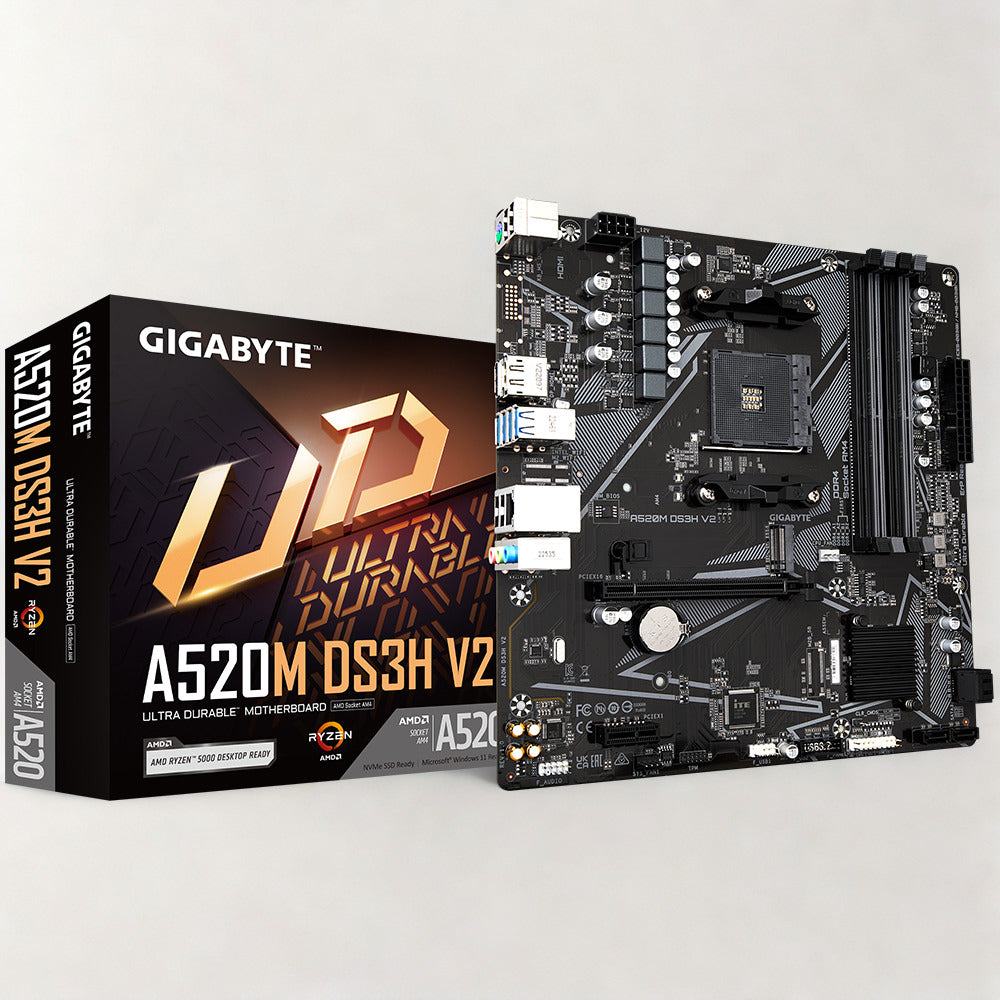

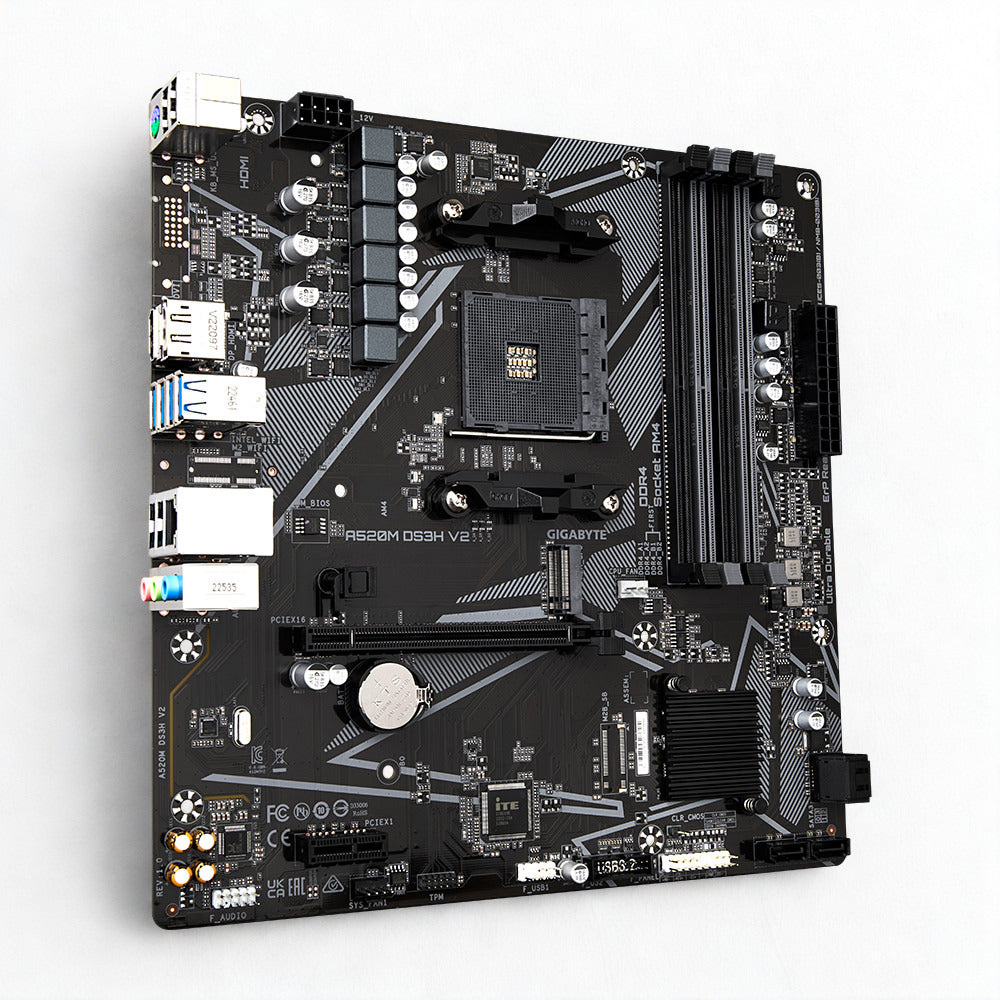

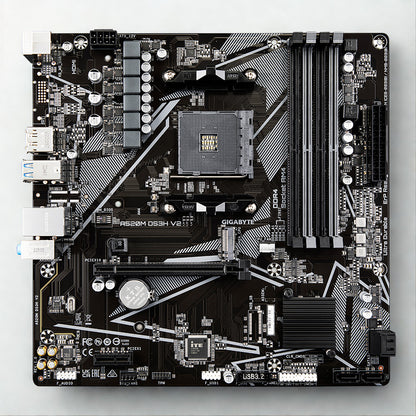

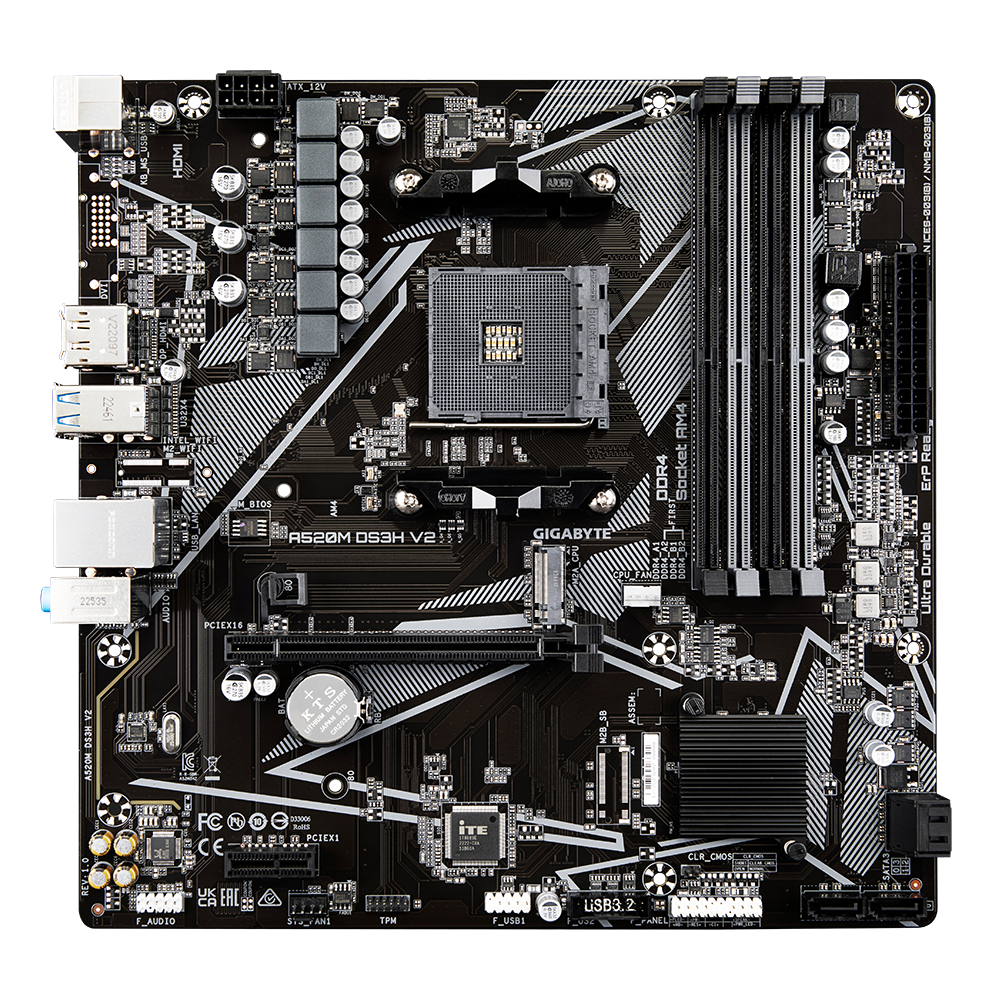

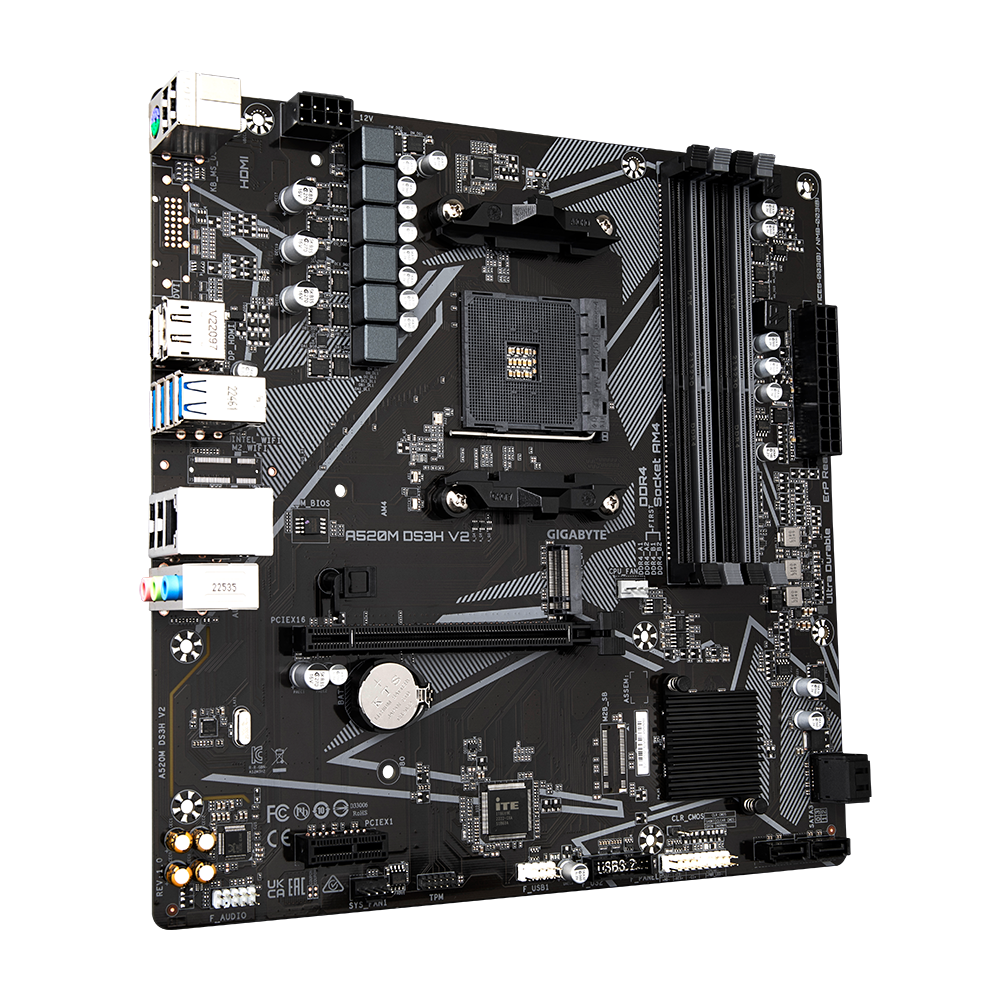

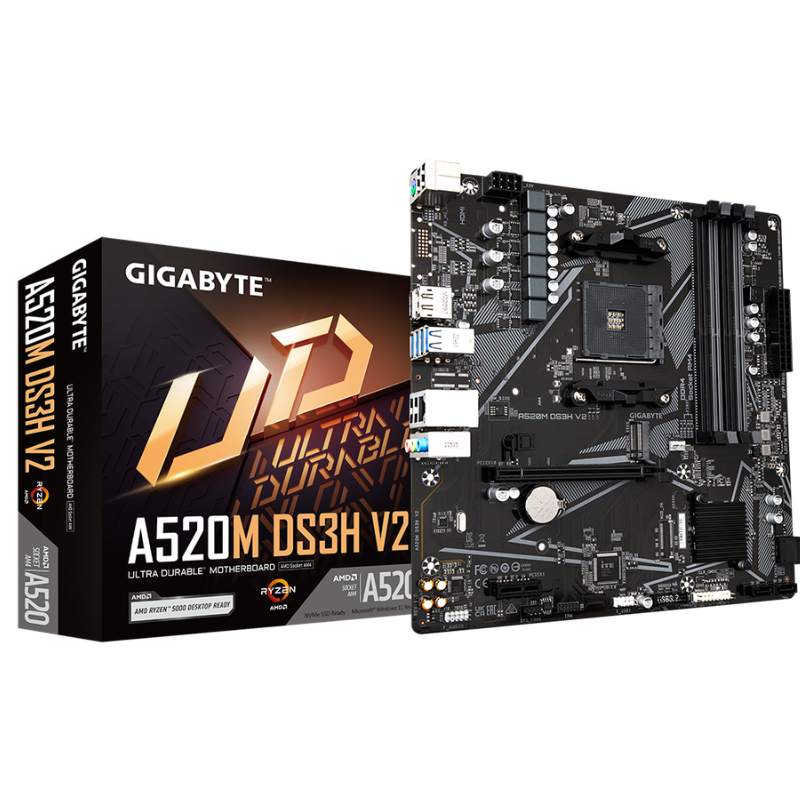

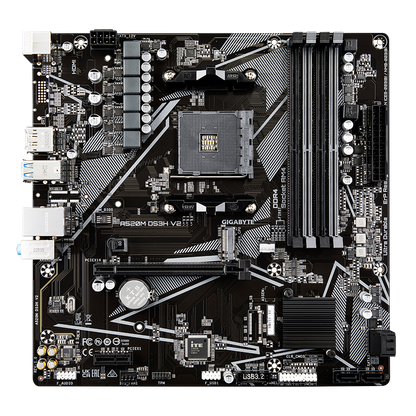

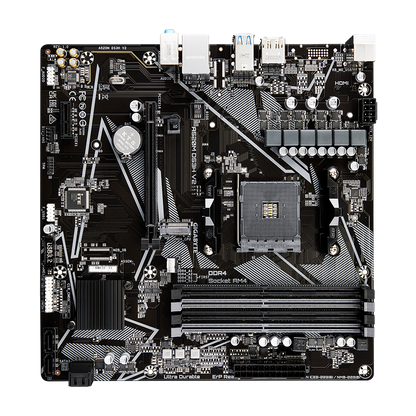

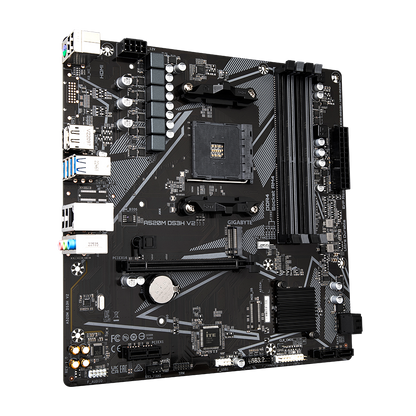

Gigabyte A520M DS3H V2 AMD A520 Ryzen Socket AM4 Micro-ATX Desktop Motherboard
Gigabyte A520M DS3H V2 AMD A520 Ryzen Socket AM4 Micro-ATX Desktop Motherboard
Regular price
R 1,799.00
Regular price
Sale price
R 1,799.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | DS3H Motherboard Series |
| Model | A520M-DS3H-V2 Rev 1.0 / 1.1 |
| CPU Support | Supports Ryzen 5000 / 5000G-Series Processors |
| Supports Ryzen 4000G / 3000-Series Processors | |
| Chipset | AMD A520 |
| Memory Support | |
| AMD Ryzen 7000 Series | 4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Video | |
| DisplayPort | 1x DisplayPort, supporting a maximum resolution of 5120×2880 @ 60Hz, Support for DisplayPort 1.4 version, HDCP 2.3, and HDR |
| HDMI | 1x HDMI port, supporting a maximum resolution of 4096×2160 @ 60Hz, Support for HDMI 2.1 version, HDCP 2.3, and HDR |
| Integrated AMD graphics Required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 3.0 x16 Physical, x16 Electrical Slot |
| AMD A520 Chipset | 1x PCIe 3.0 x1 Physical, x1 Electrical Slot |
| Storage | |
| CPU Direct | 1x M.2 connector, supporting Socket 3, M key, type 2280 SSDs, Supporting SATA and PCIe 3.0 x4/x2 SSDs |
| AMD A520 Chipset | 4x SATA3 6.0 Gb/s Connectors |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| Networking | |
| LAN | Realtek Gigabit LAN Port 10/100/1000Mbps |
| Supports Realtek LAN bandwidth management software | |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek High Definition Audio |
| 2/4/5.1/7.1-channel support with front-panel jack retasking | |
| Connectivity | |

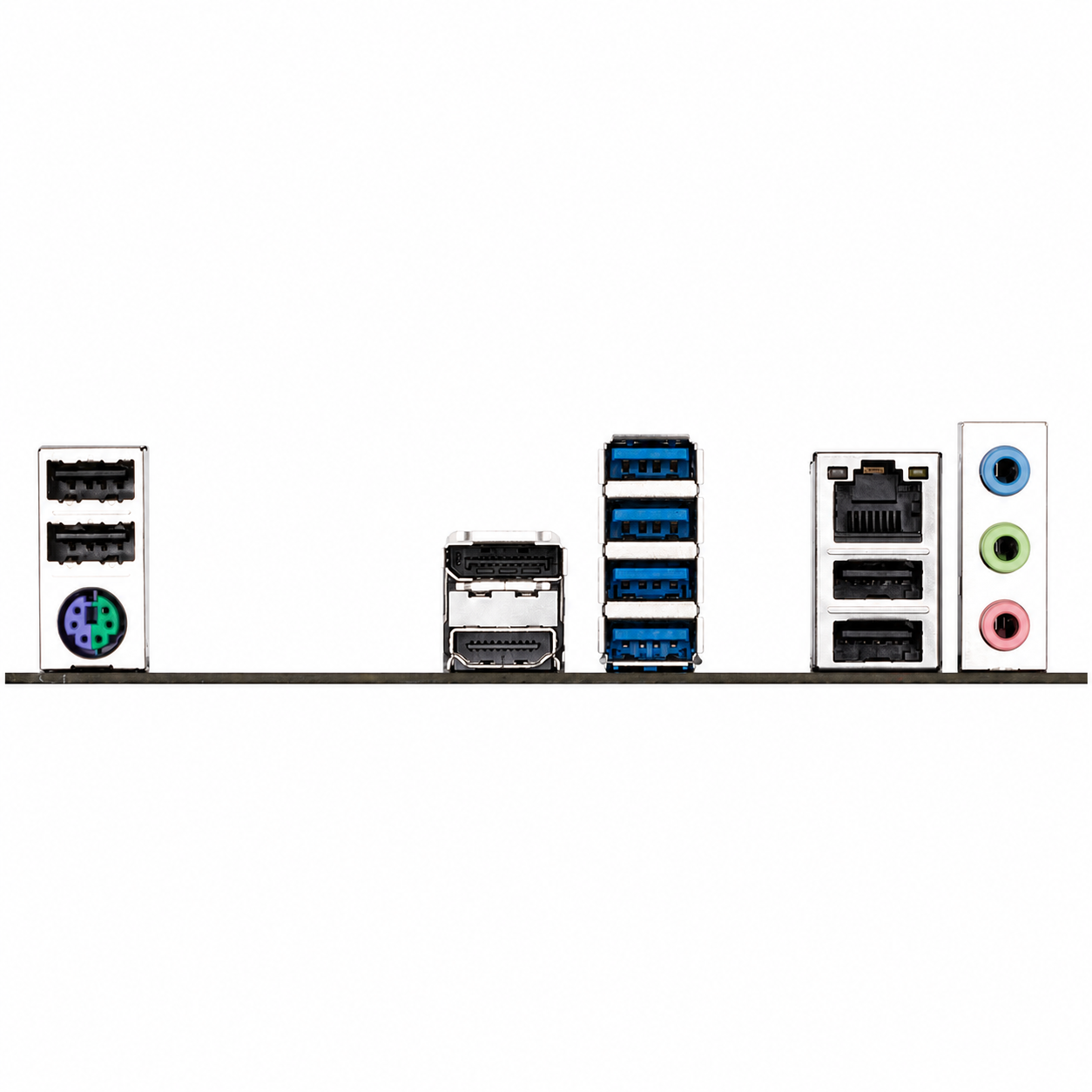

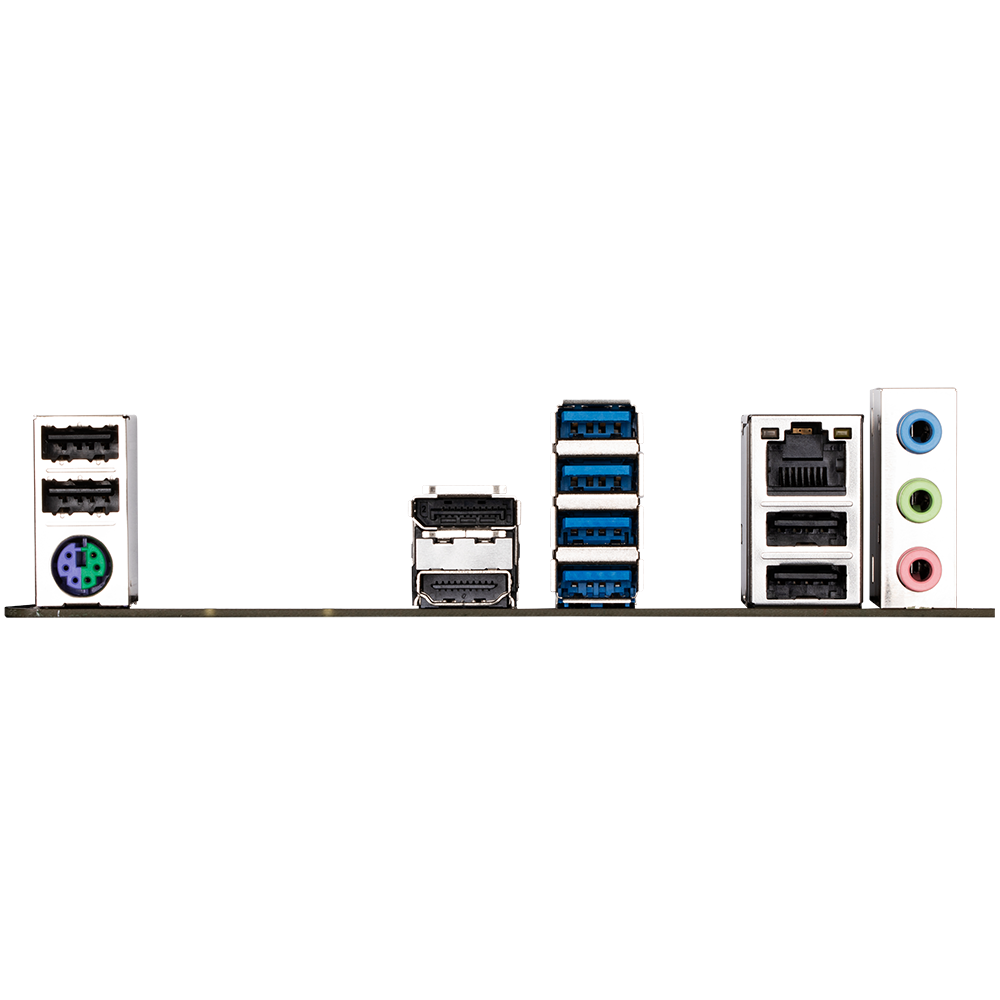

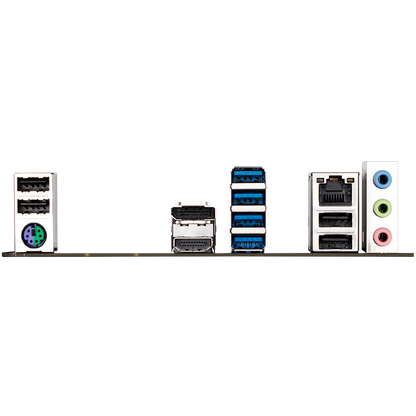

| Ports | 4x USB 5Gb/s Type-A Ports |
| 2x USB 2.0 Type-A Ports | |
| 1x HDMI 2.1 Port | |
| 1x DisplayPort 1.4 Port | |
| 1x PS/2 Combo Port | |
| 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone) | |
| Buttons | N/A |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 1x system fan header | |
| 1x M.2 Socket 3 connector | |
| 4x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x USB 3.2 Gen 1 header | |
| 1x USB 2.0/1.1 header | |
| 1x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) | |
| 1x Clear CMOS jumper | |
| LED Displays | N/A |
| I/O Controller | iTE I/O Controller Chip |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro-ATX Form Factor, 244 x 244 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
