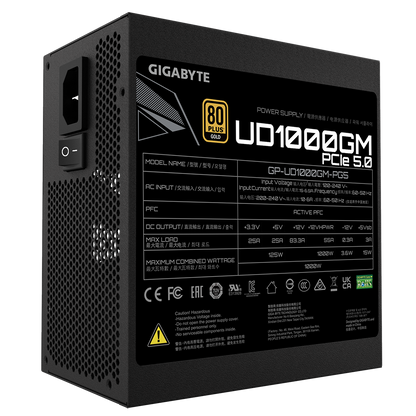

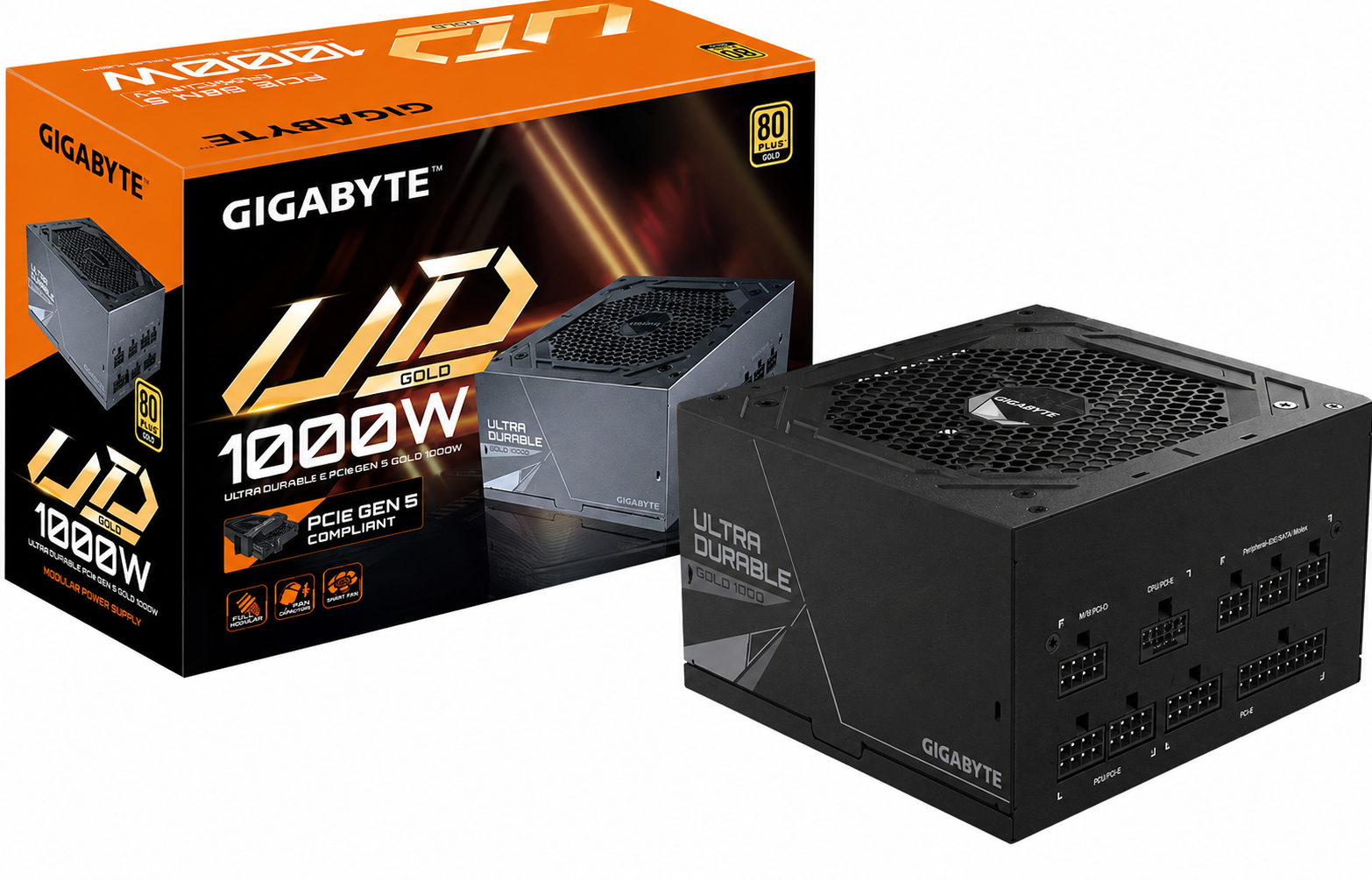

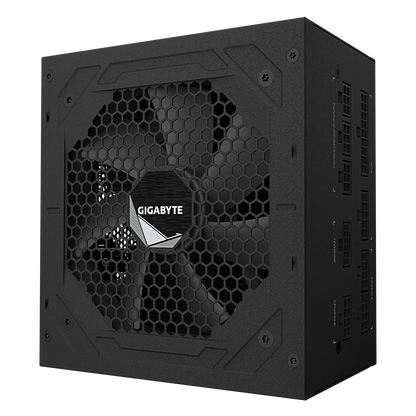

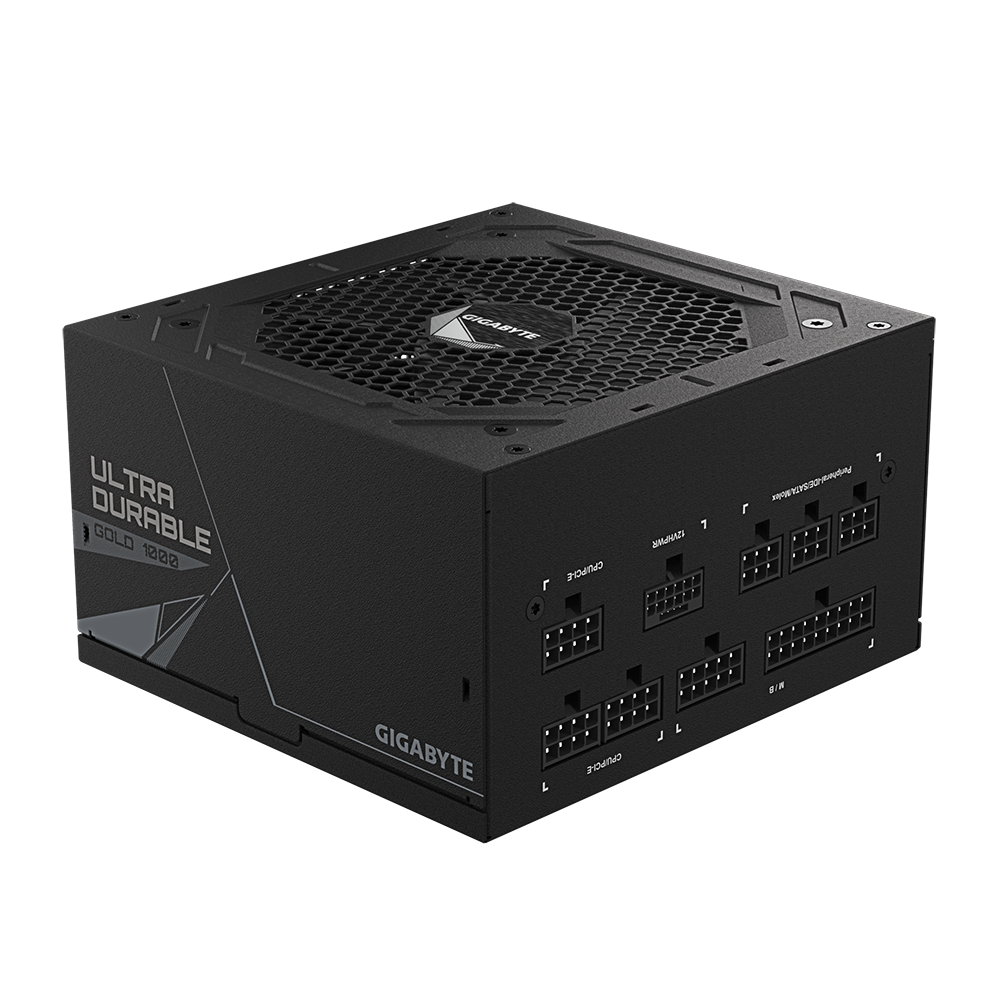

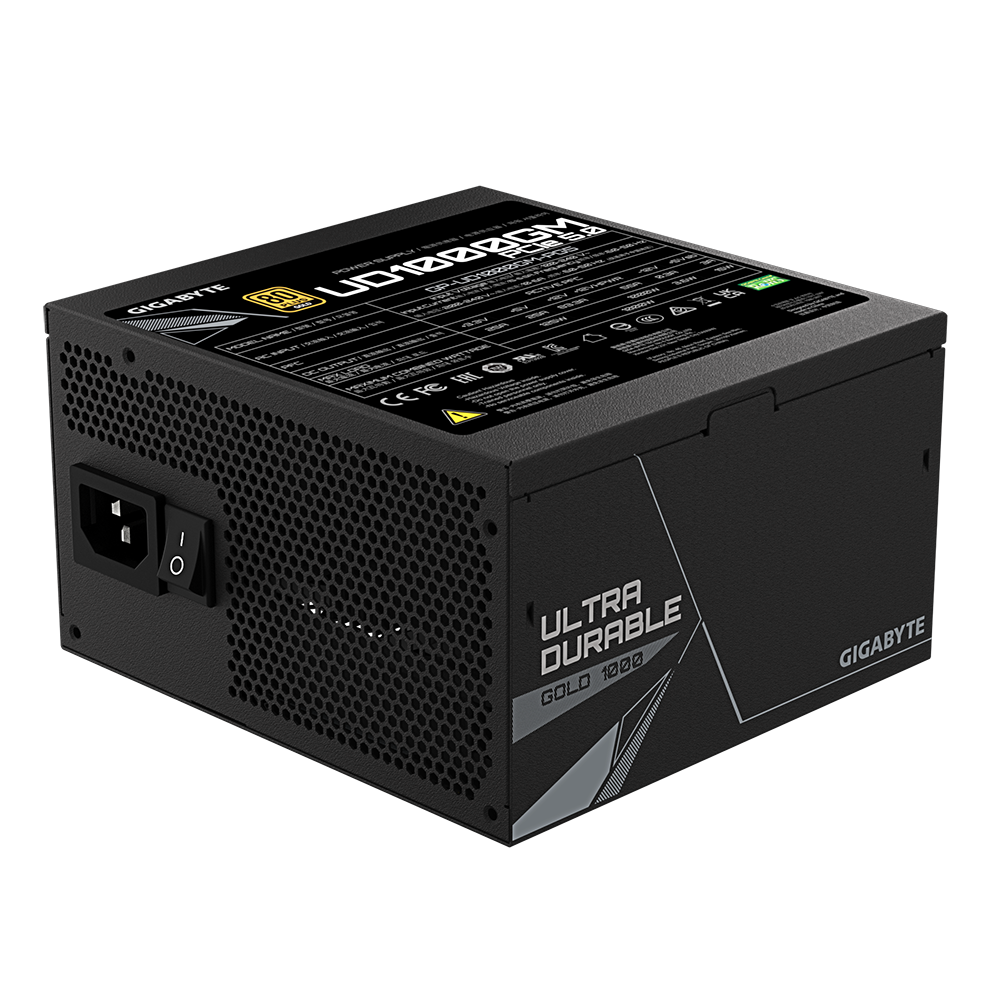

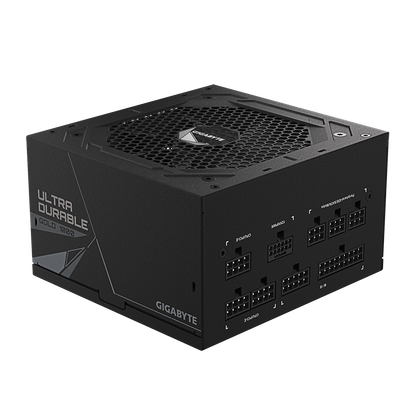

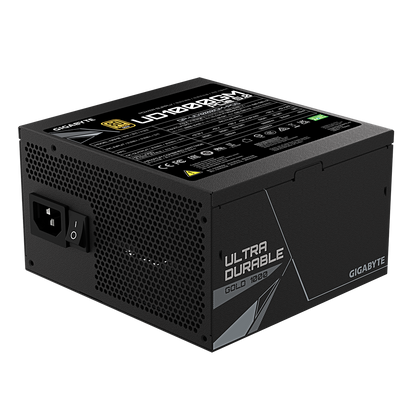

Gigabyte 1000W PCIe 5.0 12VHPWR 80 Plus Gold Fully Modular Black ATX Desktop Power Supply
Gigabyte 1000W PCIe 5.0 12VHPWR 80 Plus Gold Fully Modular Black ATX Desktop Power Supply
Regular price
R 3,999.00
Regular price
Sale price
R 3,999.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
We accept
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | UD (Ultra Durable) PCIe 5.0 Power Supply Unit Series |
| Model | GP-UD1000GM PG5 |
| Type | ATX |
| Maximum Power | 1000W |

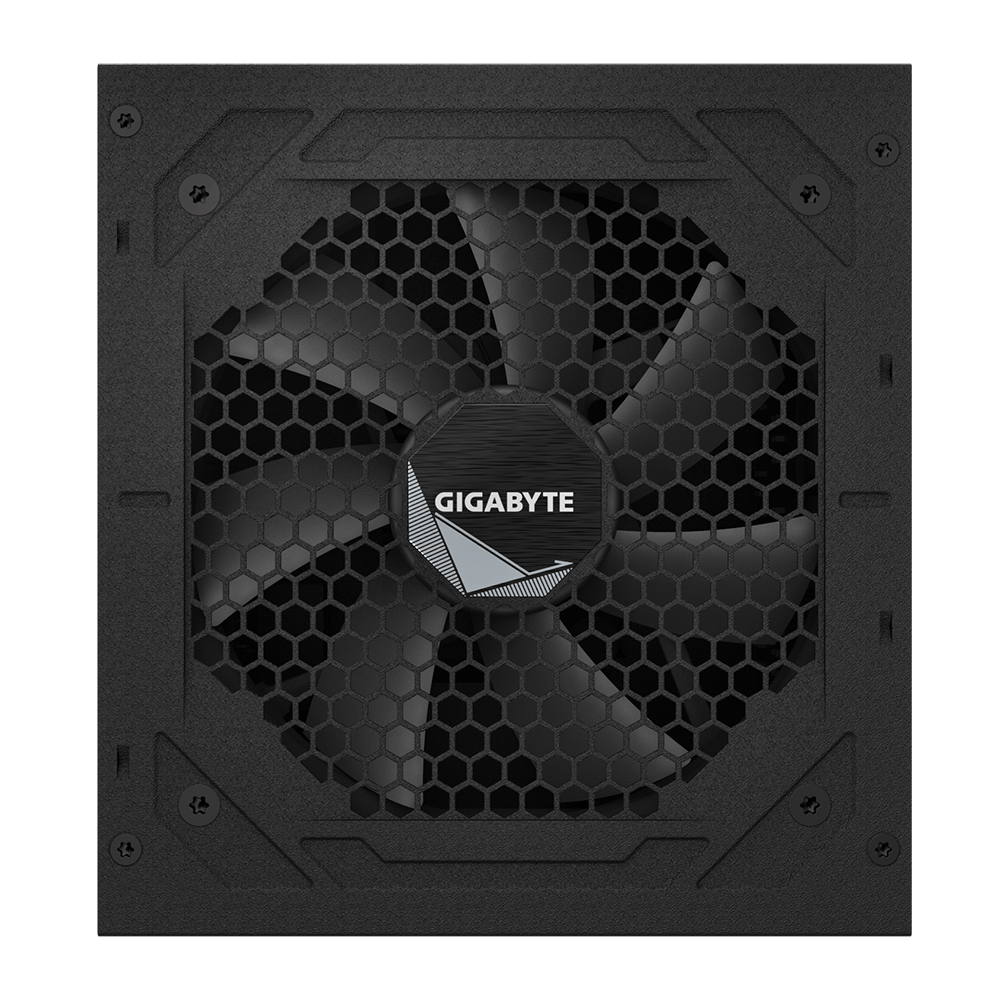

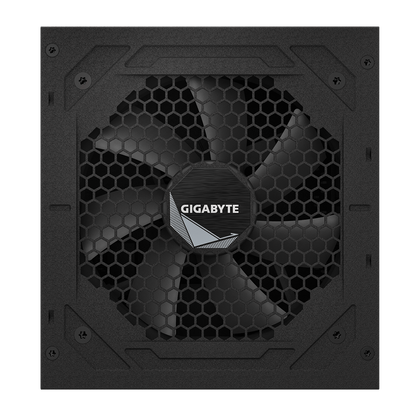

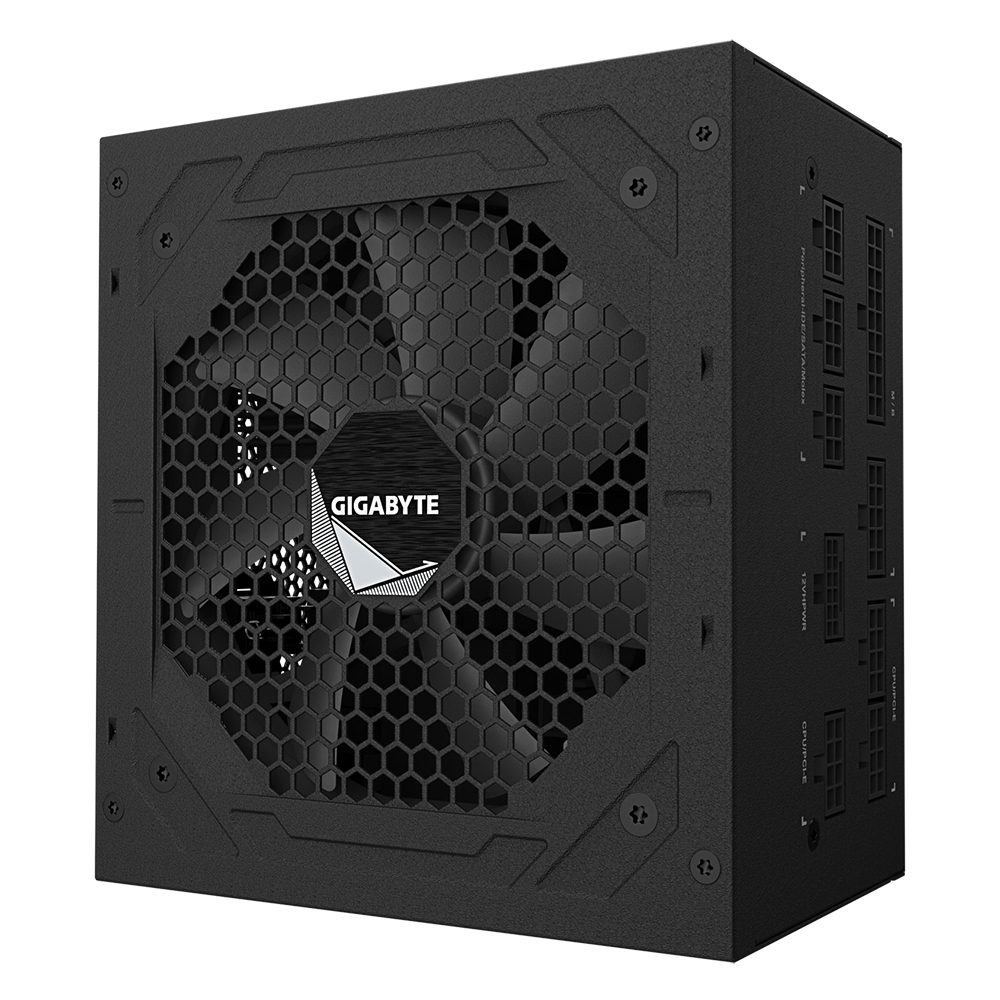

| Fan Size | 120mm |
| Fan Type | Hydraulic Fluid Bearing |
| Performance | |
| Hold Up Time | >16ms |
| Power Good Signal | 100-150ms |
| Protections | OVP, OPP, SCP, UVP, OCP, OTP |
| PFC | Active, >0.9 Typical |
| Efficiency | 80 Plus Gold, 90% Efficiency At Typical Load |
| Ratings | 80 Plus Gold Certified |
| Cybenetics Platinum Efficiency Rating (22PS2008A) | |
| Cybenetics Standard Plus Noise Rating | |
| MTBF | >100,000 Hours |

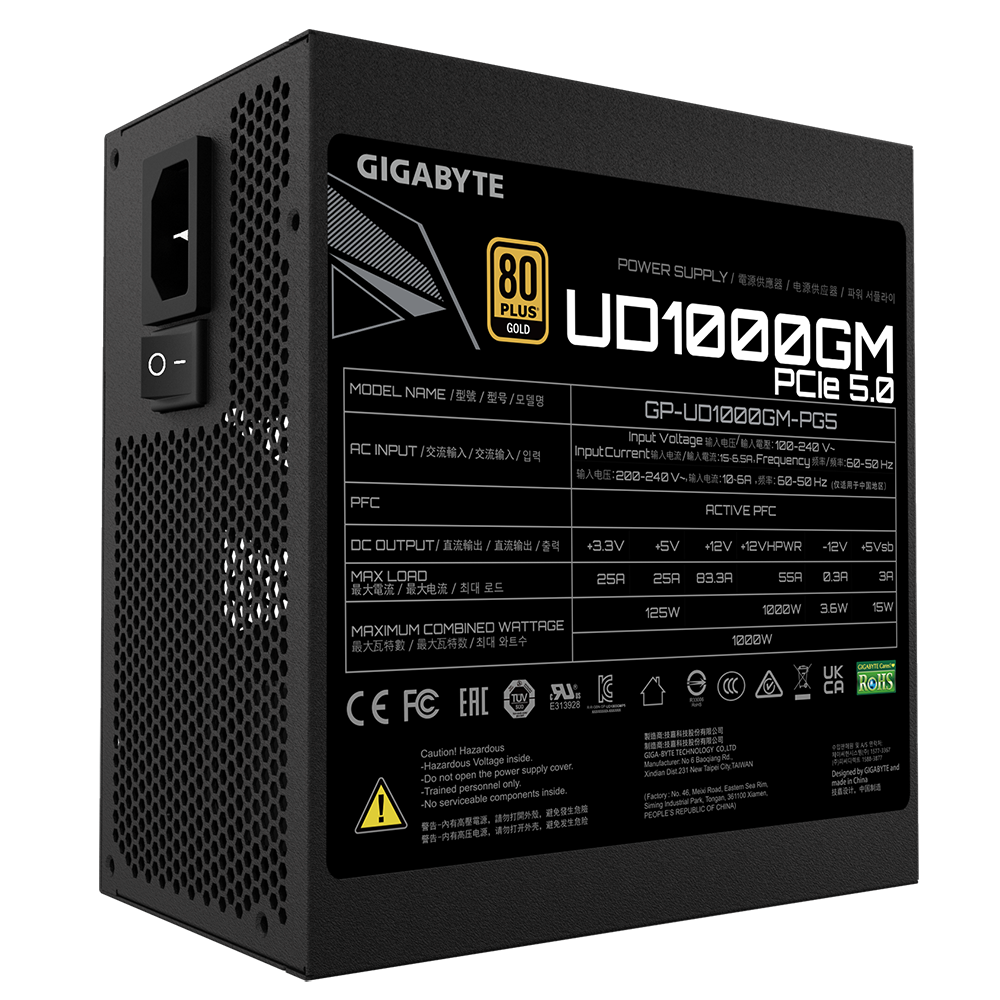

| Power Outputs | |
| 3.3V | 25A Maximum (125W Shared) |
| 5.0V | 25A Maximum (125W Shared) |
| 12V | 83.3A Maximum (1000W Shared) |
| 12VHPWR | 55A Maximum (1000W Shared) |
| -12V | 0.3A (3.6W) |
| 5Vsb | 3.0A (15W) |
| Total Power Output | 1000W |

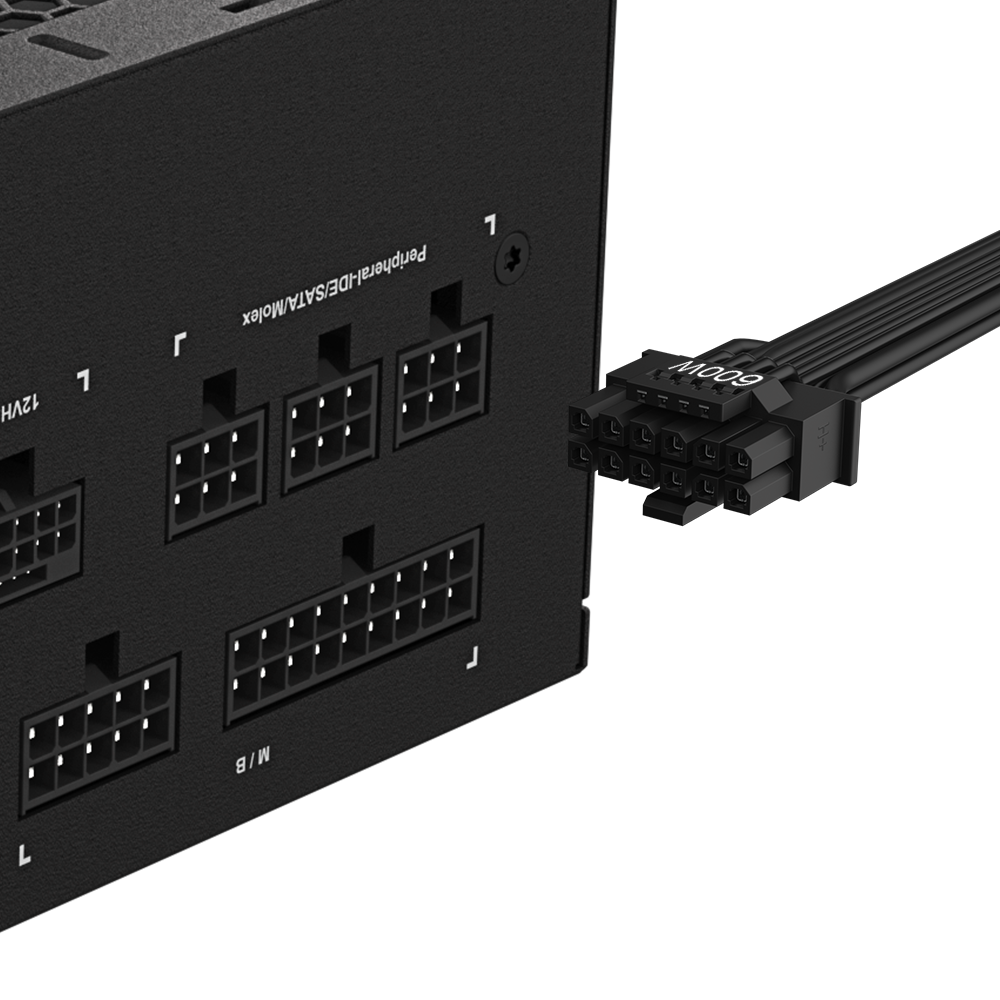

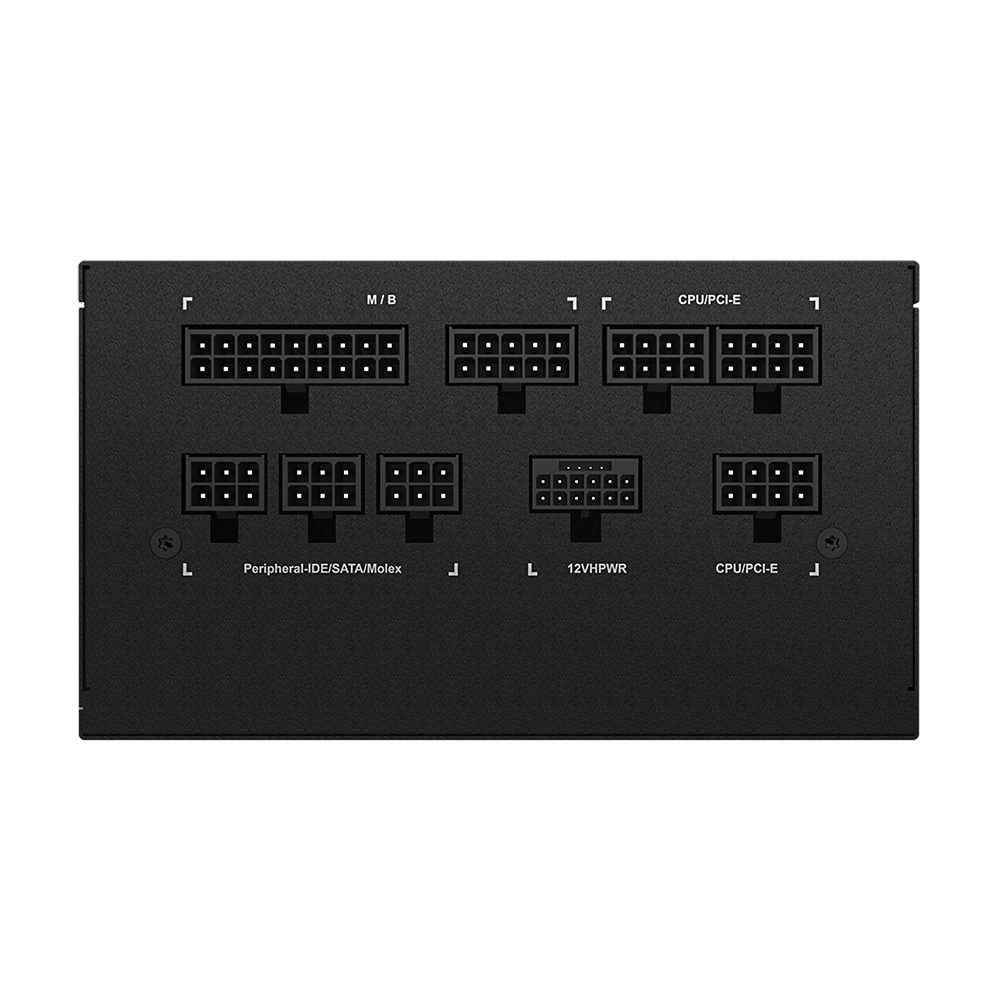

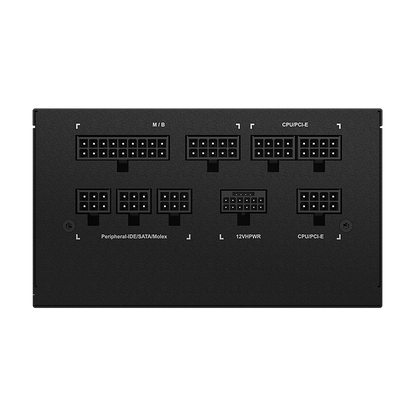

| Connectors | |
| ATX 24-Pin | 1x Single-head 610mm Flat cable |
| EPS 12V 8-Pin | 1x Twin-head 800mm (600mm, 200mm) EPS 8-Pin Flat cable |

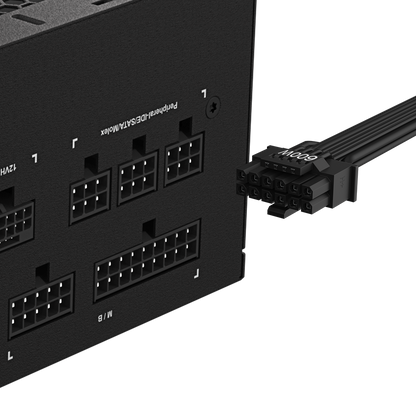

| 12VHPWR | 1x Single-head 700mm 12VHPWR Flat cable |
| 8-Pin PCIe | 2x Twin-head 750mm (600mm, 150mm) PCI PEG Flat cables |
| SATA | 2x Four-head 1050mm (600mm, 150mm x3) SATA Flat cables |
| Peripheral (Molex, Floppy) | 1x Four-head 890mm (500mm, 120mm x2, 150mm) Molex 4-Pin Peripheral Flat Cable |
| General | |
| Dimensions | 150 x 140 x 86mm (L x W x H) |
| Weight | 1.61kg |
| Warranty Information | |
| Warranty | 10 Year Warranty |
