Cougar GR 850 - 850W 80 PLUS Gold Fully Modular ATX 3.1 Power Supply

COUGAR GR 850 - 850W 80 PLUS GOLD FULLY MODULAR ATX 3.1 POWER SUPPLY
Model: CGR GDN-850 Product Number (P/N): 31GR085001P01

DESCRIPTION
The COUGAR GR 850 is a high-performance, fully modular ATX 3.1 power supply designed for demanding gaming PCs and workstations. With native PCIe 12V-2X6 support, silent 120mm rifle-bearing cooling, and stable operation at up to 40 C, it delivers reliable, efficient power to next-generation GPUs and multi-core CPUs.

FEATURES
• ATX 3.1 compliant with native PCIe 12V-2X6 (12+4-pin) connector
• Supports PCI Express 5.1 graphics cards with 200% dynamic power excursion
• 80 PLUS Gold certified for up to 91% energy efficiency
• Fully modular embossed black cables for clean builds and improved airflow
• 120mm rifle-bearing fan with grooved blade design for quiet operation
• High-quality 105 C Japanese main capacitor for long-term durability
• Tight 5% voltage regulation via LLC, DC-DC, and Tri-Sense design
• Reliable performance at ambient temperatures up to 40 C
• Full protection suite for system safety

SPECIFICATIONS
• Brand: COUGAR
• Series: GR
• Model Name: CGR GDN-850
• Wattage: 850W
• Form Factor: ATX
• ATX Standard: ATX 3.1
• Efficiency: 80 PLUS Gold (up to 91%)
• AC Input: 100-240V, 50-60Hz, 10A Max

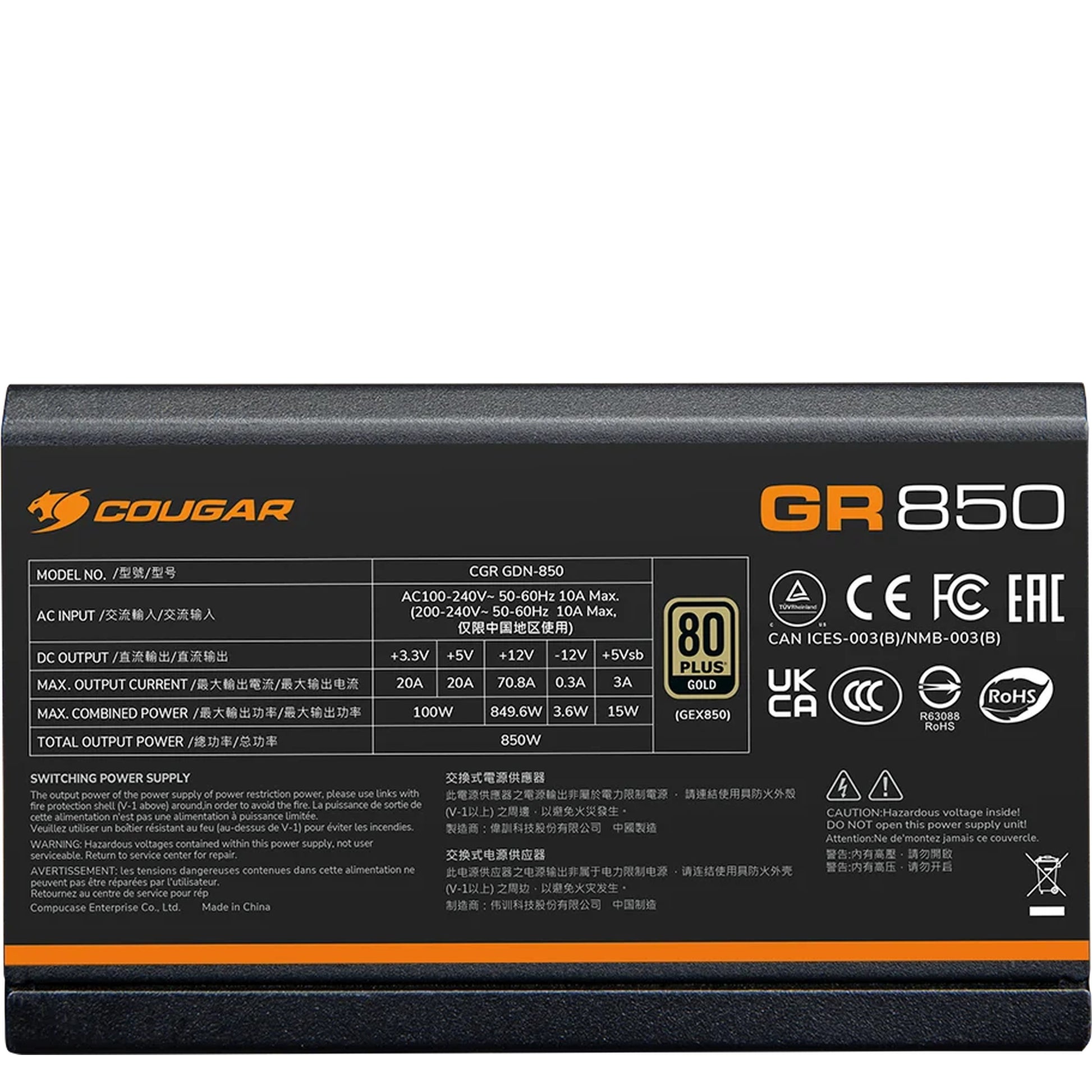

DC Output:

• +3.3V: 20A
• +5V: 20A
• +12V: 70.8A
• -12V: 0.3A
• +5Vsb: 3A

Maximum Combined Power:

• +3.3V & +5V: 100W
• +12V: 849.6W
• -12V: 3.6W
• +5Vsb: 15W
• Total Output: 850W

Cooling:

• 120mm rifle-bearing fan

Capacitors:

• 105 C Japanese main capacitor

Voltage Regulation:

• 5%

Operating Temperature:

• Up to 40 C

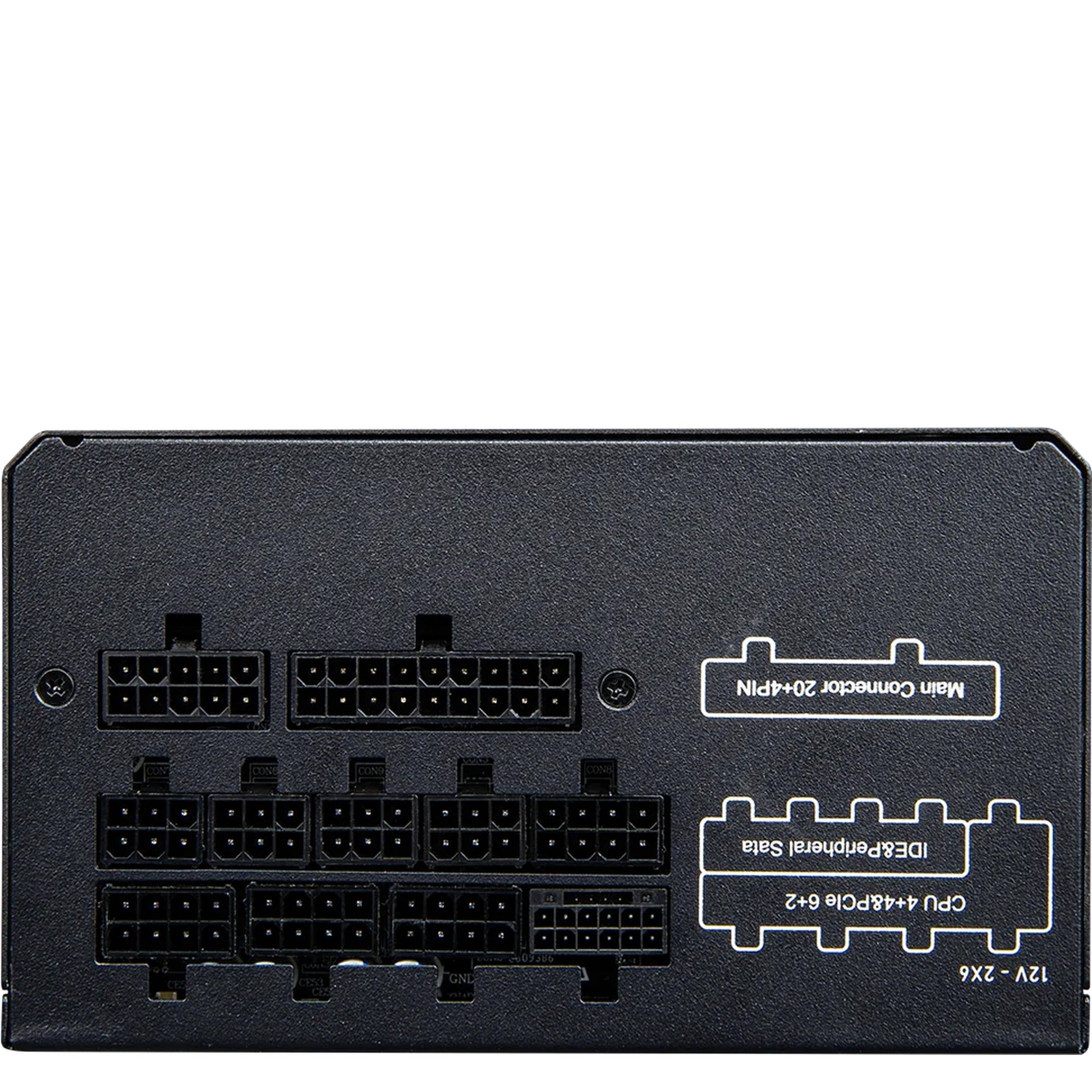

Connectors:

• 24-pin (20+4) Main Power: 1
• CPU 8-pin (4+4): 2
• Peripheral (Molex): 2
• SATA: 6
• PCIe 12V-2X6 (12+4-pin): 1
• PCIe 8-pin (6+2): 3

PROTECTION FEATURES
• UVP - Under Voltage Protection
• OVP - Over Voltage Protection
• OCP - Over Current Protection
• SCP - Short Circuit Protection
• OTP - Over Temperature Protection
• OPP - Over Power Protection

PACKAGING DETAILS
• Product Weight (Without Packaging): 2.4 kg
• Individual Packaging Weight: 2.75 kg
• Product Dimensions (L × W × H): 140 × 150 × 86 mm
• Packaging Dimensions (L × W × H): 305 × 210 × 105 mm
• EAN Code: 4710483779169
• UPC Code: 192554008974
• JAN Code: 4541995039331

What's in the box
• 1 x COUGAR GR 850 - 850W 80 PLUS Gold Fully Modular ATX 3.1 Power Supply

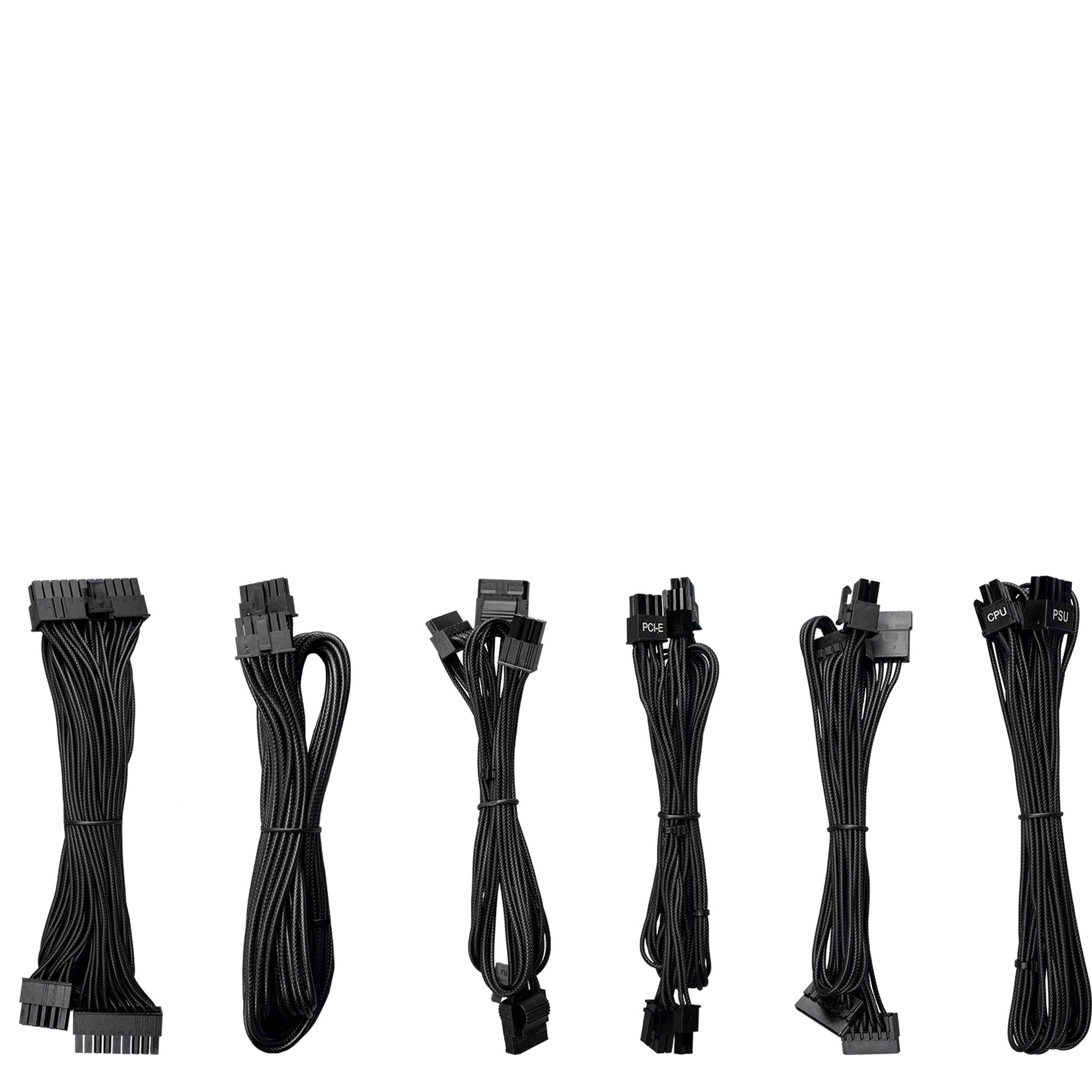

• 1 x 24-pin (20+4) Main Power Cable
• 2 x CPU 8-pin (4+4) Cables
• 2 x Peripheral (Molex) Cables
• 6 x SATA Cables
• 1 x PCIe 12V-2X6 (12+4-pin) Cable
• 3 x PCIe 8-pin (6+2) Cables
