| SPECIFICATIONS |
| Brand |
Corsair |
| Series |
3500X Series |
| Model |
3500X RS-R Black (CC-9011322-WW) |
| Physical Details |
| Colour |
Black |
| Materials |
Aluminium |
| Steel |
| Tempered Glass |
| Side Panel |

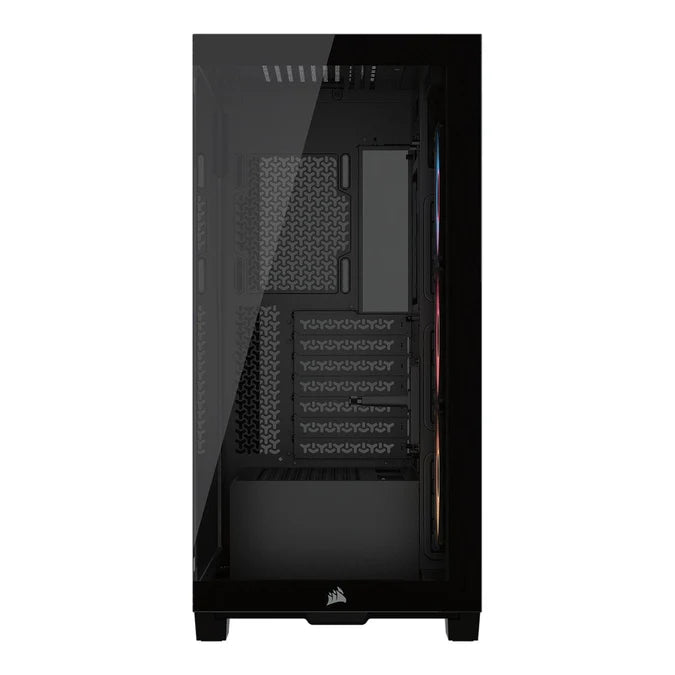

Panoramic Tempered Glass, mesh right side panel |
| Front I/O |
1x USB 20Gbps Type-C Port |
| 2x USB 5Gbps Type-A Ports |
| 1x 3.5mm Combination Audio Jack |
| Motherboard Support |
E-ATX (305 x 277mm), ATX, Micro-ATX, Mini-ITX |
| Expansion Slots |
7x Horizontal PCI Slots |
| Drive Bays |
2x 3.5" Drive Bays |
| 2x 2.5" Drive Bays |
| PSU Support |
ATX |
| Dimensions |
460 x 240 x 506mm (D x W x H) |
| Weight |
9.02kg |
| Pre-Installed Fans |
| Front |
N/A |
| Side |

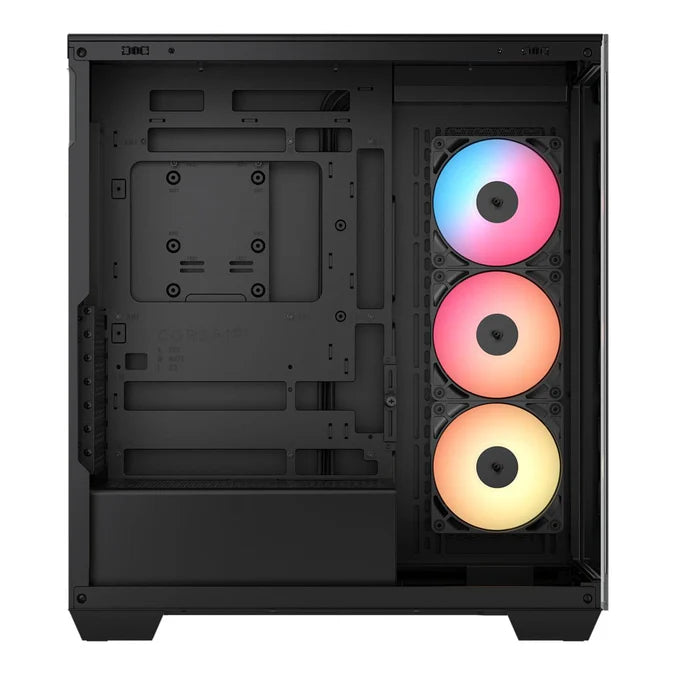

3x Pre-Installed Corsair RS-R ARGB PWM Reversed Black Fans (Intake) |
| Top |
N/A |
| Bottom |
| Rear |
N/A |
| Fan Support |
| Front |
N/A |
| Side |
3x 120mm or 2x 140mm Fans |
| Top |
3x 120mm or 2x 140mm Fans |
| Bottom |
3x 120mm or 1x 140mm Fan/s |
| Rear |
1x 120mm Fan |
| Radiator Support |
| Front |
N/A |
| Side |
240 / 280 / 360mm Support |
| Top |
240 / 280 / 360mm Support |
| Bottom |
120mm Support |
| Rear |
120mm Support |
| Clearance |
| CPU Cooler Height Limitation |
Up to 170mm |
| GPU Length Limitation |
Up to 410mm |
| PSU Length Limitation |
Up to 180mm (Including cables) |
| Cable Management |
Yes, Corsair RapidRoute Cable Management with 38mm clearance |
| General |
| Dust Filters |
Side, bottom, top dust filters |
| Chassis Lighting |
Pre-installed Corsair RS-R fans support 3-pin 5V ARGB headers with 4-Pin PWM power. |
| Includes PWM and ARGB splitter cable for motherboard control, supports all major vendors |
| Warranty Information |
| Warranty |
2 Year Warranty |
