| SPECIFICATIONS |
| Brand |
Cooler Master |
| Series |
MasterBox Series |
| Model |

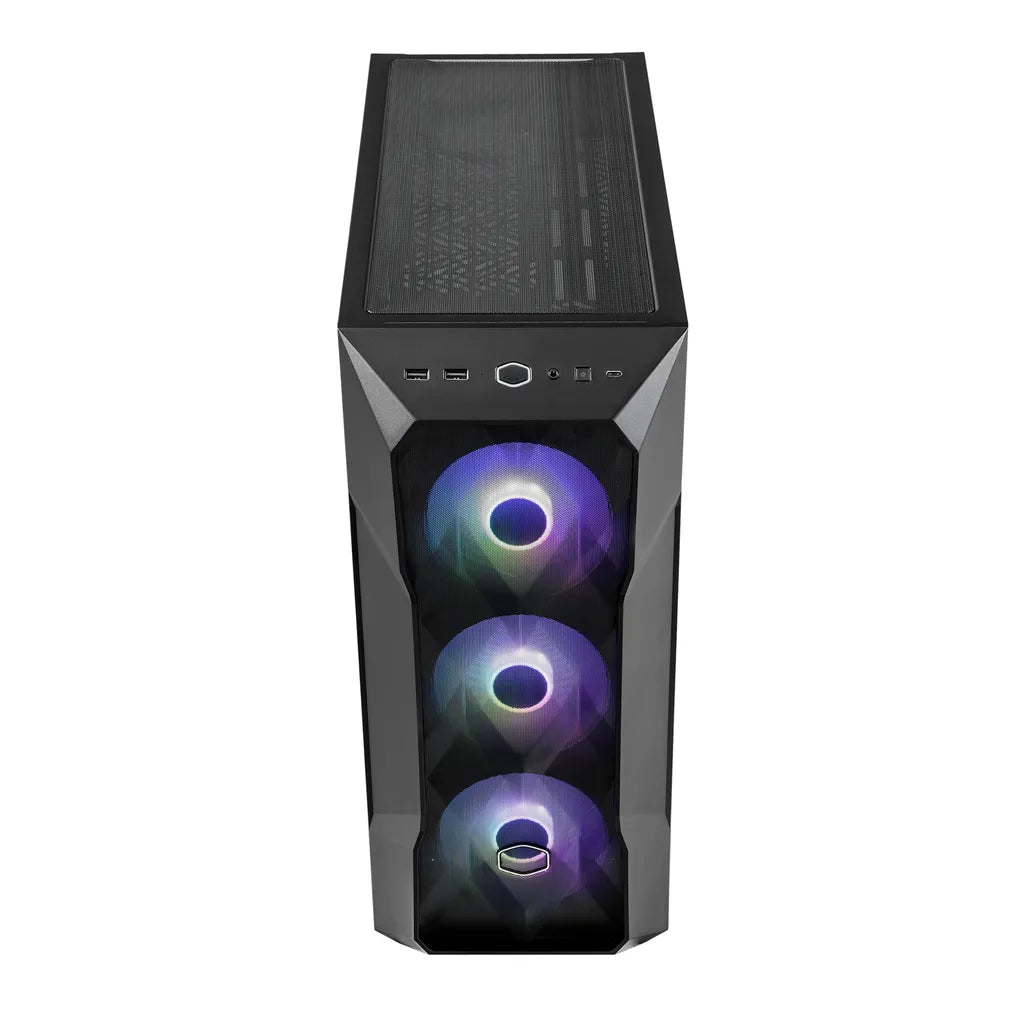

MasterBox TD500 V2 (TD500V2-KGNN-S00) |
| Physical Details |
| Colour |
Black |
| Materials |
Steel |
| Plastic |
| Tempered Glass |

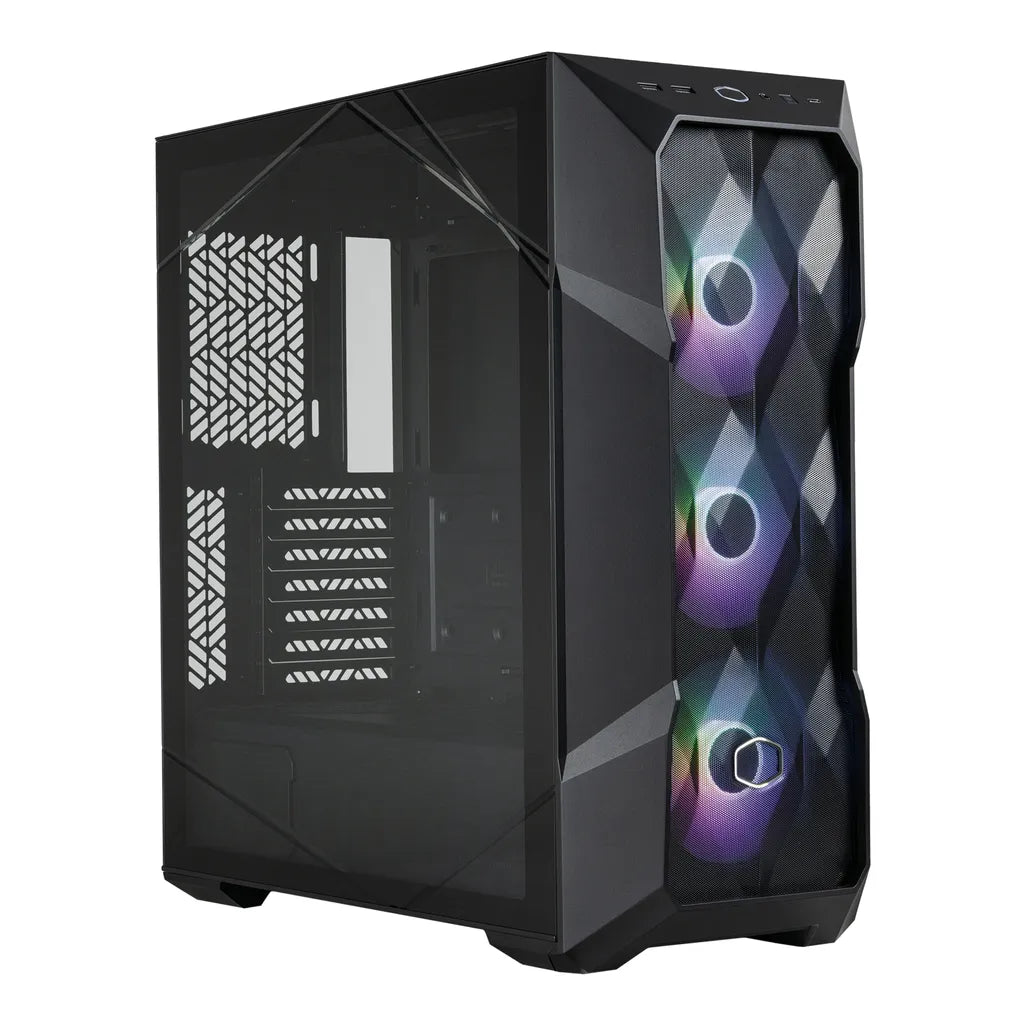

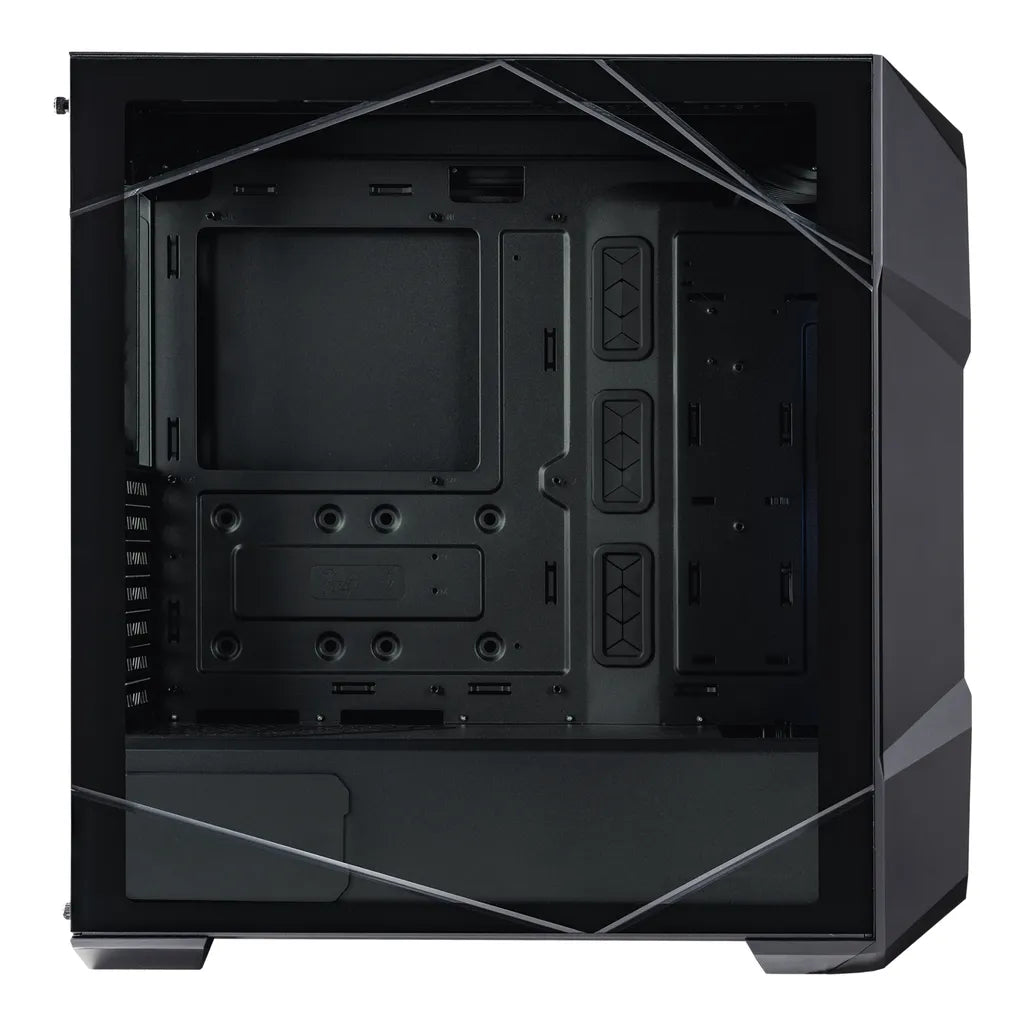

| Side Panel |
Clear Tempered Glass Side Panel |

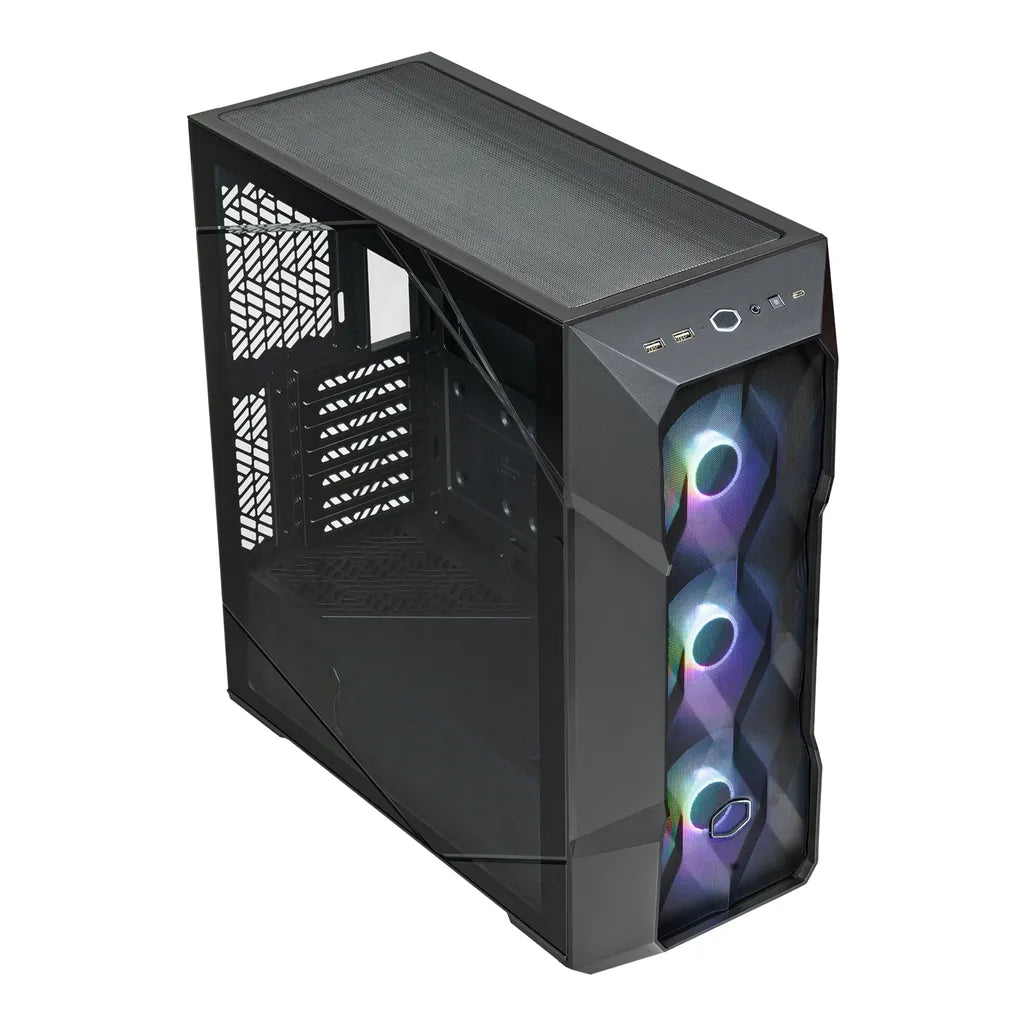

| Front I/O |
1x Front-Panel USB 10Gb/s Type-C Port |
| 2x Front-Panel USB 5Gb/s Type-A Ports |
| 1x 3.5mm Combination Audio Jack |

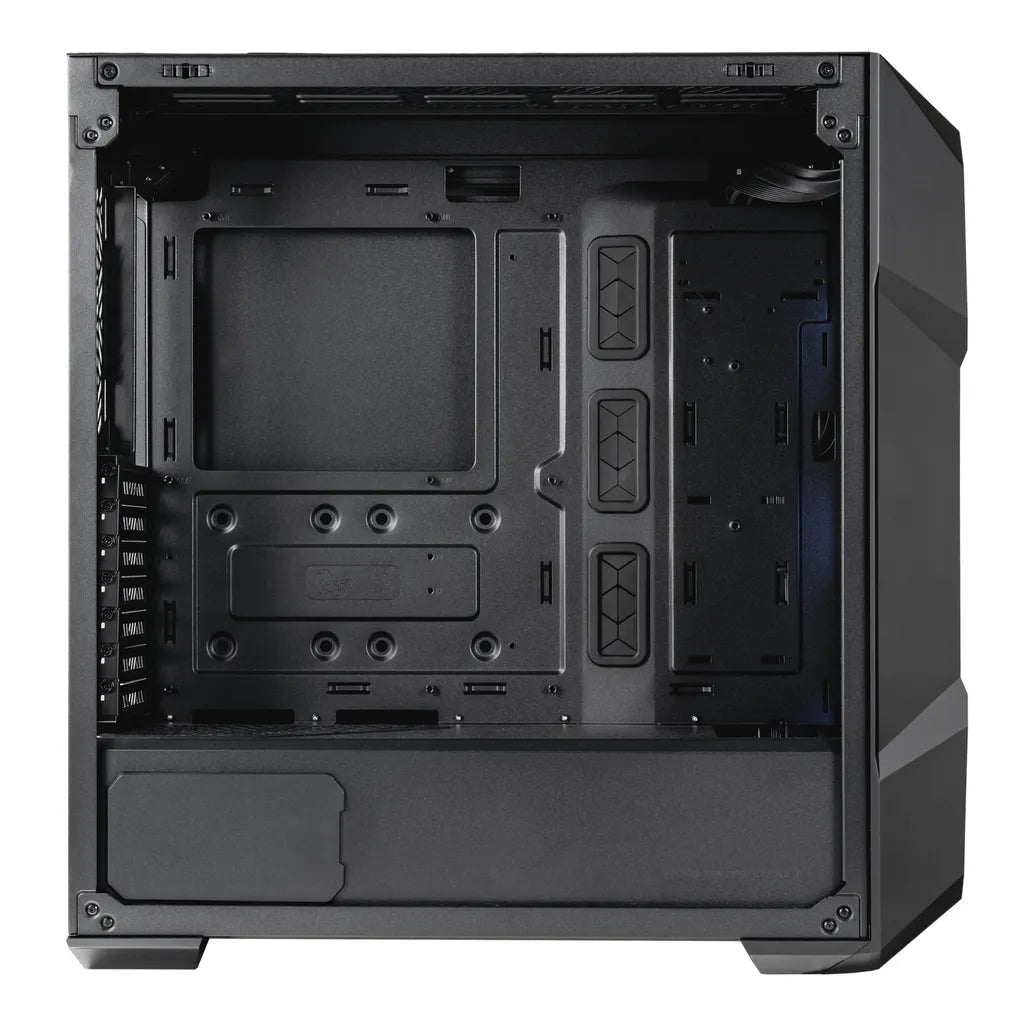

| Motherboard Support |
Supports SSI CEB, E-ATX, ATX, Micro-ATX, Mini-ITX Motherboards |
| E-ATX and SSI-CEB support with clearance of 304.8 x 271.7mm (H x W) |

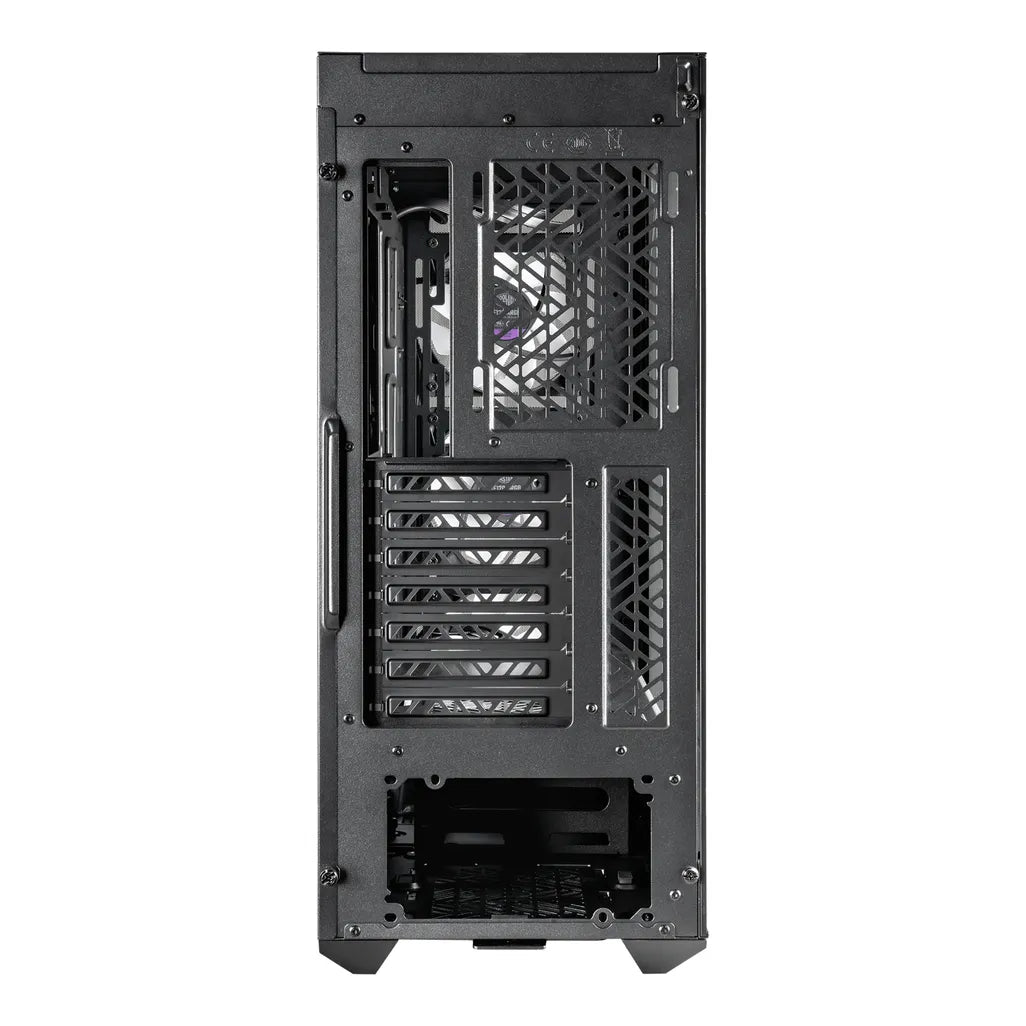

| Expansion Slots |
7x PCI Slots |
| Drive Bays |
3x 2.5" HDD/SSD Drive Bays |
| 2x 3.5" Drive Bays |
| PSU Support |
ATX |
| Dimensions |
499 × 210 × 500mm (D x W x H) |
| Weight |
7.7kg |

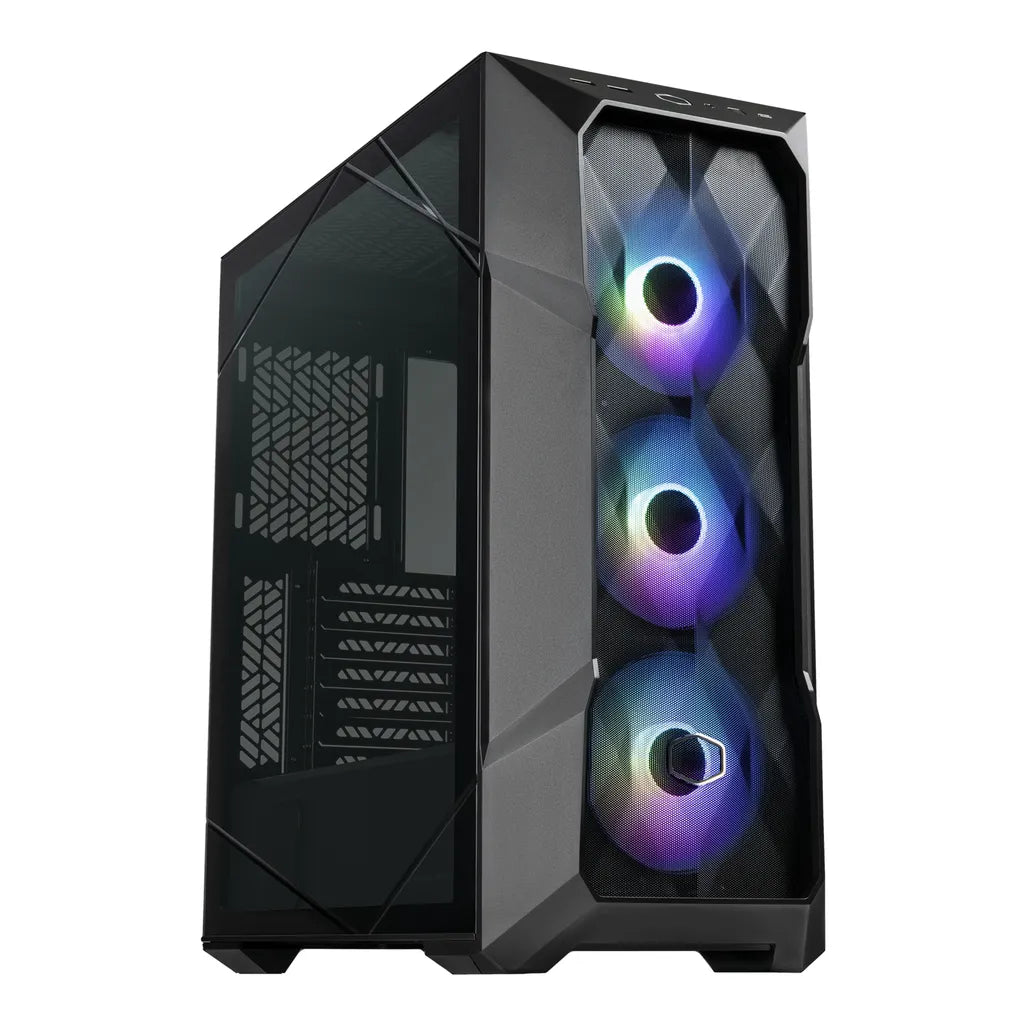

| Pre-Installed Fans |
| Front |
3x Cooler Master CF120 120mm ARGB Fans |
| Top |
N/A |
| Rear |
N/A |
| Fan Support |
| Front |
3x 120mm Fans or 2x 140mm Fans |
| Top |
3x 120mm Fans or 2x 140mm Fans |
| Rear |
1x 120mm Fan |
| Radiator Support |
| Front |
120mm, 140mm, 240mm, 280mm, 360mm Radiator |
| Top |
120mm, 140mm, 240mm, 280mm, 360mm Radiator (55mm thickness clearance) |
| Rear |
120mm Radiator |
| Clearance |
| CPU Cooler Height Limitation |
165mm |
| GPU Length Limitation |
410mm |

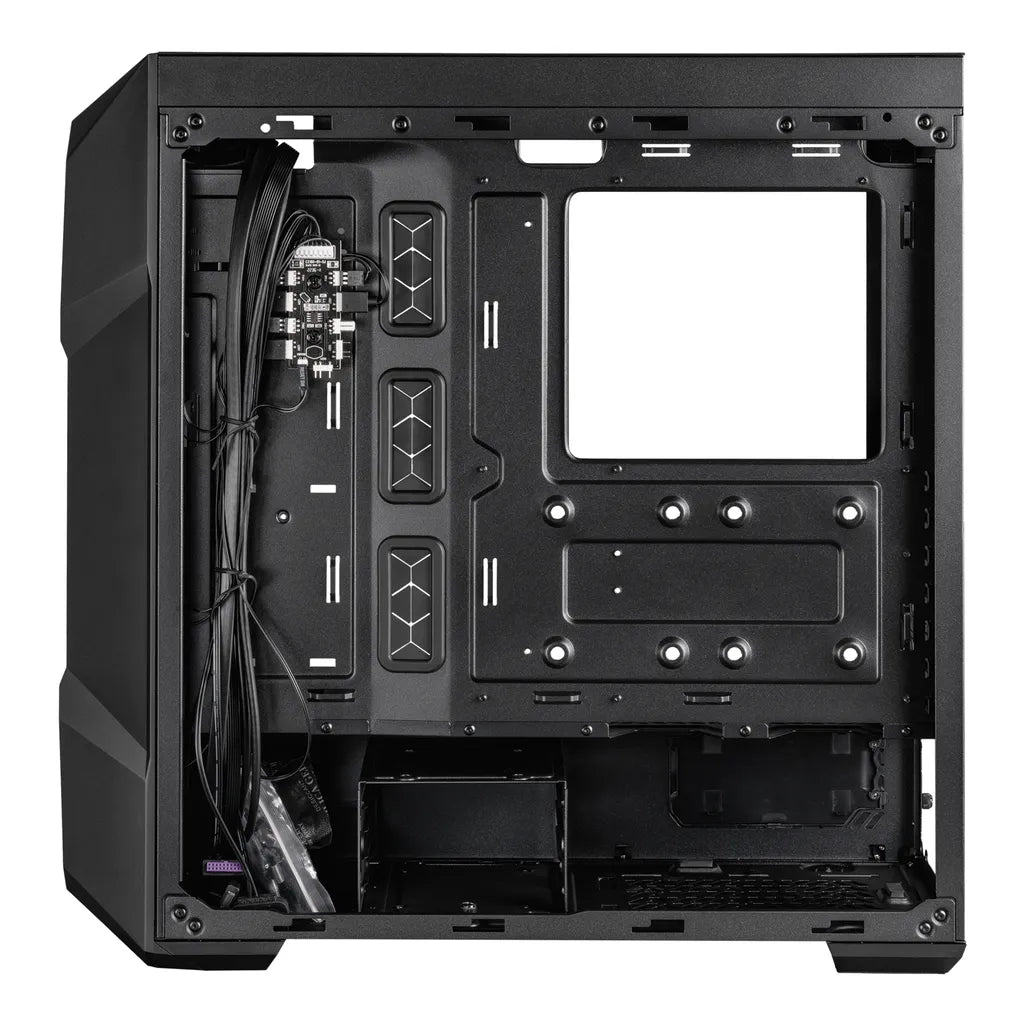

| Cable Management |
Yes, with rubber grommets |
| PSU Length Limit |
Up to 200mm (up to 170mm recommended for cabling) |
| General |
| Dust Filters |
Yes, Front, Top, Bottom PSU dust filters |
| Chassis Lighting |
4-Way ARGB & PWM Fan Hub |
| RGB Fans support 5V ARGB headers |
| Warranty Information |
| Warranty |
2 Year Warranty |
