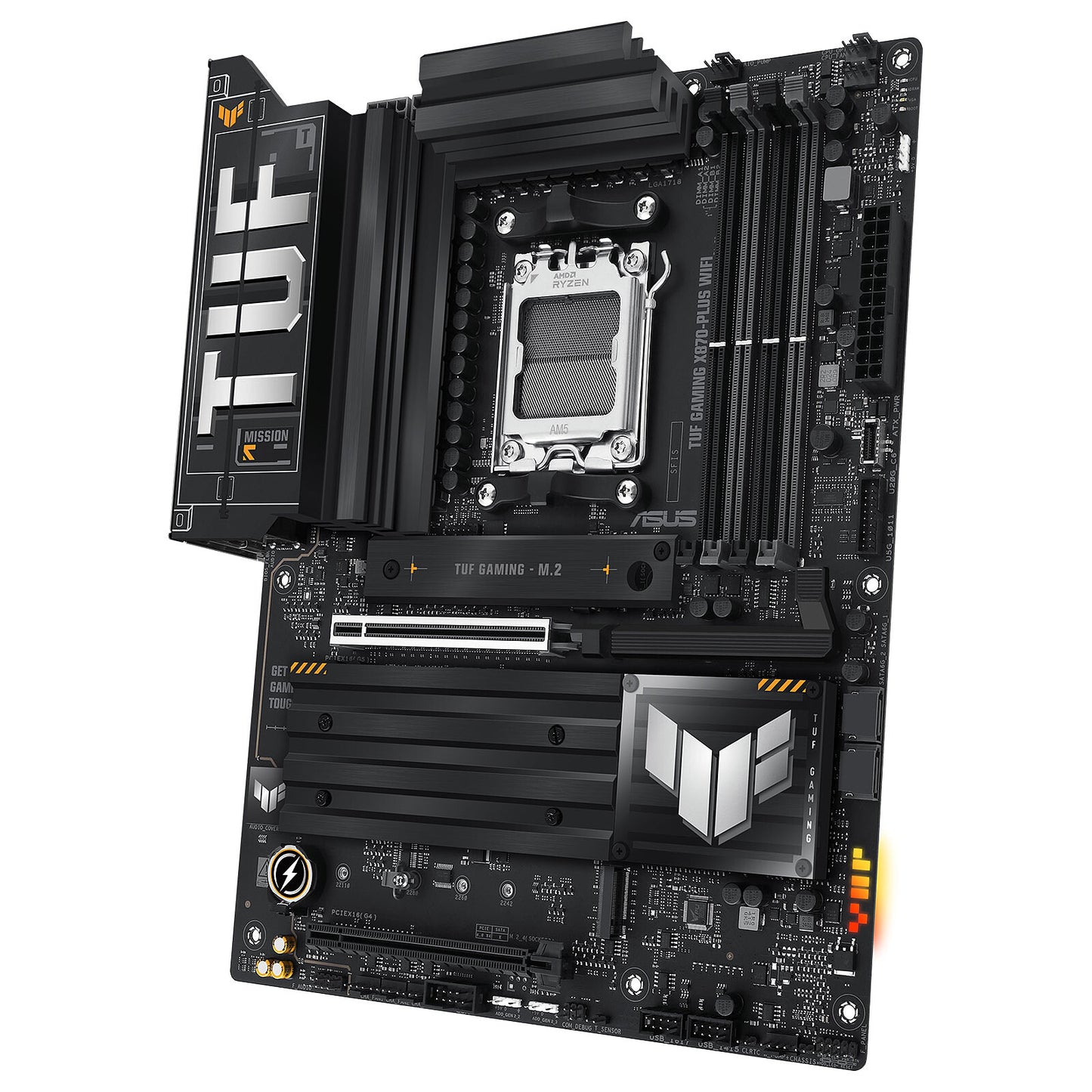

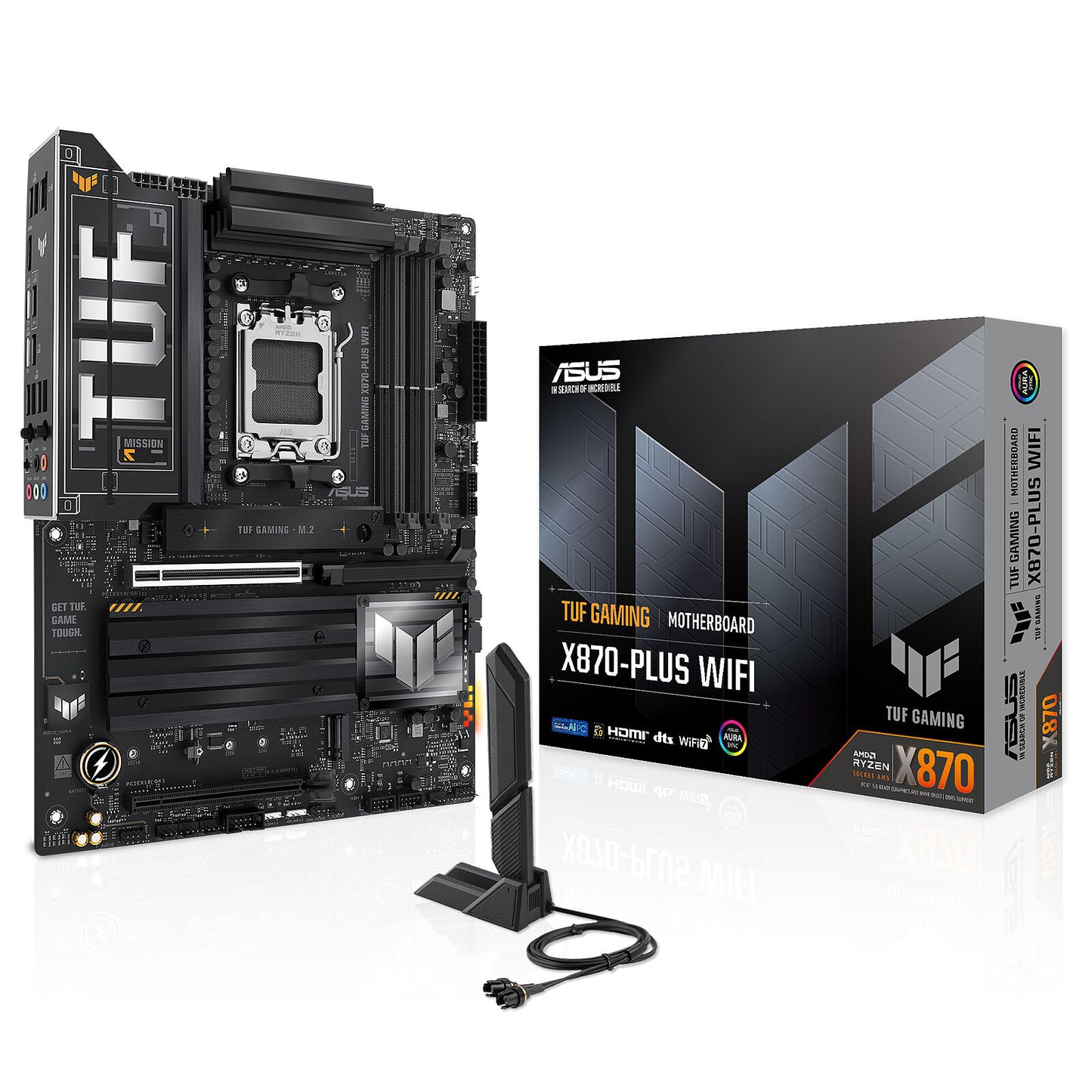

ASUS TUF Gaming X870-PLUS WIFI AMD X870 Ryzen Socket AM5 ATX Desktop Motherboard
ASUS TUF Gaming X870-PLUS WIFI AMD X870 Ryzen Socket AM5 ATX Desktop Motherboard
Regular price
R 7,899.00
Regular price
Sale price
R 7,899.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | ASUS |
| Series | ROG STRIX |
| Model | TUF GAMING X870-PLUS WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD X870 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 |
| Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors | |
| ECC and Non-ECC, Un-buffered DIMM* | |
| Dual channel memory architecture | |
| Supports AMD Extended Profiles for Overclocking (EXPO) | |
| ASUS Enhanced Memory Profile (AEMP) | |
| * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. | |
| * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. | |
| Graphics | 1 x HDMI port** |
| 2 x USB4 (40Gbps) ports support USB Type-C display outputs*** | |
| * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. | |
| ** Supports 4K@60Hz as specified in HDMI 2.1. | |
| *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a. | |
| **** VGA resolution support depends on processors' or graphic cards' resolution. | |
| Expansion Slots | AMD Ryzen 9000 & 7000 Series Desktop Processors* |
| 1 x PCIe 5.0 x16 slot (supports x16 mode)** | |
| AMD Ryzen 8000 Series Desktop Processors | |
| 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)*** | |
| AMD X870 Chipset | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode)**** | |
| * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). | |
| ** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs. | |
| *** Specifications vary by CPU types. | |
| **** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs. | |
| - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. | |
| Storage | Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* |
| AMD Ryzen 9000 & 7000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)** | |
| AMD Ryzen 8000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) | |
| M.2_2 slot not support | |
| AMD X870 Chipset | |
| M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) | |
| M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)*** | |
| 2 x SATA 6Gb/s ports | |
| * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU. | |
| ** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs. | |
| *** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs. | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| TUF LANGuard | |
| Wireless & Bluetooth | Wi-Fi 7* |
| 2x2 Wi-Fi 7 (802.11be) | |
| Supports 2.4/5/6GHz frequency band** | |
| Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. | |
| Bluetooth v5.4*** | |
| *Wi-Fi features may vary depending on the operating system | |
| For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. | |
| For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. | |
| ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. | |
| *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. | |
| USB | Rear USB (Total 10 ports) |
| 2 x USB4 (40Gbps) ports (2 x USB Type-C)* | |
| 3 x USB 10Gbps ports (3 x Type-A) | |
| 4 x USB 5Gbps ports (4 x Type-A) | |
| 1 x USB 2.0 port (1 x Type-A) | |
| Front USB (Total 7 ports) | |
| 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge)** | |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| * USB Type-C power delivery output: max. 5V/3A | |
| ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A. | |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC |
| - Impedance sense for front and rear headphone outputs | |
| - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers | |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) | |
| - Supports up to 32-Bit/192 kHz playback* | |
| Audio Features | |
| - Audio Shielding | |
| - Premium audio capacitors | |
| - Dedicated audio PCB layers | |
| - Audio cover | |
| - Unique de-pop circuit | |
| * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. | |

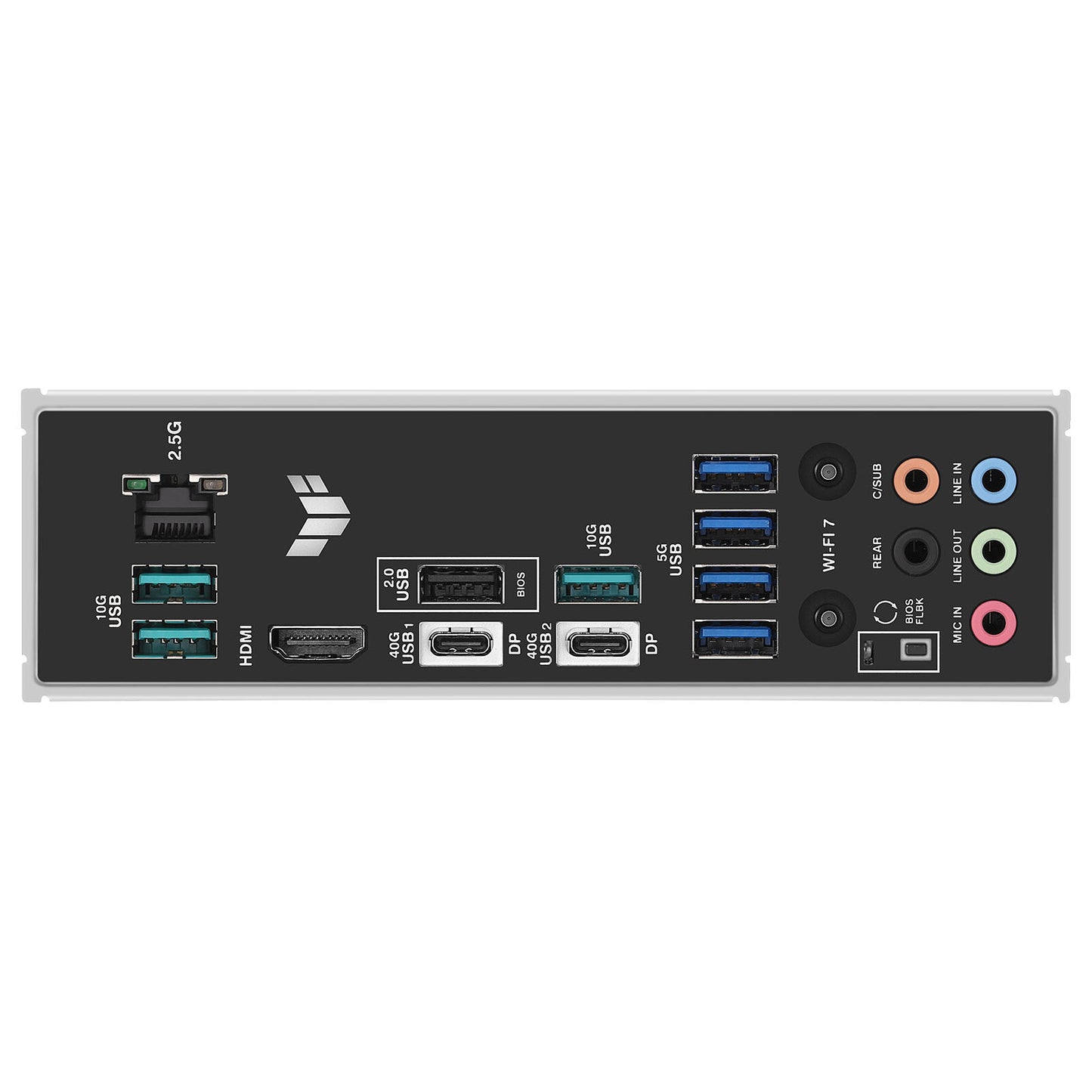

| Back Panel I/O Ports | 2 x USB4 (40Gbps) (2 x USB Type-C) ports |
| 3 x USB 10Gbps ports (3 x Type-A) | |
| 4 x USB 5Gbps ports (4 x Type-A) | |
| 1 x USB 2.0 port (1 x Type-A) | |
| 1 x HDMI port | |
| 1 x Wi-Fi module | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x BIOS FlashBack button | |
| Internal I/O Connectors | Fan and Cooling Related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 4 x 4-pin Chassis Fan headers | |
| 1 x W_PUMP+ header | |
| Power Related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V CPU Power connectors | |
| Storage Related | |
| 4 x M.2 slots (Key M) | |
| 2 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge) | |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Clear CMOS header | |
| 1 x Chassis Intrusion header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (F_AUDIO) | |
| 1 x 10-1 pin Front System Panel header | |
| 1 x Thermal Sensor header | |
| Special Features | ASUS TUF PROTECTION |
| - DIGI+ VRM (- Digital power design with SPS) | |
| - ESD Guards | |
| - TUF LANGuard | |
| - Overvoltage protection | |
| - SafeSlot | |
| - Stainless-steel back I/O | |
| ASUS Q-Design | |
| - M.2 Q-Latch | |
| - PCIe Slot Q-Release | |
| - Q-Antenna | |
| - Q-Dashboard | |
| - Q-DIMM | |
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| - Q-Slot | |
| ASUS Thermal Solution | |
| - M.2 heatsinks | |
| - VRM heatsink design | |
| ASUS EZ DIY | |
| - BIOS FlashBack button | |
| - BIOS FlashBack LED | |
| - ProCool | |
| - Pre-mounted I/O shield | |
| - SafeDIMM | |
| Aura Sync | |
| - Addressable Gen 2 headers | |
| Front Panel USB 20Gbps with PD Fast Charge Support | |
| - Support: up to 30W fast charging and USB Wattage Watcher | |
| - Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A | |
| - Compatible with PD3.0 | |
| BIOS | 256 Mb Flash ROM |
| UEFI AMI BIOS | |
| Form Factor | ATX Form Factor |
| 30.5 cm x 24.4 cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
