ASUS TUF Gaming Radeon™ RX 7600 XT OC Edition 16GB
ASUS TUF Gaming Radeon™ RX 7600 XT OC Edition 16GB
ASUS Dual Radeon™ RX 7600 XT fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for maximizing airflow to the heatsink — are packed into the 22.7 cm long, 2.5-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
SPECIFICATIONS
Graphic Engine |
AMD Radeon™ RX 7600 XT |
Bus Standard |
PCI Express 4.0 |
OpenGL |
OpenGL®4.6 |
Video Memory |
16GB GDDR6 |
Engine Clock |
OC mode: up to 2801 MHz (Boost Clock)/up to 2513 MHz (Game Clock) |
Stream Processors |
2048 |
Memory Speed |
18 Gbps |
Memory Interface |
128-bit |
Digital Max Resolution |
7680 x 4320 |
Interface |

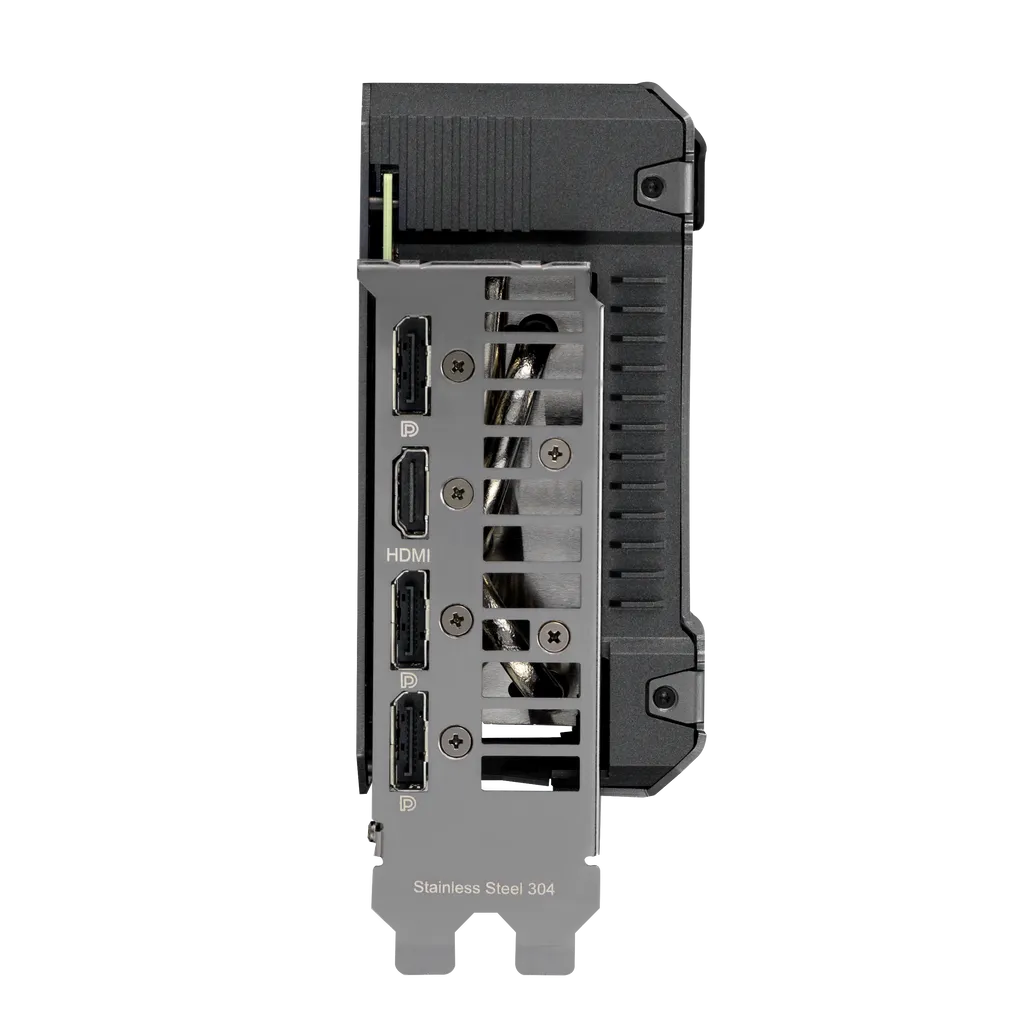

1 x Native HDMI 2.1 |
Maximum Display Support |
4 |
NVlink/ Crossfire Support |
No |
Accessories |
Thank you card |
Software |
ASUS GPU Tweak III & Drivers (Download site) |
Dimensions |
227.2 x 123.24 x 49.6 mm |
Recommended PSU |
600W |
Power Connectors |
1 x 8-pin |
Slot Width |
2.5 Slot |
Warranty |
3 Years |
Notes
* Wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on the ASUS PSU product page.
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
* If two DisplayPort 2.1 monitors are connected, a third monitor will be limited to DisplayPort 1.4 functionality.
