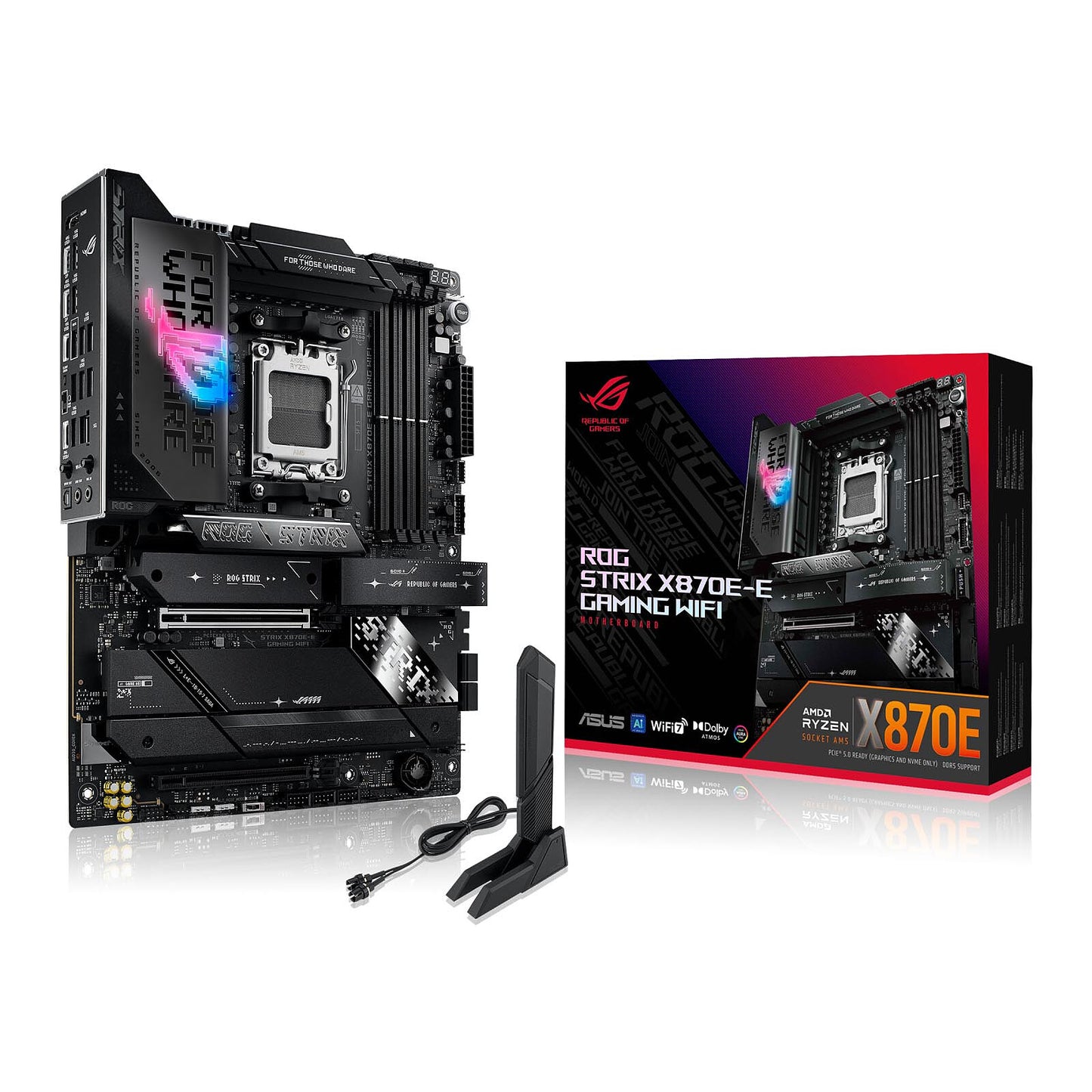

ASUS ROG Strix X870E-E Gaming WiFi DDR5 ATX AM5 AMD Motherboard

ASUS ROG Strix X870E-E Gaming WiFi DDR5 ATX AM5 AMD Motherboard

R 11,649.00
R 11,649.00
% OFF Sold out
Shipping calculated at checkout.

Description

ASUS ROG Strix X870E-E Gaming WiFi DDR5 ATX AM5 AMD Motherboard – 90MB1IB0-M0EAY0

Full description ASUS.

  • The ROG Strix X870E-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen™ 9000 Series processors.
  • Featuring PCIe 5.0 support, AI Overclocking, AI Cooling II, AI Networking II, and AEMP, setup is streamlined while performance is maximized.
  • Dual USB4 Type-C ports and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads.
  • This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.





ASUS X870E / X870 Motherboards | Best Motherboards for AMD Ryzen™ 9000 Series Desktop Processors





Specifications
Brand: ASUS
Series: X870 Series
Model: 90MB1IB0-M0EAY0
Technical Specs
CPU Support: AMD Socket AM5:
– AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset: AMD X870E
Memory: 4 x DIMM slots, max. 192GB, DDR5
Supports up to
8000+MT/s(OC) with Ryzen™ 9000 Series Processors,
8400+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
– ECC and Non-ECC Un-buffered DIMM*
– Dual Channel Memory Architecture
– Supports AMD EXTended Profiles for Overclocking (EXPO™)
– NitroPath DRAM Technology
– ASUS Enhanced Memory Profile (AEMP)
Onboard Graphics: 1 x HDMI port
2 x USB4 (40Gbps) ports support USB Type-C display outputs
Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
– High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features
– Audio Shielding
– Savitech SV3H712 AMP
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
Connectivity
LAN: 1 x Realtek 5Gb Ethernet
ASUS LANGuard
Wireless: Wi-Fi 7*
– 2×2 Wi-Fi 7 (802.11be)
– Supports 2.4/5/6GHz frequency band**
– Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
Bluetooth: Bluetooth v5.4
Expansion Slots: AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slots (supports x16 mode)
AMD X870E Chipset**
1 x PCIe 4.0 x16 slot (supports x4 mode
Storage Interface: Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD X870E Chipset
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
On-Board Connectors
USB: Rear USB (Total 13 ports)
2 x USB4® (40Gbps) ports(2 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge)**
10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®)
Front USB (Total 11 ports)
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Internal I/O Connectors: Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x CPU Over Voltage jumper
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header

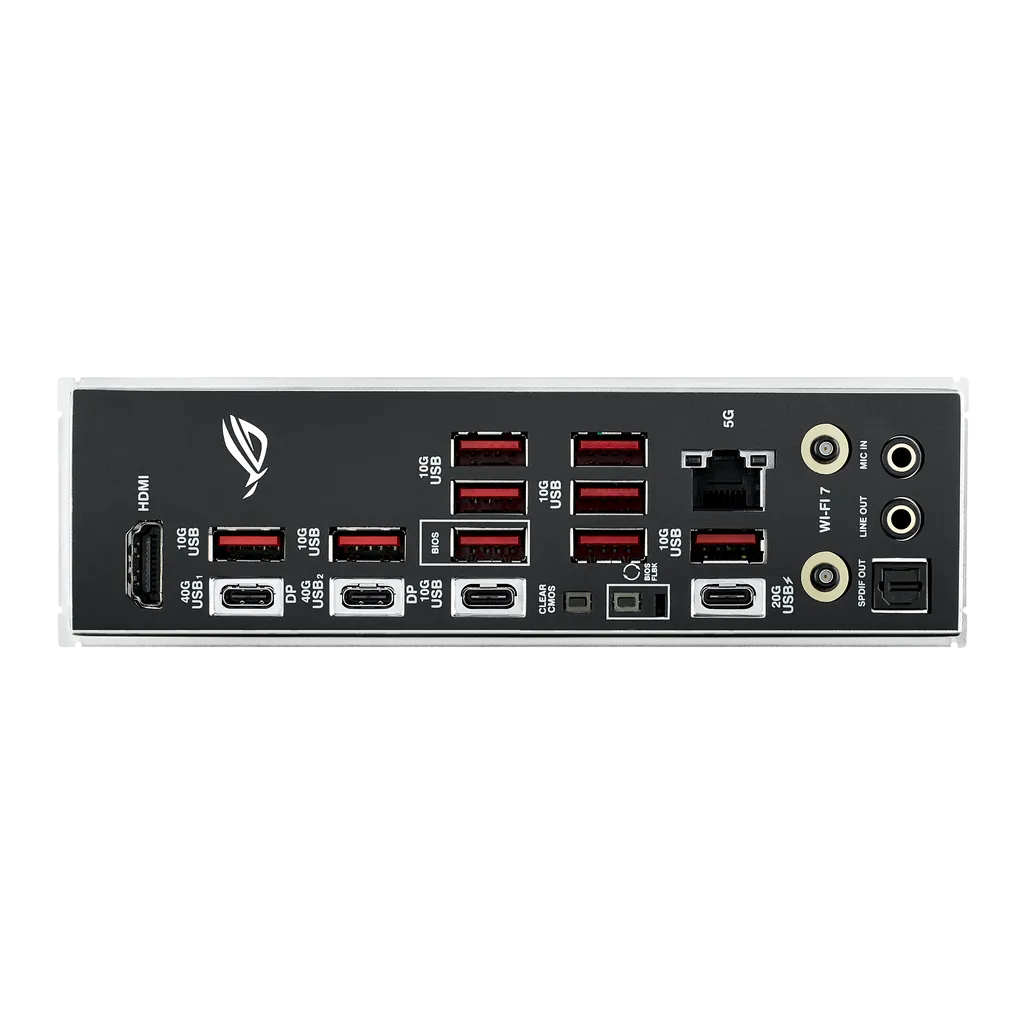

Back Panel Connectors: 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge)
10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®)
1 x HDMI™ port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button
1 x Clear CMOS button
Software & Features
BIOS: 256 Mb  Flash ROM, UEFI AMI BIOS
Software: ASUS Exclusive Software
ROG Exclusive Software
Features: Extreme Engine Digi+
ASUS Q-Design
Aura Sync
ASUS EZ DIY
ASUS Thermal Solution
General
Operating System: Windows® 11 64-bit
Form Factor: ATX (30.5 cm x 24.4 cm)
Warranty Information
Warranty: 3 Year Warranty
