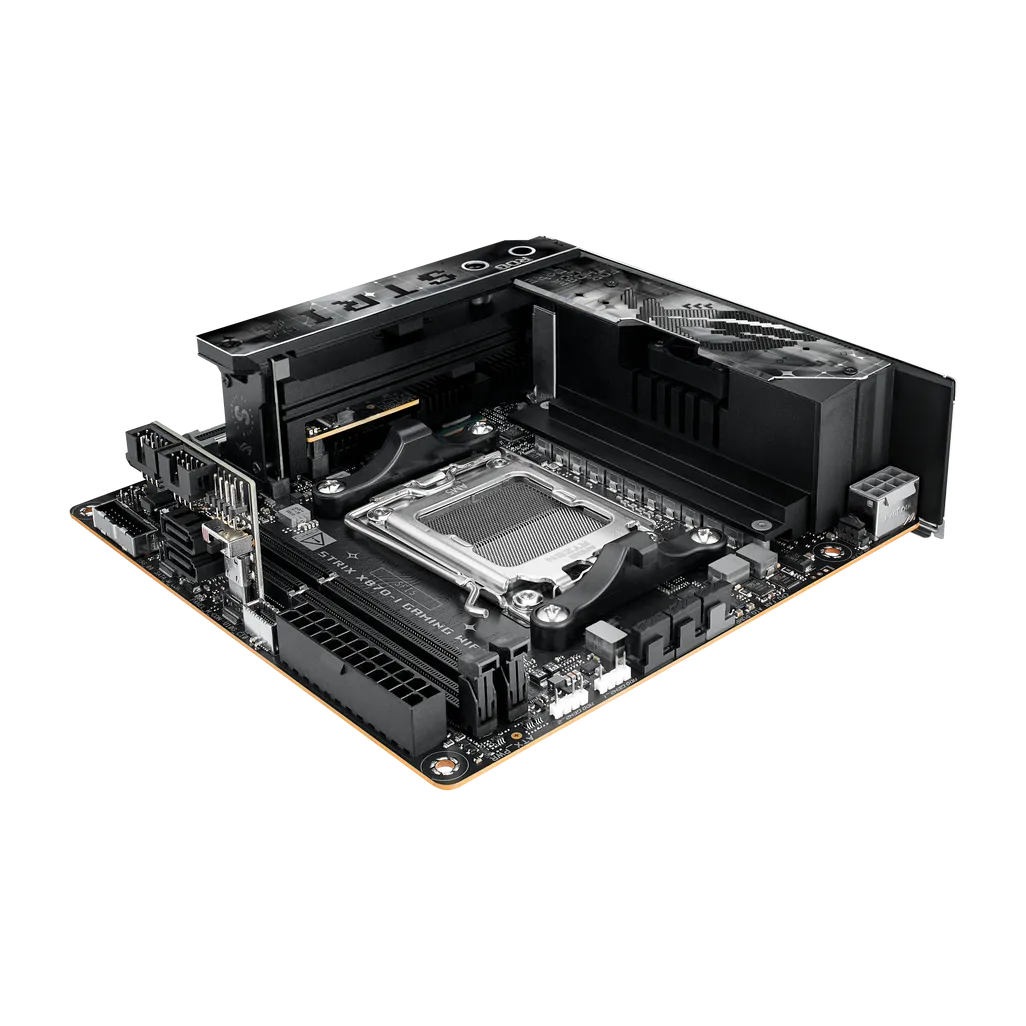

ASUS ROG Strix X870-I Gaming WiFi DDR5 Mini-ITX AM5 AMD Motherboard
ASUS ROG Strix X870-I Gaming WiFi DDR5 Mini-ITX AM5 AMD Motherboard
Regular price
R 11,999.00
Regular price
Sale price
R 11,999.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | ASUS |
| Series | Gaming Motherboards |
| Model | ROG STRIX X870-I GAMING WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen 9000, 8000, 7000 Series Desktop Processors* |
| Refer to https://www.asus.com/support/download-center/ for CPU support list | |
| Chipset | AMD X870 |
| Memory | 2 x DIMM slots, max. 96GB, DDR5 |
| Supports up to 8400 MT/s (OC) with Ryzen 9000 Series Processors | |
| Supports up to 8600 MT/s (OC) with Ryzen 8000 Series Processors | |
| Supports up to 8000 MT/s (OC) with Ryzen 7000 Series Processors | |
| ECC and Non-ECC Un-buffered DIMM* | |
| Dual Channel Memory Architecture | |
| Supports AMD Extended Profiles for Overclocking (EXPO) | |
| ASUS Enhanced Memory Profile (AEMP) | |
| Refer to https://www.asus.com/support/download-center/ for supported memory types and configurations | |
| Graphics | 1 x HDMI port** |
| 2 x USB4 (40Gbps) ports support USB Type-C display outputs*** | |
| Graphics specifications vary between CPU types | |
| Supports 4K@60Hz as specified in HDMI 2.1 | |
| Supports max. 4K@60Hz as specified in DisplayPort 1.4a | |
| Expansion Slots | AMD Ryzen 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot |
| AMD Ryzen 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)* | |
| Refer to https://www.asus.com/support/ for supported peripherals | |
| Storage | 2 x M.2 slots and 2 x SATA 6Gb/s ports* |
| AMD Ryzen 9000 & 7000 Series Desktop Processors: M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) | |
| AMD Ryzen 8000 Series Desktop Processors: M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) | |
| AMD X870 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) | |
| 2 x SATA 6Gb/s ports*** | |
| Supports AMD RAIDXpert2 Technology (RAID 0/1/10) | |
| Install ROG FPS Card to support 2 x SATA 6Gb/s ports | |
| Ethernet | 1 x Intel 2.5Gb Ethernet |
| ASUS LANGuard | |
| Wireless & Bluetooth | Wi-Fi 7* |
| 2x2 Wi-Fi 7 (802.11be) | |
| Supports 2.4/5/6GHz frequency band** | |
| Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate | |
| Bluetooth v5.4*** | |
| Wi-Fi features may vary by OS | |
| Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries | |
| Refer to Wi-Fi module manufacturer's website for the latest specifications | |
| Rear USB | Total 10 ports |
| 2 x USB4 (40Gbps) ports (2 x USB Type-C) | |
| 5 x USB 10Gbps ports (4 x Type-A, 1 x USB Type-C) | |
| 3 x USB 2.0 ports (3 x Type-A) | |
| Front USB | Total 3 ports |
| 1 x USB 10Gbps connector (supports USB Type-C) | |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
| ROG STRIX HIVE II USB | Total 2 ports |
| 2 x USB 10Gbps ports (1 x Type-A, 1 x USB Type-C) | |
| ROG FPS Card USB | Total 3 ports |
| 2 x USB 2.0 headers (supports 3 additional USB 2.0 ports) | |
| Audio | ROG Strix Hive II Audio Features |
| ROG Hyper-Grounding Technology | |
| ESS SABRE9260Q DAC | |
| Silver-plated audio jacks | |
| Dedicated audio PCB layers | |

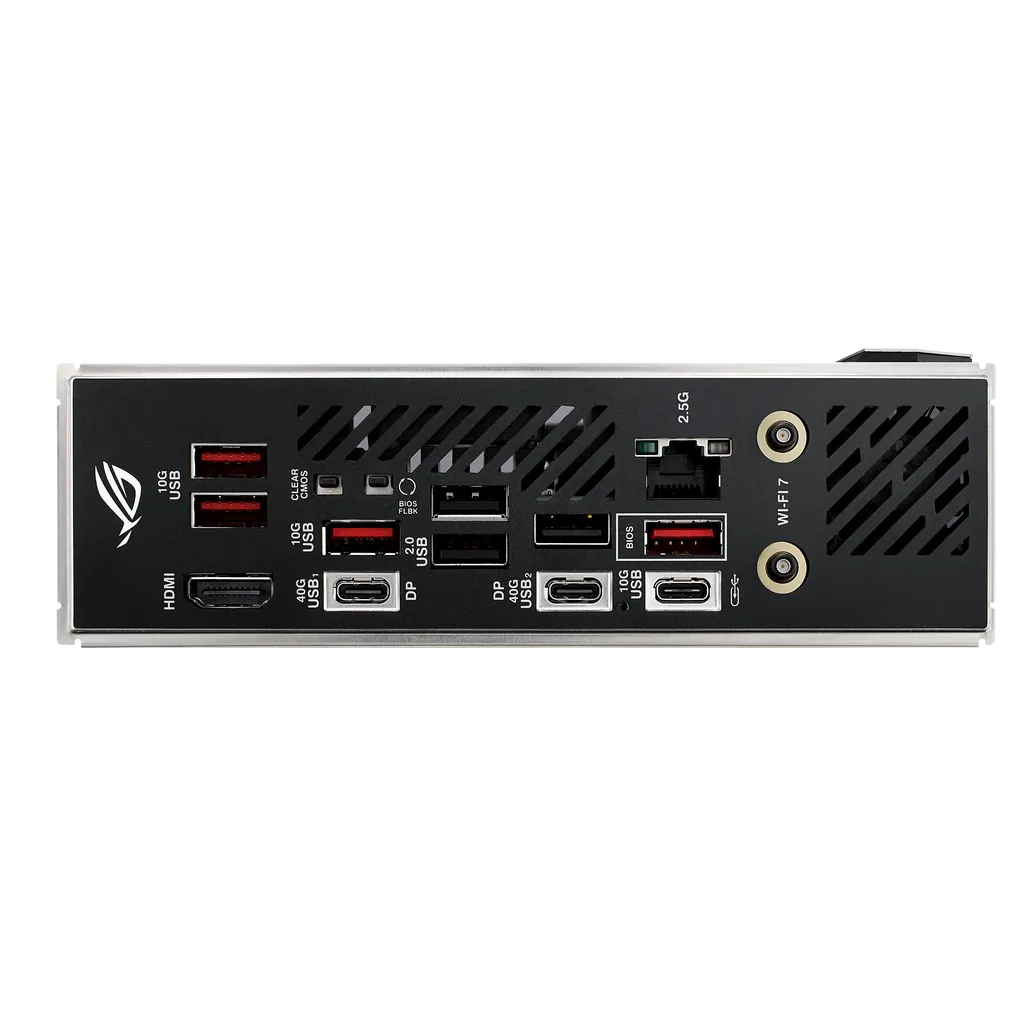

| Back Panel I/O Ports | 2 x USB4 (40Gbps) ports (2 x USB Type-C) |
| 5 x USB 10Gbps ports (4 x Type-A, 1 x USB Type-C) | |
| 3 x USB 2.0 ports (2 x Type-A) | |
| 1 x HDMI port | |
| 1 x Wi-Fi module | |
| 1 x Intel 2.5Gb Ethernet port | |
| 1 x BIOS FlashBack button | |
| 1 x Clear CMOS button | |
| Internal I/O Connectors | 1 x 4-pin CPU Fan header(s) |
| 1 x 4-pin AIO Pump header(s) | |
| 1 x 4-pin Chassis Fan header(s) | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin 12V CPU Power connector | |
| 2 x M.2 slots (Key M) | |
| 1 x USB 10Gbps connector (supports USB Type-C) | |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
| 2 x Addressable Gen 2 headers | |
| 1 x 2-pin Power Button header | |
| 1 x Thermal Sensor header | |
| 2 x USB Type-C connectors for ROG FPS Card | |
| 1 x CPU Over Voltage jumper | |
| 1 x Front Panel header | |
| 1 x Alteration PCIe Mode switch | |
| 2 x USB 2.0 headers (supports 3 additional USB 2.0 ports) | |
| Special Features | ASUS Q-Design |
| M.2 Q-Latch | |
| PCIe Slot Q-Release Slim (with PCIe SafeSlot) | |
| Q-Antenna | |
| Q-Code | |
| Q-DIMM | |
| Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| Q-Slot | |
| ASUS Thermal Solution | M.2 heatsink |
| Aluminum backplate | |
| ASUS EZ DIY | BIOS FlashBack button |
| BIOS FlashBack LED | |
| Clear CMOS button | |
| ProCool II | |
| Pre-mounted I/O shield | |
| SafeSlot | |
| SafeDIMM | |
| Aura Sync | Addressable Gen 2 headers |
| ROG STRIX HIVE II | 1 x USB Type-C connects to motherboard |
| 2 x USB 10Gbps ports (1 x Type-A, 1 x USB Type-C) | |
| 1 x Headphone jack with mic in | |
| 1 x Power button | |
| 1 x FlexKey button | |
| 1 x Volume control knob with mute button | |
| Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| Software Features | ROG CPU-Z |
| Dolby Atmos | |
| Armoury Crate | |
| AIDA64 (60 days free trial) | |
| Aura Creator | |
| Aura Sync | |
| Fan Xpert 4 (with AI Cooling II) | |
| GameFirst | |
| HWiNFO | |
| Power Saving | |
| ASUS Driver Hub | |
| ASUS GlideX | |
| Adobe Creative Cloud (Free Trial) | |
| Norton 360 for Gamers (60 Days Free Trial) | |
| WinRAR (40 Days Free Trial) | |
| UEFI BIOS | AI Overclocking Guide |
| ASUS EZ DIY (CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode) | |
| ASUS MyHotkey | |
| FlexKey | |
| Dynamic OC Switcher | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

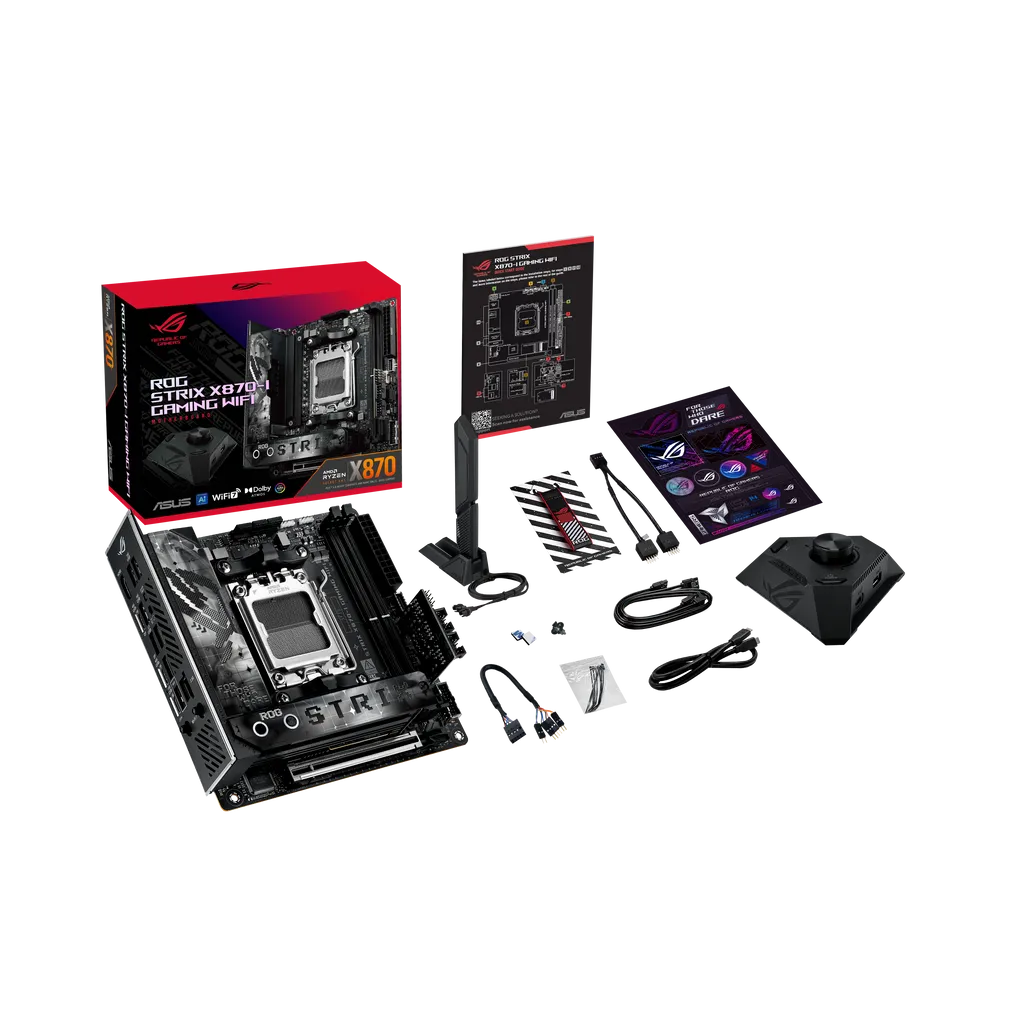

| Accessories | 1 x Panel cable |
| 1 x ROG USB2.0 splitter cable | |
| 2 x SATA 6Gb/s cables | |
| ROG FPS Card | 1 x ROG FPS Card |
| ROG STRIX HIVE II | 1 x ROG STRIX HIVE II |
| 1 x USB Type-C power connection cable | |
| Miscellaneous | 1 x ASUS WiFi Q-Antenna |
| 1 x Cable ties package | |
| 1 x M.2 Q-Latch package(s) | |
| 1 x ROG key chain | |
| 1 x ROG Strix stickers | |
| 1 x M.2 rubber package(s) | |
| Documentation | 1 x Quick start guide |
| Operating System | Windows 11 64-bit |
| Form Factor | Mini-ITX Form Factor, 17 cm x 17 cm |
| Warranty Information | |
| Warranty | 3 Year Warranty |
