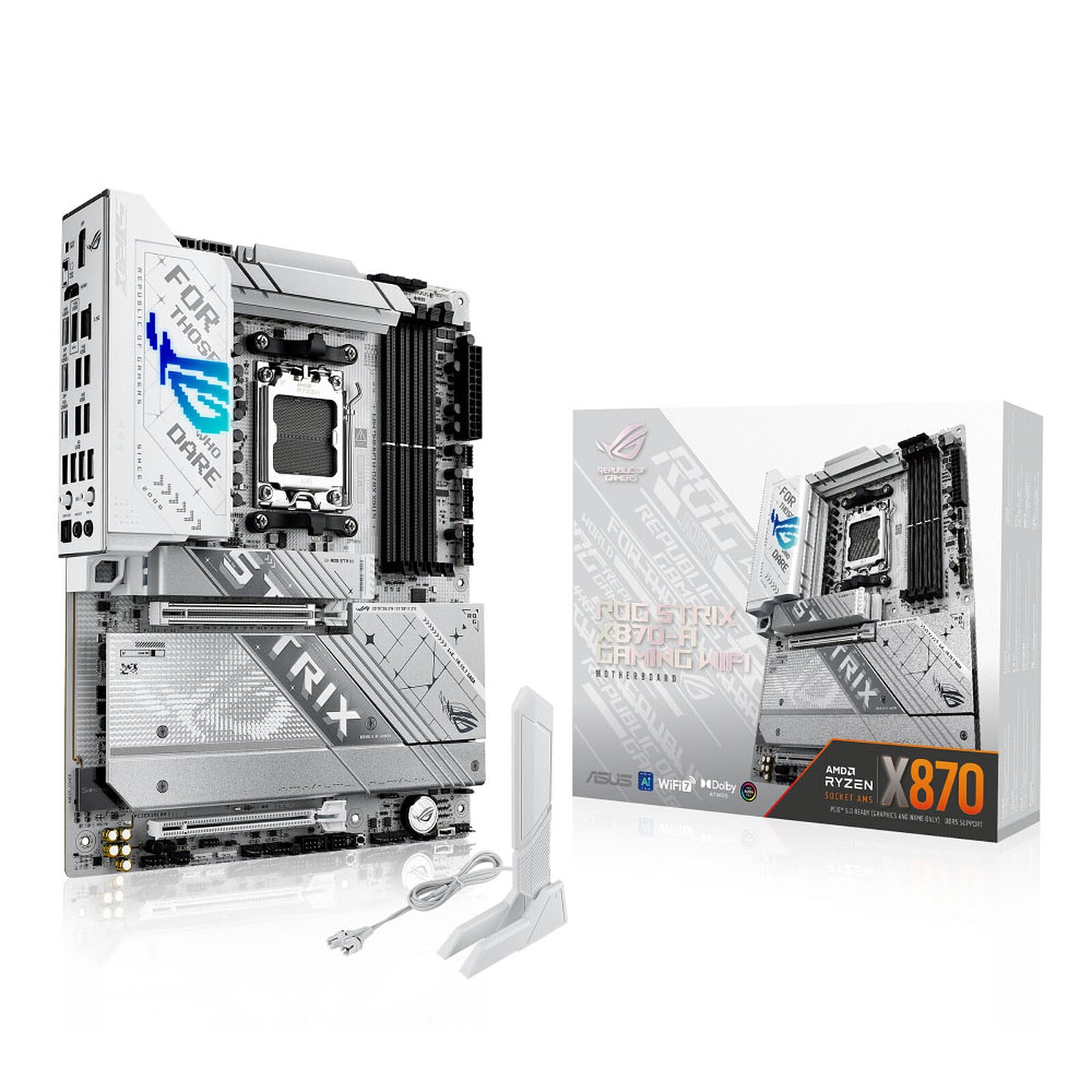

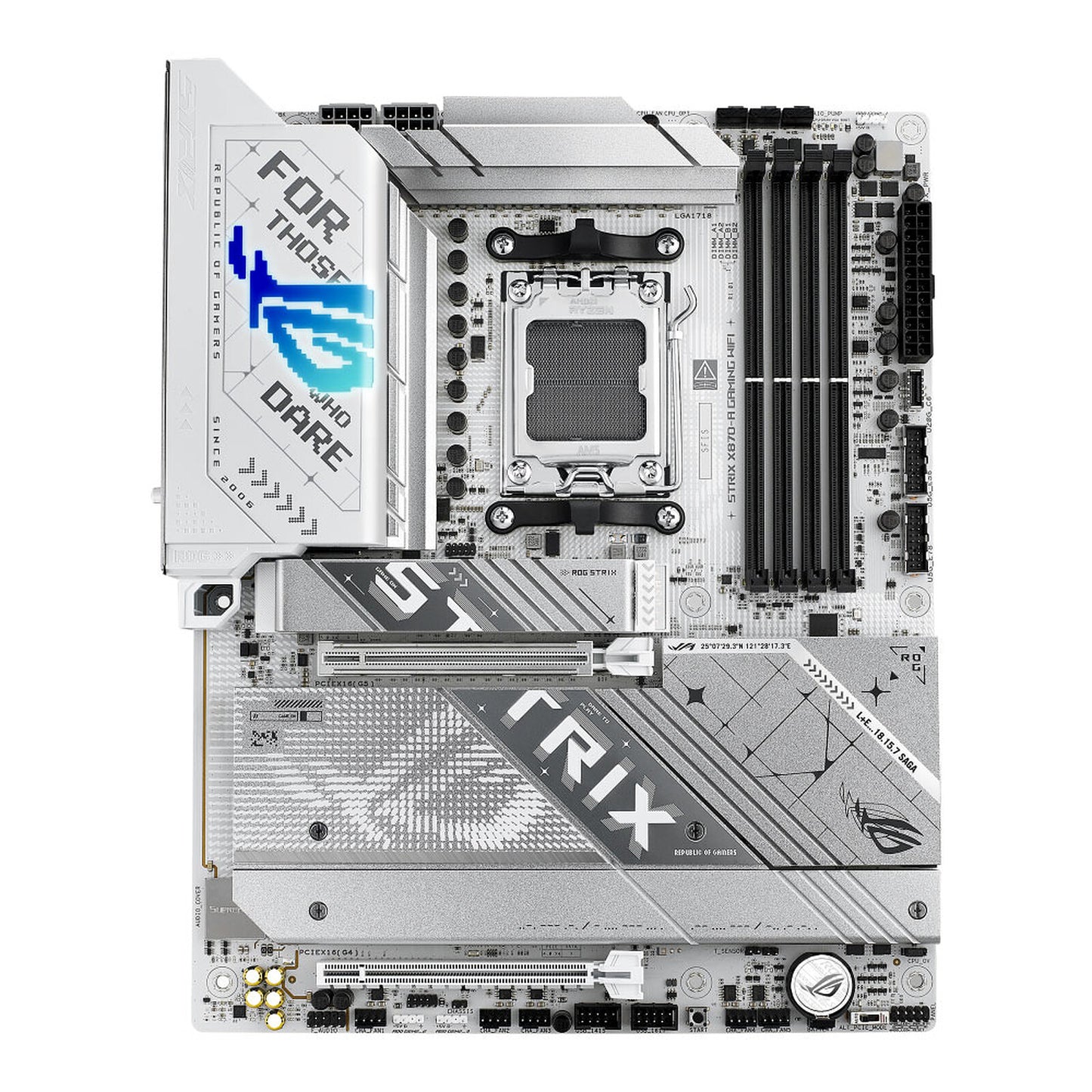

ASUS ROG STRIX X870-A GAMING WIFI AMD X870 Ryzen Socket AM5 ATX Desktop Motherboard
ASUS ROG STRIX X870-A GAMING WIFI AMD X870 Ryzen Socket AM5 ATX Desktop Motherboard
Regular price
R 9,799.00
Regular price
Sale price
R 9,799.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | ASUS |
| Series | Gaming Motherboards |
| Model | ROG STRIX X870-A GAMING WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen 9000, 8000, 7000 Series Desktop Processors* |
| Refer to www.asus.com for CPU support list | |
| Chipset | AMD X870 |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 |
| Supports up to 8000 MT/s (OC) with Ryzen 9000, 8000, 7000 Series Processors | |
| ECC and Non-ECC, Un-buffered Memory* | |
| Dual Channel Memory Architecture | |
| Supports AMD Extended Profiles for Overclocking (EXPO) | |
| ASUS Enhanced Memory Profile (AEMP) | |
| Refer to www.asus.com for memory support list | |
| Graphics | 1 x DisplayPort** |
| 1 x HDMI port*** | |
| 2 x USB4 (40Gbps) ports support USB Type-C display outputs**** | |
| Refer to AMD CPU specifications | |
| Supports max. 8K@30Hz as specified in DisplayPort 1.4 | |
| Supports 4K@60Hz as specified in HDMI 2.1 | |
| Expansion Slots | AMD Ryzen 9000 & 7000 Series Desktop Processors* |
| 1 x PCIe 5.0 x16 slot (supports x16 mode) | |
| AMD Ryzen 8000 Series Desktop Processors* | |
| 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** | |
| AMD X870 Chipset | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | |
| Refer to www.asus.com for supported peripherals | |
| Storage | 4 x M.2 slots and 2 x SATA 6Gb/s ports* |
| AMD Ryzen 9000 & 7000 Series Desktop Processors* | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** | |
| AMD Ryzen 8000 Series Desktop Processors** | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (not supported)**** | |
| AMD X870 Chipset | |
| M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*** | |
| M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) | |
| Supports AMD RAIDXpert2 Technology | |
| Ethernet | 1 x Intel 2.5Gb Ethernet |
| ASUS LANGuard | |
| Wireless & Bluetooth | Wi-Fi 7* |
| 2x2 Wi-Fi 7 (802.11be) | |
| Supports 2.4/5/6GHz frequency bands** | |
| Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate | |
| Bluetooth v5.4*** | |
| Rear USB | Total 12 ports |
| 2 x USB4 (40Gbps) ports (2 x USB Type-C with DP Alt mode)* | |
| 6 x USB 10Gbps ports (5 x Type-A, 1 x USB Type-C with up to 30W PD Fast-charge)** | |
| 4 x USB 5Gbps ports (4 x Type-A) | |
| Front USB | Total 9 ports |
| 1 x USB 20Gbps connector (supports USB Type-C) | |
| 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* |
| Impedance sense for front and rear headphone outputs | |
| Supports Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking | |
| High quality 120 dB SNR stereo playback output and 110 dB SNR recording input | |
| Supports up to 32-Bit/384 kHz playback on front panel | |
| The LINE OUT port on the rear panel does not support spatial audio | |

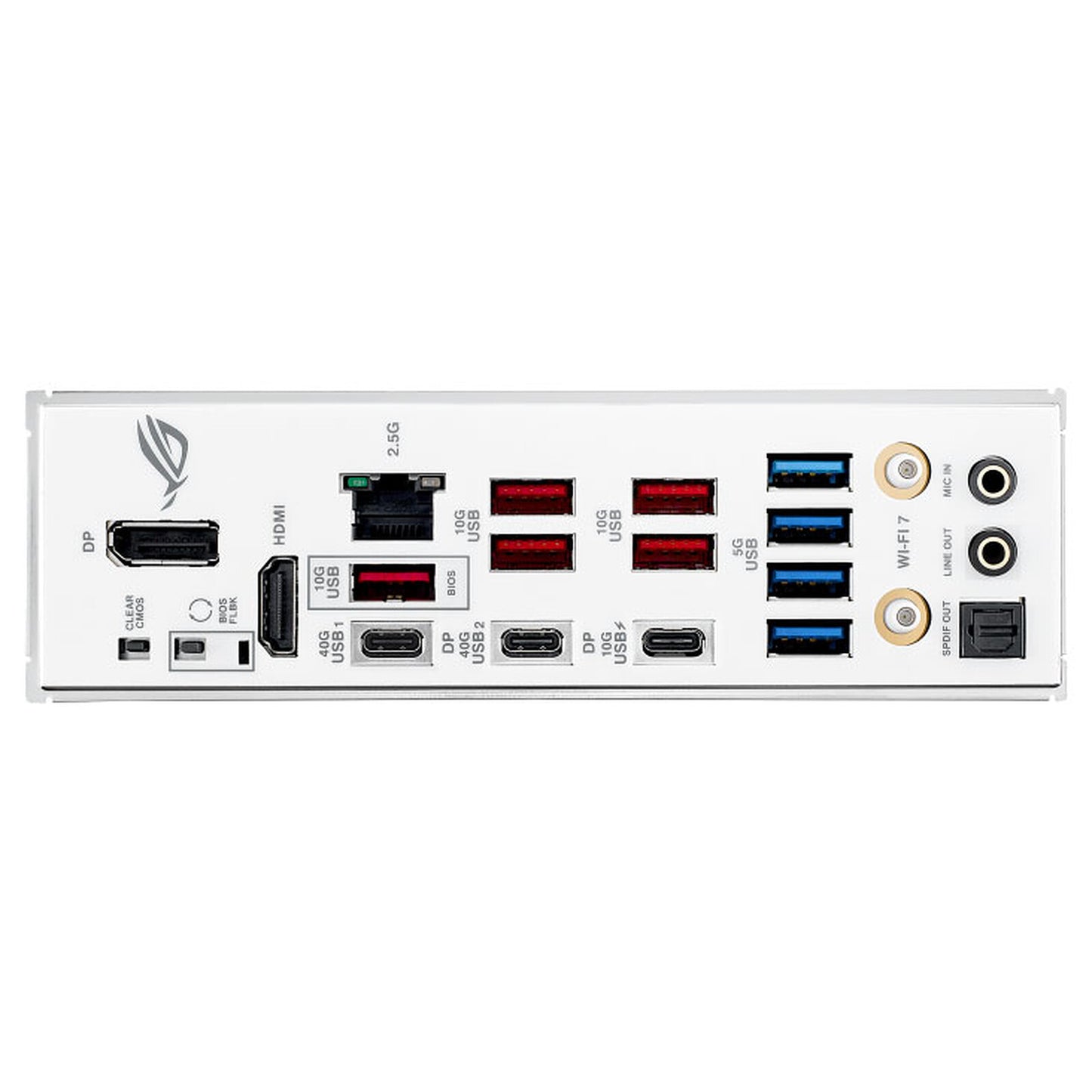

| Back Panel I/O Ports | 2 x USB4 (40Gbps) ports (2 x USB Type-C with DP Alt mode) |
| 6 x USB 10Gbps ports (5 x Type-A, 1 x USB Type-C with up to 30W PD Fast-charge)** | |
| 4 x USB 5Gbps ports (4 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI port | |
| 1 x Wi-Fi module | |
| 1 x Intel 2.5Gb Ethernet | |
| 2 x Audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS FlashBack button | |
| 1 x Clear CMOS button | |
| Internal I/O Connectors | Fan and Cooling Related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 5 x 4-pin Chassis Fan headers | |
| Power Related | 1 x 24-pin Main Power connector |
| 2 x 8-pin 12V CPU Power connectors | |
| Storage Related | 4 x M.2 slots (Key M) |
| 2 x SATA 6Gb/s ports | |
| USB | 1 x USB 20Gbps connector (supports USB Type-C) |
| 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Miscellaneous | 3 x Addressable Gen 2 headers |
| 1 x Alteration PCIe mode switch | |
| 1 x Chassis Intrusion header | |
| 1 x CPU Over voltage jumper | |
| 1 x Front Panel Audio header (F_AUDIO) | |
| 1 x Start button | |
| 1 x 10-1 pin System Panel header | |
| 1 x Thermal Sensor header | |
| Special Features | Extreme Engine Digi |
| 5K Black metallic capacitors | |
| ASUS Q-Design | M.2 Q-Latch |
| M.2 Q-Release | |
| M.2 Q-Slide | |
| PCIe Slot Q-Release Slim (with PCIe SafeSlot) | |
| Q-Antenna | |
| Q-DIMM | |
| Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| Q-Slot | |
| ASUS Thermal Solution | M.2 heatsink backplate |
| M.2 heatsink | |
| ASUS EZ DIY | BIOS FlashBack button |
| BIOS FlashBack LED | |
| Clear CMOS button | |
| ProCool II | |
| Pre-mounted I/O shield | |
| SafeSlot | |
| SafeDIMM | |
| Aura Sync | Addressable Gen 2 headers |
| Software Features | ROG Exclusive Software |
| ROG CPU-Z | |
| Dolby Atmos | |
| AIDA64 Extreme (60 days free trial) | |
| Aura Creator | |
| Aura Sync | |
| Fan Xpert 4 (with AI Cooling II) | |
| GameFirst | |
| HWiNFO | |
| Power Saving | |
| ASUS Driver Hub | |
| ASUS GlideX | |
| USB Wattage Watcher | |
| TurboV Core | |
| Adobe Creative Cloud (Free Trial) | |
| Norton 360 for Gamers (60 Days Free Trial) | |
| WinRAR (40 Days Free Trial) | |
| UEFI BIOS | AI Overclocking Guide |
| ASUS EZ DIY | |
| ASUS CrashFree BIOS 3 | |
| ASUS EZ Flash 3 | |
| ASUS UEFI BIOS EZ Mode | |
| ASUS MyHotkey | |
| Dynamic OC Switcher | |
| FlexKey | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA 6Gb/s cables |
| Additional Cooling Kit | 1 x Thermal pad for M.2 22110 |
| Miscellaneous | 1 x ASUS WiFi Q-Antenna |
| 1 x Cable ties package | |
| 1 x M.2 Q-Latch package | |
| 1 x M.2 Q-Slide package | |
| 1 x ROG key chain | |
| 1 x ROG Strix stickers | |
| 4 x M.2 rubber packages | |
| Documentation | 1 x Quick start guide |
| Operating System | Windows 11 |
| Form Factor | ATX Form Factor, 30.5 cm x 24.4 cm |
| Warranty Information | |
| Warranty | 3 Year Warranty |
