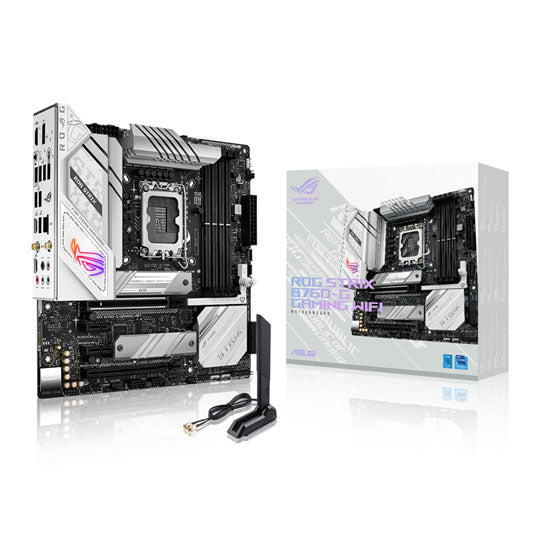

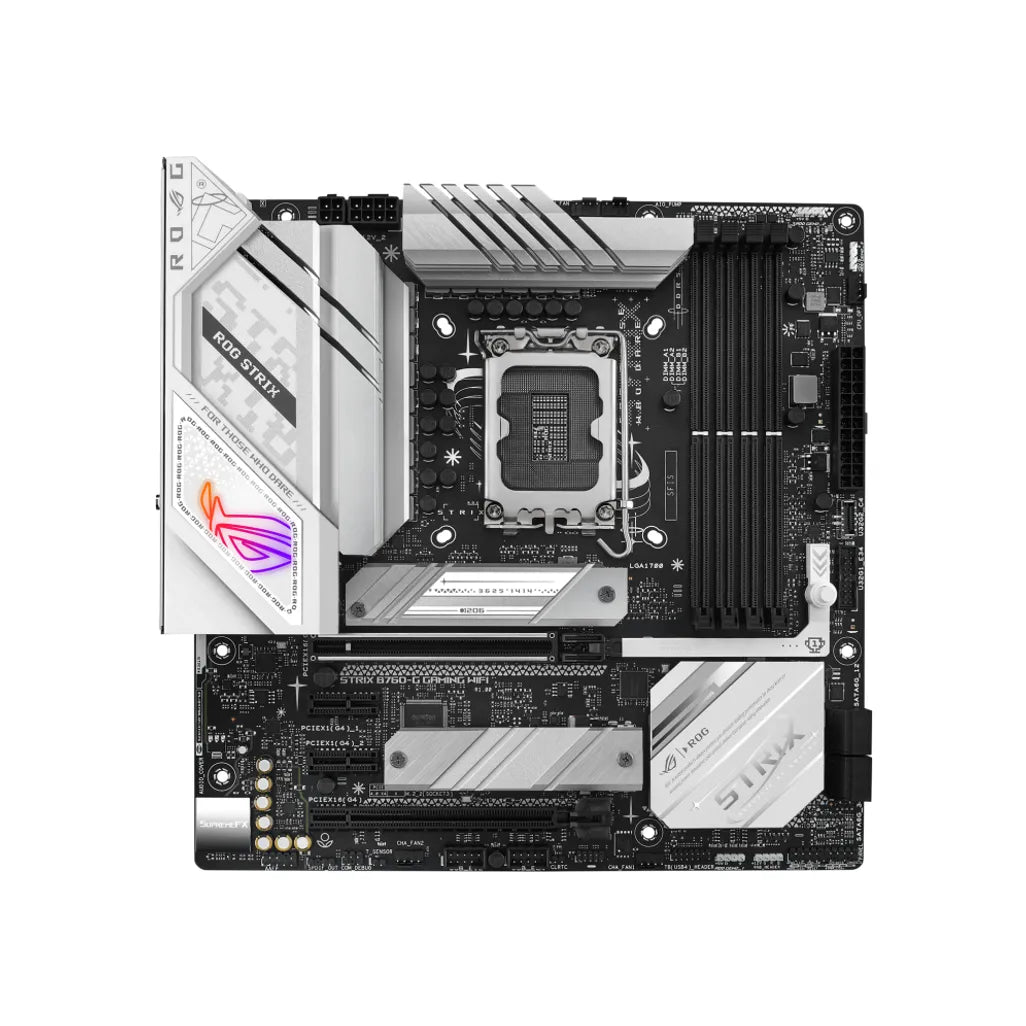

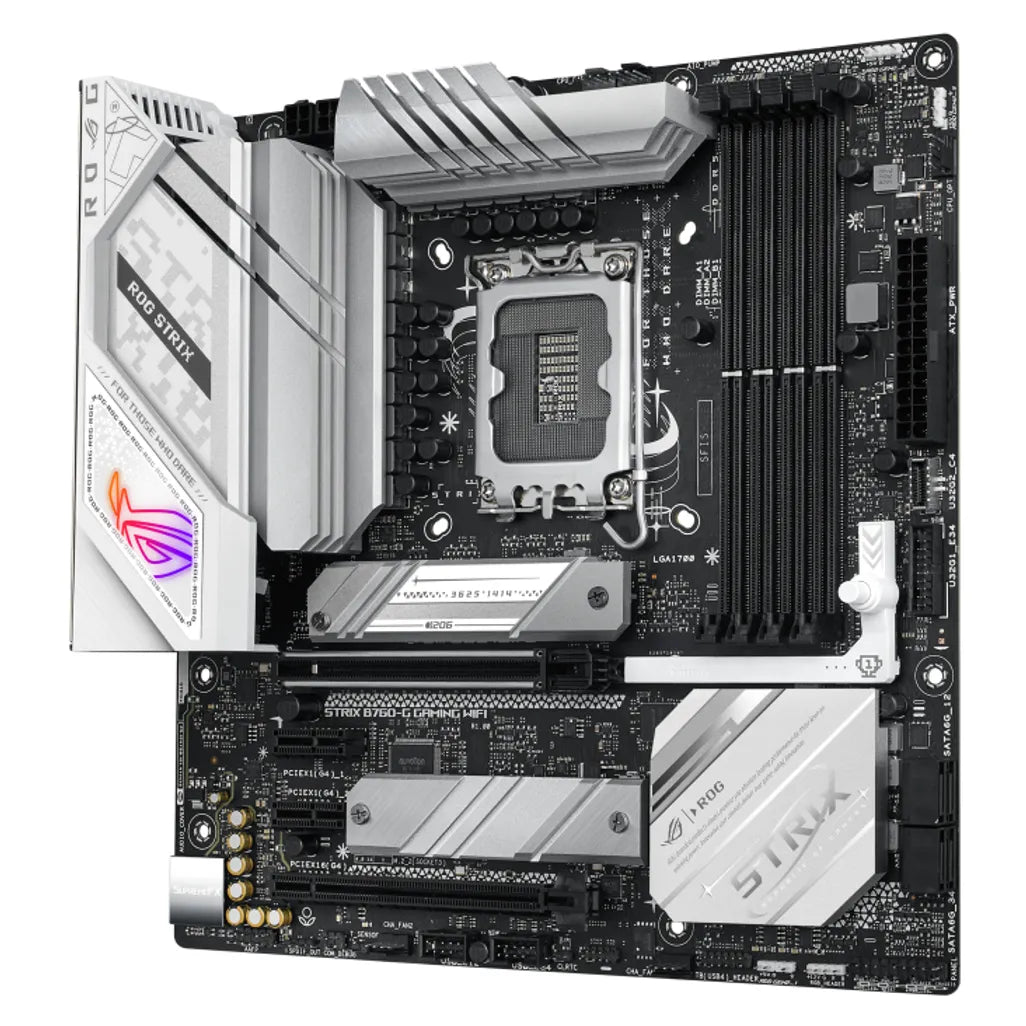

ASUS ROG STRIX B760-G GAMING WIFI DDR5 Intel B760 Raptor Lake LGA 1700 Micro-ATX Desktop Motherboard
ASUS ROG STRIX B760-G GAMING WIFI DDR5 Intel B760 Raptor Lake LGA 1700 Micro-ATX Desktop Motherboard
Regular price
R 5,549.00
Regular price
Sale price
R 5,549.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | ASUS |
| Series | ROG STRIX Series |
| Model | ROG STRIX B760-G GAMING WIFI (90MB1EQ0-M0EAY0) |
| CPU Support | Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel B760 Express |
| Memory Support | |
| Intel 13th Gen & 12th Gen Processors | 4x DIMM slots, Max. 192GB, DDR5 7800 (OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) 3.0 | |
| OptiMem II | |
| Video | |
| HDMI | 1x HDMI 2.1 port, supporting a maximum resolution of UHD 4K 3840x2160 @ 60Hz, Support for HDCP 2.3, and HDR |
| DisplayPort | 1x DisplayPort 1.4 port, supporting a maximum resolution of UHD 4K 3840x2160 @ 60Hz, Support for HDCP 2.3, and HDR |
| Expansion Slots | |
| CPU Direct | 1x PCIe 5.0 x16 Physical, x16 Electrical slot |
| Intel B760 Chipset | 1x PCIe 4.0 x16 Physical, x4 Electrical slot |
| 2x PCIe 4.0 x1 Physical, x1 Electrical slots | |
| Storage | |
| CPU Direct | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Intel B760 Chipset | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| 4x SATA 6Gb/s ports | |
| Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| Networking | |
| LAN | Realtek 2.5 Gigabit LAN 10/100/1000/2500Mbps, with ASUS LANGuard |
| WiFi | WiFi 6E 2x2 MIMO Tri-Band Adapter |
| Bluetooth | Bluetooth 5.3 |
| Audio | |
| Codec | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC |
| Impedance sense for front and rear headphone outputs | |
| Internal audio Amplifier for headphone and speakers | |
| Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) | |
| Supports up to 32-Bit/192 kHz playback (not supported for 7.1 surround) | |
| Audio Features | Savitech SV3H712 AMP with SupremeFX Shielding Technology |
| Premium audio capacitors | |
| Dedicated audio PCB layers | |
| Audio Cover | |
| Connectivity | |

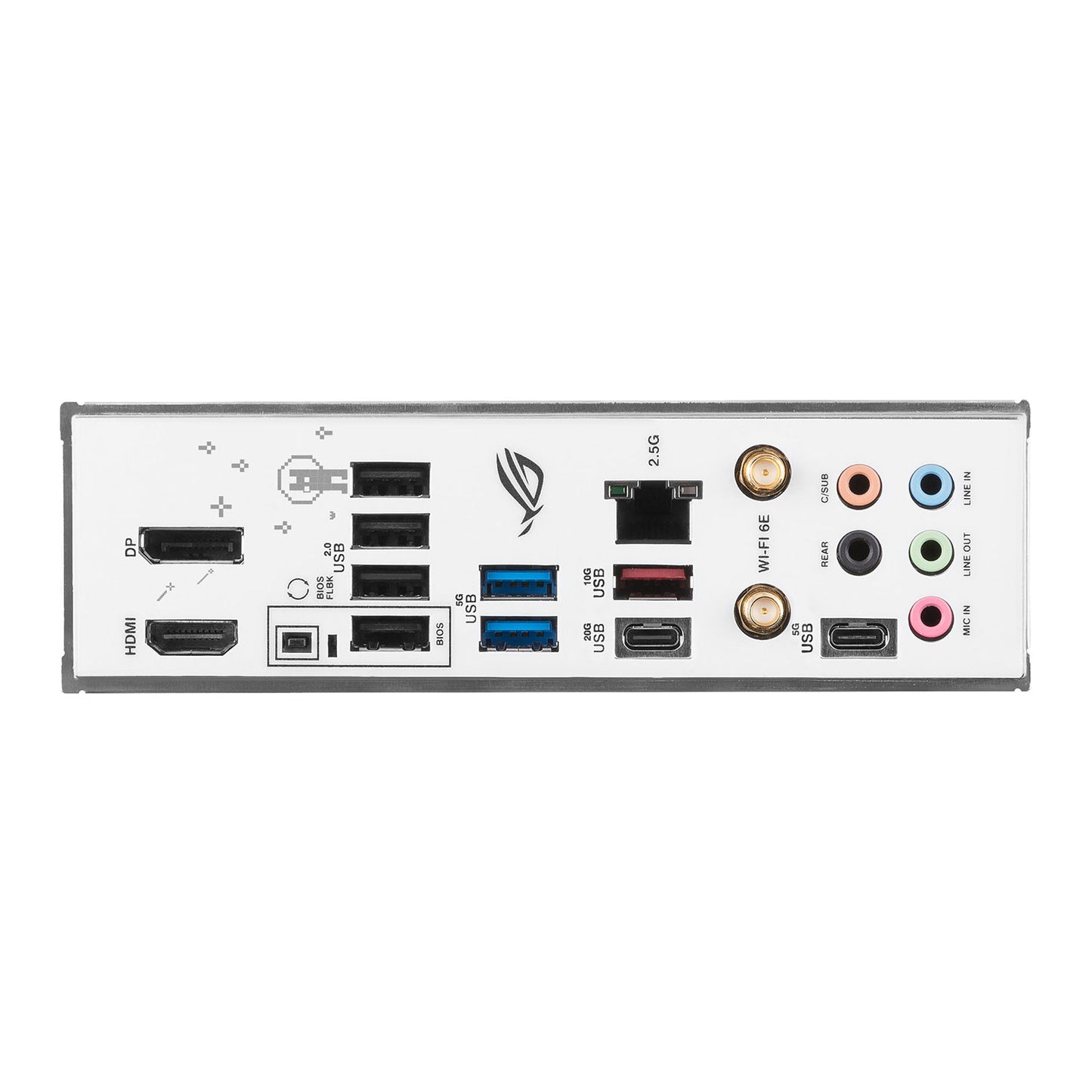

| Ports | 1x USB 20Gbps Type-C Port |
| 1x USB 10Gb/s Type-A Ports | |
| 2x USB 5Gb/s Type-A Ports | |
| 1x USB 5Gb/s Type-C Ports | |
| 4x USB 2.0 Type-A Ports | |
| 2x SMA Connectors | |
| 1x HDMI 2.1 Port | |
| 1x DisplayPort 1.4 Port | |
| 5x 3.5mm Audio Jacks (Support 7.1 Surround) | |
| 1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN | |
| General | |
| Internal Connectors | 1x 4-pin CPU Fan header |
| 1x 4-pin CPU OPT Fan header | |
| 1x 4-pin AIO Pump header | |
| 2x 4-pin Chassis Fan header(s) | |
| 1x 24-pin Main Power connector | |
| 1x 8-pin 12V Power connector | |
| 1x 4-pin 12V Power connector | |
| 2x M.2 slots (Key M) | |
| 4x SATA 6Gb/s ports | |
| 1x USB 3.2 Gen 2 connector (supports USB Type-C) | |
| 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2x USB 2.0 headers support additional 4 USB 2.0 ports | |
| 3x Addressable Gen 2 header(s) | |
| 1x AURA RGB header(s) | |
| 1x Clear CMOS header | |
| 1x Front Panel Audio header (AAFP) | |
| 1x S/PDIF Out header | |
| 1x 20-3 pin System Panel header with | |
| 1x Thermal Sensor header | |
| 1x Thunderbolt (USB4) header | |
| Buttons | BIOS FlashBack button with status LED |
| LED Displays | ASUS Q-LED Diagnostic LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Remote Management | WOL by PME, PXE |
| Form Factor | ATX Form Factor, 244 x 244 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Box Contents | 2x SATA 6Gb/s cables |
| 1x Thermal pad for M.2 | |
| 1x ASUS Wi-Fi moving antennas | |
| 1x Cable ties pack | |
| 1x Rubber Package(s) for M.2 | |
| 1x Q-Latch package(s) for M.2 | |
| 1x ROG key chain | |
| 1x ROG Strix stickers | |
| 1x ROG Strix thank you card | |
| 1x User manual | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
